Observing a servo-driven axis in a semiconductor cleanroom in [2026] reveals a critical mechanical challenge for industrial robot parts: securing the motor. If the motor mount flexes or allows even microscopic misalignment, the motor shaft and gearbox input will battle each other, generating destructive heat and audible chatter. This "silent killer" of robot longevity directly impacts the robot’s positional accuracy and the lifespan of expensive actuators. Mastering Robotic motor mount manufacturing requires absolute coaxial alignment, efficient heat dissipation, and uncompromising vibration resistance.
Precision is not simply about machining; it is about preventing the forces that degrade accuracy over millions of cycles. A motor mount is the critical interface between the robot’s prime mover and its motion reduction system. Any deviation in concentricity or parallelism causes premature bearing wear in both the motor and the gearbox, leading to increased power consumption and eventual catastrophic failure. Jucheng Precision addresses these critical interface challenges by utilizing high-rigidity CNC turn-mill centers and advanced stress-relief techniques.
Operating within the Shenzhen precision manufacturing hub, JUCHENG provides a "Bridge to Production" for robot OEMs targeting high-precision, high-duty-cycle applications. We transform high-strength aluminum billets into custom motor mounts that serve as the unyielding anchor for the robot's servo system. This guide explores the essential alignment standards, thermal management strategies, and vibration-proofing techniques required for manufacturing robot motor mounts that ensure unwavering performance and extended operational life.
content:
Achieving Coaxial Alignment: Preventing Gearbox Failure
Comparative Data: Mount Materials for Thermal Stability
Optimizing Heat Dissipation for High-Duty Motors
Resisting Vibration: Securing Mounts Against Loosening
JUCHENG: The Shenzhen Hub for High-Precision Motor Mounts
FAQ: Motor Mount Longevity for Autonomous Systems
Achieving Coaxial Alignment: Preventing Gearbox Failure

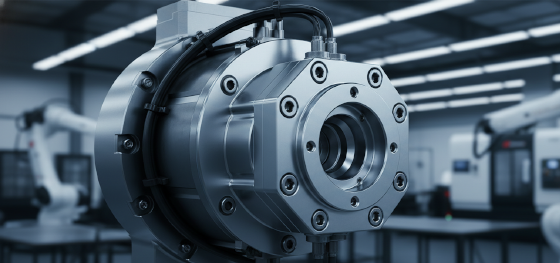

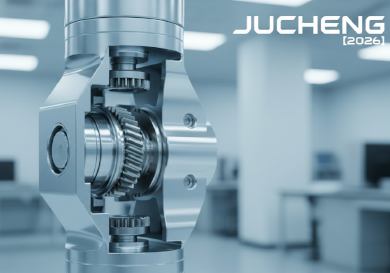

Concentricity between the motor shaft and the gearbox input is the most critical metric in Robotic motor mount manufacturing. Even a 0.01mm radial misalignment creates an eccentric load on the motor and gearbox bearings. This leads to premature wear, increased friction, and heat generation. JUCHENG utilizes precision CNC turning and milling to machine mounting faces and pilot diameters in a single setup, ensuring that all rotational axes are perfectly coaxial within 5 microns. This eliminates the "run-out" that can destroy expensive servo systems.
Parallelism of the mounting faces also determines stress distribution. If the motor mount has a slight "wedge" shape, torquing the bolts will induce bending moments into the motor shaft, causing it to run "hot" and potentially damaging the motor's internal encoder. JUCHENG employs advanced surface grinding and precision fly-cutting on our CNC mills to achieve flatness tolerances of 0.005mm per 100mm. This ensures that the motor mount provides a truly planar surface for the motor flange, distributing clamping forces evenly and eliminating localized stress concentrations.
Precision dowel pin holes provide the clocking accuracy required for repeatable motor installation. JUCHENG machines these locating holes with an H7 tolerance, ensuring a perfect slip-fit that eliminates rotational play. This means that if a motor needs to be replaced in the field, the new motor will automatically align itself to the exact same position as the old one, eliminating the need for complex recalibration of the industrial robot parts and significantly reducing robot downtime.
Surface finish on the mating faces is controlled to Ra 0.8 or better. A rough surface can lead to "fretting corrosion"—microscopic wear that creates fine metallic dust, which can contaminate nearby bearings. JUCHENG’s precision machining ensures a smooth, non-abrasive interface that maintains its integrity over millions of vibrational cycles, protecting both the motor mount and the expensive servo components it connects.
Comparative Data: Mount Materials for Thermal Stability

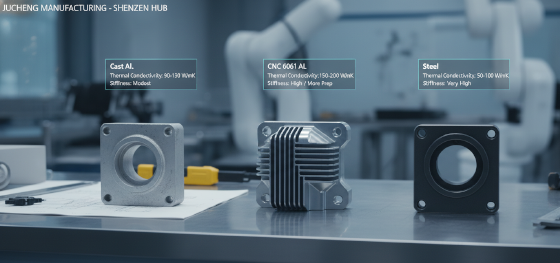

Selecting the right material for a motor mount involves balancing rigidity, thermal conductivity, and cost. High-duty-cycle servo motors generate significant heat, and the mount often doubles as a heat sink. Jucheng Precision provides technical consultations to help you navigate these metallurgical trade-offs. The following table compares common materials used in high-performance Robotic motor mount manufacturing for the [2026] market.
| Material Grade | Thermal Conductivity (W/m·K) | Yield Strength (MPa) | Primary Benefit |
| 6061-T6 Aluminum | 167 | 270 | High Thermal / Lightweight |
| 7075-T6 Aluminum | 130 | 500 - 540 | Max Rigidity / Lightweight |
| AISI 1045 Steel | 49.8 | 450 - 600 | High Stiffness / Cost-Eff. |
| Magnesium AZ91D | 72 | 160 | Ultra-Lightweight |
6061-T6 Aluminum is the preferred choice for motor mounts because it offers an excellent balance of strength, lightweight properties, and superior thermal conductivity. Its high thermal transfer rate allows the motor mount to act as an extended heat sink, drawing heat away from the motor body and dissipating it into the surrounding air. JUCHENG integrates complex cooling fin geometries directly into the CNC toolpath, maximizing the surface area for passive cooling and reducing the need for active fans, which can introduce dust and noise.
7075-T6 Aluminum is utilized when maximum stiffness-to-weight is paramount, such as in the J5 or J6 axes of a high-speed robot where inertia must be minimized. While its thermal conductivity is slightly lower than 6061, its significantly higher yield strength allows for thinner wall sections, resulting in a lighter and more rigid mount. JUCHENG’s "cold-cut" CNC machining strategies prevent thermal distortion during the milling of 7075, ensuring that the critical pilot diameters remain perfectly round for the motor.
Optimizing Heat Dissipation for High-Duty Motors

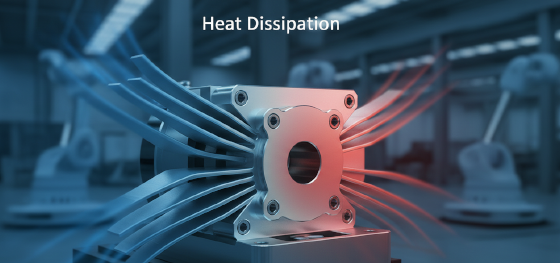

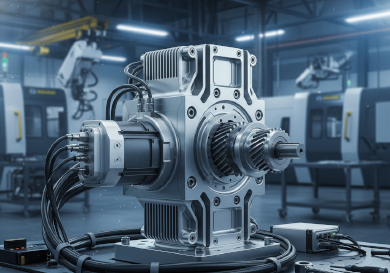

Heat generated by servo motors is a direct enemy of performance and longevity. Overheated motors suffer from "thermal throttling," where their output power is reduced to prevent damage. In Robotic motor mount manufacturing, the mount itself can be engineered to actively draw heat away from the motor. JUCHENG designs motor mounts with integrated cooling fins that increase the surface area for convective heat transfer. These fins are precisely machined using 5-axis CNC to optimize airflow and minimize thermal resistance.
Thermal interface material (TIM) placement is crucial for efficient heat transfer. JUCHENG often machines recessed pockets on the motor-facing side of the mount to accommodate high-performance TIMs (like thermal pastes or gap pads). These materials fill microscopic air gaps between the motor and the mount, ensuring a continuous thermal path and maximizing heat flow away from the motor windings. This attention to detail is critical for industrial robot parts that run 24/7 in non-climate-controlled factory environments.
Internal cooling channels can be integrated into the motor mount for liquid-cooled servo systems. For ultra-high-power robotic applications, passive air cooling is insufficient. JUCHENG utilizes deep-hole drilling and precision CNC milling to create complex internal fluid paths within the aluminum mount. This allows the OEM to circulate a liquid coolant around the motor's housing, maintaining a constant optimal operating temperature regardless of the load or ambient conditions. This level of advanced thermal engineering is what allows JUCHENG to support the most demanding automation projects in the laser processing and heavy-duty machining sectors.
Anodizing (Type III Hardcoat) provides more than just corrosion protection for aluminum motor mounts; it also enhances the surface emissivity for radiative cooling. The hard, porous oxide layer increases the surface area at a microscopic level, allowing the mount to shed heat more effectively. JUCHENG precisely controls the thickness of the anodized layer, ensuring that it does not interfere with the critical mounting tolerances while still providing superior thermal performance and a durable, aesthetically pleasing finish.
Resisting Vibration: Securing Mounts Against Loosening

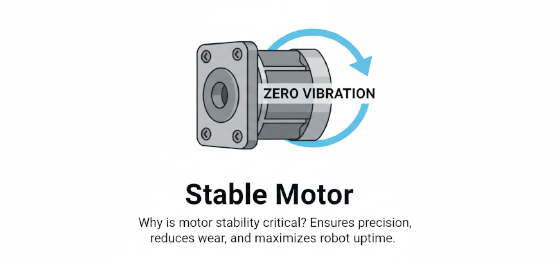

Vibrational fatigue is a primary cause of motor mount failure and positional drift. During millions of rapid acceleration/deceleration cycles, mounting bolts can slowly work loose, leading to catastrophic misalignment and encoder errors. JUCHENG’s Robotic motor mount manufacturing philosophy includes integrated vibration resistance. We machine mating surfaces to Ra 0.8 or better to maximize surface contact, which increases friction between the mount and the robot frame, preventing micro-slip.
Thread integrity is paramount. JUCHENG utilizes precision CNC tapping to produce Class 3B threads in all mounting holes. For critical applications, we often integrate hardened steel thread inserts (Helicoils) into aluminum mounts, providing superior pull-out strength that resists vibrational loosening. This ensures that the motor remains rigidly fixed to the robot frame, maintaining the precise geometric relationship required for repeatable motion.
Stress relief is applied between machining steps for complex motor mounts to prevent residual stresses from causing warpage. Large-volume material removal can release internal tensions in the alloy, leading to subtle dimensional changes. JUCHENG utilizes thermal stress relief (TSR) or vibrational stress relief (VSR) to "pre-condition" the material, ensuring that the mount remains perfectly flat and dimensionally stable throughout its service life, even under constant vibrational load.

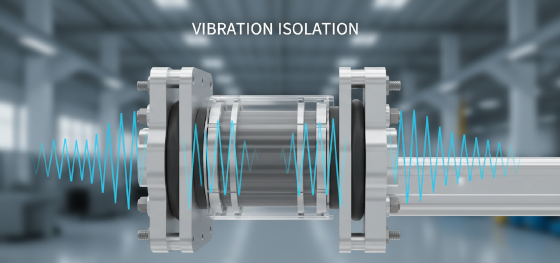

Dampening elements can also be integrated into the motor mount design. For applications where the motor itself is a significant source of high-frequency vibration, JUCHENG can machine recesses for elastomeric pads or isolation washers. These elements decouple the motor from the main robot frame, preventing the transmission of unwanted harmonics that could affect sensitive sensors or cause premature wear in adjacent components. This holistic approach ensures the longevity of the entire robotic system.
JUCHENG: The Shenzhen Hub for High-Precision Motor Mounts
Dominating the [2026] industrial automation market requires a manufacturing partner that can scale from prototype to massive fleet production without losing precision. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance motor mounts and structural industrial robot parts with lead times as fast as 12 business days. We provide a "Bridge to Production" that allows you to move from a single hand-fitted prototype to a commercial deployment of 1,000 units with consistent coaxial alignment and thermal performance.
Integrating your motor mount design with JUCHENG’s expertise ensures that your robot survives the "First-Million Cycle" test and moves into long-term adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential alignment risks or "thermal bottlenecks" in your mount design before they become field failures. Whether you are building a collaborative robot for delicate assembly or a heavy-duty robot for casting removal, Jucheng Precision provides the rigid, precise anchors that keep your innovation moving through the high-speed cycles and the years of hard labor.
Our facility is equipped with 150+ CNC machines, including the latest turn-mill centers and CMM inspection labs, allowing us to manage the entire motor mount lifecycle from raw billet to finished, verified assembly. We manage the complexity of micron-level machining so your engineering team can focus on the motion control algorithms and the AI. By combining Shenzhen's speed with industrial-grade material verification, JUCHENG remains the preferred partner for the world's most aggressive industrial robot parts challenges. Contact us today to start your next project.
FAQ: Motor Mount Longevity for Autonomous Systems
What is the ideal material for a thermally efficient motor mount?
6061-T6 Aluminum. Its high thermal conductivity allows the mount to act as a large heat sink.
How do you ensure motor mounts prevent vibration loosening?
We machine high-friction mating surfaces and use hardened steel thread inserts for superior bolt security.
Can JUCHENG machine liquid-cooling channels into mounts?
Yes. We use deep-hole drilling and precision CNC milling to integrate internal fluid paths for optimal thermal control.
What tolerance is required for motor pilot diameters?
Pilot diameters must be machined to a +/- 0.005mm tolerance to ensure perfect coaxial alignment with the gearbox.
What are typical lead times for custom motor mounts?
Precision-machined motor mounts are typically delivered in 10 to 15 business days.
Servo motor misalignment in industrial robotics is an absolute hardware killer. Partnering with Jucheng Precision ensures that your motor mounts are built with the micron-level coaxiality and specialized heat-dissipation techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the rigid foundation your autonomous fleet requires.
