Data-Driven Sovereignty: Mastering the scientific injection molding process

Artisanal guesswork kills profitability in high-volume production. In the uncompromising world of precision manufacturing, relying on the "gut feeling" of a machine operator is a strategy for failure. When the ambient temperature of a factory shifts by five degrees or the humidity of a resin batch fluctuates by two percent, the physical properties of the plastic melt transform. If the machine settings remain static, the resulting parts will drift out of tolerance, leading to catastrophic scrap rates and failed assembly audits. Navigating these volatile variables requires the strategic deployment of the scientific injection molding process. This methodology moves beyond simple machine setpoints and enters the domain of thermodynamic and rheological control. Jucheng Precision operates as a high-fidelity data center, utilizing sensor-driven logic to ensure that your Injection molding process is anchored in the laws of physics, not the traditions of the workshop. We don't just "mold parts"; we engineer a repeatable molecular event that delivers sub-micron consistency across every single unit in a fifty-thousand-part batch.

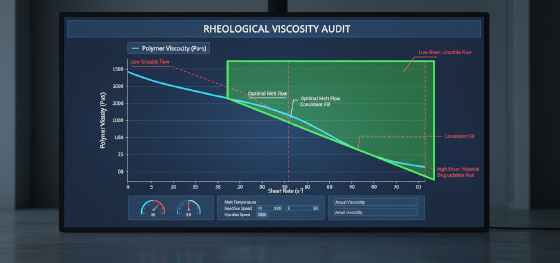

Establishing a stable manufacturing lifecycle begins with the rejection of the "Knob-Turning" culture. Amateurs attempt to fix defects like sink marks or flash by randomly adjusting pressures and temperatures, often triggering secondary failures in the process. Real solutions exist in the data—specifically the relationship between melt viscosity and shear rate. Jucheng Precision eliminates these "Biological Failures" by performing a surgical "Viscosity Study" on every new mold and material pairing. We identify the exact "Processing Window" where the polymer is most stable, ensuring that environmental shifts have zero impact on your part’s mechanical spine. This guide deconstructs the logic of decoupled molding, the importance of in-cavity feedback, and why JUCHENG’s "Scientific Protocol" is the mandatory foundation for anyone launching hardware in the medical, automotive, and aerospace sectors. We provide the manufacturing insurance needed to ensure your 10,000th part is a perfect digital twin of your 1st.

content:

Decoupled Sovereignty: Separating Velocity from Pressure

The Four Pillars: Temperature, Flow, Pressure, and Cooling

The 6-Sigma Window: Defining the Limit of Zero Defects

Surgical Monitoring: The Power of In-Cavity Pressure Sensors

JUCHENG Protocol: ISO 13485 and IATF 16949 Compliance

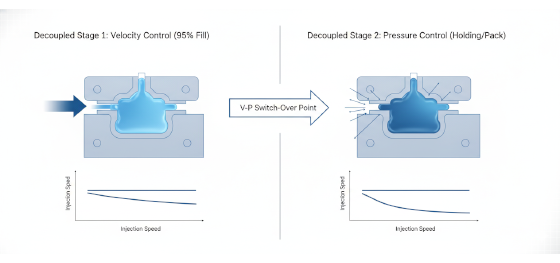

Decoupled Sovereignty: Separating Velocity from Pressure

Mechanical independence represents the core innovation of the scientific injection molding process. Traditional molding attempts to fill and pack a part in a single continuous stroke, making it impossible to diagnose where a defect originated. We utilize "Decoupled Molding" (specifically Decoupled II and III) to isolate the stages of the cycle. In the first stage, the machine operates under absolute velocity control to fill 95% to 98% of the cavity. The goal here is a short-shot; we want the plastic to reach the extremities without exerting excessive pressure on the steel. In the second stage, the machine switches instantly to pressure control (Packing and Holding) to finish the part and compensate for shrinkage. By decoupling these events, Jucheng Precision engineers can identify whether a dimensional error is a result of flow front velocity or insufficient packing force. This surgical isolation allows us to establish a robust process that ignores the "noise" of machine variation, providing the structural certainty required for Low Volume Injection Molding success.

The Four Pillars: Temperature, Flow, Pressure, and Cooling

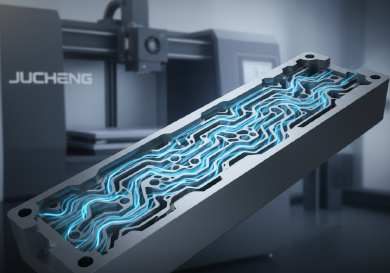

Molecular success is governed by the "Four Variables" that the plastic actually feels. The machine's barrel temperature and hydraulic pressure are mere inputs; what matters is the plastic's internal experience. Jucheng Precision monitors these four pillars with laboratory rigor. First, we manage "Plastic Temperature" to ensure the polymer chains are properly disentangled without being thermally degraded. Second, we calibrate "Plastic Flow" (Velocity) to manage shear heating. Third, we audit "Plastic Pressure" (Packing) to eliminate sink marks and internal voids. Finally, we optimize "Plastic Cooling" using conformal cooling injection molding technology to ensure every part hits its ejection temperature at the exact same second. We treat the Injection molding materials as living entities with specific rheological needs. By focusing on these four internal variables rather than superficial machine dial-settings, we deliver a process that is immune to the external variables of the factory floor.

The 6-Sigma Window: Defining the Limit of Zero Defects

Reliability is a byproduct of mathematical boundaries. A scientific injection molding process is only complete once the "Process Window" has been mapped. This involves intentionally pushing the machine to its high and low limits of pressure and temperature to see where defects—like flash or short shots—begin to appear. Jucheng Precision engineers perform a "Short-Shot Study" and a "Pressure-Drop Audit" to find the "Sweet Spot" in the middle of these extremes. We target a 6-Sigma window where even a 10% deviation in viscosity will not produce a defective part. Once this window is established, it is locked into the machine’s digital brain. Any cycle that drifts outside these boundaries is automatically flagged and the part is diverted to a scrap bin by our robotic arms. We don't "inspect quality into the parts"; we build a process so stable that quality is an inescapable result.

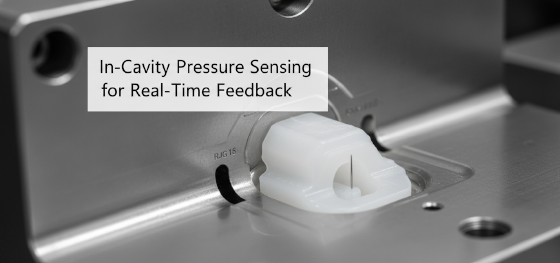

Surgical Monitoring: The Power of In-Cavity Pressure Sensors

Data sovereignty reaches its peak when the mold itself begins to "speak" to the operator. Jucheng Precision specializes in the integration of in-cavity pressure and temperature sensors (such as RJG eDART systems). In traditional prototype injection molding, the machine only knows what is happening at the nozzle. In our facility, we know exactly what is happening 50mm away from the furthest mounting boss. These sensors measure the "Transfer of Pressure" through the plastic. If a vent becomes slightly clogged, the sensor detects the resulting air-backpressure long before it causes a visible burn mark. This real-time metrology allows JUCHENG to perform a "Digital Signature" audit on every single shot. If the pressure curve doesn't match the master template, the cycle is aborted. This surgical monitoring is vital for medical devices and aerospace hardware, where a latent internal void is an unacceptable risk. We turn the "invisible flow" into a quantifiable data stream.

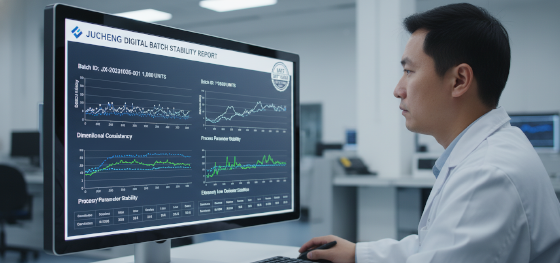

JUCHENG Protocol: ISO 13485 and IATF 16949 Compliance

Manufacturing excellence at Jucheng Precision is built on the foundation of single-source accountability. We recognize that for our clients in high-stakes industries, a part without data is just a liability. Our facility implement a rigorous "Validation Loop" for every scientific injection molding process, providing full material lot traceability and dimensional inspection reports for every batch. We utilize Coordinate Measuring Machines (CMM) and Spectrometers to verify that the resin chemistry and the part geometry are in absolute alignment with your STEP file. Stop gambling your project's success on shops that treat molding as a commodity. Leverage our decade of data-driven mastery to validate rapidly, certify confidently, and scale profitably. Contact our technical team today for a free DFM review and see how we can turn your digital intent into a structurally sovereign, physical reality that is backed by science.
