3D Printed CNC Machine Parts: Technical Guide to Hybrid Tooling

Rigidity is the traditional god of the machine shop, but flexibility is the new currency of speed. For decades, the CNC floor and the 3D printing lab existed in separate silos—one for heavy-duty production and the other for delicate mockups. That technical wall has been dismantled. In the modern landscape of high-precision manufacturing, 3d printed cnc machine parts have emerged as the primary enabler of complex subtractive logic. We are no longer limited to the flat planes of a standard steel vice or the high costs of custom-milled aluminum fixtures. By utilizing high-strength polymers to hold, guide, and protect metal workpieces, we are effectively using the agility of additive manufacturing to supercharge the raw power of the mill. This isn't just about saving material; it is about the aggressive reduction of setup times and the total elimination of surface damage on mission-critical hardware.

The strategic integration of 3d printed cnc machine parts allows a facility to react to a complex CAD file in hours rather than weeks. At JUCHENG, we don't view 3D printing as a standalone service; we treat it as a technical sub-system that supports our entire 5-axis CNC infrastructure. Whether it is a set of conformal soft jaws designed to wrap around an organic medical implant or a lightweight robotic gripper that accelerates a high-volume assembly line, the synergy between additive and subtractive defines our competitive edge. This guide explores the mechanical foundations of polymer workholding, the tactical role of physical path validation, and why JUCHENG’s integrated approach to 3D printing post processing ensures your parts are handled with the same technical reverence as the micron-level tolerances they demand.

Profitability in the workshop is won by minimizing the time the spindle is idle. If you are waiting six days for a toolroom to mill a custom fixture, you are losing the race to market. Let us break down the physical laws of hybrid manufacturing and see how technical foresight can turn 3D printed polymers into the structural backbone of your CNC production.

content:

Ergonomic Anchors: The Rise of Custom Soft Jaws

Path Validation: Printing the Physical Simulation

Robotic Synergy: End-of-Arm Tooling and Grippers

Structural Integrity: Managing Clamping Forces in Polymers

JUCHENG’s Hybrid Standard: Unified Process Planning

Ergonomic Anchors: The Rise of Custom Soft Jaws

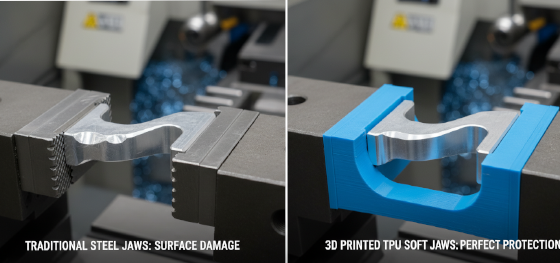

The most frequent encounter between 3D printing and the CNC mill happens in the vice. Traditional steel jaws are designed for "square" geometry—they use brute force and flat faces to secure a part. But modern aerospace and consumer electronics designs are rarely square; they are organic, curved, and often feature finished surfaces that cannot tolerate a single scratch. This is where 3d printed cnc machine parts provide a non-destructive alternative. We utilize high-strength MJF Nylon or "Tough" resins to print custom soft jaws that are the exact inverse of the part's geometry.

This "Conformal Grip" distributes the clamping force across the entire surface area of the part rather than concentrating it at a few pressure points. This is essential for thin-walled enclosures that would otherwise buckle or deform under the torque of a standard vice. Furthermore, by using softer polymers like TPU for the contact face, we can hold high-polish stainless steel or mirror-finished acrylic components with zero risk of surface marring. These fixtures are not just "holders"—they are accuracy stabilizers. Because the part is cradled in a geometry that matches its own, vibration is dramatically reduced, allowing for faster spindle speeds and superior surface finishes. At JUCHENG, we turn workholding into an engineered advantage, ensuring that the final stage of your part's manufacturing journey doesn't leave a single industrial footprint.

Path Validation: Printing the Physical Simulation

In the 5-axis milling world, a collision is a catastrophe. If a five-thousand-dollar diamond-tipped cutter strikes a ten-thousand-dollar piece of Inconel due to a programming error, the cost to the project is immense. Digital simulations can only go so far; they don't account for the "hand-feel" of tool clearance or the subtle physics of chip evacuation in a deep bore. Jucheng Precision uses 3d printed cnc machine parts as the ultimate physical "dry run." We often print a low-cost PLA or ABS version of a complex component before we ever touch a raw metal billet.

These "Sacrificial Masters" allow our machinists to verify the fixture fitment and the tool approach angles in the real world. If a tool holder comes within 1mm of the part’s wall during a complex rotation, the 3D printed model will show us exactly where the danger lies. This risk-management strategy is vital for high-value aerospace and defense projects where "Revision 1" must be perfect. By bridging the gap between the CAM screen and the physical machine enclosure, we eliminate the uncertainty of 5-axis motion. We don't just "hope" the code is right; we have already felt the tool path move against a printed replica. This level of technical oversight is why JUCHENG maintains a near-zero scrap rate on high-complexity alloy parts, providing our clients with the speed of a prototype shop and the security of an aerospace facility.

Robotic Synergy: End-of-Arm Tooling and Grippers

The efficiency of a modern factory is dictated by its automation. Robotic arms move parts between machining centers, cleaning tanks, and inspection stations at high speeds. The "fingers" of these robots—known as End-of-Arm Tooling (EOAT)—must be perfectly matched to the part’s geometry to ensure a reliable grip without causing damage. Traditionally, these grippers were milled from aluminum, which made them heavy and slow. 3d printed cnc machine parts have transformed this sector by allowing for radical lightweighting and "Topological Optimization."

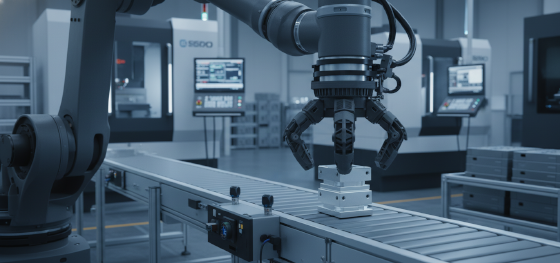

JUCHENG utilizes MJF technology to print functional grippers with integrated internal air channels for pneumatic suction. These parts are 60% lighter than their aluminum predecessors, allowing the robotic arm to move 20% faster while consuming less energy. Because the grippers can be custom-contoured to the specific part being machined, the risk of a part being dropped or misaligned on the next fixture is nearly zero. This synergy is a cornerstone of our high-volume automotive and electronics production lines. We use 3D printing to build the "infrastructure of speed," ensuring that the transition between subtractive cycles is as fluid as the cut itself. By engineering the interface between the part and the robot, we lock in a level of production consistency that manual shops simply cannot match.

Structural Integrity: Managing Clamping Forces in Polymers

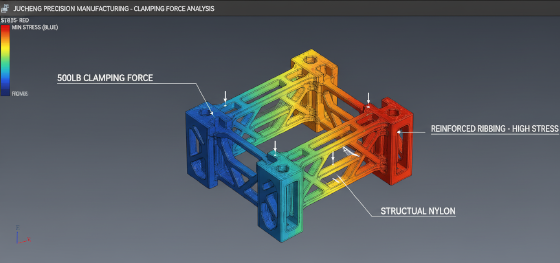

A persistent myth in manufacturing is that plastic is too weak to be used as a structural fixture. This is a misunderstanding of modern polymer science. When we design 3d printed cnc machine parts for workholding, we aren't just printing a solid block. We are engineering a structural lattice. At Jucheng Precision, our DFM team performs Finite Element Analysis (FEA) on our jigs and fixtures to ensure they can withstand the massive hydraulic clamping forces of our CNC machines.

We utilize reinforced materials like Glass-Filled Nylon (PA12-GF) or Carbon-Fiber PEEK to provide the stiffness required for heavy milling. These materials offer the compressive strength of soft metals with the damping characteristics of a polymer. This damping is a hidden technical advantage; a 3D printed fixture can actually absorb the high-frequency vibrations of a cut better than a steel fixture, leading to superior surface integrity on the workpiece. We also integrate "wear-inserts"—small steel or brass bushings pressed into the 3D printed part—at the points of highest friction. This hybrid "Metal-on-Plastic" engineering ensures that the fixture survives for thousands of cycles on the production floor while protecting the delicate geometry of your design. We treat the jig as a high-performance machine component, ensuring its structural soul is as optimized as the parts it produces.

JUCHENG’s Hybrid Standard: Unified Process Planning

The greatest risk in high-end manufacturing is the gap between the "Designer" and the "Maker." Jucheng Precision eliminates this gap by operating as a unified technical hub. We don't just "hit go" on a printer and a mill; we coordinate their physics. Our integrated approach to 3D printing post processing means that the same engineers who optimize your CAD file for a 5-axis mill are also the ones designing the 3D printed soft jaws that will hold it.

This "Unified Process Planning" is why JUCHENG can deliver complex, multi-functional parts with such high repeatability. We use 3D printing to create the "custom environment" needed for precision CNC success. We understand that a component is only as good as the stability it was born in. By owning the entire lifecycle—from material verification via spectrometer to the final CMM validation of the assembly—we ensure your designs are realized with absolute integrity. Whether you are building a revolutionary heart pump or a high-speed satellite housing, our hybrid protocols clarify and elevate your vision. We don't just make parts; we engineer the systems that make them perfect. Contact Jucheng Precision today for a comprehensive DFM review and see how our integrated additive and subtractive protocols can stabilize your next manufacturing breakthrough.
