ASA 3D Printing: The Technical Answer to Sunlight and Weathering

Sunlight is a slow poison for most polymers. In the competitive landscape of the 3d printing plastic industry, engineers often fall into the trap of using standard ABS for functional prototypes meant for field service. Within six months, those parts yellow, become brittle, and eventually shatter under the lightest mechanical load. This is the silent killer of outdoor innovation. To survive the relentless bombardment of ultraviolet radiation and extreme temperature cycles, a design requires a more sophisticated chemical bodyguard. This is the strategic sanctuary offered by asa 3d printing. Acrylonitrile Styrene Acrylate (ASA) is the "all-weather" evolution of ABS, engineered specifically to maintain its structural integrity and visual depth in the most hostile outdoor environments on Earth.

At JUCHENG, we treat weatherability as a hard engineering specification, not a marketing claim. We recognize that for an automotive exterior trim or a remote telecommunications housing, "mostly stable" is an unacceptable risk. We utilize industrial-grade FDM systems with fully enclosed thermal chambers to tame the high-shrinkage nature of ASA. By replacing the vulnerable rubber components of ABS with a more stable acrylate matrix, we provide our clients with parts that defy the aging process. This guide moves past the basic material sheets to explore the molecular mechanics of UV resistance, the thermal discipline required for large-format accuracy, and why JUCHENG’s integrated approach to finishing ensures your outdoor designs remain pristine for a decade, not just a season.

Efficiency in outdoor hardware is found in the removal of replacement cycles. When you build with a material that refuses to degrade under the sun, you lower the total cost of ownership for your end-users. Whether you are developing an autonomous agricultural sensor or a high-end architectural element, the logic of the acrylate bond is your greatest tactical advantage. Let us examine the technical pillars of industrial ASA and see how JUCHENG locks the survival of your most exposed designs into physical reality.

content:

Chemical Evolution: Why ASA Defies the Sun

Thermal Discipline: Managing Warpage in Large Enclosures

Tactical Durability: From Automotive Trim to Outdoor Signage

Aesthetic Mastery: Vapor Smoothing and Surface Quality

JUCHENG’s Quality Standard: Accelerated Weathering Validation

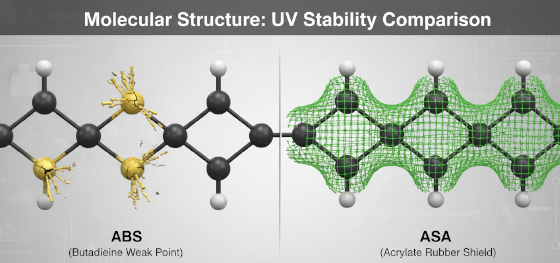

Chemical Evolution: Why ASA Defies the Sun

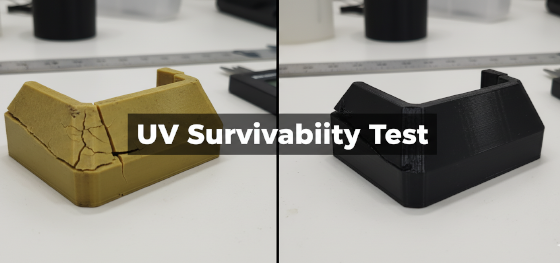

The secret to ASA’s performance lies in the fundamental replacement of a single chemical weak point. Standard ABS contains Butadiene rubber, which provides impact strength but acts as a target for UV radiation. When exposed to sunlight, the Butadiene bonds oxidize and snap, leading to the characteristic yellowing and surface embrittlement that ruins prototypes. ASA replaces this vulnerable rubber with an Acrylate rubber. This specific molecular switch creates an inherently UV-stable backbone that remains indifferent to solar bombardment.

At JUCHENG, we leverage this "Chemical Immunity" to build components that must survive in high-exposure zones like the Middle East or Australian coastlines. Beyond UV stability, ASA maintains a higher level of impact resistance over time compared to ABS. It retains its mechanical modulus even after hundreds of hours of thermal cycling between daytime heat and nighttime frost. This stability makes it the only logical choice for high-integrity 3d printing plastic parts in the commercial infrastructure and automotive sectors. We treat ASA as a technical upgrade that removes the "expiration date" from your plastic components, ensuring the mechanical strength you designed in the CAD lab is the strength that survives five years of desert sun.

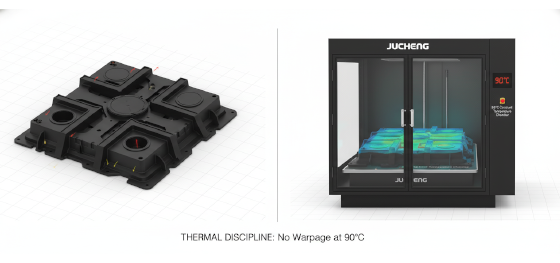

Thermal Discipline: Managing Warpage in Large Enclosures

ASA is a difficult material to tame. It possesses a high coefficient of thermal expansion, meaning it shrinks violently as it cools from its 260°C melt point. On a standard hobbyist machine, a large ASA part is a recipe for failure; the corners will warp, the layers will delaminate, and the part will physically tear itself apart due to internal stress. Successful asa 3d printing requires a facility that can maintain absolute "Thermal Sovereignty."

Jucheng Precision utilizes industrial-tier FDM centers equipped with actively heated build chambers. We maintain the ambient atmosphere around the part at a stabilized 90°C throughout the multi-day build cycle. This keeps the polymer chains in a relaxed state, allowing the layers to fuse at a molecular level without the "Z-axis weakness" that plagues open-frame prints. This environmental control is what enables us to deliver large-scale outdoor enclosures—up to 600mm in length—with a flatness and dimensional accuracy that rival injection molded parts. We don't just "hit go" on the machine; we orchestrate a cooling curve that locks the geometry into place, ensuring your mating features fit perfectly on the assembly line.

Tactical Durability: From Automotive Trim to Outdoor Signage

Where does ASA earn its keep? It is the mandatory standard for the automotive industry’s exterior components. We produce functional prototypes for mirror housings, radiator grilles, and sensor mounts that must undergo rigorous road-testing in diverse climates. Because ASA doesn't yellow or degrade, it provides the "Tactical Durability" needed for parts that are visible to the end consumer.

Beyond automotive, ASA is a staple for the telecommunications and agricultural sectors. We machine and print 5G base station covers and agricultural drone chassis that must survive constant exposure to pesticides, humidity, and direct sun. The material’s high chemical resistance to hydrocarbons and acids ensures that it won't soften when exposed to cleaning agents or engine oils. JUCHENG’s integrated 3d printing plastic workflow allows us to produce these complex, functional parts in as little as five days, enabling our clients to perform field trials and environmental audits with production-grade hardware. By selecting ASA, you are building for the real world, ensuring your brand’s quality is represented by parts that look as good on day 1000 as they did on day one.

Aesthetic Mastery: Vapor Smoothing and Surface Quality

A raw 3D print is often a liability for premium brands. The visible layer lines of an FDM part scream "prototype." This is where ASA offers a secondary engineering advantage: its incredible receptivity to post-processing. Like ABS, ASA is soluble in certain chemical vapors. At Jucheng Precision, we utilize automated Vapor Smoothing to transform a raw, matte print into a glass-smooth masterpiece. This process melts the microscopic peaks of the layers, creating a sealed, high-gloss "skin" that is virtually indistinguishable from an injection molded surface.

Vapor smoothing is not just about aesthetics; it increases the part's mechanical strength and hygiene. By sealing the surface pores, we make the part waterproof and resistant to bacterial adhesion—a critical factor for outdoor medical sensors or food-processing equipment. JUCHENG also offers high-end painting and silk-screening on ASA parts. Because the material is chemically stable, paints bond tenaciously to the surface without peeling. We can match any RAL or Pantone color, allowing you to deliver functional prototypes that meet your marketing team's visual standards while satisfying your engineering team's survival requirements. We don't just ship prints; we deliver finished, production-ready aesthetic solutions.

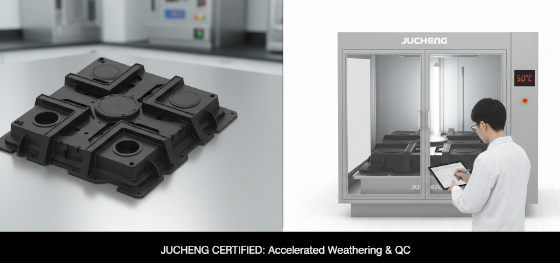

JUCHENG’s Quality Standard: Accelerated Weathering Validation

Choosing a partner for asa 3d printing is a move of technical trust. You are trusting that the "UV Stability" isn't just a line on a datasheet. Jucheng Precision eliminates this uncertainty through a rigorous verification framework. We don't just print the part; we audit its environment. Our quality control lab is equipped with Xenon Arc weathering chambers that simulate years of intense solar exposure in a matter of weeks. We test our ASA batches for color fastness and impact retention, providing our clients with the empirical data needed for IATF 16949 and aerospace compliance.

When you receive a shipment from JUCHENG, you aren't just getting metal and plastic; you are getting the benefit of a diversified manufacturing hub that understands the lifecycle of your product. We bridge the gap between design theory and real-world industrial assembly. Whether you are building an innovative heart pump (in PEEK) or a ruggedized outdoor sensor (in ASA), our expertise ensures your vision is delivered with absolute precision and durability. Contact our engineering team today for a technical DFM review and let our material protocols armor your next breakthrough.
