Designing custom enclosures, robotic chassis, or medical device carts is a process of balancing complex spatial constraints. Specifying custom fabricated sheet metal assemblies provides your hardware with the exact physical envelope, thermal ventilation arrays, and structural mounting coordinates required to house delicate electronic systems safely. This advanced mechanical integration represents a critical milestone in custom sheet metal fabrication, directly determining whether your product launch remains highly profitable or stalls under heavy development costs.
Suffer from standard, off-the-shelf plastic or metal boxes that fail to protect your internal components from liquid splashes, environmental dust, or electromagnetic noise? Forcing your high-value PCBs into rigid standard enclosures requires tedious, manual modifications that slow down assembly speeds and compromise aesthetic value. Moving to a tailored, cold-worked sheet metal strategy provides complete design freedom, ensuring that your external housing integrates seamlessly with your internal electrical components.
Let's explore why standard catalog enclosures fall short in modern applications, explore how rapid prototyping allows you to test geometries quickly, and review the structural advantages of combining exotic materials under one roof.
Why Standard Enclosures Don't Always Work
What are the primary functional limitations of standard, off-the-shelf electronic enclosures?
Standard enclosures lack material-specific electromagnetic shielding, custom thermal venting slots, and direct PCB mounting standoff holes, requiring expensive secondary machining.

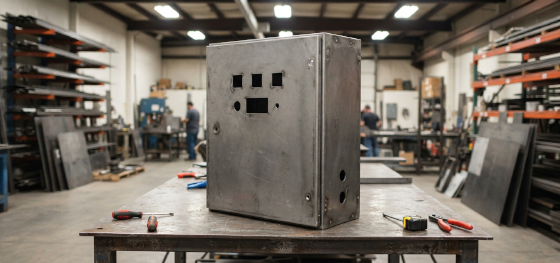

While purchasing ready-made plastic or steel boxes is cheap for hobbyist builds, they present massive bottlenecks for commercial hardware projects. Standard enclosures rarely align with your specific port locations, forcing engineers to run secondary milling operations to create connector cutouts. This double-handling slows down your lead times and introduces high risk of cosmetic scratching.

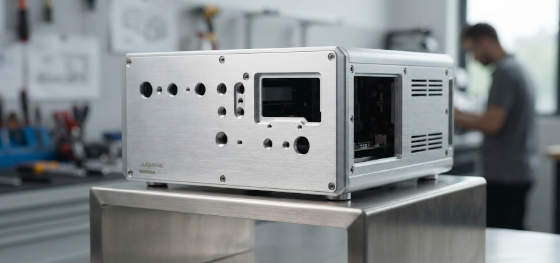

Additionally, standard enclosures cannot provide integrated thermal management. High-power components inside the cabinet produce thermal energy that must be dissipated to prevent processor throttling. Custom assemblies allow you to design downward-oriented louver vents or high-density perforated patterns directly into the sheet panels, establishing active air-intake pathways that protect internal systems.
Prototyping Your Custom Assembly Design
How do product developers validate custom multi-panel assemblies before mass production?
We execute software-driven rapid prototyping to cut flat blanks and bend flanges without expensive custom tooling, allowing for immediate geometric adjustments.
Before committing significant capital to mass production, validating your physical part geometry on physical test units is essential. Our rapid prototyping cell utilizes high-power fiber lasers and CNC press brakes to slice and fold custom parts directly from your CAD profiles. This software-driven process bypasses the need for custom stamping dies, keeping initial test costs exceptionally low.

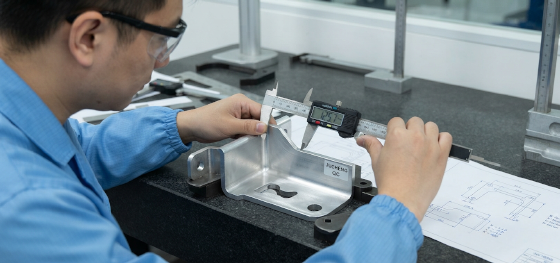

This hands-on prototyping phase allows designers to verify actual material behavior, check for flange-to-edge clearances, and run physical fitment tests. If a mounting hole is misaligned by a fraction of a millimeter, we can correct the digital flat pattern instantly. This iterative loop ensures that your parts are fully optimized for low-volume manufacturing, transitioning seamlessly from prototypes to production-ready hardware.
Working with Exotic Materials and Complex Geometries
What metallurgical challenges arise when joining exotic materials like copper and titanium?
Exotic metals exhibit extreme optical reflectivity and high thermal conductivity, requiring advanced fiber lasers for cutting and certified inert-gas welding to prevent structural brittleness.
Integrating exotic materials into your product assemblies provides elite levels of performance. For high-voltage power distribution blocks, we process high-purity copper busbars to maximize electrical conductivity; for aerospace frameworks, we fabricate lightweight titanium brackets to achieve an ultimate strength-to-weight ratio.

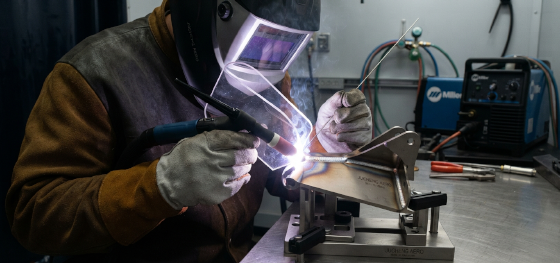

However, processing these metals requires advanced equipment. Reflected laser beams from copper can burn out standard CO2 lasers, so we utilize high-power fiber lasers to slice highly reflective metals safely. Furthermore, titanium absorbs atmospheric oxygen at high welding temperatures, causing extreme embrittlement. We execute TIG welding under pure argon gas trailing shields, ensuring that your joined panels remain structurally solid and ready for environmental service.
Bring Your Custom CAD Designs to Jucheng Precision
How does Jucheng Precision support custom projects from initial drawings to final assembly?

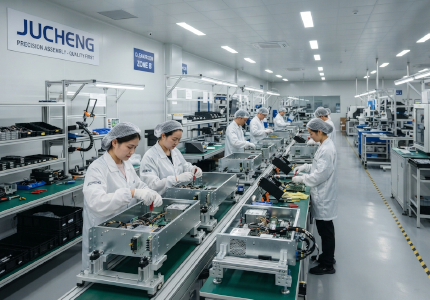

We operate high-power fiber lasers, advanced CNC press brakes, and automated assembly bays under a unified quality system, checking all tolerances.

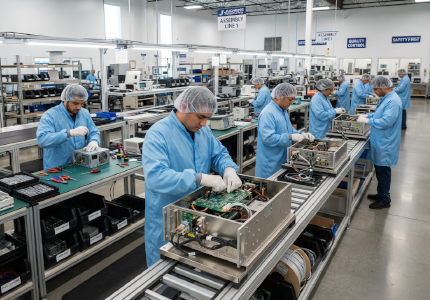

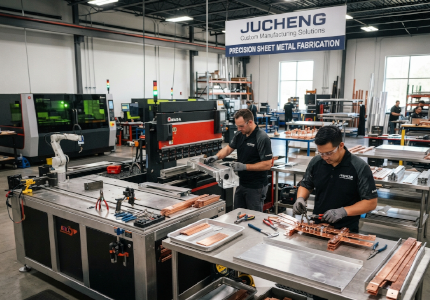

Integrating these protective prep steps, precise bends, and joint setups into your early sheet metal design cycle is the single most effective way to eliminate assembly bottlenecks. Jucheng Precision houses these advanced automated benders, laser cutters, and assembly lines inside our 8000-square-meter facility, ensuring that your custom fabricated sheet metal assemblies are cut, folded, painted, and completely integrated under one roof with extreme quality control.
We process a wide range of materials, including lightweight aluminum, high-yield stainless steel, and easily formable carbon steel during high-precision sheet metal fabrication cycles. Our technical department provides a 24-hour free DFM analysis to check your CAD models, checking tolerances and hinge clearances before production. Supported by our no MOQ policy and rapid delivery guarantee, we manage your project from initial flat pattern cutting to final, high-durability powder coating and assembly.
FAQ: Critical Questions About Custom Fabricated Sheet Metal Assemblies
Our engineering team has compiled professional solutions to the most common quality and cost challenges faced by product developers:
Can Jucheng Precision fabricate custom assemblies directly from our 3D CAD files?
Yes, absolutely. We accept direct 3D solid models in STEP, IGES, or DXF formats. Our automated DFM software parses your file to generate flat pattern unfolding profiles, calculating exact bend allowances and K-factors relative to our active press brakes to ensure flawless cutting and bending.How do you prevent galvanic corrosion when joining aluminum and stainless steel?
Galvanic corrosion occurs when two electrochemically different metals contact each other in a damp environment. To prevent this, we utilize zinc-plated fasteners, insert non-conductive nylon washers, or apply protective chemical conversion films to physically isolate the aluminum from the stainless steel.Why is a custom-designed assembly fixture critical for low-volume production?
Manual assembly is highly prone to positioning errors and cumulative tolerance stack-ups. Designing custom, high-precision assembly fixtures to physically clamp separate parts in place during riveting or welding ensures that every finished box-build matches your strict specifications with extreme repeatability.How does Jucheng Precision guarantee the structural integrity of custom fabricated sheet metal assemblies?
We operate an ISO 13485 and IATF 16949 certified facility, running advanced coordinate measuring machines (CMM) to inspect dimensional tolerances at multiple points. Our quality control team conducts full mechanical testing and visual audits, ensuring every custom enclosure assembly complies with your strict technical requirements.
