The quality of a die cast part is not determined when the molten metal is injected. It is not determined when the die is built. It is determined months earlier, on a computer screen, by you.
The vast majority of Die Casting defects—porosity, warping, cracks—are not manufacturing errors. They are design errors. They are tiny, hidden flaws in the CAD model that are destined to become expensive, physical problems.
But there is good news. These problems are almost entirely preventable. The art and science of preventing them is called Design for Manufacturability, or DFM. A good Die casting design is a good DFM design. This guide will walk you through its most important rules.

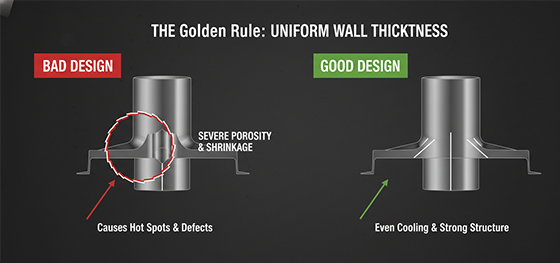

If you remember only one rule, let it be this one. A good die cast part has walls that are all the same thickness, or as close to it as possible.
Why is this so important? Because molten metal shrinks as it cools. A thick section will cool much slower than a thin section. This creates two huge problems. First, the slow-cooling thick section will pull on the faster-cooling thin section, causing the entire part to warp and distort.
Second, and more dangerous, is porosity. As the outside of a thick section solidifies first, it creates a sealed shell. The molten metal inside continues to shrink as it cools, creating a vacuum. This vacuum pulls in dissolved gases, forming a hidden, spongy void of gas bubbles inside the part. This porosity is a massive weak spot that can cause the part to fail under load.
A good designer aims for a wall thickness between 2mm and 5mm for aluminum parts and keeps it consistent. If you need more strength, use a network of thin ribs instead of one thick wall.
The Law of Release: Generous Draft Angles
The second most important rule is the law of release. A metal part must be able to get out of its steel die cleanly.
As the molten metal cools, it shrinks and grips tightly onto the core of the die. If your part's walls are perfectly vertical, there is a huge amount of friction when the ejector pins try to push it off.
This can cause ugly "drag marks" or deep scratches on your part's surface. In a worst-case scenario, the part can get completely stuck, damaging the part and potentially the expensive die itself.
The solution is a "draft angle." This means adding a generous taper, typically 1 to 3 degrees, to all walls parallel to the die opening. This tiny angle ensures that the moment the part starts to eject, it immediately breaks contact with the die wall. This guarantees a smooth, clean release and a perfect surface.

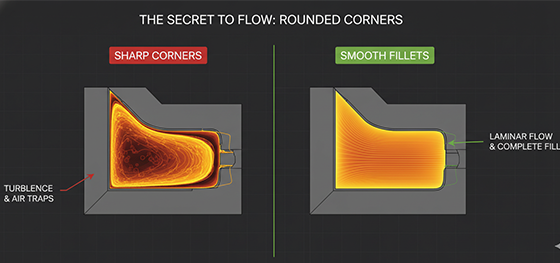

The Secret to Flow: Rounded Corners
Molten metal does not like to flow into sharp corners. It is a fundamental law of fluid dynamics.
When high-speed liquid metal hits a sharp internal corner in the die, it can create turbulence. This turbulence can trap air, leading to porosity. A sharp corner is also a point of stress concentration, both in the final part and in the steel die itself. This can cause the part to crack under load, or even cause the expensive die to fail prematurely.
The solution is simple: use generous fillets and radii. Rounding all internal and external corners is a critical part of a good Die casting design. It helps the metal flow smoothly and gently throughout the mold. It makes the final part stronger. And it significantly increases the lifespan of the production die.
Your First Line of Defense: The DFM Partner
These rules sound simple. But applying them to a complex, real-world part can be very tricky. This is why the partnership with your manufacturer is your most powerful tool.
A simple foundry will just take your file. If your design has a flaw that will cause porosity, they will produce a porous part. The problem is now your problem.
A true manufacturing partner, like JUCHENG, acts as your first line of defense. Our Free DFM Analysis is a core part of our process. Our experienced die casting engineers will analyze your part for uniform wall thickness, proper draft angles, and hundreds of other potential issues.
We use advanced mold flow simulation software to predict exactly how the metal will flow. We can see where porosity might form. We can optimize the gating and overflow design to prevent it. This collaborative process is the key to preventing defects before they are ever created in steel. It is your ultimate guarantee of a successful product.
