Your metal part is ready for mass production. You need thousands of identical, high-quality pieces. CNC machining is too slow and expensive at this scale. What is the next step?
The answer for high-volume metal part production is a process of incredible speed and precision: Die Casting. But choosing a die casting partner involves a critical question. Do you want a simple foundry that just gives you a raw part? Or do you need a true manufacturing partner who can handle the entire journey, from mold making to final finishing?
This guide will explain the entire die casting ecosystem from the perspective of a one-stop-shop manufacturer. We will explore how an integrated approach, combining in-house tooling, advanced casting, and precision CNC machining, is the key to a successful product launch.
content:

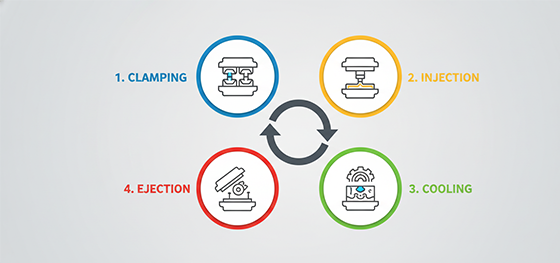

The Die Casting Process Explained
The Die casting process is a high-speed manufacturing cycle that can produce complex metal parts with incredible speed. It is similar in concept to plastic injection molding, but for metals. A reusable, hardened steel mold, known as a "die," is created. Molten metal is then forced into this die under high pressure.
The basic cycle consists of four stages. First, the two halves of the die are sprayed with a lubricant and clamped shut with immense force. Second, a precise amount of molten metal is injected into the die cavity at high speed and pressure. Third, the part cools and solidifies inside the die. Finally, the die opens and the finished metal part is ejected. This entire cycle can be as short as a few seconds for small parts.

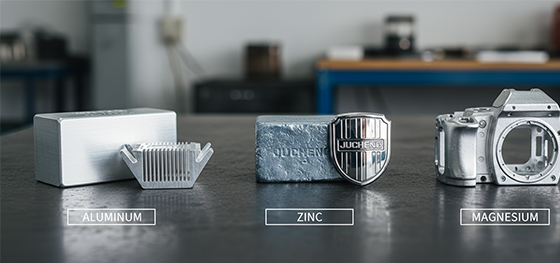

Choosing Your Die Casting Material
Not all metals are suitable for die casting. The process is limited to non-ferrous alloys with relatively low melting points. The most common choices for a diecast material are aluminum, zinc, and magnesium.
Aluminum alloys, like A380 and ADC12, are the most popular. They offer a fantastic combination of light weight, good strength, and excellent thermal conductivity. This makes them ideal for parts like electronic enclosures and LED heat sinks.
Zinc alloys, like Zamak 3, have a lower melting point and are very fluid. This allows them to be cast into parts with extremely thin walls and very fine details. They also have a beautiful as-cast finish and are very easy to plate.
Magnesium is the lightest of all structural metals. It is used when minimizing weight is the absolute number one priority, such as in high-end laptop cases or aerospace components. At JUCHENG, we use a spectrometer to verify the chemical composition of every batch of metal, ensuring your parts are made from the exact alloy you specified.

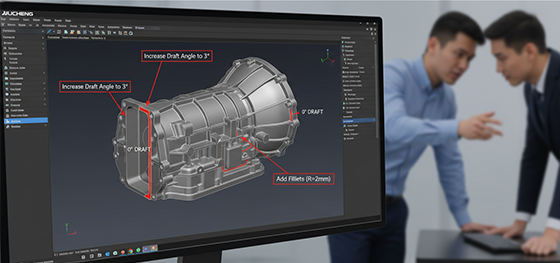

Critical Design for Manufacturability (DFM)
A successful part starts with a good design. A successful die cast part starts with a good Die casting design. Like injection molding, this process has specific rules that must be followed to ensure a high-quality outcome.

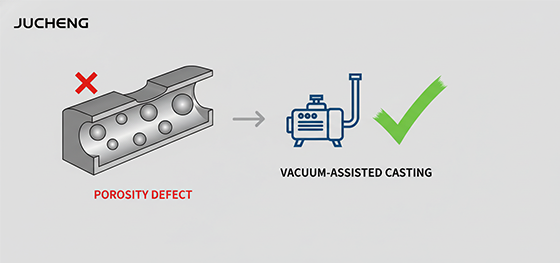

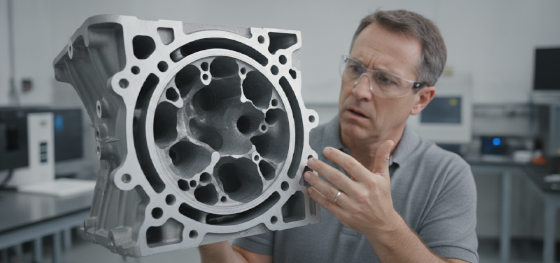

The most important rule is the draft angle. All walls parallel to the die opening must have a slight taper (1 to 3 degrees) to allow the part to be ejected without being damaged. Uniform wall thickness is also key to prevent porosity and ensure the metal cools evenly. And adding generous fillets (rounded corners) to all internal and external edges helps the molten metal flow more smoothly and increases the life of the expensive die.
This is where an expert partner adds immense value. JUCHENG's Free DFM Analysis is a critical step. Our engineers review your design for these key features. We also use flow simulation software to optimize the location of the "gates" (where metal enters) and "overflows" (which trap cold metal and gas). This prevents many common defects before your expensive tool is ever made.
A Strategic Look at Die Casting Costs
The die cast cost follows the same model as injection molding. There is a very high upfront cost for the mold, and a very low price per part.
A production die casting mold is a serious investment. It is made from high-grade hardened tool steel (like H13) to withstand the thermal shock of the molten metal. A well-made mold can last for over 100,000 cycles.

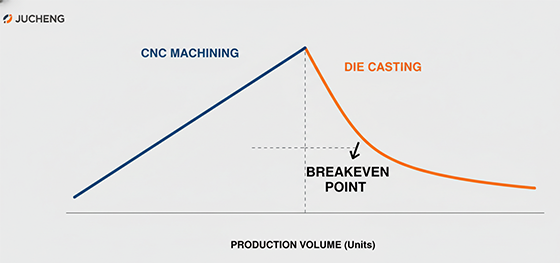

Because of this high initial investment, die casting only becomes cost-effective at higher volumes. The "breakeven point" where die casting becomes cheaper than CNC machining is typically around 500 to 2,000 pieces, depending on the part's complexity. For startups and lower volume projects, JUCHENG offers prototype or "soft" tooling options. These are simpler, lower-cost molds designed for a few hundred to a few thousand parts, providing a perfect bridge to mass production.
Tolerances: The JUCHENG Advantage (Casting + CNC)

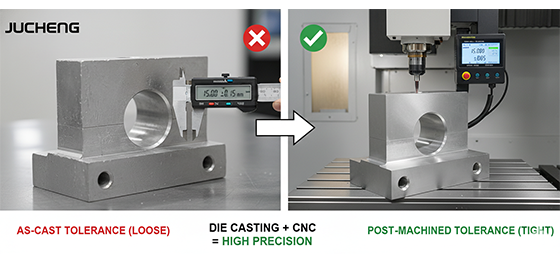

This is where a one-stop-shop partner truly shines. It is critical to understand the two levels of Die casting tolerances.
The first level is "as-cast" tolerances. A raw die cast part is dimensionally accurate, but it is not perfect. It will have some variability. These standard tolerances are often not tight enough for features like bearing bores or precision mating surfaces.

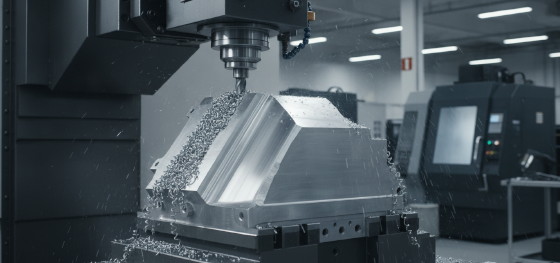

This is where the second level comes in: "post-machined" tolerances. This is JUCHENG's core advantage. A standard foundry gives you the raw part, and you have to find a separate machine shop to fix it. We are different. With our 150+ CNC machines, we take the as-cast part and perform critical secondary machining operations in-house. We can CNC mill a bearing bore to a tolerance of +/- 0.01mm. We can drill and tap perfectly located holes.
This hybrid process of Die casting vs CNC machining is not a competition; it's a partnership. We use casting for the overall shape to save cost, and we use CNC for the critical features to guarantee precision. This integrated approach is something very few companies can offer.
Choosing the Right Surface Finish
The raw die casting surface finish is generally smooth. But for cosmetic or protective purposes, a secondary finish is almost always needed.
It is critical to know that die cast aluminum alloys are a poor choice for decorative anodizing. The high silicon content in the alloy causes a splotchy, uneven color.
The best and most recommended finishes for aluminum die castings are Powder Coating and Wet Painting. These provide a durable, protective, and beautiful cosmetic layer in any color. For zinc die castings, the options are even better. Zinc is an excellent base for a variety of plated finishes, including a brilliant, mirror-like chrome plating.

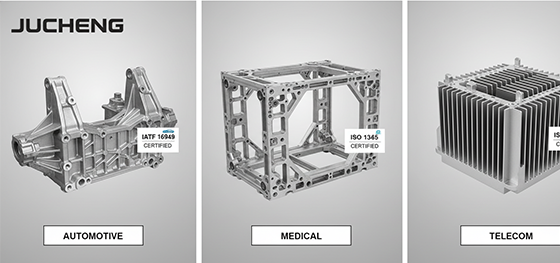

Powering the World's Most Demanding Industries
The Die casting industry applications are vast, and they are often found in high-stakes environments.In the Automotive industry, die casting is essential. It is used to make complex, lightweight, and strong parts like engine blocks, transmission cases, and structural components. Serving this industry requires the discipline of the IATF 16949 quality standard.
In the Medical field, it is used for large structural parts in hospital beds, monitoring equipment, and CT scanners, where the stability and precision of a metal part is essential. This demands adherence to ISO 13485.
In the 5G and Telecom industry, die cast aluminum enclosures and heat sinks are critical. The excellent thermal conductivity of aluminum helps to dissipate heat from sensitive electronics, ensuring reliability.
Why Choose JUCHENG as Your Partner
Choosing a die casting partner is a long-term commitment. You are not just buying a part; you are investing in a very expensive tool.

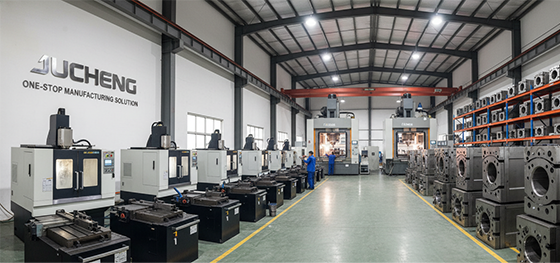

JUCHENG is the ideal partner for this journey. We are not just a foundry. We are a complete, one-stop manufacturing solution. We have our own in-house tooling department to build your high-quality die. We have the advanced die casting machines to produce your parts. And we have a massive CNC machining department to provide the high-precision secondary operations that other foundries cannot. Our ISO 9001 and IATF 16949 certifications are your guarantee of a robust, reliable process. This integrated capability is our promise. It is the JUCHENG advantage.
