Inside the Die Casting Process: A Step-by-Step Guide
Views: 3 Author: Allen Xiao Publish Time: 2025-12-12 Origin: Site
A steel die closes with immense force. Molten metal, glowing with heat, is forced into the cavity under extreme pressure. Seconds later, a complex, near-net-shape metal part is born. This cycle repeats, again and again.
This is the heart of the Die casting process. It is a symphony of heat, pressure, and speed. It is one of the fastest ways to produce large quantities of metal parts with excellent accuracy and consistency.
But behind this simple concept lies a world of technical detail. There are different methods, different machines, and different philosophies. This guide will unpack the process, showing you how it works and what makes it so powerful.

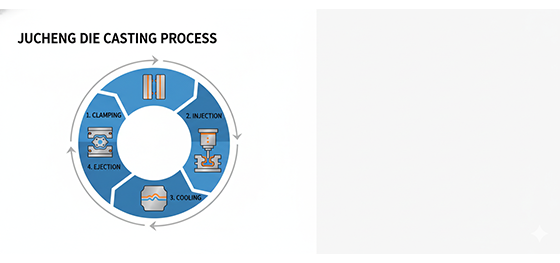

The Heart of the Matter: High-Pressure Die Casting (HPDC)
When we talk about modern Die Casting, we are almost always talking about the high pressure die casting process (HPDC).
As the name suggests, this process uses very high pressure to inject the molten metal into the die. This pressure is essential. It ensures the metal fills every tiny detail of the mold cavity before it solidifies. This is how you get complex shapes and thin walls.
The high pressure also creates a very fine-grained microstructure in the final part. This results in a much stronger part with a much smoother surface finish compared to low-pressure methods. The speed of the HPDC cycle is its other key advantage, making it ideal for mass production.
Cold Chamber vs. Hot Chamber: The Fundamental Divide
Within the world of HPDC, there are two major branches. Cold chamber and hot chamber. The choice between them is not a matter of preference. It is dictated by the melting point of the metal you are using.

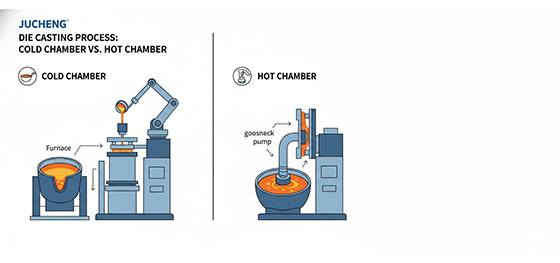

In a hot chamber machine, the injection mechanism is submerged in the molten metal. In a cold chamber machine, the molten metal is held in a separate furnace and ladled into the machine for each shot.
This simple mechanical difference has huge implications for which materials can be used, and the speed of the process.

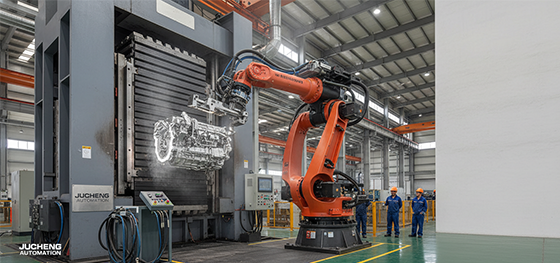

The Cold Chamber Process: Taming Aluminum
The cold chamber process is used for metals with high melting points. The most common of these is aluminum.

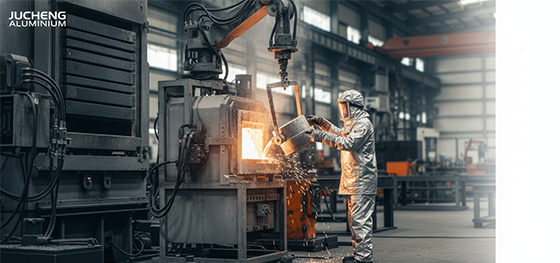

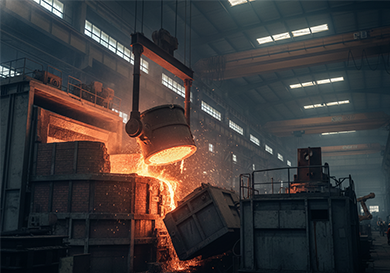

Aluminum's melting point is high enough that if you were to constantly submerge the machine's injection components in it, they would be damaged. So, for the aluminium die casting process, the metal is melted in a separate furnace.
For each cycle, a precise amount of molten aluminum is ladled from the furnace and poured into the machine's "shot sleeve." A plunger then pushes this "shot" of metal into the die. Because this process involves ladling for each cycle, it is slightly slower than the hot chamber method.
The Hot Chamber Process: Mastering Zinc
The hot chamber process is used for alloys with lower melting points. The most common of these is zinc.

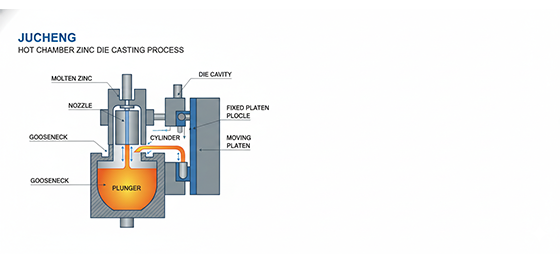

In a hot chamber machine, the furnace containing the molten metal is an integral part of the machine. The injection mechanism, called a "gooseneck," is constantly immersed in the liquid zinc.
When the cycle starts, a piston simply moves up, allowing the gooseneck to fill with metal. The piston then moves down, forcing the metal directly into the die. There is no ladling step. This makes the zinc die cast process extremely fast, with much higher cycle rates than cold chamber casting.
A Word on Other Methods: Gravity and Sand Casting
While HPDC is the king of speed and precision, other casting methods exist. The gravity die casting process is one. Here, molten metal is simply poured into a reusable mold, letting gravity do the work of filling the cavity. It is a simpler, slower process.
The sand die casting process is even older. It uses a mold made of compacted sand. The mold is destroyed after each part is made.

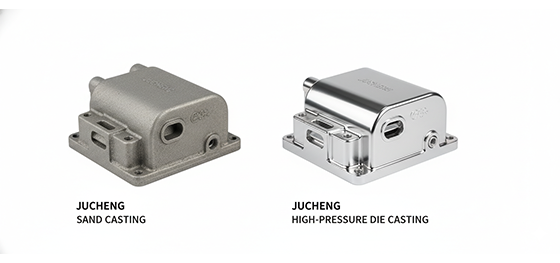

While these methods are useful for very large parts or very low volumes, they cannot compete with HPDC in several key areas. The surface finish of a high-pressure die cast part is vastly superior. The dimensional accuracy is much tighter. And the production speed is orders of magnitude faster. For any precision, high-volume application, HPDC is the clear choice.
