Why Does Your Die Casting Mold Material Dictate Production Costs?
Views: 1 Author: Allen Xiao Publish Time: 2026-05-21 Origin: Site
Pumping liquid aluminum at 1,200 degrees Fahrenheit into a cold metal box creates a violently destructive environment. Hardware startups often focus entirely on the metal they are injecting, completely ignoring the massive steel block that actually shapes their product. Specifying cheap die casting mold material guarantees that your factory tooling will fracture, crack, and fail before you even finish your first major production run. Replacing a ruined steel cavity costs tens of thousands of dollars, immediately bankrupting your hardware scaling budget.
Procurement directors must understand that factory tooling experiences severe torture every thirty seconds. Pouring boiling metal into the cavity and instantly blasting the internal channels with freezing coolant triggers massive thermodynamic stress. Fighting this brutal expansion and contraction requires highly specialized metallurgy. Operating our Shenzhen precision manufacturing hub, Jucheng Precision aggressively protects your initial tooling investment by strictly utilizing premium hardened steel blocks.
Securing your supply chain means securing the physical tools that print your parts. Let's examine the brutal physics destroying cheap factory tools, explore why specific grades of hardened steel dominate the industry, and understand why partnering with an in-house rapid tooling center eliminates massive production delays.

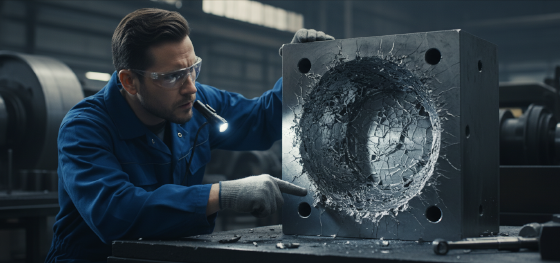

Why do cheap steel molds crack after just a few thousand injection cycles? Brutal thermal shock from alternating rapidly between freezing internal coolant and boiling liquid metal causes catastrophic surface fractures known across the industry as heat checking.

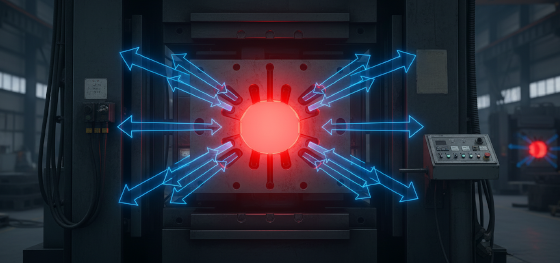

Dropping an ice cube into boiling water causes it to shatter instantly. Factory molds experience this exact same physical trauma. High-speed liquid metal slams into the cavity, superheating the steel surface. Milliseconds later, cold water rushes through internal pipes to freeze the part, violently shrinking the metal.
Repeated cycles tear the molecular grain structure of standard steel apart. Tiny microscopic cracks form on the polished surface of the cavity. Liquid aluminum gets pushed into these cracks during the next shot, ruining the cosmetic finish of your hardware and permanently destroying the expensive tool.
H13 Tool Steel: The Undisputed Heavyweight
What specific metal actually survives continuous exposure to boiling alloys? Premium H13 tool steel dominates the commercial manufacturing sector because it stubbornly resists thermal fatigue while maintaining extreme structural hardness at incredibly elevated temperatures.
Selecting baseline die casting materials directly dictates the grade of steel required to contain them. H13 contains specific ratios of chromium, molybdenum, and vanadium. These exact elements prevent the steel from softening when it gets blasted by aggressive, high-heat liquids.

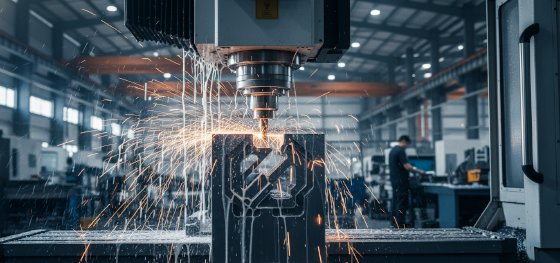

Machining this premium metal takes significant time. Factory engineers must CNC mill the cavity in a slightly softer state, then send the massive block into a specialized high-temperature furnace for hardening. This rigorous heat-treatment process creates the unyielding industrial armor required for massive production runs.

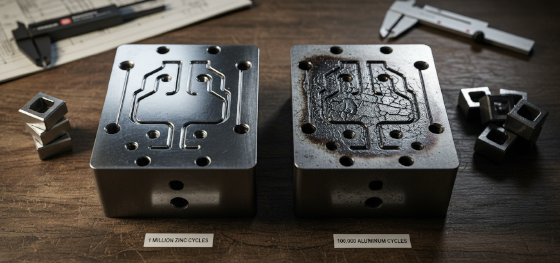

Mold Life: Why Zinc Outlasts Aluminum?
Does the type of liquid alloy injected alter the lifespan of the tool? Absolutely. Zinc melts at drastically lower temperatures, allowing the exact same premium steel mold to survive over a million shots without degrading or requiring expensive cavity rebuilds.
Calculating your return on investment depends heavily on thermal wear. Pushing liquid aluminum requires extreme furnace heat. That intense energy constantly batters the H13 steel, typically limiting the mold's reliable lifespan to roughly 100,000 cycles before major surface maintenance becomes mandatory.
Switching your design to zinc or magnesium completely rewrites your tooling amortization math. Because these alloys process at much cooler temperatures, the thermal shock drops significantly. Hardware procurement teams save hundreds of thousands of dollars in replacement fees during massive, multi-year global supply contracts.

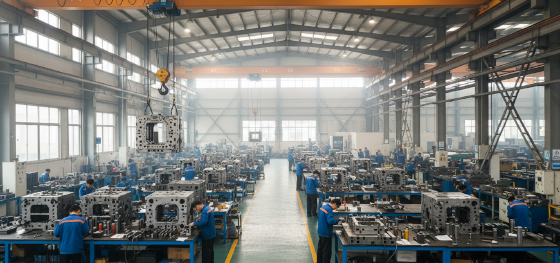

JUCHENG Hub: In-House Rapid Tooling Services
Why must you partner with a turnkey factory that physically cuts their own steel molds? Outsourcing tooling to third-party machine shops guarantees massive delays when microscopic gate adjustments or dimensional tweaks are required during the stressful prototyping phase.
Brokers who outsource your tooling have zero control over the manufacturing timeline. If the first injection trial reveals a flow defect, shipping the massive steel block back to a remote CNC shop takes weeks. Operating our dedicated rapid tooling bay inside the Shenzhen precision manufacturing hub eliminates this friction completely.
Stop trusting unverified suppliers with your heavy upfront NRE budget. Send your 3D CAD files to our engineering team today. We calculate the exact thermodynamic flow, mill the premium H13 blocks internally, and deliver flawless hardware at unbeatable commercial speeds.
FAQ: Honest Answers About Tool Maintenance and Repairs
Can a cracked or heat-checked steel cavity be repaired cheaply? Minor cracks can sometimes be laser-welded and polished, but extensive thermal fatigue requires CNC machining the cavity deeper or completely replacing the massive steel core blocks entirely.
Do softer prototype molds made from aluminum work for this process? No. Unlike plastic injection molding where soft aluminum tools are acceptable for prototypes, the extreme hydraulic pressure and boiling liquid metals will instantly destroy an aluminum cavity.
Why do engineers spray chemicals onto the steel surface between shots? High-temperature alloys actively attempt to chemically weld themselves to the bare steel. Specialized release agents provide a microscopic barrier to ensure the parts eject cleanly without tearing.
What happens if the internal water cooling lines clog with mineral scale? The mold immediately overheats. Thick sections of the metal part will warp, cycle times will double, and the risk of catastrophic heat checking increases exponentially. We strictly utilize treated coolant fluids to prevent this.
