What Are the 5 Essential Die Casting Process Steps?

Finding out that your entire batch of custom metal parts was rejected due to severe warping or ugly surface defects is a horrible feeling for any procurement manager. When hardware startups blame the material, they are usually looking in the wrong place. The reality is that almost all catastrophic part failures happen because the factory rushed or mismanaged the fundamental die casting process steps. Throwing liquid metal into a steel box is a violent thermodynamic event. If a supplier tries to cut corners by cooling the mold too quickly or using insufficient clamping pressure, your expensive parts will end up looking like cheap scrap metal. To protect your [2026] supply chain, you must understand exactly where the traps are hidden on the factory floor.

Watching a giant industrial press cycle from start to finish takes only seconds, but engineering that perfect cycle takes months of precise calculation. We routinely take over failed projects from other vendors who fundamentally misunderstood the physics of metal shrinkage.

Every single action inside the machine directly impacts your final assembly tolerances. Let's dissect the exact sequence of events, explore how bad factories ruin expensive parts at each stage, and review how Jucheng Precision tightly controls these variables to deliver flawless near-net-shape hardware.

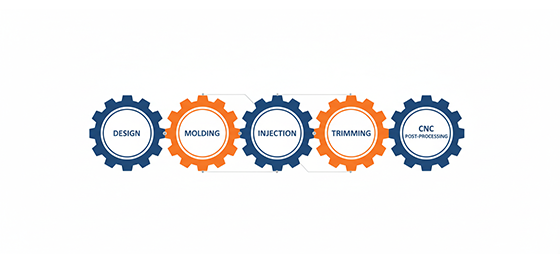

content:

Step 1: Clamping and Die Preparation (Avoiding the Spit)
Step 2: Injection (The Speed vs. Porosity Battle)
Step 3: Solidification and Cooling (The Warpage Zone)
Step 4: Ejection (Preventing Pin Marks and Bends)
Step 5: Trimming and Post-Processing (The Final Polish)
JUCHENG Hub: Shenzhen's Masters of the Full Cycle
FAQ: Honest Answers About Cycle Times and Scrap Rates

Step 1: Clamping and Die Preparation (Avoiding the Spit)

What happens if the hydraulic press doesn't clamp the mold halves tight enough?
The extreme pressure of the incoming liquid metal will actually force the massive steel blocks apart by a fraction of a millimeter, causing hot metal to violently spit out the sides, creating ugly jagged edges known as flash.

Before any metal moves, preparation is everything. Automated robotic sprayers coat the inside of the hot steel mold with a precise layer of chemical release agent. If an operator applies too much spray, the chemicals will vaporize into gas, leaving massive air pockets inside your final part. Too little spray, and your new aluminum housing will literally weld itself to the tool, destroying a $50,000 mold instantly.

Getting this first phase right dictates the dimensional accuracy of the entire run. This is why managing the die casting process steps with advanced digital sensors is non-negotiable for high-end medical and automotive components.

Step 2: Injection (The Speed vs. Porosity Battle)

Why do some metal parts look like Swiss cheese on the inside?
Trapped air causes internal porosity. When a machine injects metal too violently without proper venting, the liquid folds over the air inside the cavity before it has a chance to escape.

The high pressure die casting process forces molten alloys into the die at speeds exceeding 100 miles per hour. This violent rush is necessary to fill incredibly thin 1.5mm walls before the metal freezes. However, balancing this extreme speed is an art form.

If the plunger rams the metal too slowly, the tip of the liquid stream cools prematurely, resulting in ugly "cold shuts" where two streams of metal fail to fuse properly. We use advanced real-time servo valves to dynamically adjust the plunger speed mid-stroke, guaranteeing a turbulent-free fill that produces incredibly dense, structurally sound hardware.

Step 3: Solidification and Cooling (The Warpage Zone)

How do bad factories ruin perfectly injected parts during the cooling phase?

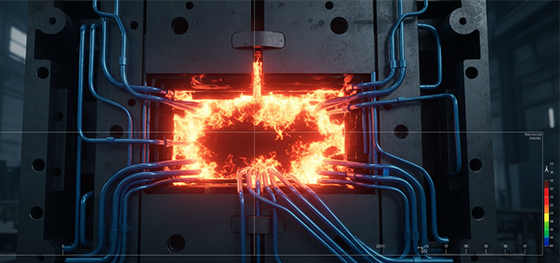

By failing to design proper internal water channels, causing the thick sections of the part to cool much slower than the thin sections, which physically pulls and warps the entire metal structure out of shape.

You cannot just let a massive block of hot aluminum air-cool inside a steel press. Managing the die casting process cooling cycle requires aggressive thermal extraction. We drill complex, winding water-lines directly through the heavy H13 tool steel blocks.

As chilled water rushes through these lines, it pulls the heat out of the molten metal in seconds. If a factory tries to speed up this step to maximize their daily output, they eject the part while the core is still soft. The moment it hits the conveyor belt, it bends. Jucheng Precision strictly enforces calculated cooling times to lock in absolute geometric flatness.

Step 4: Ejection (Preventing Pin Marks and Bends)

Why do you sometimes see deep circular dents on the back of metal covers?
Those are ejector pin marks. If the pins push the hot part out of the mold unevenly, or if the part is stuck too tightly, the pins will aggressively dig into the soft metal surface.

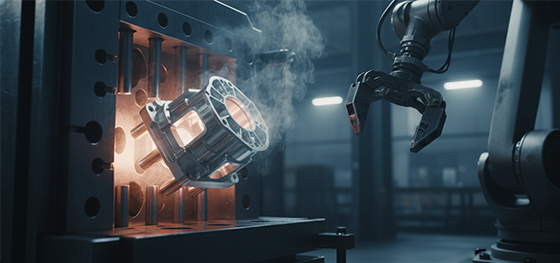

Once the metal freezes, the giant hydraulic clamps open. But the part is tightly shrunk around the internal steel cores. To get it out, a perfectly synchronized grid of steel ejector pins pushes the part forward simultaneously.

A poorly maintained machine will have pins that fire a fraction of a second late. That tiny mechanical delay acts like a crowbar, twisting the hot metal housing and ruining the mounting tolerances before the part even leaves the machine. We obsessively maintain our ejection plates to ensure zero distortion during this violent mechanical release.

Step 5: Trimming and Post-Processing (The Final Polish)

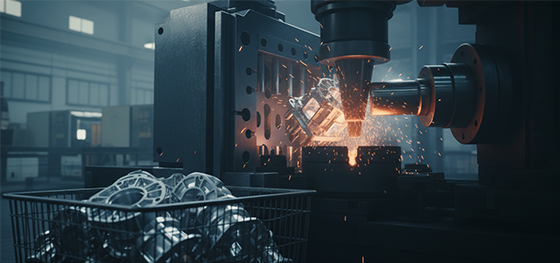

Integrating the primary casting with secondary operations is what defines true B2B manufacturing excellence. When a part drops from the mold, it is surrounded by a "biscuit" of excess runner metal and thin, razor-sharp flash. The final phase of the die casting process involves shearing this junk away.

We load the raw castings into massive hydraulic trim dies that act like giant cookie cutters, shearing off the waste metal perfectly. From there, the components head straight into our CNC bay where we tap threads and mill perfectly flat mating surfaces, delivering a component that is totally ready for your assembly line.

JUCHENG Hub: Shenzhen's Masters of the Full Cycle

Why trust Jucheng Precision to manage your multi-stage manufacturing cycle?

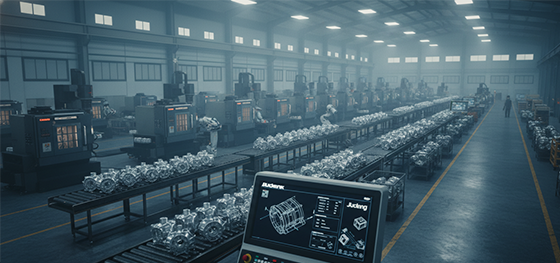

Because we do not outsource a single critical step. From cutting the initial steel tooling to the final CNC surface milling, everything happens inside our heavily monitored Shenzhen precision manufacturing hub.

Controlling all the die casting process steps under one roof destroys the liability gap. If a part has too much flash, our CNC guys instantly tell the casting operators to increase the clamping pressure. There is no waiting for emails across time zones, and no finger-pointing between different vendors.

Hardware engineers globally trust us to handle their most aggressive scaling challenges because we respect the physics of the machine. Send your 3D models to our team today for a free DFM review, and let us show you exactly how to build a defect-free part from the ground up.

FAQ: Honest Answers About Cycle Times and Scrap Rates

How fast is a typical cycle from clamping to ejection?
For small aluminum components, the entire five-step cycle can take as little as 30 to 45 seconds, resulting in massive daily production volumes.

What happens to the excess metal sheared off during trimming?
It is never wasted. We gather the clean flash and runners and melt them back down in the holding furnace, ensuring a highly sustainable and cost-effective loop.

Can you skip the CNC machining phase entirely?
If your tolerances are wide enough (+/- 0.1mm), the raw cast surface is perfectly fine. However, we always recommend CNC machining for critical O-ring grooves and tapped holes.

Does the die casting process require manual human operators?
At Jucheng Precision, the core injection and extraction cycles are handled by advanced robotics to eliminate human error, while our technicians focus strictly on quality control monitoring.
