Transitioning a hardware project from a few crude prototypes into medium-volume mass production usually triggers a massive financial crisis. Engineering teams quickly realize that continuing to use messy sand molds for 5,000 units will bankrupt them on secondary CNC machining labor. Simultaneously, getting quotes for massive hydraulic presses reveals upfront tooling costs that are mathematically impossible to amortize over a mid-sized run. Executing the die casting process using heavy iron molds without aggressive hydraulic pumps provides the ultimate financial bridge. This traditional technique delivers beautifully smooth, incredibly dense metal hardware while slashing your initial tooling debt by more than half.
Procurement managers often refer to this sweet spot as "permanent mold casting," and it remains the undisputed champion for mid-volume structural parts. Pouring molten metal smoothly into a reusable iron cavity utilizes nothing but the earth's natural pull, eliminating the violent turbulence that ruins high-speed injections. Operating from our Shenzhen precision manufacturing hub, Jucheng Precision leverages this slow, deliberate method to produce heavy automotive and fluid-handling components that refuse to crack under extreme pressure.
Scaling your supply chain securely means picking the right physical physics for your specific production volume. Let's explore exactly how dumping the expensive hydraulic pumps saves you tens of thousands of dollars, why this method guarantees aerospace-level internal density, and when you absolutely must upgrade to faster injection speeds.
content:
The Mechanics: How Does Slow Pouring Stop Porosity?
Tooling Economics: Why Iron Molds Save Your Budget?
Wall Thickness: Where Does High Pressure Win?
Technical Data: Benchmarking Permanent Mold ROI
JUCHENG Hub: Shenzhen's Medium-Volume Masters
FAQ: Honest Answers About T6 Tempering and Surface Finish
The Mechanics: How Does Slow Pouring Stop Porosity?
Why does simply pouring metal yield a stronger part than blasting it inside?
Because a slow, bottom-up fill naturally pushes all the atmospheric oxygen up and out of the exhaust vents, preventing the violent folding and air-trapping that creates internal sponge-like defects.

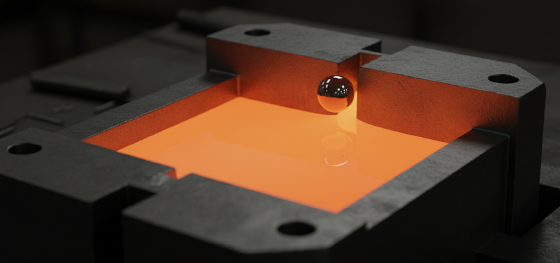

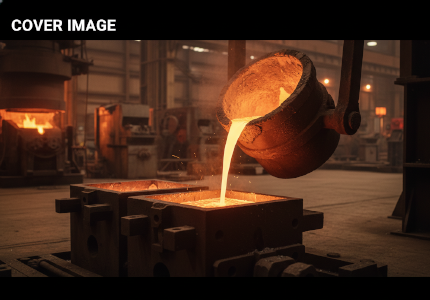

Relying entirely on the gravity die casting process forces the metal to behave smoothly. The molten aluminum enters the heavy cast-iron mold and rises gently, filling the thickest sections first. As the part begins to cool and shrink, the reservoir of hot liquid metal remaining at the top (the riser) feeds fresh material downward, physically packing the shrinking voids tight.
Eliminating trapped gas unlocks the ultimate metallurgical advantage: heat treatability. Because these permanent mold castings are virtually free of internal air bubbles, hardware teams can safely subject them to brutal T6 thermal tempering. You get an unyielding, incredibly dense component capable of holding massive hydraulic or structural loads without fracturing.
Tooling Economics: Why Iron Molds Save Your Budget?
How do you cut the upfront NRE tooling cost by more than half?
By avoiding extremely expensive H13 hardened tool steel; because there are no violent hydraulic injection pressures to withstand, these molds are machined from much cheaper cast iron or standard steel blocks.
Hardware startups running medium-volume batches face a brutal amortization curve. If you only need 3,000 engine brackets a year, spending $60,000 on a massive steel mold adds $20 to the unit price of every single part. That insane tooling tax destroys commercial viability instantly.

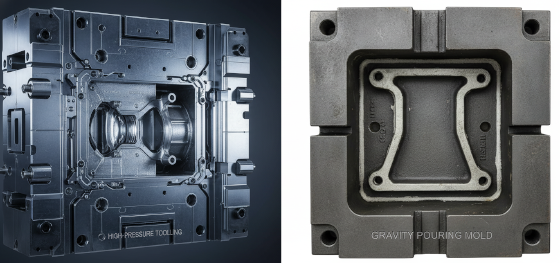

Machining a reusable iron mold drops that upfront cost drastically. These durable permanent molds can comfortably cycle tens of thousands of times before wearing out. You get the incredible dimensional consistency of metal tooling without the crushing financial debt required by faster, high-tonnage factory equipment.
Wall Thickness: Where Does High Pressure Win?
If permanent molds are so strong and cheap, why doesn't everyone use them?
Because liquid metal cools rapidly; without extreme injection force, the metal will freeze solidly before it can flow into paper-thin cooling fins or highly complex micro-features.

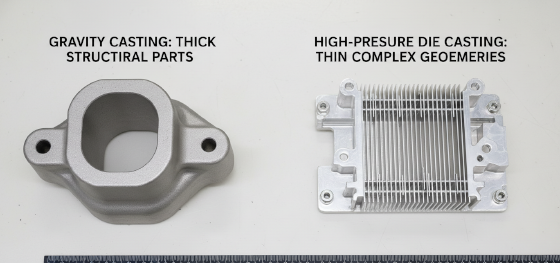

Designing sleek, lightweight consumer electronics essentially disqualifies this slower technique. If you require razor-thin 1.5mm walls for a drone chassis, the metal simply will not make it to the end of the cavity using only natural weight. In those aggressive design scenarios, switching to the high pressure die casting process is absolutely mandatory to force the metal home.
Heavy industrial applications live on the opposite end of the spectrum. Pump housings, marine hardware, and automotive suspension knuckles require thick, dense, unyielding metal walls. For these massive footprints, slow filling is not a limitation—it is the exact physical requirement needed to ensure survival.
Technical Data: Benchmarking Permanent Mold ROI
Finding the exact crossover point between different foundry methods guarantees you never overpay for your supply chain. The data matrix below clearly shows why medium-volume runs strictly belong in iron molds.
| Production Factor | JUCHENG Gravity Permanent Mold | High-Speed Hydraulic HPDC | Expendable Sand Casting |
| Ideal Production Volume | 1,000 to 20,000 Units (Medium) | 50,000+ Units (Massive) | 1 to 500 Units (Prototyping) |
| Initial Tooling Debt | Moderate (Cast iron/steel) | Extremely High (H13 tool steel) | Very Low (Wood/Foam patterns) |
| Internal Yield Strength | Excellent (T6 heat-treatable) | Moderate (Gas porosity risks) | Good (But dimensionally poor) |
| Surface Finish Smoothness | Very Good (Requires minimal CNC) | Flawless (Mirror-like potential) | Terrible (Like coarse sandpaper) |

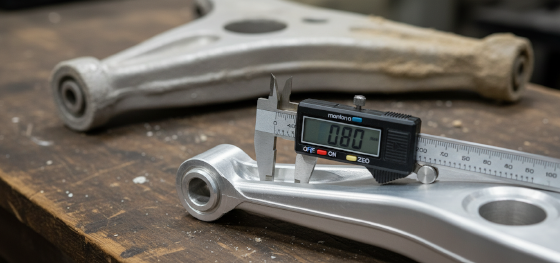

Ditching messy dirt molds upgrades your surface finish immediately. Permanent iron molds leave a remarkably smooth surface that drastically cuts down the hours your supplier spends grinding, sanding, and CNC milling the part before it can be painted.
JUCHENG Hub: Shenzhen's Medium-Volume Masters
Why send your mid-sized production runs to Jucheng Precision?

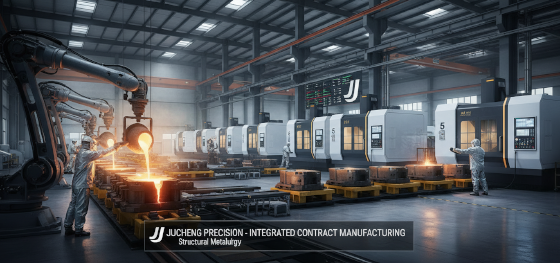

Because we maintain a highly flexible manufacturing floor, balancing slow-pour permanent mold stations right next to our fleet of 150+ CNC machines to deliver finished, ready-to-assemble structural hardware.
Forcing a medium-volume project into the wrong factory setup is a disaster. If you take 3,000 parts to a massive high-speed injection house, they will reject your order entirely. If you take them to a sand foundry, you will receive hopelessly rough, inaccurate scrap metal. We actively specialize in this critical middle ground.
Stop overpaying for tooling you do not mathematically need. Send your structural CAD files to our engineering team today for a complete DFM review. We will map the perfect slow-fill gating system, guarantee your internal metal density, and deliver unyielding components at a price that fits your scale.
FAQ: Honest Answers About T6 Tempering and Surface Finish
Does this slow pouring method require robotic automation?
It can be automated with tilt-pour machines, but for many medium-volume structural parts, highly skilled foundry operators manually manage the pour rate to ensure absolute thermal control.
Can I use permanent iron molds to cast high-heat metals like steel or iron?
No. Pouring liquid steel into a steel or iron mold will literally melt the tool. This process is strictly reserved for non-ferrous, lower-melting-point alloys like aluminum, magnesium, and brass.
Why is sand sometimes mixed with this permanent mold technique?
To create complex hollow interiors (like water jackets in an engine block), we place expendable, baked sand "cores" inside the reusable iron mold. The sand is shattered and shaken out after the metal freezes.
Will my parts need heavy CNC machining after leaving the iron mold?
The general outer dimensions are highly accurate, but critical sealing faces, tight bearing journals, and threaded holes will still require precision post-machining in our 5-axis CNC bays.
