Designing a high-value enclosure for a hospital diagnostic scanner or an autonomous delivery robot requires more than just structural integrity; it requires absolute fire safety. In the current hardware market, any enclosure that melts, drips, or fuels a fire is a catastrophic liability that can prevent regulatory approval. While standard polyurethane reaction injection molding is prized for its ability to create oversized, high-fidelity parts, the resin is naturally flammable. Achieving the gold standard of UL94 V-0 compliance requires specialized flame retardant polyurethane RIM systems that stop fire in its tracks without turning your hardware into brittle, low-quality plastic.
Safety compliance in Medical Device Prototyping is the most rigid barrier to market entry. Traditional flame-retardant plastics often sacrifice impact strength to achieve their safety ratings, leading to shells that crack during simple transport or field use. Jucheng Precision addresses these critical engineering trade-offs by providing high-tier Polyurethane Molding Services that utilize liquid-phase additive technology. JUCHENG delivers hardware that is both fire-safe and field-tough, ensuring your Alpha and Beta trial units pass the most aggressive safety audits on the first attempt.
Operating within the Shenzhen precision manufacturing hub, JUCHENG acts as the regulatory partner for global OEMs navigating the transition from lab concepts to clinical trials. JUCHENG transforms complex CAD files into validated, fire-rated hardware in as fast as 15 business days, leveraging our fleet of 150+ CNC machines and dedicated molding cells. This guide explores the essential UL94 standards, the logic of halogen-free additives, and the mechanical validation required for mastering flame retardant polyurethane RIM hardware to ensure your innovation is legal, safe, and unyielding in the field.
content:
Regulatory Standards: Why UL94 V-0 is the Only Choice?
Technical Data: Comparing Fire Ratings and Material Stability
Formulating Safety: How to Integrate Retardants in Liquid Resins?
Mechanical Integrity: Does Fire Proofing Make Parts Brittle?
JUCHENG Hub: Validating Your Safe Enclosures in Shenzhen
FAQ: Real Answers for Fire Ratings and Logistics
Regulatory Standards: Why UL94 V-0 is the Only Choice?
Achieving a self-extinguishing hardware profile is a non-negotiable requirement for devices operating in hospital wards or high-density server rooms. In the context of flame retardant polyurethane RIM, the UL94 V-0 rating is the industry benchmark. This specific test involves the application of a vertical flame to a material sample; to pass, the part must stop burning within 10 seconds and, most importantly, must not produce any flaming drips that could ignite nearby materials. JUCHENG’s V-0 formulations are engineered to create an instant char layer—a carbonized barrier that starves the fire of oxygen and protects the structural core of the part.
What is the difference between V-0 and V-2 ratings?
V-0 requires the fire to stop within 10 seconds and forbids any flaming drips, whereas V-2 allows for some dripping, which is often a failure during medical safety audits.

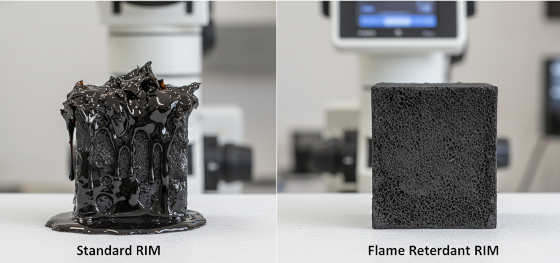

The drip factor is the most dangerous mechanical failure in plastic fires. When standard thermoplastics melt, they become liquid fuel, spreading the fire to adjacent electronics or patient beds. JUCHENG’s RIM process utilizes thermoset chemistry, meaning the parts are cross-linked at the molecular level. These parts do not melt back into a liquid state when heated. Instead, they undergo pyrolysis, turning into a stable solid char. This physical behavior is why RIM is often preferred over injection-molded ABS for large diagnostic console bases and high-voltage power covers where arcing is a potential risk.
Scrutiny from regulatory bodies is increasing for autonomous logistics robots carrying large lithium-ion battery packs. A thermal runaway event in a warehouse can be devastating if the robot's enclosure serves as fuel. JUCHENG integrates halogen-free phosphorus retardants into the B-side polyol to meet these evolving safety standards. These additives react to heat by releasing water vapor and inert gases, effectively drowning the fire at the molecular source. By delivering hardware with integrated firewalls, JUCHENG helps clients secure the safety certifications required to operate in shared human workspaces.
Technical Data: Comparing Fire Ratings and Material Stability
Success in hardware R&D depends on matching the fire rating to your robot's power density. A low-voltage sensor pod might only need an HB (Horizontal Burn) rating, but a main compute chassis housing AI GPUs requires V-0. Jucheng Precision provides technical consultations to help you navigate these safety tiers without over-engineering your budget. The following table compares the essential performance metrics of flame retardant polyurethane RIM systems against standard industrial plastics for the current global market.
| Standard | Standard RIM PU | JUCHENG V-0 FR-RIM | Safety Impact |
| UL94 Rating | HB (Flammable) | V-0 (Self-Extinguishing) | Mandatory for MedTech |
| Extinguish Time | Greater than 60s | Less than 10s | Prevents Fire Spread |
| Drip Status | High (Flaming Drips) | Zero Drip | Safe for Floors/Carpets |
| Smoke Toxicity | Moderate | Low (Halogen-Free) | Safe for Confined Spaces |
Halogen-free chemistry is the secondary requirement for modern hospital hardware. Older fire retardants used bromine or chlorine, which release toxic, acidic smoke during a fire—a major risk in clinical environments. JUCHENG utilize phosphorus-based and mineral-based additives that are significantly safer for human respiration. This level of chemical foresight ensures that even in the unlikely event of a hardware fire, the smoke produced will not damage the sensitive lungs of patients or the delicate optics of nearby robotic surgical systems.
Formulating Safety: How to Integrate Retardants in Liquid Resins?
Liquid chemistry allows JUCHENG to pre-mix safety directly into the B-side polyol. This is the formulation secret that allows JUCHENG to maintain high surface quality on 1.5-meter long parts. JUCHENG utilize liquid-phase flame retardants that stay in permanent suspension during the high-pressure impingement mix. This ensures that every square millimeter of a diagnostic scanner shell has the exact same fire rating. In traditional Custom Plastic Molding, powder additives often clump, creating inconsistent fire protection. JUCHENG’s automated mixing systems eliminate this risk.
Can fire protection be added to any material?
Yes. JUCHENG can formulate both rigid structural RIM and flexible elastomeric RIM to meet V-0 standards, protecting everything from hard consoles to soft robotic bumpers.
Intumescent technology is the second layer of JUCHENG’s high-performance hardware. These chemical systems respond to extreme heat by expanding into a thick, insulating foam layer. When a fire source strikes a JUCHENG-molded part, the surface puffs up to create a thermal barrier, preventing the heat from reaching internal battery cells or AI boards for several minutes. This extra time allows for emergency shutdowns and human intervention, providing a mechanical grace period that can save millions in technology assets during a field trial.
Mineral fillers such as Alumina Trihydrate (ATH) are utilized for heavy-duty enclosures that require both fire protection and increased stiffness. These minerals release water vapor when heated, physically cooling the part surface. JUCHENG utilize specialized high-abrasion pumps in our Shenzhen facility to handle these mineral-loaded slurries. By combining fire safety with structural reinforcement, JUCHENG delivers parts that act as both a skeleton and a firewall, simplifying your robot's design and reducing the total part count for mass production.
Mechanical Integrity: Does Fire Proofing Make Parts Brittle?
Additive embrittlement is the primary fear for mechanical engineers when specifying fire-rated hardware. In low-tier plastics, high concentrations of dry powder additives ruin the polymer chain's flexibility, leading to parts that shatter like glass during a drop test. JUCHENG addresses this by utilizing reactive flame retardants—molecules that don't just sit in the plastic but become a permanent chemical part of the polyurethane chain. This molecular integration ensures that your fire-rated housing maintains 90% of the impact toughness of a non-rated part, providing the drop-proof reliability needed for mobile medical carts.
How to ensure parts do not crack during trials?
Prioritize reactive chemistry rather than dry fillers to ensure the polymer matrix remains ductile and absorbs impact energy during a warehouse or clinical collision.

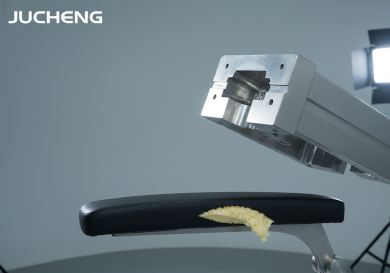

Surface finish is the secondary victim of standard fire-proofing additives. Many flame retardants create a grainy surface that is impossible to paint to a Class-A standard. JUCHENG’s Polyurethane Molding Services include a specialized skinning cycle, where the liquid polymer forms a dense, smooth outer layer while the fire-rated additives congregate in the core. This results in an enclosure that is V-0 safe on the inside but possesses a mirror-smooth automotive finish on the outside, essential for winning market share with a retail-ready aesthetic.
Dimensional stability is the final mechanical win for JUCHENG’s fire-rated RIM. Because our parts cure at low pressures and moderate temperatures, they possess zero internal stress. Unlike high-pressure fire-rated injection molding, which often warps due to the high filler content, JUCHENG’s RIM parts stay perfectly flat. This ensures that the intricate snap-fits and gasket seats of your diagnostic console remain airtight and aligned, preventing the seam gaps that can compromise both the aesthetics and the EMI shielding of your device.
JUCHENG Hub: Validating Your Safe Enclosures in Shenzhen
Dominating the large-format hardware market requires a partner that doesn't just promise safety but proves it through data. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance flame retardant polyurethane RIM and structural industrial robot parts with industry-leading speed. JUCHENG provides a bridge to production that allows you to move from a CAD file to a safety-certified Beta fleet of 1,000 units with consistent chemical and mechanical quality.
Integrating your secure design goals with JUCHENG’s expertise ensures that your hardware survives the regulatory audit season and moves into mass adoption. JUCHENG offers a free DFM analysis in 24 hours, identifying potential fire-trap zones or mechanical weak spots in your design before they become field failures. Whether you are building an autonomous blood analyzer or a multi-part MRI housing, Jucheng Precision provides the rigid, precise, and fire-safe foundations that keep your innovation moving through the high-stakes cycles and the years of hard labor.

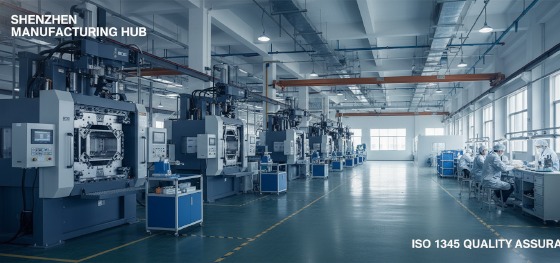

Our facility is equipped with dedicated high-pressure RIM assembly cells and dedicated ISO 13485 and ISO 14001 quality labs, allowing JUCHENG to manage the entire hardware lifecycle in one location. JUCHENG manages the complexity of fire-rated chemistry and structural integrity so your engineering team can focus on the clinical outcomes and the AI. By combining Shenzhen's speed with industrial-grade material verification and global quality standards, JUCHENG remains the preferred partner for the world's most aggressive MedTech hardware challenges. Contact us today to start your next project.
FAQ: Real Answers for Fire Ratings and Logistics
Can JUCHENG provide a UL yellow card for the material?
Yes. JUCHENG works with certified chemical suppliers and provides full documentation for the resins used in your production run.
Does fire protection increase the lead time for parts?
No. Because JUCHENG mixes the additives in-house, the manufacturing cycle remains identical to our standard RIM process.
What is the typical thickness required for a V-0 rating?
Most of our fire-rated RIM formulations achieve V-0 at a wall thickness of 3.0mm to 4.0mm.
Is the fire protection permanent or does it wear off?
The protection is a permanent chemical part of the polymer matrix; it will not leach out or lose effectiveness over time.
Can fire-rated RIM parts be painted?
Yes. Our FR-RIM parts possess excellent adhesion for automotive-grade 2K paints, even with high additive loads.
Fire failure in a clinical or industrial setting is an absolute innovation killer. Partnering with Jucheng Precision ensures that your functional iterations are built with the self-extinguishing polyurethane reaction injection molding and specialized flame retardant polyurethane RIM systems the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the safe, unyielding foundation your autonomous fleet requires.
