Bipedal locomotion represents the most unforgiving mechanical challenge in modern automation. When an engineering team transitions a bionic concept from a physics simulator to the physical world, the primary cause of failure is rarely the neural network; it is the latent mechanical slop within the physical skeleton. If a knee or hip actuator exhibits even microscopic play under the immense dynamic load of a walking stride, the robot's center of gravity shifts unpredictably, rendering complex balancing algorithms useless. Navigating this demand for absolute structural rigidity requires the strategic deployment of Humanoid robot joint machining. This ultra-precision subtractive discipline transforms raw aerospace-grade billets into the intricate, high-torque movement centers of next-generation AI platforms. Jucheng Precision operates as a high-fidelity manufacturing sanctuary in the Shenzhen precision manufacturing hub, providing the 5-axis CNC depth needed to eradicate tolerance stack-up. As a critical subset of humanoid robot parts development for the 2026 market, we engineer joint housings and linkages that deliver zero-backlash articulation, ensuring your bionic hardware executes digital commands with flawless physical reality.
Establishing a resilient bionic supply chain demands the absolute rejection of traditional "general-purpose" machine shops. Amateurs often approach a robotic actuator housing like a standard industrial bracket, utilizing multiple 3-axis setups that inevitably introduce fatal fixture alignment errors. Jucheng Precision eliminates these "Mechanical Drifts" by enforcing a single-setup, 5-axis machining philosophy. We recognize that the bearing seats for harmonic drives and frameless motors require concentricity tolerances of +/- 0.005mm to function without thermal overheating or gear grinding. This guide deconstructs the physics of backlash, the critical standoff between Titanium and Aluminum 7075, and why our metrological validation protocol is the mandatory foundation for anyone building humanoid architectures.
Why is zero-backlash precision critical for bipedal humanoid movement?

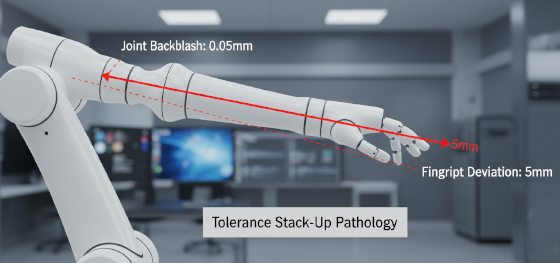

Kinetic multiplication turns minor joint errors into catastrophic positional failures. Backlash refers to the mechanical "play" or clearance between mating gears or bearings when the direction of movement is reversed. In a humanoid robot, a 0.05mm gap in the hip actuator housing doesn't just stay at the hip; the error is amplified down the entire length of the leg. By the time that physical instruction reaches the foot, it may result in a 5mm deviation from the intended footstep location, causing the robot to stumble and crash. Eradicating this slop requires machining bearing bores and harmonic drive seating flanges with absolute concentricity. The metal components must fit together with an "interference fit," relying on thermal expansion (heating the housing to drop in the bearing) to assemble, ensuring zero mechanical voids exist when the unit returns to room temperature. We engineer the housing to function as a monolithic extension of the internal gears, providing the structural stiffness required for high-torque dynamic balancing.
How do Titanium and Aluminum 7075 compare for robotic joint linkages?
Mass economics dictate the survival of the robot's battery life and motor longevity. Designers are constantly fighting the "Moment of Inertia"—the resistance of a heavy limb to change direction. For actuator housings and primary joint linkages, Jucheng Precision engineers heavily utilize Aerospace Aluminum (7075-T6) and Titanium Grade 5 (Ti-6Al-4V). Aluminum 7075 provides excellent thermal conductivity to pull heat away from high-current frameless motors, and its low density makes it the go-to choice for proximal joints (shoulders, hips). However, for distal joints (ankles, wrists) where space is severely restricted and impact forces are extreme, Titanium becomes mandatory. Titanium offers nearly double the yield strength of 7075 aluminum while being completely immune to corrosion, though it incurs a higher machining cost due to rapid tool wear. Below is the technical performance matrix used by our engineers to guide alloy selection:
Engineering Metric
Aluminum 7075-T6
Titanium Grade 5
Density (g/cm³)
2.81 (Lighter)
4.43 (Heavier)
Yield Strength (MPa)
500
880+ (Stronger)
Thermal Conductivity
130 W/m·K (High)
6.7 W/m·K (Low)
Machinability Index
Excellent
Difficult (Abrasive)
Why is 5-Axis CNC machining mandatory for complex joint geometries?
Subtractive perfection relies on the elimination of human intervention during the cutting cycle. A bionic elbow or shoulder flange features complex, multi-angled mounting faces that intersect in 3D space. If a machinist attempts to cut this part on a 3-axis mill, they must stop the machine, unclamp the raw billet, rotate it by hand, and re-clamp it to reach the next side. Every manual "Flip" introduces a microscopic alignment error known as "Fixture Drift." Over six sides, these cumulative errors destroy the concentricity of the bearing bores. Jucheng Precision operates a fleet of 5-axis CNC centers that rotate the part and the spindle simultaneously. We machine the entire joint housing in a "Single Setup," ensuring that the center-line of the motor mount is perfectly orthogonal to the face of the harmonic drive output. We turn "machined chunks" into "aerospace-grade bionic ligaments," providing the spatial accuracy needed for flawless bipedal walking.
How does JUCHENG guarantee sub-micron tolerances across production batches?
Manufacturing excellence in the robotics sector is built on the foundation of the documented metrology audit. We recognize that an actuator housing that fits on Monday but drifts on Thursday will cause the assembly line to halt. Jucheng Precision implements a rigorous First Article Inspection (FAI) protocol using high-precision Coordinate Measuring Machines (CMM) equipped with ruby-tipped probes. We measure the GD&T (Geometric Dimensioning and Tolerancing) parameters—specifically True Position, Flatness, and Cylindricity—against your digital CAD intent. We provide full material lot traceability and dimension reports for every batch. Stop gambling your venture capital on machine shops that treat humanoid development like a hobby. Leverage our decade of high-performance replication mastery to validate rapidly, scale responsibly, and launch your next automated breakthrough profitably. Contact our technical team today for a free DFM review.
Question: What is the typical surface finish (Ra) achievable for bearing seats in robotic joints? Answer: Utilizing advanced finishing passes and high-pressure coolant, Jucheng Precision routinely achieves surface roughness levels of Ra 0.4 µm (16 µin) or better, ensuring optimal seating and minimal wear on bearings.
Question: How do you manage the heat generated when machining Titanium Grade 5 joints? Answer: We utilize specialized positive-rake carbide tooling and 1,000 PSI Through-Spindle Coolant (TSC) systems to instantly blast heat and chips away from the cutting zone, preventing work-hardening and tool failure.
Question: Does JUCHENG provide post-machining surface treatments for aluminum joints? Answer: Yes. For 7075-T6 aluminum, we highly recommend Type III Hard Coat Anodizing. This increases surface hardness, provides excellent wear resistance against rotating friction, and offers an aesthetically premium matte black finish.
