Slicing high-precision flat blanks out of metal plates with clean, dross-free edges is the foundational step of custom manufacturing. Managing laser cutting sheet metal tolerances represents one of the most critical stages in custom sheet metal fabrication, directly determining whether your downstream bending and assembly operations remain highly accurate. This software-driven thermal cutting process uses high-power light beams to vaporize metal, translating digital flat layouts into physical panels.
Suffer from out-of-tolerance parts that display severe edge taper, melted corners, or high burrs along laser-cut slots? When flat patterns are nested without compensating for the physical kerf width of the laser beam, or when cutting speeds are set too high, the final parts will drift from your target dimensions. Proactively integrating material-specific cutting variables into your CAD models is the best way to secure your product quality.
Let's explore the standard dimensional accuracy of modern fiber lasers, analyze how beam divergence causes edge taper on thick plates, and compare laser precision directly against waterjet and plasma cutting.

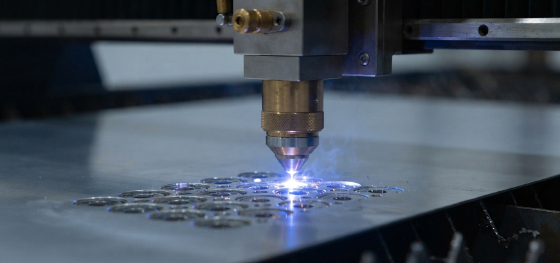

What is the Standard Tolerance for Fiber Laser Cutting?
What is the typical dimensional precision achieved by standard fiber laser cutters?
A modern multi-kilowatt fiber laser holds standard linear cutting tolerances of ±0.1mm for sheets under 3mm thickness, and can achieve ±0.05mm under optimized conditions.
To ensure successful component fits, understanding how the cutting interface operates is critical. A CNC fiber laser focuses immense thermal energy onto a microscopically tight spot, vaporizing the metal instantly. However, the laser beam possesses a physical thickness known as the kerf width (the width of material removed during cutting), typically ranging from 0.15mm to 0.3mm.
Our nesting software automatically compensates for this kerf width, ensuring that the finished parts match your exact 2D dimensions. The choice of cutting gas also impacts precision. Utilizing high-pressure nitrogen assist gas cools the cut zone and blows away molten metal cleanly, preventing edge oxidation and preserving tight tolerances, whereas oxygen assist gas reacts with carbon steel to create a wider, slightly rougher edge.
Understanding Laser Taper on Thick Plates
Why do laser-cut edges on thick metal plates exhibit a microscopic taper?
As the laser beam penetrates thick plates, the focused light naturally diverges, causing the bottom of the cut to remain slightly wider than the top, creating a minor edge draft.

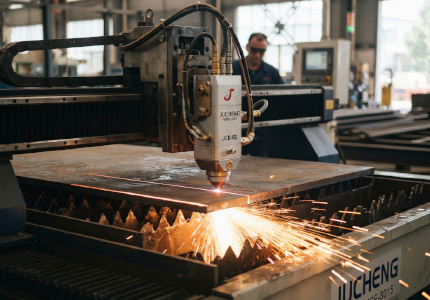

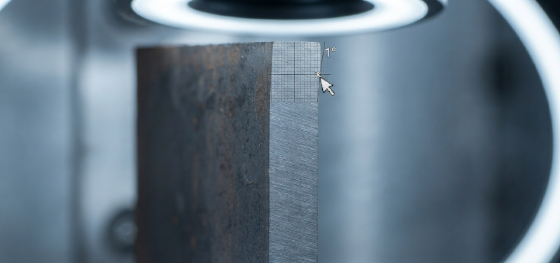

Bending or assembling thick-gauge laser-cut parts requires a deep understanding of laser taper (edge draft). On thin-gauge sheets under 3mm, this taper is virtually invisible. However, as the plate thickness scales past 6mm, the divergent nature of the focused laser beam becomes noticeable, causing the cut edge to exhibit a slight angle, typically between 1 and 2 degrees.
This edge draft means that the vertical cross-section of a cut is not a perfect 90-degree rectangle. If your assembly requires tight-tolerance sliding fits or press-fit pins in thick steel plates, this minor taper can prevent the parts from mounting flush. To resolve this, we utilize high-precision focus-tracking cutting heads to minimize divergence, and suggest secondary CNC machining to shave the tapered edges flat for critical mating interfaces.
Laser Cutting vs. Waterjet and Plasma Accuracy
How do the processing tolerances of laser cutting compare directly to waterjet and plasma?
Fiber laser cutting is the most precise method for thin sheets, while waterjet is preferred for thick, heat-sensitive plates, and plasma cutting is reserved for low-cost, thick structural steel.
When evaluating high-volume cutting methods, designers must choose the optimal process based on material thickness and tolerance requirements. High-pressure waterjet cutting utilizes an abrasive garnet slurry to erode metal cold, holding tight tolerances of ±0.13mm with zero heat distortion. However, waterjet is significantly slower and more expensive than laser cutting.

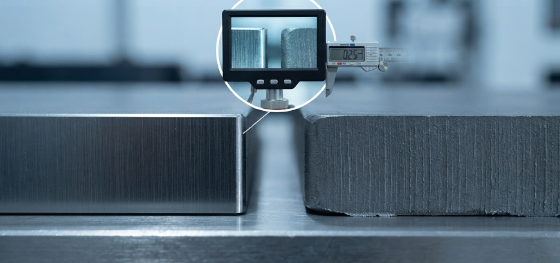

Conversely, industrial plasma cutting is exceptionally fast and economical for cutting thick carbon steel plates up to 50mm, but its standard tolerance is much wider, typically ranging from ±0.5mm to ±1.5mm due to a large heat-affected zone. Below is a direct comparison of the three cutting methods:
| Cutting Technology | Standard Linear Tolerance | Heat-Affected Zone (HAZ) | B2B Application Range |
|---|---|---|---|
| Precision Fiber Laser | ±0.05 mm to ±0.15 mm | Microscopic (Highly concentrated light) | Thin-gauge enclosures, custom brackets, medical chassis |
| Abrasive Waterjet | ±0.13 mm to ±0.25 mm | Zero (Cold erosion process) | Thick copper busbars, titanium plates, aerospace parts |
| Industrial Plasma | ±0.50 mm to ±1.50 mm | Large (Intense high-temperature gas) | Heavy structural frameworks, thick carbon steel blanks |

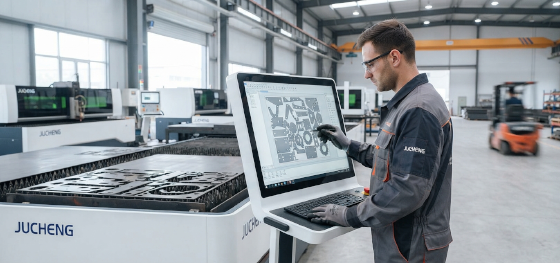

Precision Fiber Laser Cutting at Jucheng Precision
How does Jucheng Precision consistently achieve tight tolerances on custom laser-cut parts?
We operate high-power fiber lasers integrated with automatic focus-tracking heads and active gas-pressure control, checking all alignments before we cut.
Why pay premium prices for scattered processing? At Jucheng Precision, we manage cutting, bending, and powder coating under a unified quality system. This integrated capability keeps our overall sheet metal tolerances remarkably low, ensuring that your parts are cut, bended, and assembled with extreme consistency.
We process a wide range of materials, including lightweight aluminum, high-yield stainless steel, and easily formable carbon steel during high-precision sheet metal fabrication cycles. Our technical department provides a 24-hour free DFM analysis to check your CAD models, checking tolerances and tool clearances before production. Supported by our no MOQ policy and rapid delivery guarantee, we manage your project from initial flat pattern cutting to final, high-durability packaging and assembly.
FAQ: Critical Questions About Laser Cutting Sheet Metal Tolerances
Our engineering team has compiled professional solutions to the most common quality and cost challenges faced by product developers:
What is the standard tolerance for laser cutting sheet metal tolerances in general projects?
Under standard commercial norms, the standard tolerance for laser cutting is approximately ±0.1mm to ±0.15mm for steel and aluminum sheets under 3mm thickness. These limits are highly cost-effective to manufacture, but high-end medical or aerospace enclosures often require tighter custom tolerances down to ±0.05mm, which we achieve using advanced fiber lasers with automatic focus tracking.Can highly reflective metals like brass and copper be cut to tight tolerances?
Yes, but they require advanced fiber lasers. High-purity copper and brass reflect standard CO2 laser wavelengths like a mirror, causing the laser beam to bounce straight back into the cutting head and burn out the optics. Fiber lasers operate at a much shorter wavelength that reflective metals absorb easily, delivering a clean, tight-tolerance cut without back-reflection risks.Does a thick sheet metal plate increase laser cutting tolerances?
Yes, thicker sheets are more rigid and harder to melt cleanly, requiring slower cutting speeds and higher laser powers. This high thermal energy increases the width of the heat-affected zone and causes a slight edge taper, typically widening the standard cutting tolerance to ±0.25mm or more for plates over 12mm thickness.How does Jucheng Precision prevent thermal warping from affecting the cutting tolerances?
We bypass thermal distortion by optimizing our laser cutting paths to distribute heat input evenly across the raw sheet. Our CNC programmers utilize advanced nesting software to schedule cut paths so that the laser head never dwells in a single area too long, and our quality control team conducts full coordinate measuring machine (CMM) dimensional checks on completed parts.
