Medical Device Vacuum Casting Prototypes: ISO 13485 Compliant Solutions
Views: 3 Author: Allen Xiao Publish Time: 2026-03-05 Origin: Site
Precision diagnostic hardware demands a level of surface cleanliness and dimensional repeatability that rudimentary prototyping methods simply cannot achieve. In the high-stakes environment of medical device development, the transition from a digital CAD file to a clinically viable physical unit is fraught with regulatory and ergonomic hurdles. Traditional 3D printing, while useful for early form checks, fails the "Clinical Audit" due to inherent porosity and poor chemical resistance to sterilization agents. Conversely, authorizing a steel production mold before human-factors validation is finalized represents an unacceptable financial risk. Bridging this gap requires the deployment of Medical Device Vacuum Casting Prototypes. This specialized technology acts as the primary validation vehicle within the vacuum casting prototyping framework, delivering high-fidelity enclosures and handheld instruments that possess the mechanical spine and biological compliance required for clinical trials. Jucheng Precision operates under strict ISO 13485 quality management systems, providing the material traceability and process control needed to ensure your diagnostic hardware survives the rigors of a hospital environment long before mass production begins.
Securing regulatory approval hinges on providing physical hardware that accurately predicts mass-production behavior. Doctors, surgeons, and laboratory technicians require prototypes that feel balanced, resist bacterial growth, and withstand aggressive cleaning protocols. Jucheng Precision engineers partner with medical design teams to select specialized polyurethane resins—ranging from skin-safe biocompatible elastomers to high-impact flame-retardant housings—that ensure your physical test data is 100% robust. The following analysis explores the strategic necessity of casting in medical device innovation, focusing on ergonomics, assembly integrity, and sterilization compliance.

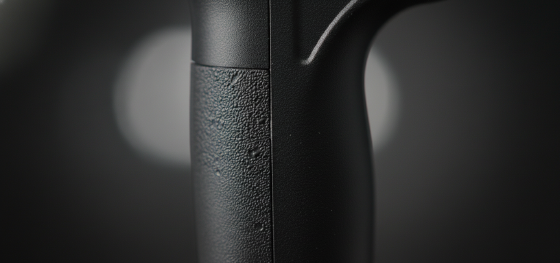

Human-factors testing remains the most critical phase for handheld medical instruments. Surgical tools, portable scanners, and monitoring devices must provide a non-slip, intuitive grip to ensure patient safety during high-stress procedures. Medical Device Vacuum Casting Prototypes allow designers to simulate complex tactile textures that 3D prints simply cloud with digital noise. By utilizing flexible silicone molds, Jucheng Precision captures microscopic anti-slip grains and ergonomic contours with surgical fidelity. We specialize in functional overmolding, chemically bonding a soft-touch Shore 40A elastomer over a rigid internal chassis in a single prototype. This creates a monolithic part that allows clinicians to evaluate the "Grip-Feel" and "Balance" of the device with 100% confidence. If a surgeon discovers that a trigger button is 2mm too far for comfortable operation, the design can be modified in CAD instantly. This prevents the catastrophic expense of discovering ergonomic flaws after a steel production mold has been finalized, ensuring the final product launch is optimized for the end-user's hands.
Diagnostic equipment often features dense internal architectures where PCBs, fluidic manifolds, and battery packs must coexist in a compact space. Managing these tolerances requires Medical Device Vacuum Casting Prototypes that exhibit zero geometric warping. Additive resins often suffer from "Creep" and hygroscopic swelling, making them unreliable for verifying tight-tolerance assembly fits. Jucheng Precision utilizes high-stability polyurethane resins that mimic the flexural modulus and dimensional certainty of production-grade ABS or Polycarbonate. Our casting process produces thin-walled enclosures (down to 1.2mm) with integrated mounting bosses and snap-fit features that possess the necessary ductility for repeated assembly/disassembly cycles. This allows your engineering team to verify that heat sinks have proper clearance and that gaskets achieve a watertight seal before committing to mass production. We deliver batches of 50 units that are dimensionally identical, ensuring that every beta-test unit in your clinical trial cohort performs with the same structural integrity.
Chemical Defense: Material Sterilization and Compliance
Sterilization protocols represent a hostile frontier for prototype materials. Medical devices must survive frequent "Wipe-Down" cleaning with Isopropyl Alcohol (IPA), bleach, or hydrogen peroxide without the plastic crazing, cracking, or losing its color. Medical Device Vacuum Casting Prototypes utilizing specialized engineering resins provide the chemical defense needed for hospital environment validation. Jucheng Precision offers a library of resins that are specifically formulated to resist chemical attack and maintain their surface luster even after repeated sterilization cycles. Furthermore, we provide UL94 V-0 flame-retardant resins for devices containing high-capacity batteries or internal power supplies, fulfilling critical safety requirements for CE and FDA certification. Unlike topical paints that chip and create contamination risks, our in-mold pigmentation ensures that the color is integral to the polymer matrix. This material sovereignty ensures your prototypes remain pristine throughout their entire evaluation lifecycle, providing the documented safety data required for successful regulatory submission.
ISO 13485 Standards: Ensuring Traceable Manufacturing

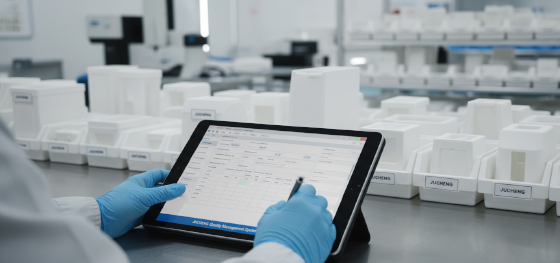

Manufacturing sovereignty in the healthcare sector is built on the foundation of the ISO 13485 quality management system. Jucheng Precision recognizes that a medical prototype is more than a model; it is a technical contract of safety. We implement rigorous process control that provides the "Paper Trail" required for medical hardware certification. We utilize high-precision CMM (Coordinate Measuring Machines) to audit every batch of Medical Device Vacuum Casting Prototypes, providing full dimensional inspection reports that link back to your digital STEP file. Our material lot traceability ensures that every resin batch is verified to confirm chemical consistency, and we maintain records of oven-curing profiles to guarantee mechanical property peak performance. This level of rigor is why global med-tech firms trust JUCHENG as their strategic partner for early-stage development. We don't just provide parts; we provide the documented certainty required to move from the clinical lab to the global market. Stop compromising your medical engineering goals with inaccurate mockups. Leverage our decade of chemical replication mastery to validate safely and launch profitably. Contact our technical team today for a free DFM review and see how we can armor your medical design for the rigors of patient care.
