Manufacturing arrogance often begins with a refusal to simulate. In the high-velocity environment of precision manufacturing, the most expensive words an engineer can hear are "the part is flashing, but the cavity is empty." This paradox occurs when the molten polymer behaves in ways that traditional human intuition cannot predict. When your project demands a multi-cavity tool for a complex medical enclosure or an automotive interior bezel, relying on "hope" is a strategy for bankruptcy. Navigating the volatile transition from CAD to steel requires the strategic deployment of Moldflow analysis injection molding. This technology creates a "Digital Twin" of the manufacturing event, allowing us to visualize the non-Newtonian flow of plastic inside a lightless steel void long before the first block of P20 or S136 is ever machined. Jucheng Precision operates as a high-fidelity data hub, providing the technical insurance needed to ensure your Injection molding process is optimized for yield, not just geometry. We turn the invisible fluid dynamics of polymers into actionable engineering data, eradicating rework before it exists.

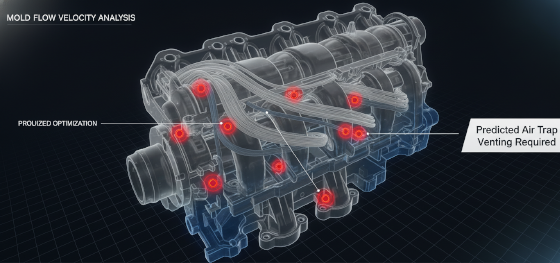

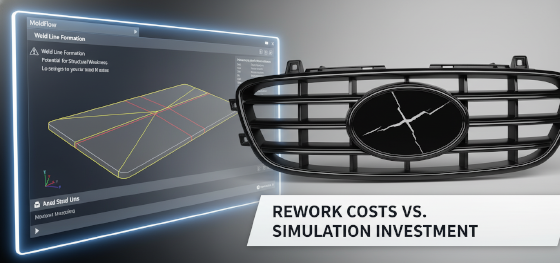

Establishing a high-yield production cycle demands the rejection of "Trial and Error" at the press. Amateurs view a mold trial as a discovery phase; JUCHENG views it as a confirmation phase. Every weld line that appears across a cosmetic face and every air trap that causes a burn mark could have been identified and neutralized during the software stage for a fraction of the cost of tool modification. Moldflow analysis injection molding eliminates these "Financial Scars" by interrogating the relationship between gate placement, shear rates, and thermodynamic cooling. Whether you are validating a thin-walled smart speaker housing or a ruggedized industrial bracket, our integrated facility utilizes simulation to find the "Molding Window" where zero defects occur. This guide deconstructs the forensic value of fill simulation, the physics of gating strategy, and why JUCHENG’s "Digital First" protocol is the mandatory foundation for anyone launching hardware in the 2026 market.
Steel Insurance: Why Pixels are Cheaper Than Metal
Mechanical commitment to tool steel is a permanent decision. Once an EDM spark has etched a cavity or a CNC mill has removed material, reversing a design error involves expensive welding or, more likely, a total tool scrap. Moldflow analysis injection molding acts as a financial sandbox for your engineering team. We simulate the injection of specific Injection molding materials—such as high-viscosity Polycarbonate or abrasive Glass-Filled Nylon—to observe how they navigate your specific geometry. If the simulation predicts a "Short Shot" in a distant rib, we adjust the wall thickness in CAD, re-simulate, and verify the fix in minutes. This digital iteration loop is 100x faster and cheaper than physical tool trials. Jucheng Precision recognizes that in the high-stakes sectors of medical and automotive hardware, "Speed-to-Market" is only valuable if the parts arrive right the first time. We provide the documented certainty required to authorize six-figure tooling budgets with absolute peace of mind.
Gating Forensics: Balancing the Non-Newtonian Surge

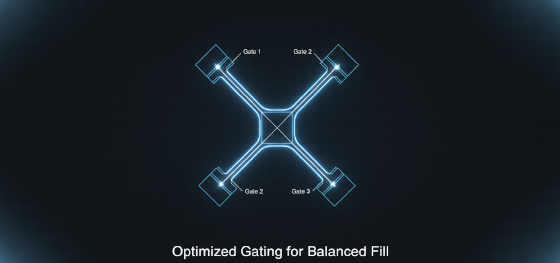

Gate positioning determines the molecular spine of your component. Many designers place gates based on aesthetic convenience, unaware that the location dictates the "Melt Front Velocity" and internal residual stress patterns. Utilizing Moldflow analysis injection molding allows our engineers to perform a "Gating Audit." We visualize the pressure drop as the plastic travels from the nozzle through the runners. If the fill is unbalanced in a multi-cavity family mold, the simulation will show one part flashing while another is incomplete. We utilize "Artificial Balancing" (as covered in our family mold guides) to adjust runner diameters in software. This ensures that the pressure reaches every corner of the cavity simultaneously, neutralizing the risk of warped parting lines. By managing the "Shear Heat" at the gate entrance, we protect the polymer chains from thermal degradation, ensuring your parts possess the impact strength and visual soul intended in your original design.
Thermodynamic Ghosts: Identifying Sink and Hot Spots
Thermal mass management is a battle against the physics of insulation. Plastic is a poor heat conductor; thick sections retain energy for seconds longer than adjacent thin walls. This delta in cooling speed is what creates "Thermodynamic Ghosts"—invisible stresses that manifest as sink marks injection molding once the part is ejected. Jucheng Precision engineers utilize simulation to map these "Hot Spots." We identify areas where the plastic core will remain molten too long, pulling the surface inward. By identifying these zones before tooling begins, we can suggest "Coring-out" maneuvers or rib modifications that synchronize the cooling cycle. We also utilize Moldflow to optimize the layout of conformal cooling injection molding circuits. If a standard drilled water line can't reach a deep boss, we simulate a 3D-printed metal cooling insert to pull that heat out directly. We don't just guess where the heat will hide; we track it with mathematical precision to ensure your surfaces remain flat and flawless.
Warped Realities: Predicting the Potato-Chip Effect

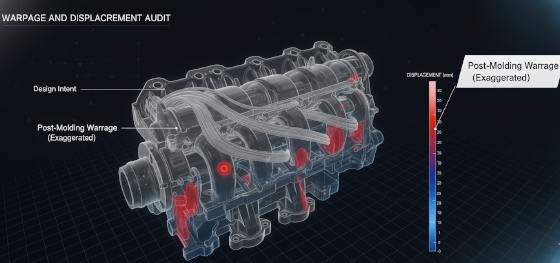

Structural rebellion occurs when a part is ejected before its internal energies are balanced. Injection molding warpage is the inevitable result of non-uniform shrinkage pulling the part into a distorted equilibrium. Moldflow analysis injection molding provides a "Displacement Map" that exaggerates these deformations, showing you if your housing will bow, twist, or bend after leaving the tool. This predictive power allows JUCHENG engineers to apply "Counter-Warp" strategies. If the simulation shows a part will bow 1.0mm inward, we can sometimes pre-warp the mold steel in the opposite direction, so the part shrinks *into* its target tolerance. We also analyze the "Orientation of Fibers" for glass-filled resins, predicting how the alignment of the glass shards will cause anisotropic shrinkage. This level of forensic data is mandatory for high-precision electronics and automotive frames where a 0.1mm gap can ruin an entire assembly line's throughput. We turn "Warped Realities" into "Dimensional Sovereignty."
JUCHENG Protocol: Standardizing the Digital Fill Audit
Engineering excellence at Jucheng Precision is built on the foundation of predictive transparency. We don't believe in MOQs or "Hoped-for Quality." Our facility, housing over 150 CNC machines and 25 high-precision 5-axis centers, is optimized for the agile middle-ground of Low Volume Injection Molding. Every project we accept undergoes a complimentary DFM audit that includes a baseline Moldflow review. We identify the weld lines that will compromise your part's aesthetics and the air traps that will cause burn marks before a single PO is authorized. Stop gambling your R&D budget on vendors who "mold and pray." Leverage our decade of simulation mastery to validate rapidly, certify confidently, and launch profitably. Contact our technical team today for a free DFM review. Our experts will run a Moldflow analysis injection molding on your 3D CAD file, identifying Injection molding defects before they cost you money, ensuring your transition to mass production is seamless, stable, and retail-ready.
