Unboxing a 2-meter tall diagnostic scanner shell in [2026] and seeing a scratch or a peeling paint chip is the quickest way to lose a hospital contract. In the reaction injection molding process, the mechanical skeleton is only half the battle; the final surface quality is what defines the perceived value of your machine. Most thermoplastics like Polypropylene (PP) or Polyethylene (PE) are notorious for "rejecting" paint, requiring expensive primers and chemical etchants just to get a basic coating to stick. Mastering Polyurethane RIM painting and bonding is the strategic advantage for developers who need automotive-grade finishes and unbreakable structural assemblies without the typical headache of surface failure.
Traditional Custom Plastic Molding often treats finishing as an afterthought, leading to parts that look "plasticky" and cheap. Because polyurethane is a thermoset material with high surface energy, it is essentially the "King of Adhesion." Paint doesn't just sit on the surface; it creates a microscopic chemical handshake with the polymer matrix. Jucheng Precision addresses these aesthetic hurdles by providing high-tier Polyurethane Molding Services that include in-house dust-free painting and structural assembly. 我们 deliver hardware that moves beyond "prototype looks" to provide the retail-ready perfection that medical, industrial, and high-end consumer sectors demand.
Operating within the Shenzhen precision manufacturing hub, JUCHENG acts as the "Finishing Master" for global OEMs. We transform raw liquid chemistry into validated, high-gloss structural shells that can survive the abrasive reality of the field. This guide is a down-to-earth look at why paint sticks better to RIM, how to prep giant parts for the spray booth, and why structural bonding is the secret to building massive prototype robot assemblies that feel like a single piece of stone. Let's explore the science of Polyurethane RIM painting and bonding.
content:
The Adhesion King: Why RIM is the Best Surface for Paint?
Technical Data: Comparing Paint Adhesion and Joint Strength
Preparation Protocols: Sanding, Degreasing, and Flame Treatment
Bonding Giant Parts: Adhesives vs. Mechanical Fasteners
JUCHENG Hub: Managing One-Stop Post-Processing in Shenzhen
FAQ: Real Answers for Finishing and Assembly Logistics
The Adhesion King: Why RIM is the Best Surface for Paint?

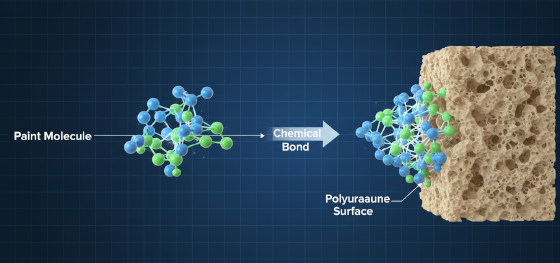

The secret to a mirror-like finish on a large-scale robot fender or medical console is found at the molecular level. In Polyurethane RIM painting and bonding, the material’s surface energy is naturally higher than that of olefin-based plastics like Polypropylene. While a PP part acts like a "non-stick pan," polyurethane is chemically receptive. When JUCHENG applies high-solids 2K urethane paint, the molecules of the coating actually penetrate the outer microscopic "pores" of the RIM part. This results in a mechanical and chemical bond that is virtually impossible to peel, even when the part is flexed or subjected to extreme temperature swings.
Is a primer always necessary for RIM parts?
No. While we often use high-build primers to hide microscopic surface textures, the adhesion of the topcoat to raw polyurethane is so strong that standard adhesion-promoters are rarely needed, saving you time and cost.
Inherent chemical resistance of the substrate protects the finish from the inside out. In [2026] medical environments, devices are constantly blasted with aggressive cleaning agents. If the paint is on a low-adhesion plastic, the cleaner will seep under the paint at a tiny scratch and "lift" the entire coating. Because JUCHENG’s Polyurethane Molding Services ensure a monolithic bond between the resin and the paint, the coating remains intact. This is why RIM is the preferred choice for MRI housings and surgical robot shells—it is the only way to guarantee a "New-Machine" look for the entire 10-year life of the equipment.
Surface flatness dictated by low-pressure physics further enhances the painting quality. Traditional high-pressure molding creates "sink marks" over internal ribs, which become painfully visible once a high-gloss paint is applied. JUCHENG’s RIM process produces parts with zero internal stress, ensuring that 2-meter long panels remain perfectly flat. This allows our paint team in the Shenzhen hub to achieve a "Class-A" finish with minimal sanding labor, directly reducing your R&D budget while delivering a prototype robot that looks like it just rolled off a multi-million dollar mass-production line.

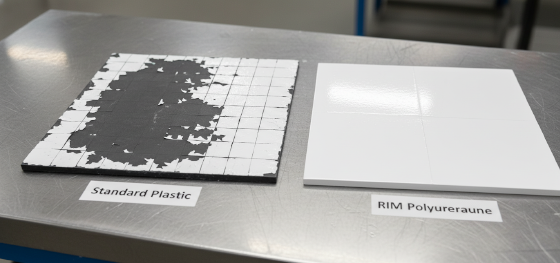

Technical Data: Comparing Paint Adhesion and Joint Strength
Choosing the right finishing and assembly strategy requires data, not guesswork. If your robot operates in a high-vibration factory, the bond strength of your assembly is more important than the gloss level of the paint. Jucheng Precision provides full technical specs to help you validate your Beta fleet. The following table compares the essential performance metrics of Polyurethane RIM painting and bonding against common thermoplastic alternatives for the [2026] market.
| Metric | Polyurethane RIM (Painted) | Molded ABS (Painted) | Molded PP (Painted) |
| Adhesion (Cross-Hatch) | 5B (No peeling) | 4B - 5B | 1B - 2B (High failure) |
| Chemical Resistance (Alcohol) | Exceptional | Moderate (Stress cracks) | Low (Solvent swelling) |
| Shear Bond Strength (psi) | 1,200 - 1,800 | 800 - 1,100 | 300 - 500 |
| UV Stability (unpainted) | High (Additive-based) | Low (Yellows) | Moderate |
The "Shear Bond Strength" is the most critical data point for building large robotic assemblies. In Polyurethane RIM painting and bonding, the material can be chemically "fused" using structural urethane or epoxy adhesives. Because the adhesive and the part share similar chemical origins, the joint often becomes stronger than the surrounding material itself. This allows JUCHENG to manufacture four separate panels and bond them into a single, seamless 2-meter tall enclosure that can handle the vibrational loads of a heavy-duty industrial mobile base without any mechanical fasteners visible on the exterior.
Preparation Protocols: Sanding, Degreasing, and Flame Treatment
Automotive-grade paint quality is not won in the spray booth; it is won at the sanding bench. For oversized industrial robot parts, JUCHENG implements a multi-stage surface preparation protocol. We begin with automated degreasing to remove any trace of wax-based mold release agents. Even a microscopic oily spot will cause a "fish-eye" defect in the final paint. We then move to 400-grit to 1000-grit wet sanding to ensure the parting lines and gate scars are 100% invisible. This labor-intensive prep is why our Custom Plastic Molding results look so much more professional than parts from "rough prototyping" shops.
How to get paint to stick to a 2-meter part?
Use flame treatment to oxidize the surface molecules, temporarily increasing the surface energy and providing thousands of chemical "anchor points" for the paint.

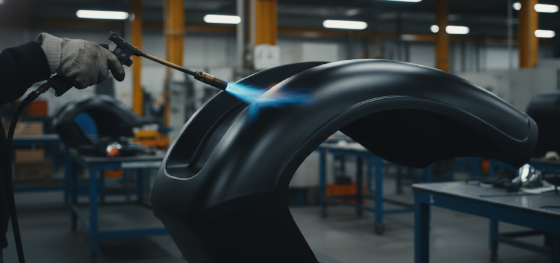

Flame treatment is JUCHENG’s high-tech "secret weapon" for large enclosures. By passing a specialized plasma or gas flame over the part, we break the surface molecular bonds and create polar groups. This makes the polyurethane even more receptive to high-performance topcoats. This process is essential for robots destined for outdoor AgTech use, where the hardware will be exposed to rain and mud. Without flame treatment, the moisture can eventually undermine the paint; with it, the coating becomes a permanent part of the shell, resisting the "sandblasting" effect of dust and debris during high-speed field travel.
Antistatic cleaning is the final prep step at our Shenzhen hub. Large plastic panels are magnets for dust due to static electricity. JUCHENG utilizes ionized air blow-offs and specialized tack-cloths immediately before the part enters the spray booth. This ensures that no tiny specks of dust are trapped under the paint. For 2026 medical-grade diagnostic equipment, this level of "Surgical Cleanliness" is mandatory to prevent the surface imperfections that could harbor bacteria or compromise the clinical professional image of your device.

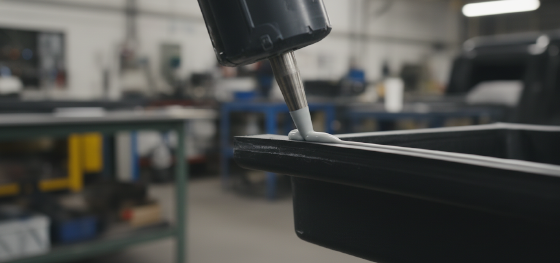

Bonding Giant Parts: Adhesives vs. Mechanical Fasteners

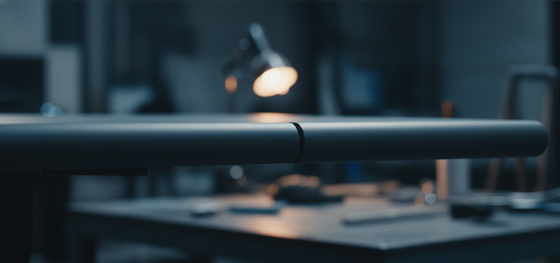

Designing massive prototype robot enclosures often requires building the part in segments and then joining them. In Polyurethane RIM painting and bonding, you have two choices: hide the joint or show it. JUCHENG recommends "Structural Bonding" for a seamless, retail-ready look. We utilize 5-axis CNC to machine interlocking tongue-and-groove features into the part edges. These features increase the surface area for the adhesive, providing a "Mechanical Interlock" that, when combined with industrial epoxies, creates a joint that can survive a 10-G impact test without cracking.
Can I use screws instead of glue for Beta trials?
Yes. JUCHENG can encapsulate threaded brass or steel inserts directly into the RIM part during the reaction injection molding process, allowing for a "Serviceable" bolted assembly that remains rigid.
Solvent bonding is another unique trick for polyurethane. Unlike ABS, which can be melted with simple solvents, PU requires a specialized "chemical fusion" agent. JUCHENG utilizes these agents for small, intricate details where a thick adhesive bead would be too bulky. This results in a "Cold-Weld" that is optically clear—essential for robots with integrated LED light guides or transparent sensor windows. By managing the bonding chemistry in-house, we eliminate the risk of "Stress Cracking" that occurs when engineers use the wrong hardware-store glue on high-performance industrial polymers.
Weight management is optimized through adhesive selection. Mechanical fasteners (bolts and nuts) add significant mass and create "stress risers" that can cause cracks in a large plastic shell. Bonding distributes the load over the entire length of the joint, allowing JUCHENG to use thinner wall sections in your design. This "Monocoque" approach is what allows us to deliver a 2-meter scanner console that weighs 40% less than a metal version but possesses identical structural rigidity. Every gram saved in assembly is a gram added to your robot’s battery life or sensor payload in the [2026] market.

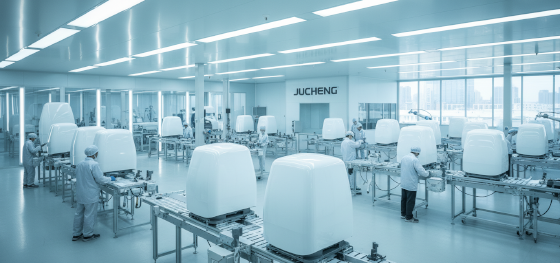

JUCHENG Hub: Managing One-Stop Post-Processing in Shenzhen
Dominating the large-format hardware market requires a partner that can scale from a single hand-painted prototype to a commercial deployment of 5,000 units without losing a millisecond of momentum. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance Polyurethane RIM painting and bonding and structural industrial robot parts with industry-leading speed. We provide a "Bridge to Production" that ensures your innovations move from concept to pilot run with 100% aesthetic and mechanical confidence.
Integrating your structural design with JUCHENG’s expertise ensures that your hardware survives the "First-Boardroom Contact" and moves into mass adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential bonding-risks or "paint-traps" in your design before they become visual failures. Whether you are building an autonomous medical assistant or a heavy-duty industrial mobile base, Jucheng Precision provides the rigid, precise, and flawlessly finished foundations that keep your innovation moving through the high-stakes cycles and the years of hard labor.
Our facility is equipped with 150+ CNC machines and dedicated dust-free painting and cleanroom assembly cells, allowing us to manage the entire hardware lifecycle in one location. We manage the complexity of multi-material bonding and automotive-grade finishing so your engineering team can focus on the system integration and the AI. By combining Shenzhen's speed with industrial-grade material verification and global ISO 13485 standards, JUCHENG remains the preferred partner for the world's most aggressive Custom Plastic Molding challenges. Contact us today to start your next project.
FAQ: Real Answers for Finishing and Assembly Logistics
Can JUCHENG match a specific Pantone or RAL color?
Yes. We use computer-controlled paint mixing to match your brand colors with +/- 0.5 Delta-E accuracy in our dust-free booth.
What is the typical lead time for a fully painted large enclosure?
Fully finished and assembled enclosure sets are typically delivered in 15 to 20 business days.
Is the bonding strong enough for heavy-duty AgTech use?
Yes. Our structural adhesive joints are engineered to be stronger than the base polyurethane, surviving extreme impact and vibration.
Does the paint on RIM parts scratch easily?
No. We apply ceramic-infused 2K clear coats that provide automotive-grade scratch and chemical resistance.
Can you bond RIM parts to metal frames?
Yes. We specialize in multi-material bonding of polyurethane panels to aluminum or steel skeletons for hybrid robot designs.
Peeling paint and loose joints are absolute innovation killers for 2026 hardware. Partnering with Jucheng Precision ensures that your functional iterations are built with the unyielding reaction injection molding process and specialized Polyurethane RIM painting and bonding techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the high-fidelity foundation your autonomous fleet requires.
