Tired of Chips and Scratches? The Solution is Powder Coating
Views: 2 Author: Allen Xiao Publish Time: 2025-11-14 Origin: Site
You have seen it before. A beautiful new product with a perfect paint job. But after a year of use, it starts to fail. The paint chips at the corners. It gets scratched. The color starts to fade in the sun.
This is the weakness of traditional liquid paint, especially on metal. For products that need to be truly durable, you need a better solution.
That solution is powder coated aluminum. It is a modern, tough, and beautiful finish. It is a fundamentally different and superior way to protect and color your aluminum parts. This is a key process in a professional Aluminum surface treatment strategy.
Liquid paint is essentially a colored glue. It sticks to the surface of the metal. But this bond is only on the surface.

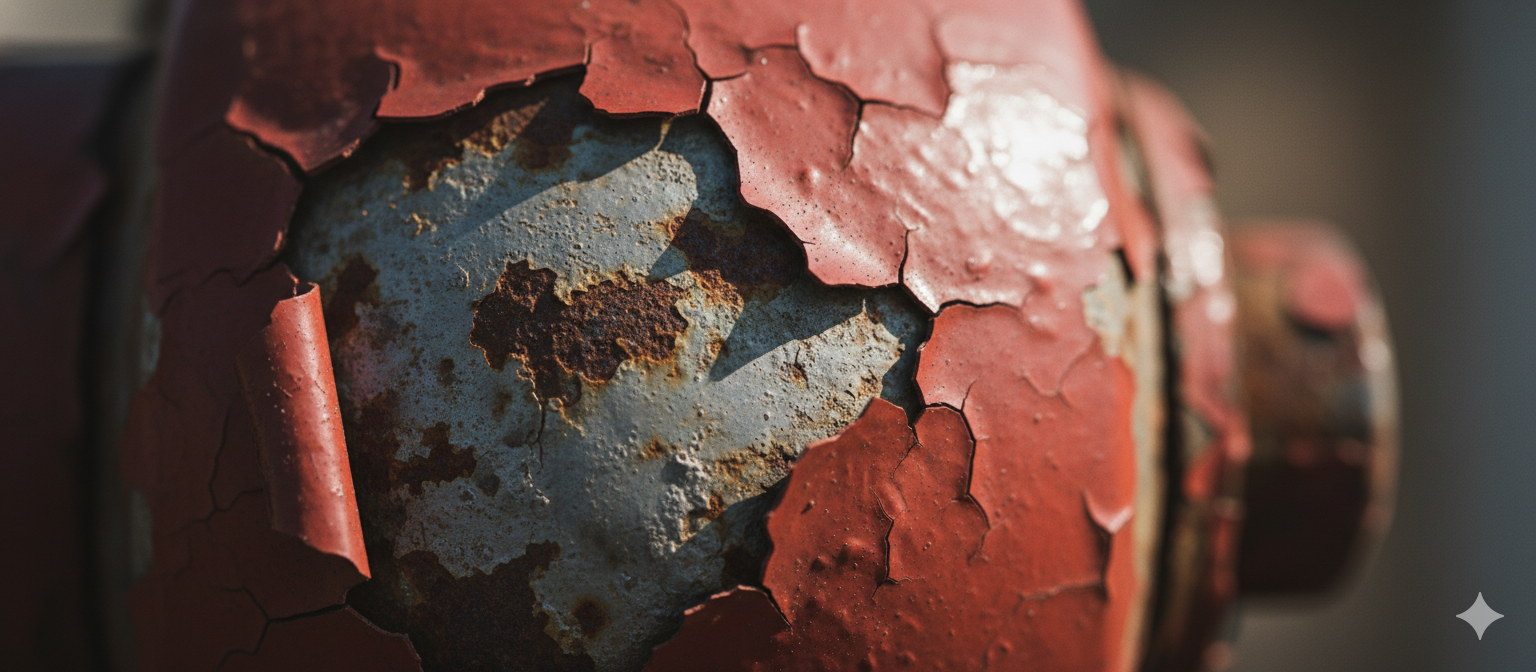

This means it is prone to mechanical damage. A sharp impact can easily chip the paint, exposing the metal underneath. Scratches can cut through the thin layer. Over time, with handling and exposure to the elements, the paint can begin to peel or flake away.
Liquid paint also contains solvents, known as VOCs. These are harmful to the environment and to the workers applying the paint. And the thickness of a liquid paint job can be inconsistent, with runs and drips.
A Fundamentally Different Approach
Powder coating is not paint. It is a completely different technology. The process starts with a dry powder. This powder is a mix of finely ground polymer resins, pigments, and other additives.
The first step is critical surface preparation. The aluminum part must be perfectly clean. We use a multi-stage chemical cleaning process to remove all oils and contaminants. This ensures a strong bond.

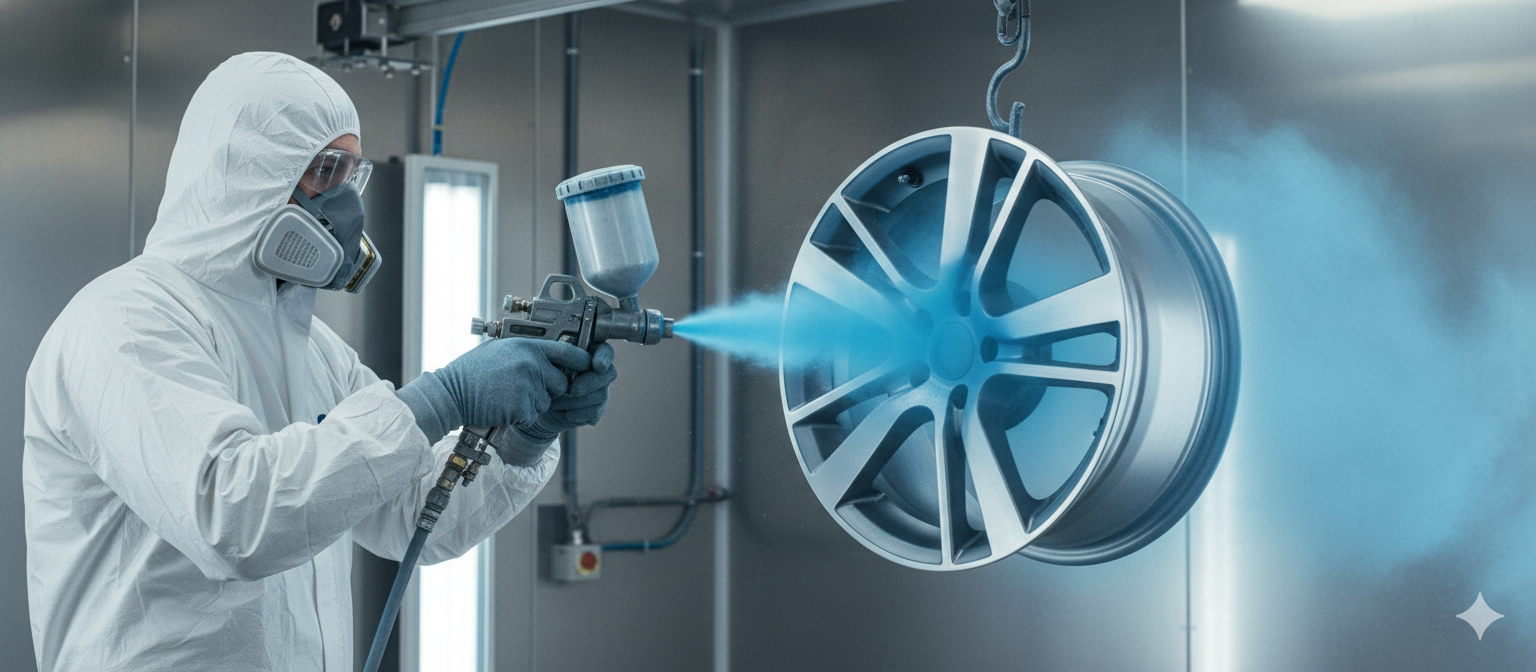

Next, the part is hung in a spray booth. A special spray gun gives the dry powder an electrostatic charge. The aluminum part is grounded. Because opposites attract, the charged powder is drawn to the part and sticks to it evenly, like dust to a TV screen.
This electrostatic process is very efficient. It wraps the powder around corners and into complex shapes, creating a very uniform layer.
The Curing Process: Where the Magic Happens
At this point, the part is covered in a layer of dry dust. It is very fragile. Now comes the most important step.

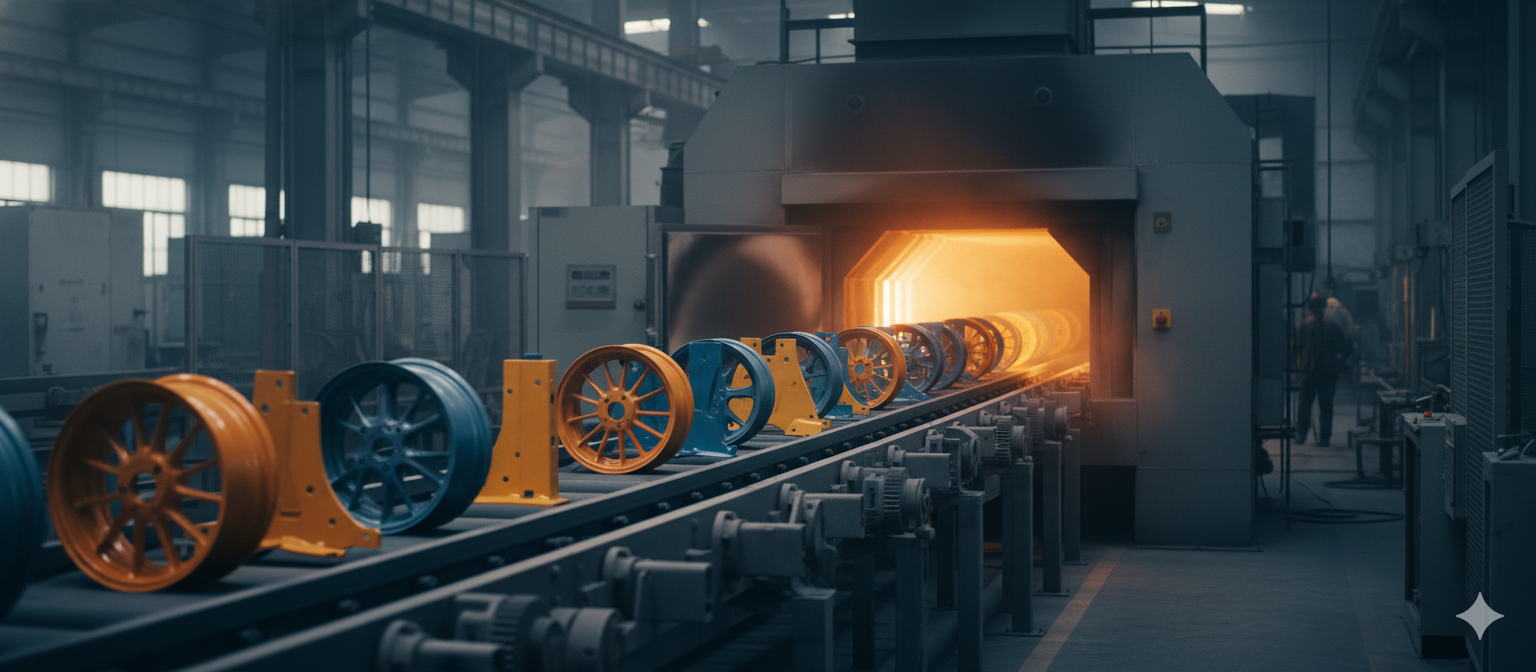

The part is moved into a large industrial oven. It is heated to a specific temperature, often around 200°C (400°F).
The heat does two things. First, it melts the powder particles, causing them to flow together into a smooth, continuous liquid film. Second, it triggers a chemical reaction. The polymer resins cross-link and cure.
This is not just drying. It is a chemical transformation. The liquid film turns into a hard, durable, plastic shell. It is chemically bonded to the surface of the aluminum.
The Result: A Finish That Lasts

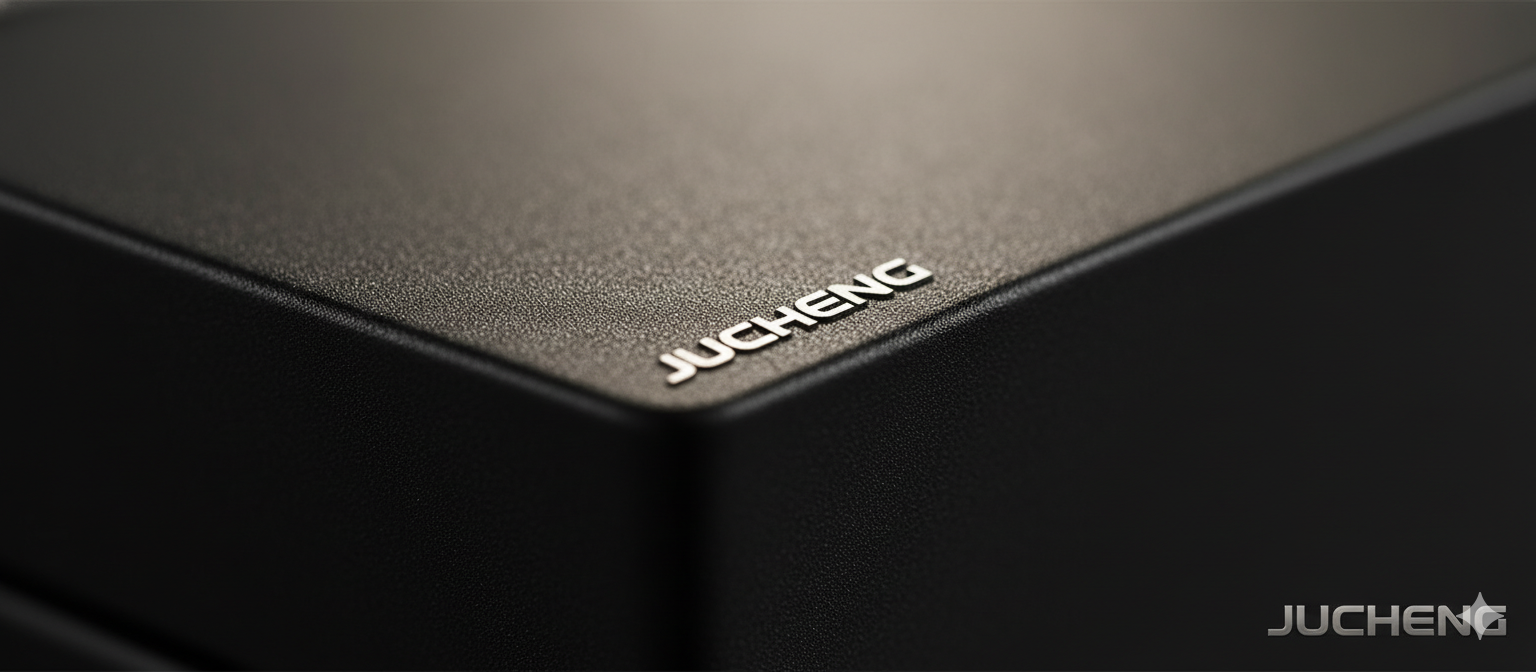

The final result is an incredibly tough finish. A powder coat is much thicker and harder than liquid paint.
It is highly resistant to chipping, scratching, and abrasion. This makes it perfect for products that are handled frequently or used in harsh environments. A bicycle frame, for example, can handle getting knocked around without showing ugly scratches.
It is also very resistant to chemicals and UV light. This is why it is used for outdoor architectural panels and garden furniture. The color will not fade in the sun like liquid paint does. It will look great for many years.
Beyond Durability: Other Key Advantages
Durability is the main reason to choose powder coated aluminum. But there are other important benefits.
It is better for the environment. Powder coating contains no solvents (VOCs). It is a much cleaner process than liquid painting.
It offers amazing consistency. Because of the electrostatic application and curing process, the thickness of the coating is very uniform. There are no drips or runs.

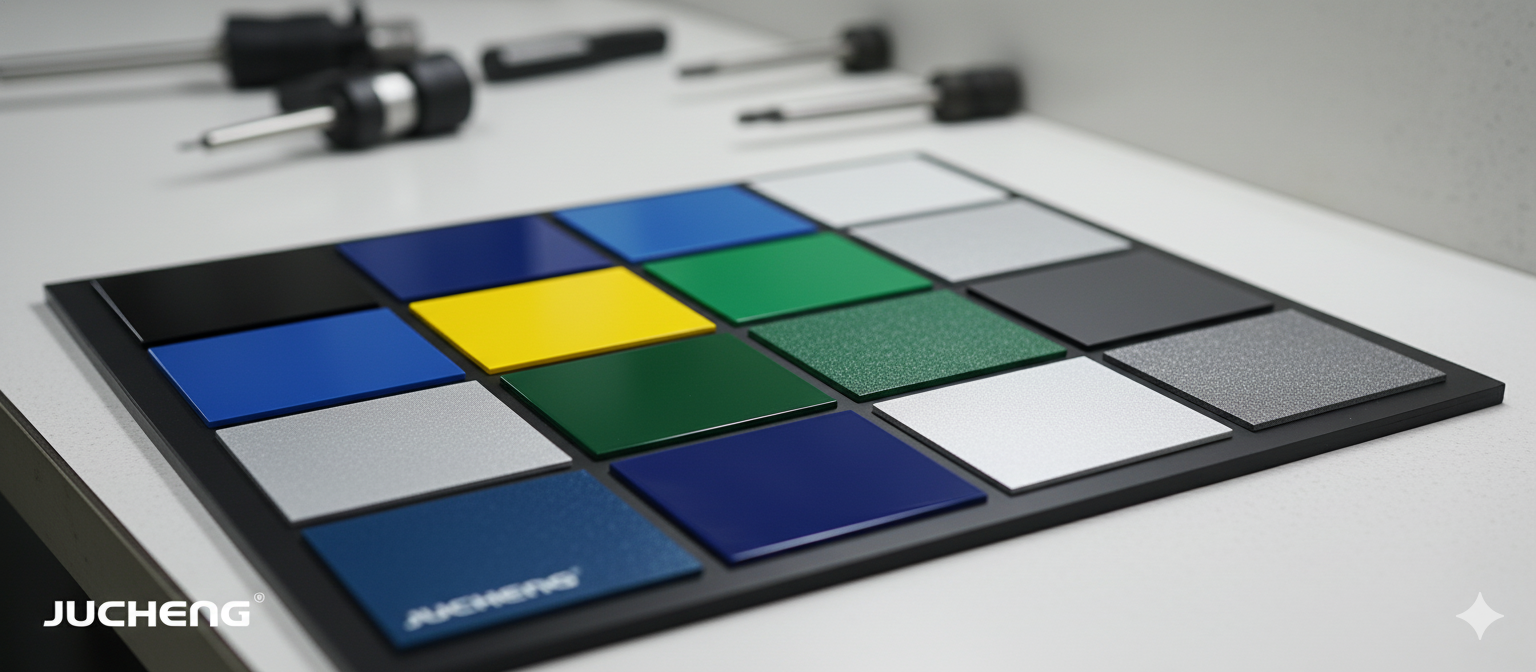

It also offers a huge range of aesthetic options. You can choose from thousands of colors. You can also choose different textures. From a smooth, high-gloss finish to a fine-textured matte finish that feels great to the touch.
For any product that needs to be both beautiful and tough, powder coating is the superior choice. It is a key part of a high-quality manufacturing strategy.
