Transitioning custom hardware designs from low-volume quick-turn checks into continuous high-volume production is the ultimate scaling challenge. Specifying professional rapid tooling injection molding provides your engineering teams with a crucial bridge, allowing you to mold hundreds to thousands of identical parts using production-grade materials at a fraction of standard tooling costs. This highly efficient process acts as the final stage of your quick-turn rapid prototyping service, utilizing soft-steel or aluminum molds to deliver pristine parts that behave exactly like end-use products.
Suffer from layered 3D prints that cannot handle environmental stress, or high NRE tooling invoices that stall early market launches? Traditional steel molds require months of optical grinding and sinker EDM machining, resulting in massive upfront capital risks. Shifting to an agile, rapid mold-making workflow completely removes these high entry barriers, delivering ready-to-use structural parts with low-cost tooling.
Let's explore the physical definition of rapid prototype tooling, analyze the molding capabilities of real engineering thermoplastics, and review the cost-quality trade-offs between rapid molds and traditional production-grade tooling.
What is Rapid Prototype Tooling?
To minimize your upfront NRE budgets, understanding the soft mold-making process is essential. This advanced mechanical approach utilizes highly machinable metals—such as high-strength aluminum alloys (Al7075-T6) or pre-hardened soft steels (like P20 steel)—to construct modular mold cores and cavities. This material choice is a major contrast to standard production molds, which rely on ultra-hard tool steels that require slow, expensive EDM processing.

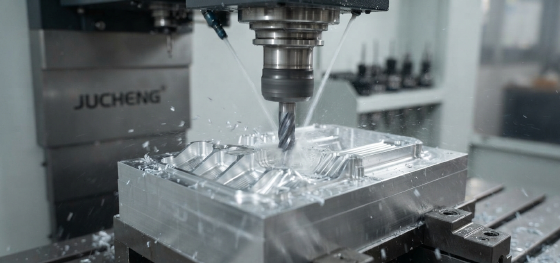

Because aluminum is significantly softer than steel, CNC cutters can machine the cavity surfaces up to three times faster, dramatically compressing mold fabrication lead times. This rapid milling provides designers with a highly cost-effective, quick-turn tool ready for immediate molding runs. It represents the ultimate bridge of your overall rapid prototyping process, allowing you to test functional injection parts in days.
Rapid Injection Molding Prototyping with Real Engineering Thermoplastics

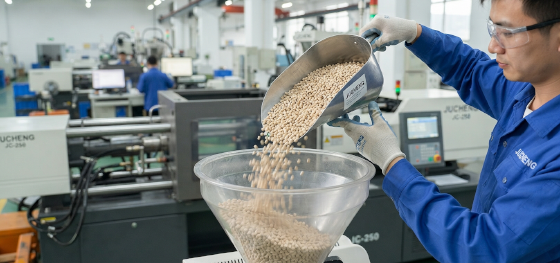

The primary engineering value of moving to quick-turn molding is the ability to run functional evaluations using real production-grade thermoplastics. Standard 3D prints utilize specialized photopolymers that easily degrade under dynamic friction or high heat. Rapid molding allows us to inject actual engineering resins, including high-temperature PEEK, chemical-resistant PPS, and rigid glass-filled nylon.
Injecting these production-grade polymers under standard cycle pressures delivers prototypes that are identical to mass-produced hardware. This materials compatibility allows engineers to run valid thermal stress tests, evaluate physical snap-fit fatigue, and perform sterile biocompatibility audits on clinical housings. It provides highly reliable test data, ensuring that your parts meet strict industrial regulations before releasing final mass production drawings.
Rapid Tooling vs. Production Tooling

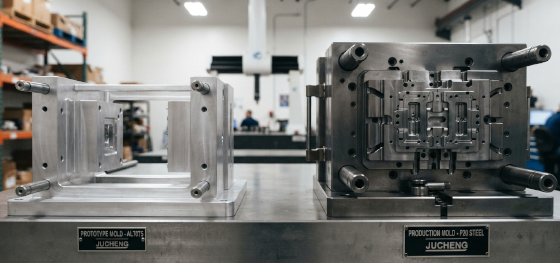

Selecting the correct tooling class is critical to optimizing your product development budget. Specifying rapid tooling injection molding is highly economical for batches of 100 to 10,000 parts. By utilizing modular MUD (Master Unit Die) bases, we only machine the custom active core and cavity inserts, completely eliminating the high cost of raw bolster plates.
Conversely, standard production tooling utilizes ultra-hard, heat-treated steel (such as H13 or S7) designed to survive millions of cycles with zero cavity wear. While production tooling delivers an exceptionally low unit price over long runs, its initial setup cost (typically 10,000 to 50,000 USD) and long manufacturing lead times are highly restrictive. Rapid tooling provides a highly flexible middle-ground, allowing you to launch products with minimal upfront risk:
| Finishing Metric | Rapid Prototyping Tooling | Standard Production Tooling |
|---|---|---|
| Typical Mold Material | Al7075-T6 Aluminum / P20 Soft Steel | H13 / NAK80 Hardened Tool Steel |
| Mold Fabrication Lead Time | 5 to 12 Days (High-speed CNC) | 4 to 8 Weeks (EDM & Grinding) |
| Upfront Capital Cost (NRE) | Low (Typically 1,500 to 5,000 USD) | High (Typically 10,000 to 50,000+ USD) |
| Guaranteed Mold Life | 1,000 to 10,000 Shots | 100,000 to 1,000,000+ Shots |
Scaling Up with Jucheng Precision's 35+ Injection Molding Machines

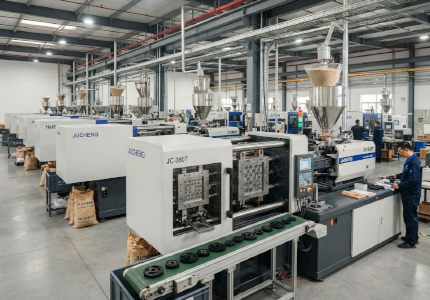

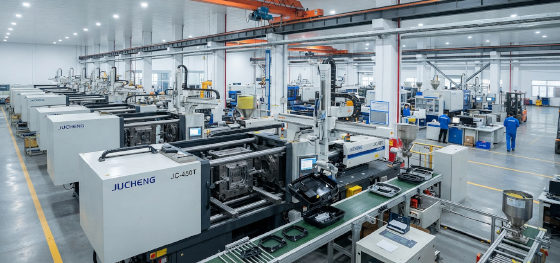

Sourcing high-precision molded parts requires an integrated, high-capacity workshop floor. Jucheng Precision operates a fully equipped molding department housing over 35 automated injection molding machines ranging from 50 to 650 tons of clamping force. This diverse machinery fleet allows us to handle both micro-injection parts and large-format structural enclosures, ensuring extreme quality control under a unified quality system certified to ISO 9001 and IATF 16949 standards.
Every custom order is managed under strict DFM guidelines. Our engineering department provides a 24-hour free DFM analysis to check your CAD models, checking draft angles, wall thickness deviations, and gating locations before cutting metal. This integrated rapid prototyping service allows you to optimize your 3D models using fast-cut aluminum molds, and scale seamlessly to mass production under a single, highly reliable manufacturing partner.
FAQ: Critical Questions About Rapid Tooling Injection Molding
Our engineering team has compiled professional, concise solutions to the most common quality challenges faced during quick-turn molding runs:
How do you prevent cosmetic sink marks on thick molded areas?
We design uniform wall thicknesses across the part (typically 1.5mm to 3.0mm) and optimize our injection pack-pressure curves to feed material into shrinking areas.Can fiber-glass filled resins be molded in aluminum rapid molds?
Yes, but glass fibers are highly abrasive and will wear down aluminum cavities over time, so we utilize pre-hardened soft steel (P20) to ensure tight dimensional tolerances.Where do you place ejector pins and gates to ensure high cosmetic value?
We position gates and ejector pins on non-cosmetic interior faces during our CAD DFM stage, ensuring that external surfaces remain pristine and ready for painting.How does Jucheng Precision keep the rapid tooling injection molding process highly competitive?
We utilize modular MUD mold frames to bypassbolster plate costs, operate fast CNC vertical mills to cut cavities, and run over 35 automated horizontal presses to maximize production yield.
