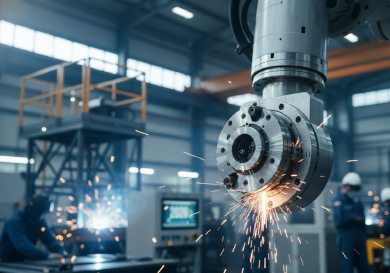

Watching a high-speed palletizing robot or an automated welding cell in [2026] reveals the critical importance of industrial robot parts: the wrist interface is where the mission succeeds or fails. While the arm provides the reach, the flange and its associated adapter plates provide the rigid connection to the end-of-arm tooling (EOAT). If this interface has even a micron of "play" or flexes under load, the robot's entire precision becomes irrelevant. Manufacturing Robotic flange and adapter plates requires a mastery of standardized bolt patterns and the use of high-fatigue alloys like 17-4 PH stainless steel to ensure zero-drift performance.
Mechanical integrity at the tool interface dictates the robot's dynamic payload capacity. Every acceleration and deceleration cycle transmits massive inertial forces directly through the flange bolts. In precision assembly tasks, any misalignment between the robot wrist and the tool leads to failed insertions and damaged workpieces. Jucheng Precision addresses these critical interface challenges by utilizing high-precision CNC turn-mill centers, ensuring that every PCD (Pitch Circle Diameter) and locating pin hole is executed with sub-micron concentricity relative to the axis of rotation.
Operating within the Shenzhen precision manufacturing hub, JUCHENG provides a "Bridge to Production" for robot OEMs and automated tool manufacturers. We transform high-strength bar stock into ISO 9409-1 compliant interfaces that act as the unbreakable link between the robot and its payload. This guide explores the essential ISO standards, material performance trade-offs, and zero-play machining strategies required for manufacturing robotic flanges and adapter plates that maintain their alignment over millions of tool-change cycles.
content:
Standardizing the Interface: ISO 9409-1 Compliance
Technical Data: Comparing Alloys for Tool Adapters
Zero-Play Bolt Patterns: Eliminating Positional Drift
17-4 PH Durability: Engineering for High-Torque Wrists
JUCHENG: The Shenzhen Hub for Robotic Tool Interfaces
FAQ: High-Precision Interfaces for Industrial Tools
Standardizing the Interface: ISO 9409-1 Compliance

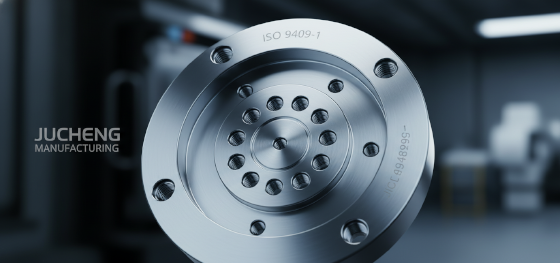

Universal tool compatibility in [2026] robotics is built upon the ISO 9409-1 standard. This specification defines the bolt patterns, centering diameters, and locating pin positions for robotic wrist flanges. In Robotic flange and adapter plates manufacturing, even a 0.02mm deviation from these standards can make it impossible to mount a standard gripper or welding torch. JUCHENG machines these interfaces to the tightest limit of the standard, ensuring that tools from brands like SCHUNK, OnRobot, or ATI fit perfectly every time without the need for manual shimming.

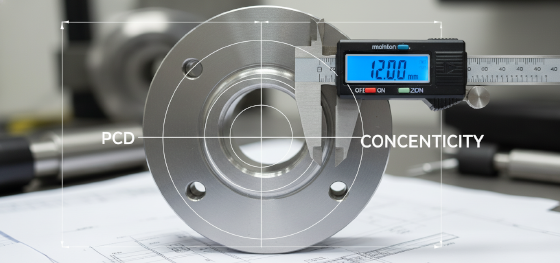

Centering accuracy is the most significant metric for flange performance. The "pilot diameter" on the flange must be concentric with the robot’s last axis of rotation. JUCHENG utilizes CNC turning and grinding to hold these diameters to a g6 or h6 tolerance, providing a "snug-fit" that eliminates radial movement. This ensures that the Tool Center Point (TCP) remains calibrated even after a high-impact collision or a sudden emergency stop, reducing the need for frequent robot re-homing in high-speed production environments.
Locating pin holes provide the clocking accuracy needed for multi-tool applications. In complex industrial robot parts, these holes must be positioned with extreme pitch accuracy relative to the central bore. JUCHENG utilizes coordinate-measuring machines (CMM) to verify that the pin-hole PCD is accurate to within 5 microns. This allows for rapid tool changes where the new tool is "digitally identical" to the old one, ensuring that the robot's vision system and motion path do not require any software adjustment after a hardware swap.
Weight management at the wrist is a constant battle. Every gram added to the adapter plate is a gram removed from the robot's available payload. For collaborative robots (cobots), JUCHENG often machines ISO-standard flanges with internal weight-reduction pockets. This "skeletal" design maintains the rigid mounting faces required by the standard while reducing the inertial load on the J6 motor, allowing for higher accelerations and shorter cycle times in delicate electronics assembly tasks.
Technical Data: Comparing Alloys for Tool Adapters

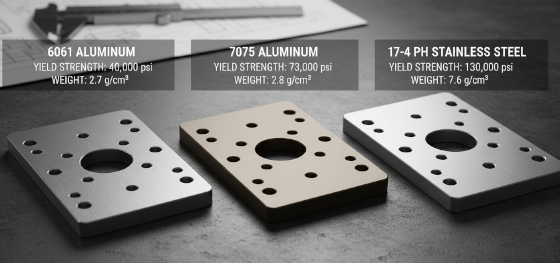

Selecting the right material for an adapter plate requires balancing weight against the need for extreme thread strength. For high-payload robots, the "pull-out" strength of the threads is the primary failure mode. Jucheng Precision provides technical consultations to help you match the alloy to your robot's torque profile. The following table compares the materials most frequently used in high-performance Robotic flange and adapter plates for the [2026] market.
| Material Grade | Yield Strength (MPa) | Hardness (HRC) | Primary Benefit |
| 17-4 PH Stainless | 1000 - 1150 | 35 - 45 | Ultimate Durability / Stiffness |
| 7075-T6 Aluminum | 500 - 540 | Standard | High Strength-to-Weight |
| Titanium Gr. 5 | 850 - 950 | 30 - 36 | Weight / Corrosion |
| Carbon Steel (4140) | 650 - 950 | 28 - 32 | High Torque / Cost |
17-4 PH Stainless Steel is the gold standard for heavy-duty robot flanges because it offers the corrosion resistance of stainless steel with the mechanical strength of high-alloy tool steels. This material can be heat-treated to H1150 or H900 conditions, providing a yield strength that is four times higher than standard 304 stainless. JUCHENG utilizes specialized carbide tooling to machine 17-4 PH in its aged state, ensuring that the finished industrial robot parts possess the extreme thread integrity required to hold heavy welding guns or casting grippers through millions of vibration cycles.
7075-T6 Aluminum is preferred for high-speed pick-and-place robots where reducing "wrist-weight" is the priority. While aluminum is softer than steel, 7075 offers a yield strength comparable to mild steels. JUCHENG enhances these aluminum adapter plates with specialized hard-anodizing (Type III) to protect the mounting faces from "galling" and surface wear. We also utilize hardened steel thread inserts (Helicoils) in all aluminum flange plates to ensure the threads do not strip under the high-torque loads of emergency stops.
Zero-Play Bolt Patterns: Eliminating Positional Drift

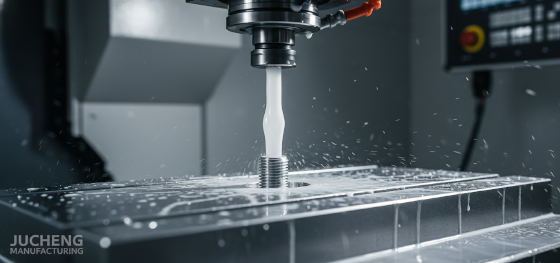

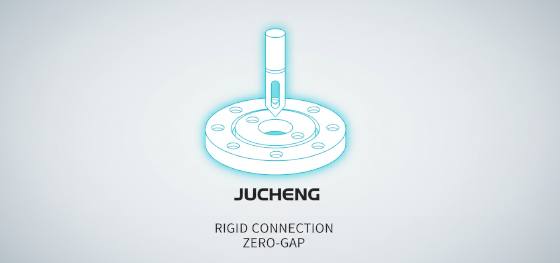

Positional drift at the tool is often caused by microscopic movement in the bolt pattern. In Robotic flange and adapter plates, if the bolt holes are even slightly oversized, the tool can shift during high-acceleration moves. JUCHENG eliminates this "play" by utilizing precision CNC drilling and reaming to achieve a "H7" fit for locating pins and a "Class 3B" fit for all internal threads. This ensures that the tool is mechanically locked to the flange, preventing the "creep" that can slowly ruin a robot's calibration over weeks of 24/7 operation.
Parallelism of the mounting faces determines the angular accuracy of the tool. If the adapter plate is "wedge-shaped" by only 0.05mm across its diameter, the tool tip at the end of a 500mm gripper will be offset by nearly a full millimeter. JUCHENG utilizes precision surface grinding and dual-setup CNC milling to ensure that the top and bottom faces are parallel within 0.01mm. This level of mechanical perfection is essential for high-precision tasks like laser marking or micro-assembly where angular drift is unacceptable.
Deburring and surface prep are critical for the "mating" of these interfaces. Any microscopic burr left on a flange hole can act as a shim, preventing the tool from seating perfectly flat. JUCHENG utilizes automated deburring and ultrasonic cleaning to ensure that every industrial robot parts shipment is surgically clean. We ensure that the mounting faces provide 100% surface contact, distributing the torque load evenly across the entire interface and preventing the localized stress concentrations that lead to flange cracking in heavy-duty applications.
Integrated sensor mounts are becoming a standard feature in modern adapter plates. JUCHENG machines recessed pockets for force-torque sensors and internal channels for pneumatic lines directly into the adapter plate. This "integrated manifold" design reduces the bulk of the robot wrist, allowing the arm to navigate tighter spaces in automotive interiors or electronics housings. By consolidating these features into a single CNC-machined component, we reduce the total part count and eliminate multiple potential failure points in the robot's "wrist-to-tool" chain.
17-4 PH Durability: Engineering for High-Torque Wrists

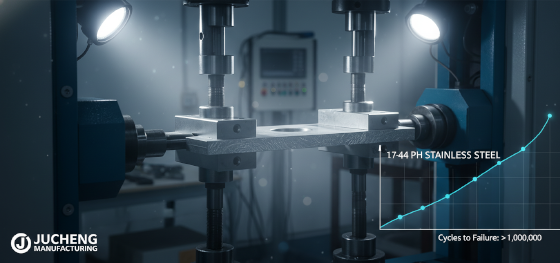

Fatigue resistance is the silent metric of robot hardware. A robotic wrist is constantly subjected to reversing torque—thousands of times per hour. In Robotic flange and adapter plates, this can lead to microscopic fatigue cracks around the bolt holes. 17-4 PH stainless steel is chosen for these high-torque environments because of its exceptional "endurance limit." JUCHENG manages the heat-treatment process for 17-4 PH to optimize the balance between hardness and toughness, ensuring that the flange can absorb the shocks of a collision without shattering while remaining rigid enough to maintain sub-micron alignment.
Thermal stability is the second reason 17-4 PH is the industry's choice for precision interfaces. As the robot motors heat up during a shift, the heat travels down the arm to the wrist. If the adapter plate expands irregularly, it can loosen the bolts or cause the centering pilot to bind. 17-4 PH has a predictable, low coefficient of thermal expansion that closely matches the steel drivetrain of the robot, ensuring that the "fit" of the tool remains constant from the first minute of the shift to the last.
Surface integrity during the machining of 17-4 PH is managed through JUCHENG’s "cold-cut" CNC strategies. Excessive heat during the milling of high-strength alloys can create localized "white layers"—brittle zones that are prone to stress-corrosion cracking. We utilize high-pressure oil cooling and specialized ceramic inserts to machine 17-4 PH flanges at high speeds while maintaining a stable metallurgical state. This ensures that the industrial robot parts we provide have a predictable service life, even in corrosive environments like food processing or chemical handling.
Final verification includes magnetic particle inspection (MPI) and 3D scanning. At Jucheng Precision, we understand that a "strong" part is useless if it contains a hidden defect. Our quality assurance lab ensures that every 17-4 PH flange and adapter plate leaving our Shenzhen hub is free of surface imperfections and meets the exact GD&T standards of the original CAD. This level of rigor is why JUCHENG remains the preferred partner for the world's leading high-payload robot manufacturers.
JUCHENG: The Shenzhen Hub for Robotic Tool Interfaces
Dominating the [2026] industrial automation market requires a manufacturing partner that can scale from prototype to massive fleet production without losing precision. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance adapter plates and robotic flanges with lead times as fast as 12 business days. We provide a "Bridge to Production" that allows you to move from a single hand-fitted tool interface to a commercial deployment of 1,000 units with consistent ISO-standard quality.
Integrating your interface design with JUCHENG’s expertise ensures that your tool survives the "First-Year Fatigue" and moves into long-term adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential thread-loading risks or "flex-zones" in your adapter design before they become field failures. Whether you are building a collaborative gripper for electronics or a 1000kg-payload palletizing fork, Jucheng Precision provides the rigid, precise "interfaces" that keep your innovation moving through the high-speed cycles and the years of hard labor.

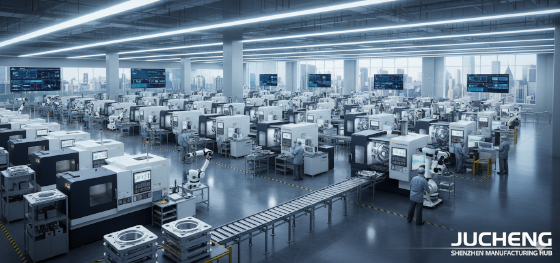

Our facility is equipped with 150+ CNC machines, including the latest Mori Seiki turn-mill centers and CMM inspection labs, allowing us to manage the entire interface lifecycle from raw bar stock to finished, verified assembly. We manage the complexity of ISO-standard machining so your engineering team can focus on the tool's function and the AI. By combining Shenzhen's speed with industrial-grade material verification, JUCHENG remains the preferred partner for the world's most aggressive industrial robot parts challenges. Contact us today to start your next project.
FAQ: High-Precision Interfaces for Industrial Tools
What is the standard tolerance for an ISO 9409-1 pilot diameter?
High-precision flanges require an h6 or g6 tolerance to ensure a snug centering fit without radial play.
Why is 17-4 PH stainless steel better than 304 for adapter plates?
17-4 PH offers nearly triple the yield strength and much higher thread pull-out resistance for heavy-duty torque.
Can JUCHENG integrate air manifolds into an adapter plate?
Yes. We use deep-hole drilling and precision CNC milling to create internal pneumatic channels and valve mounts.
How do you prevent thread stripping in aluminum adapter plates?
We utilize hardened steel Helicoil inserts in all aluminum flange plates to ensure long-term thread durability.
What is the typical lead time for custom robotic adapter plates?
Precision-machined flanges and adapter plates are typically delivered in 10 to 15 business days.
Interface drift in industrial robotics is an absolute hardware killer. Partnering with Jucheng Precision ensures that your connections are built with the zero-play bolt patterns and specialized 17-4 PH machining techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the rigid foundation your autonomous fleet requires.
