Developing structural enclosures for large-scale medical systems or industrial robotics often reveals a physical limitation in traditional materials: real ABS sags and warps when the part length exceeds one meter. In the world of medical device prototyping, achieving the unyielding stiffness and premium "hand-feel" of injection-molded plastic is essential for commercial success. However, the high NRE costs of steel molds make traditional ABS production unviable for low-to-medium volume runs. Achieving a production-grade result without the financial burden demands a mastery of simulating ABS with rigid PU RIM to provide the rigidity, acoustic density, and surface excellence required for professional hardware.
Mechanical performance in large-format panels depends on the material's flexural modulus and internal stress profile. Traditional thermoplastics struggle with thermal expansion stability, leading to "oil-canning" or popping sounds when the robot operates in varying temperatures. Jucheng Precision addresses these critical hardware hurdles by utilizing high-density thermoset resins that mimic the molecular weight of ABS. Jucheng delivers High Strength Plastic Machining and molding results that maintain sub-millimeter tolerances across 2-meter spans in our Shenzhen hub.
Operating under a strict ISO 13485 quality management system, Jucheng Precision serves as the high-tier engineering partner for global MedTech and robotics OEMs. We transform raw liquid chemistry into validated structural skins in as fast as 15 business days, leveraging our fleet of 150+ CNC machines. This guide explores the essential mechanical matching standards, surface aesthetics, and application logic required for manufacturing hardware by simulating ABS with rigid PU RIM to ensure your innovation survives the transition from laboratory prototype to commercial deployment.
content:
Mechanical Matching: Can PU Match the Stiffness of ABS?
Technical Data: Comparing Rigid PU RIM vs. Injection Molded ABS
Surface Aesthetics: Achieving Class-A Automotive Finishes
Applications: Enclosures for Diagnostic and Surgical Robotics
Jucheng Hub: Mastering Large-Scale Rigid RIM in Shenzhen
FAQ: Logistics and Performance of Simulated ABS Materials
Mechanical Matching: Can PU Match the Stiffness of ABS?
Structural rigidity is the non-negotiable benchmark for any high-end medical console. In simulating ABS with rigid PU RIM, the primary engineering goal is to achieve a flexural modulus that matches or exceeds 300,000 psi. Many manufacturers deliver parts that feel "soft" or "rubbery," but Jucheng Precision utilizes high-tier isocyanate and polyol blends that result in a rock-solid polymer matrix. This density ensures that your diagnostic device doesn't exhibit the thud factor control issues common in inferior prototypes, where a light tap on the enclosure results in a hollow, cheap sound. By delivering a "Solid-Core" feel, we enhance the perceived value of your hardware during investor demos and clinical trials.
Does simulated ABS resist impact as well as real ABS?
Yes. Rigid PU RIM formulations offer superior impact toughness because the chemical cross-linking prevents the brittle fracture patterns often seen in injection-molded thermoplastics.
Dimensional consistency across variable wall thicknesses is the second mechanical win. Traditional ABS injection molding requires perfectly uniform walls to prevent sink marks; however, the reaction injection molding process handles transitions from 3mm to 10mm with zero surface defects. Jucheng Precision performs free DFM analysis in 24 hours to optimize these internal ribs and mounting bosses. This allows you to integrate structural supports directly into the shell, effectively turning the enclosure into a load-bearing chassis. This part consolidation reduces your total assembly time and eliminates the rattling associated with multi-part bolted assemblies.
Residual internal stress is virtually non-existent in Jucheng’s rigid RIM parts. Because the liquid polymer cures at low pressure (less than 100 psi), the material is in a "relaxed state" from the moment it leaves the tool. Unlike high-pressure injection molding that "stretches" the polymer chains, our process ensures your large enclosures remain perfectly flat over years of use. This is particularly vital for robotic surgical systems where a warped panel can interfere with the range of motion of a high-torque joint. Jucheng’s commitment to stress-free manufacturing provides the geometric baseline required for long-term clinical reliability.
Technical Data: Comparing Rigid PU RIM vs. Injection Molded ABS
Success in medical device prototyping depends on matching the mechanical data to your device's safety requirements. High-fidelity simulations are mandatory for passing regulatory audits. Jucheng Precision provides full material characterization reports for every batch of resin used. The following table compares the mechanical limits of simulating ABS with rigid PU RIM against standard industrial ABS for the current market.
| Property | Simulated ABS (Rigid RIM) | Injection Molded ABS | Clinical Advantage |
| Hardness (Shore D) | 82 - 85 | 75 - 80 | Resists Surface Dents |
| Flexural Modulus (psi) | 280,000 - 320,000 | 300,000 | Equivalent Rigidity |
| Heat Deflection (°C) | 95 - 110 | 80 - 90 | Survives Hot Electronics |
| Max Part Length (mm) | 2,500+ | < 1,000 (Cost barrier) | Enables Full Body Shells |
The higher thermal creep comparison advantage of rigid PU RIM is evident in the Heat Deflection data. In medical environments, where internal compute stacks generate localized hotspots, a real ABS part can soften and permanently deform. Our simulated ABS maintains its unyielding structure up to 110°C, ensuring that your enclosure acts as a stable thermal barrier for the sensitive electronics within. Jucheng Precision’s material vault only contains certified resins that meet these extreme performance tiers, protecting your Beta fleet from the environmental failures that plague low-tier prototyping.

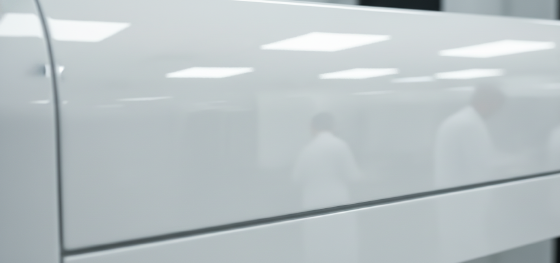

Surface Aesthetics: Achieving Class-A Automotive Finishes

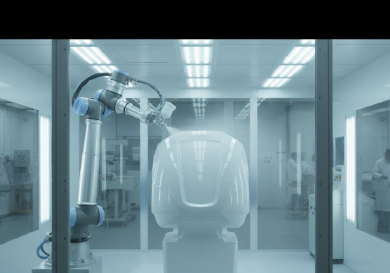

Visual identity dictates investor confidence. A prototype robot that looks "homemade" will struggle to secure funding compared to one that looks like a finished consumer product. Simulating ABS with rigid PU RIM allows Jucheng Precision to provide the perfect canvas for automotive-grade finishing. Unlike 3D prints that require days of hand-sanding to hide layer lines, RIM parts come out of the mold with a Ra 0.8 surface finish. Our in-house painting facility applies 2K urethane topcoats that match your corporate Pantone colors with absolute accuracy, providing a retail-ready aesthetic that is essential for the current competitive market.
How to get a perfect finish on a 2-meter part?
We utilize automated flame treatment to increase surface energy followed by high-solids primers to ensure 100% paint adhesion without peeling or flaking.
Integrated textures can be molded directly into the rigid PU skin. Jucheng Precision utilizes VDI 3400 standardized grains on our aluminum mold surfaces. This allows us to deliver enclosures with a "Matte-Touch" or "Grit" finish that hides fingerprints and microscopic scuffs from the field. For medical handheld devices, these textures provide the ergonomic grip necessary for patient safety. By managing both the 150+ CNC machines for mold making and the final painting line, Jucheng provides a single point of accountability for your hardware's visual and mechanical integrity.
Branding and laser marking are the final steps in retail-ready aesthetics. Jucheng Precision provides high-resolution silk-screening and laser etching for permanent serial numbers and logos. Our marking process is tested to survive aggressive hospital disinfectants and 1,000+ sterilization cycles without fading. This attention to detail is why our medical device prototyping services are trusted by the world's leading healthcare innovators. We deliver hardware that isn't just a model; it is a marketing asset that proves your engineering maturity to potential buyers and stakeholders.

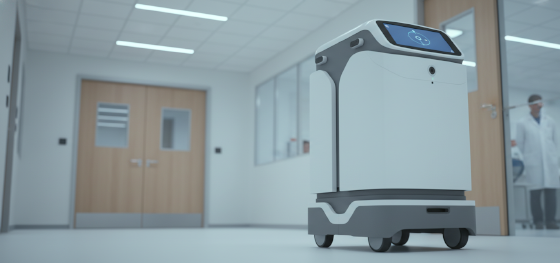

Applications: Enclosures for Diagnostic and Surgical Robotics
Clinical reliability is the primary driver for simulating ABS with rigid PU RIM. In diagnostic equipment, the enclosure must act as a precise shield for the internal sensor stack. If the shell flexes, the calibration of the optics is lost. Jucheng Precision specializes in manufacturing "Zero-Flex" housings for ultrasound consoles, blood-gas analyzers, and portable X-ray units. By utilizing our 25 5-axis Haas/Mazak units to machine complex internal landing pads for sensors, we ensure that your technology is cradled in a rigid, vibration-proof environment that survives the transition from the R&D lab to the clinical floor.
Can rigid RIM parts achieve IP67 ratings?
Yes. We machine precise tongue-and-groove seals into the RIM components and integrate overmolded gaskets to ensure a hermetic seal against water and dust ingress.
Surgical robotics require a unique mix of high-stiffness and lightweighting. The arm segments must be rigid enough to maintain sub-millimeter precision but light enough for rapid acceleration. Jucheng Precision utilizes structural foam RIM techniques—where the simulated ABS has a dense skin and a cellular core—to achieve 30% weight reduction without losing bending stiffness. This bionic architecture is essential for autonomous surgical assistants that must move with insect-like agility. Our ISO 13485 compliance ensures that every segment is manufactured with full traceability, meeting the stringent documentation requirements of Class III medical devices.
Environmental resilience is the final pillar of medical application. Devices are subjected to repeated impact from hospital beds and accidental drops. Jucheng Precision’s rigid PU materials possess high "Izod Impact Strength," ensuring that a collision doesn't result in a shattered housing and exposed electronics. By providing 4 day rapid delivery for initial functional samples, we allow your team to perform early impact and drop-testing, identifying potential mechanical weak spots before committing to a larger Beta pilot run. This iterative speed is what accelerates your clinical validation cycle and secures your market-entry window.

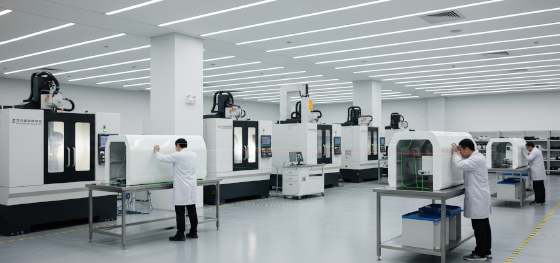

Jucheng Hub: Mastering Large-Scale Rigid RIM in Shenzhen
Dominating the large-format hardware market requires a partner that can scale from a single functional prototype to a commercial deployment of 5,000 units without losing a micron of accuracy. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance simulating ABS with rigid PU RIM components with industry-leading speed. We provide a "Bridge to Production" that ensures your innovations move from concept to pilot run with 100% regulatory and metallurgical confidence.
Integrating your structural design with Jucheng’s expertise ensures that your hardware survives the "First-Field Contact" and moves into mass adoption. We offer a No MOQ policy, allowing you to source 5 to 50 units for Beta trials without the crushing cost of mass-production tools. Whether you are building an autonomous medical assistant or a heavy-duty industrial mobile base, Jucheng Precision provides the rigid, precise, and *chemically optimized* foundations that keep your innovation moving through the high-stakes cycles and the years of hard labor.
Our facility is equipped with dedicated high-pressure RIM assembly cells and ISO-standard quality labs, allowing us to manage the entire hardware lifecycle in one location. 我们 manage the complexity of multi-material bonding and automotive-grade finishing so your engineering team can focus on the motion control and the AI. By combining Shenzhen's speed with industrial-grade material verification and ISO 14001 standards, Jucheng Precision remains the preferred partner for the world's most aggressive High Strength Plastic Machining challenges. Contact us today to start your next project.
FAQ: Logistics and Performance of Simulated ABS Materials
Is rigid PU RIM as hard as CNC-machined ABS?
Yes. By adjusting the isocyanate index, we achieve Shore D hardness of 85, providing a surface that is indistinguishable from solid ABS plate.

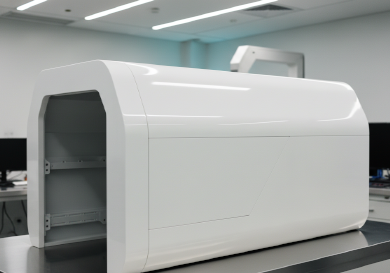

What is the maximum part size for simulated ABS at Jucheng?
We regularly produce structural enclosures and diagnostic console shells up to 2,500mm in length.
Does the material yellow under hospital UV lights?
No. Jucheng utilizes specialized UV-stable resin formulations and UV-blocking topcoats to prevent any color fading or embrittlement.
Can I get 50 units in my specific brand color?
Yes. We match Pantone and RAL colors with high precision using our in-house computer-controlled painting line.
What is the lead time for a 1-meter rigid RIM tool?
Aluminum rapid tools for large enclosures are typically completed and delivering parts in 15 to 20 business days.
Structural sagging and hollow acoustics are absolute innovation killers for high-end medical robotics. Partnering with Jucheng Precision ensures that your functional iterations are built with the unyielding polyurethane reaction injection molding and specialized simulating ABS with rigid PU RIM techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the high-fidelity foundation your autonomous fleet requires.
