ABS-like polyurethane casting makes a low-volume part with a rigid, ABS-like look and feel. It can be useful for checking an enclosure's shape, assembly, surface finish and handling before investing in an injection mold. “ABS-like” describes a comparison, not the chemical identity of the part: the cast material is a polyurethane resin, not injection-molded ABS.
The right question is not whether one resin can replace every ABS grade. It is which decision the prototype must support. Appearance, clip engagement, drop resistance, heat exposure and long-term service life call for different evidence. Ask for the specific casting resin's data sheet and test representative parts if a property will decide the product design.
What an ABS-like casting can help you check

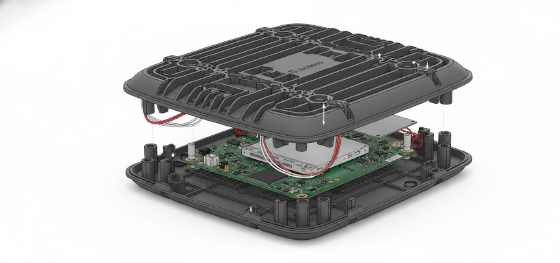

- Fit and assembly: check mating surfaces, screw locations, access to connectors and handling of an enclosure. Identify the features that need inspection on the drawing.

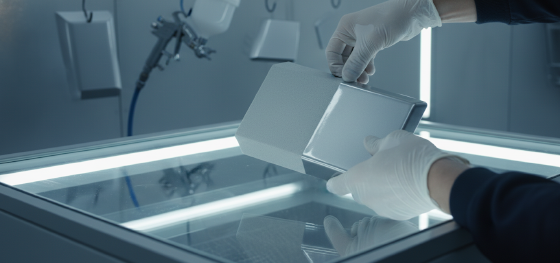

- Appearance: review the intended color, texture, paint or coating on a physical sample. A color target alone does not prove that the finished surface will match under every light source.
- Early functional trials: test a proposed clip or boss only against the loads and number of cycles specified for that prototype. A successful trial does not certify the eventual injection-molded ABS part.
- Small batches: use a common master and silicone mold when several parts are needed for a design review or pilot evaluation. Quantity, geometry and finish determine whether this route makes sense.
Where “ABS-like” is not enough

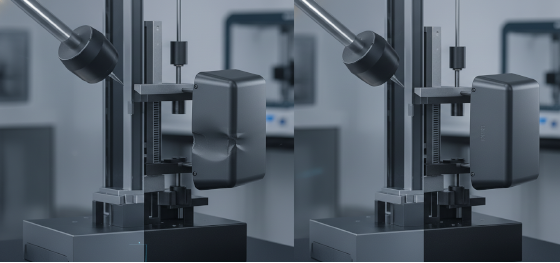

Do not assume a cast polyurethane and a named production ABS grade have the same tensile strength, impact resistance, heat behavior, chemical resistance or aging performance. These values vary by formulation, curing conditions and test method. A brochure value also does not establish the strength of a thin wall, snap fit or threaded boss in your geometry.
If the final part must satisfy a specific temperature, flame, chemical or repeated-load requirement, give the supplier the required test method and acceptance criteria. Validate the production material and process separately before release. An ABS-like casting is especially useful for learning about the design; it is not a substitute for qualification of a production injection-molded part.
Choose the resin around the intended test
Start with the production material or required performance, then identify the closest available polyurethane grade for the prototype's purpose. Compare the supplier's data sheets under the same test methods and conditions. Prioritize the properties that matter to your part, such as stiffness for a housing or elongation for a clip. If a property is critical, request a sample and test the actual geometry rather than choosing on the “ABS-like” label alone.
Our vacuum casting material overview is a starting point for material selection. The polyurethane vacuum casting guide explains the broader process. This article focuses on how to use an ABS-like grade in a design-validation plan.
Prepare an RFQ that leads to a useful prototype
Send the 3D model and drawing, target quantity, required color and finish, and the intended use of the parts. Mark critical dimensions and assembly interfaces. Include the production ABS grade if one is already specified, but also say which behavior you need the prototype to simulate. For a clip, provide the planned cycles and load; for a housing, identify the mating parts and the inspection points. Ask the supplier to identify the proposed polyurethane grade and any differences that could affect your test.
Jucheng Precision can review the model for vacuum casting and discuss a suitable prototype route. Where the purpose is to validate final ABS material behavior, ask us about injection molding as a separate validation stage. A quotation should state the selected material, finish, quantity and agreed inspection requirements before work begins.
