Your prototype is approved. It works. It looks great. Now comes the next big question. How do you make a thousand of them? Or ten thousand? Or more?

prototype to production challenge

Creating a single, perfect part is one challenge. Recreating that perfection thousands of times with incredible speed and consistency is another challenge entirely. This is the bridge you must cross from prototyping to production.

For creating high-quality plastic parts at scale, one process stands above all others. It is the gold standard of manufacturing. It is the engine of modern mass production. That process is Injection Molding.

This guide will serve as your complete introduction to this powerful technology. We will explore the process, materials, design rules, and costs. It is your roadmap to successfully navigating the path to scalable production.

Unpacking the Injection Molding Process

A World of Injection Molding Materials

Designing for Success (DFM)

Exploring Advanced Techniques

Decoding the Cost Structure

Perfecting the Final Look: Surface Finishes

Ensuring Quality, Avoiding Defects

Powering the World's Top Industries

Unpacking the Injection Molding Process

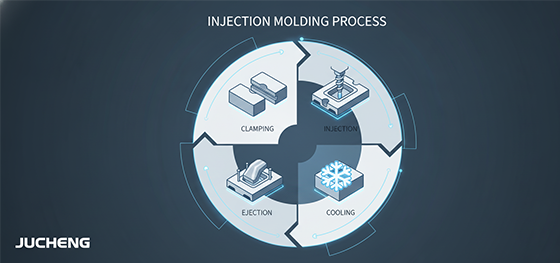

injection molding process infographic

The Injection molding process is a high-speed cycle of creation. It is a highly controlled and repeatable dance of pressure, heat, and motion. The cycle includes mold closing, filling and packing, cooling, and ejection.

It begins with Clamping. The machine holds the mold closed against the pressure generated during filling and packing. Required clamp force depends on the projected area and cavity pressure, rather than a fixed tonnage range for every part.

Next is Injection and Packing. Plastic pellets are melted in the barrel and injected into the mold cavity. Filling time depends on the part, material, and process settings. Packing or holding pressure then feeds additional material into the cavity to compensate for cooling shrinkage while the gate remains open.

Cooling continues while the mold remains closed until the part is sufficiently solid for ejection. The material shrinks as it cools, so the final dimensions are not an exact copy of the cavity dimensions. Cooling is often the longest portion of the cycle.

Finally, Ejection. The mold opens, and a system of ejector pins pushes the now-solid part out of the mold. The part falls into a collection bin, and the cycle immediately begins again.

A World of Injection Molding Materials

injection molding materials

An incredible variety of thermoplastic Injection molding materials can be used. Choosing the right one is a critical design decision.

Commodity plastics are the workhorses. Materials like Polypropylene (PP) and Polyethylene (PE) are very low-cost and are used for everyday consumer goods, packaging, and toys.

Engineering plastics offer a step up in performance. ABS, Polycarbonate (PC), and Nylon (PA) provide a great balance of strength, impact resistance, and cost. They are the backbone of automotive parts, electronic enclosures, and durable goods.

High-performance thermoplastics such as PEEK and PEI (ULTEM) can be considered for demanding applications, but their heat and chemical resistance are not interchangeable. Evaluate the specific grade against the operating temperature, load, chemicals, and exposure conditions. Aerospace or medical use requires assessment of the selected grade and finished part for the intended application, not just the polymer name.

Thermoplastic elastomers (TPEs), including thermoplastic polyurethane (TPU), cover a range of hardness and performance characteristics. Selected grades can be used for grips, seals, and overmolded parts; suitability depends on the specific formulation, operating temperature, fluid exposure, and mechanical requirements. For overmolding, substrate compatibility and bond performance also need evaluation. At JUCHENG, we stock over 50 common resins and can help you select the perfect material.

Designing for Success (DFM)

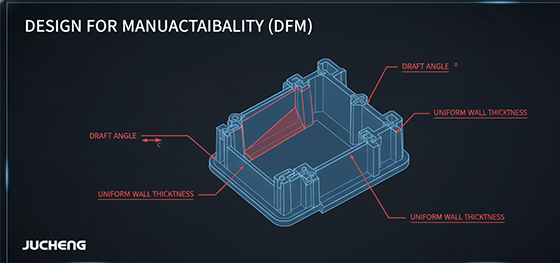

DFM for injection molding

You cannot simply take a design made for 3D printing and inject it. A part must be specifically designed for the molding process. This is called Design for Manufacturability, or DFM.

Proper Injection molding design is a deep topic. But two rules are the most important. First, maintain a uniform wall thickness. Thick sections cool slower than thin sections, which can cause ugly sink marks and warping. Second, assess draft relative to the intended pull direction, taking the material, surface texture, and feature depth into account. Draft helps surfaces release from the mold. Intentional undercuts, such as snap-fit features, need an appropriate tooling and release strategy rather than a blanket draft rule.

Understanding DFM is critical to success. At JUCHENG, our Free DFM Review is a core part of our service. Our engineers analyze your design and provide expert feedback to prevent problems before they happen.

Exploring Advanced Techniques

insert molding vs overmolding

Modern molding is capable of incredible complexity. The debate of overmolding vs insert molding showcases two powerful techniques.

Insert molding places a preformed component into the mold before plastic injection. For a threaded metal insert, plastic surrounds the external body to retain it while the internal thread remains accessible for a screw. Molded-in inserts are one option; heat or ultrasonic installation into thermoplastics and other post-mold methods may also be suitable. Choose the insert and installation method for the plastic, joint loads, and assembly requirements.

Overmolding adds a molded material over a substrate. In pick-and-place molding, previously molded substrate parts are placed into a separate overmold tool. Two-shot molding instead forms and overmolds the substrate in an integrated sequence, using approaches such as transfer, rotation, or core-back tooling. A soft TPE grip over a rigid substrate is one application, not the only material combination. Material compatibility and processing conditions must be evaluated for the intended bond.

Decoding the Cost Structure

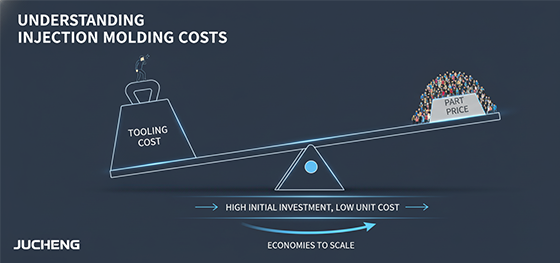

injection molding cost infographic

Understanding the Injection molding cost is key to planning your project. It is a story of two numbers: the mold cost and the part price.

Tooling is an upfront project cost. Injection molds may use aluminum or steel; tooling cost depends on the part size and complexity, mold material, cavity count, and required finish.

Per-part cost depends on material consumption, machine time, cycle time, and the number of parts produced per cycle. Increasing production quantity spreads the upfront tooling cost across more parts, but does not guarantee a particular unit price or make molding the lowest-cost option for every project. Compare total project costs at the required quantity. For smaller volumes, JUCHENG offers low-volume tooling options that lower your upfront investment.

Perfecting the Final Look: Surface Finishes

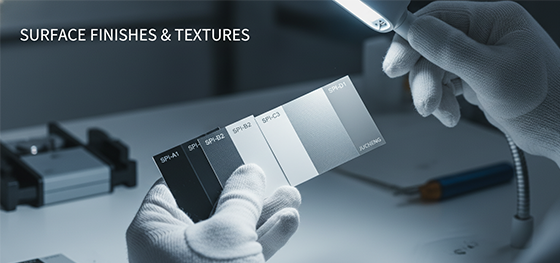

SPI surface finish standards

The mold surface influences the molded finish, but the selected resin and additives can affect how the texture appears on the part. This means we can achieve a huge variety of Injection molding surface finishes by treating the steel mold itself.

The industry uses SPI (Society of the Plastics Industry) standards to define these finishes. SPI-A1 specifies a diamond-polished mold finish associated with high gloss, while B-grade finishes use abrasive paper. C and D finishes use different methods: SPI-C1 uses a 600-grit stone, whereas SPI-D1 uses dry blasting. The molded appearance should be checked with the selected material rather than assumed from the finish designation alone.

We can also create complex patterns. VDI 3400 provides a reference for specifying EDM surface-texture grades; it is not the machining operation itself. Electrical discharge machining (EDM), also called spark erosion, can produce the mold texture. Other custom textures, like a leather grain, can also be chemically etched into the mold. This allows you to create beautiful, finished parts directly from the machine.

Ensuring Quality, Avoiding Defects

CMM inspection of molded part

A fast process is useless without quality. A professional manufacturer has a robust system to prevent Injection molding defects.

Defects such as sink marks and warping can result from interacting part-design, material, mold, and process factors. DFM can identify risks early, but proposed changes still need evaluation through molding trials and part inspection.

Flash and short shots also require assessment of the part geometry, mold design and condition, material, and process settings. Our experienced engineers use advanced tools like Moldflow simulation to predict how the plastic will flow. Simulation helps identify flow risks and compare design options; its predictions depend on the input data and modeling assumptions and must be checked against molding trials. During production, we use a data-driven "scientific molding" approach. Monitoring pressure, temperature, and time can help detect process variation, but monitoring alone does not establish that every part meets its requirements. Process validation and the applicable part inspections and acceptance criteria remain necessary. Finally, our QA department uses CMMs and other tools to verify that the final parts meet every one of your specifications.

Powering the World's Top Industries

injection molding applications collage

The Injection molding application industries are virtually endless. If a product is made of plastic and produced in high volume, it was likely injection molded.

In the Automotive industry, we produce parts that must meet the strict IATF 16949 quality standard. In the Medical field, we operate under ISO 13485 to create device components from biocompatible materials. For Consumer Electronics, we excel at producing the thin-walled, beautiful enclosures that define modern products.

Holding these key certifications is not just a formality. It is proof that we have the processes, traceability, and quality mindset to serve the world's most demanding industries. It is your assurance that we are a partner you can trust.

Choosing to invest in injection molding is a major step. It is the step that takes your product from a prototype to a real, scalable product. At JUCHENG, we specialize in helping companies make this transition, especially for low-volume production. We are your expert partner on the journey to market success.
