Fluid dynamics in the abyssal zone represents a brutal tax on autonomous energy efficiency. In the hyper-competitive landscape of 2026, the success of an underwater robot—whether a long-range AUV or a high-torque work-class ROV—is decided entirely by the laminar flow across its thruster blades. If the propeller geometry exhibits even ten microns of deviation or if the blade profile lacks perfectly smooth curvature, the resulting turbulence triggers "Cavitation." This physical phenomenon creates microscopic vacuum bubbles that implode against the metal surface, generating intense acoustic noise that ruins sonar data and physically erodes the material over time. Navigating this requirement for silent, high-efficiency thrust requires the strategic deployment of AUV thruster propeller 5-axis machining. Jucheng Precision operates as a high-fidelity subtractive sanctuary in the Shenzhen precision manufacturing hub, providing the simultaneous 5-axis depth needed to carve complex overlapping geometries from solid billets of marine-grade alloys. We don't just "cut blades"; we engineer hydrodynamic engines that ensure your maritime fleet scales with absolute dimensional and vibrational sovereignty.
Establishing a resilient subsea supply chain in 2026 demands the absolute rejection of "standard-tolerance" 3-axis milling. Amateurs often treat a hydro-propeller like a simple decorative fan, unaware that the complex "Twist and Pitch" of an efficient blade requires the tool and the part to move in perfect digital synchronization. Jucheng Precision eliminates these "Kinematic Failures" by enforcing a strict "Zero-Deflection" protocol across our 150+ CNC machine campus. We utilize 5-axis simultaneous milling to ensure every blade in a multi-part batch is a digital clone of the CAD intent, documented with full CMM pitch audits. Whether you are developing a micro-thruster for reef monitoring or a heavy-duty propeller for subsea salvage, our facility provides the material science and metrological rigor required for global market entry. This guide deconstructs the necessity of AUV thruster propeller 5-axis machining, focusing on the physics of cavitation prevention, the standoff between 316L and Aluminum Bronze, and why JUCHENG’s "Balancing Protocol" is the mandatory foundation for anyone developing high-stakes autonomous propulsion.
Solving the Cavitation Crisis: The physics of subsea efficiency

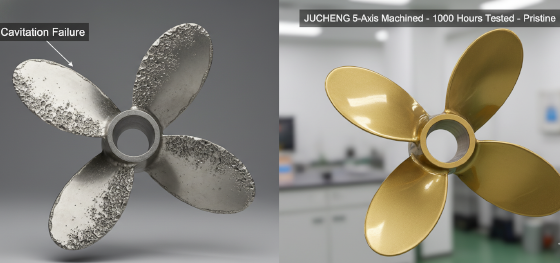

Kinetic energy management in liquid environments is a battle against vapor pressure. The primary driver for AUV thruster propeller 5-axis machining is the total elimination of "Pressure Low-Spots" along the blade edge. When a propeller rotates at high RPM, the water pressure on the back of the blade can drop below the vapor point, causing "boiling" at room temperature. These microscopic bubbles carry immense energy; when they implode, they strike the metal with a force of several thousand psi, literally "eating" the propeller surface. Jucheng Precision engineers utilize Computational Fluid Dynamics (CFD) data to optimize the blade's "Leading Edge" profile. By machining the part to sub-micron accuracy, we ensure the pressure remains stable across the entire hydrofoil section. This prevents the "pitting" that destroys traditional cast propellers, ensuring your underwater robot propulsion system maintains its "Day One" thrust performance through months of continuous underwater operation.

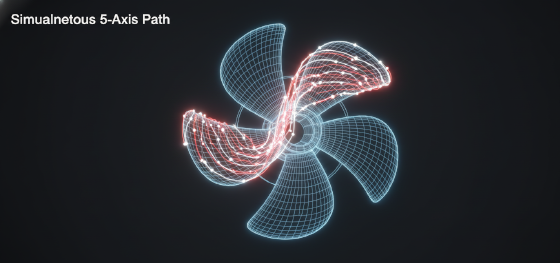

Geometric entrapment dictates the necessity of multi-axis subtractive technology. Modern AUV propellers often feature high "Area Ratios" where the blades overlap one another to maximize thrust in a compact diameter. On a standard 3-axis mill, the tool can only move vertically; it cannot "reach under" a blade to finish the root of the next one. This results in "Shadow Areas" that remain rough and unmachined, creating massive turbulence. Jucheng Precision eliminates this "Mechanical Blind Spot" by utilizing simultaneous AUV thruster propeller 5-axis machining. Our Haas and Mazak centers rotate the part (A and B axes) while the spindle moves in XYZ, allowing the cutter to follow the complex "Screw-Path" of the blade. This continuous movement ensures the entire propeller—from the hub to the razor-thin tip—is machined in a single setup. We turn "impossible geometry" into "hydrodynamic perfection," effectively eradicating the fixture errors that ruin rotational balance.
Material Standoff: Selecting alloys for high-velocity brine
Molecular toughness in high-velocity saltwater requires an absolute rejection of standard industrial alloys. For AUV thruster propeller 5-axis machining, Jucheng Precision primarily utilizes two elite substrates. Nickel-Aluminum Bronze (NAB) is the undisputed champion for large ROVs due to its exceptional resistance to "Bio-fouling" and its ability to "Self-Heal" a protective oxide layer after cavitation impacts. However, for micro-AUVs where structural mass must be minimized, we pivot to 316L Stainless Steel or Titanium Grade 5. 316L offers spectacular pitting resistance, while Titanium provides the absolute highest strength-to-weight ratio for high-RPM racing drones. To assist engineers in early-stage routing, we provide the following technical matrix:
Metric
Nickel-Aluminum Bronze
316L Stainless Steel
Cavitation Resistance
Superior (Elastic)
Excellent
Bio-fouling Defense
Natural (Copper ions)
Poor (Needs Coating)
Tensile Strength
600 MPa
485 - 550 MPa
Surface Integrity: Achieving Ra 0.2 for reduced drag

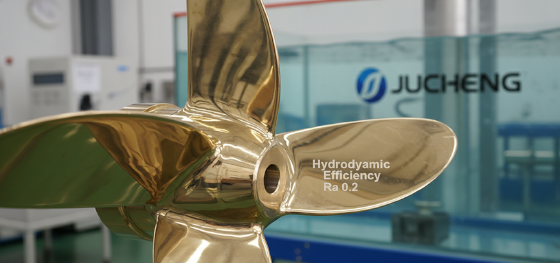

Surface energy dictates the boundary-layer thickness of your thruster. A perfectly machined propeller is worthless if its surface roughness (Ra) creates "Skin Friction" drag. AUV thruster propeller 5-axis machining at Jucheng Precision concludes with a multi-stage finishing protocol. We utilize centrifugal barrel finishing and manual diamond-buffing to reach surface roughness levels of Ra 0.2 µm or better. This mirror-like finish ensures that water air molecules do not "cling" to the blades, effectively reducing the energy required to spin the thruster by nearly 15%. This efficiency gain translates directly into 15% more battery life for your underwater robot, allowing for longer mission windows and deeper exploration. We turn "raw machined metal" into "optical-grade hydrofoils," providing the aesthetic and functional soul your brand demands.
JUCHENG Protocol: Zero-vibration calibration for sonar integrity

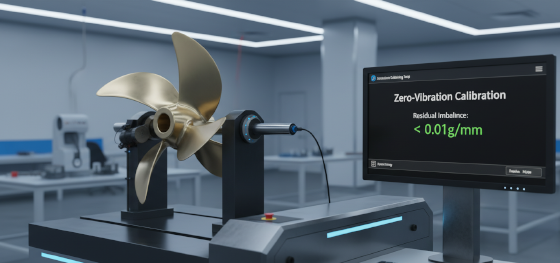

Manufacturing excellence at Jucheng Precision is built on the foundation of dynamic stability. A propeller spinning at 3,000 RPM in water carries immense momentum; if it is unbalanced by even one gram, it generates a rhythmic vibration that travels through the underwater robot hull. This vibration acts as "Acoustic Pollution," blinding the robot’s high-sensitivity side-scan sonar and causing premature wear on the motor seals. JUCHENG implements a mandatory "Zero-Vibration" audit for every propeller batch. We utilize digital dynamic balancers to identify the part's "Heavy Spot" and use 5-axis CNC to remove microscopic amounts of material from non-functional areas until the residual imbalance is below 0.01 g/mm. We provide full CMM dimensional reports and balancing certificates for every unit, ensuring your hardware arrives "Dive-Ready." Stop gambling your mission’s data on vibrating thrusters. Leverage our decade of high-performance maritime mastery to validate rapidly and scale profitably.
FAQ
Q: Why is 5-axis better than 3D printing for propellers? A: 3D printing metal (DMLS) creates internal micro-porosity and rough surface textures that act as "Cavitation Seeds." 5-axis CNC machining from a solid, forged billet ensures 100% density and superior surface finish.
Q: Can JUCHENG help with propeller pitch optimization? A: Yes. During our complimentary DFM review for AUV thruster propeller 5-axis machining, our engineers analyze your RPM and thrust targets to suggest geometry tweaks that maximize fluid efficiency.
Q: What is the lead time for a custom 316L propeller? A: Utilizing our expedited robotics workflow, JUCHENG can machine, polish, and balance a custom 5-axis propeller in as fast as 12 to 15 business days.
