Building Autonomy: Mastering Custom AGV chassis fabrication
Views: 1 Author: Allen Xiao Publish Time: 2026-04-07 Origin: Site
Kinetic reliability in the autonomous warehouse is built upon the structural spine of the machine. When an engineering team transitions an Autonomous Mobile Robot (AMR) from a digital simulation to a physical heavy-lifter, the primary adversary is not the navigation logic—it is the violent physical reality of a 500kg load navigating floor irregularities at three meters per second. If the structural chassis flexes, vibrates, or succumbs to weld-fatigue, the highly calibrated internal LiDAR and AI vision systems will fail instantly. Navigating this requirement for indestructible, high-tolerance foundations requires the strategic deployment of Custom AGV chassis fabrication. Jucheng Precision operates as a high-fidelity metallurgical sanctuary in the Shenzhen precision manufacturing hub, providing the technical depth to deliver skeletal frames that possess the mechanical soul needed for 24/7 logistics operation. Within the broader framework of AGV and AMR Parts, we bridge the gap between "prototype motion" and "industrial sovereignty," ensuring your mobile fleet scales with absolute material and dimensional certainty.
Establishing a resilient robotics supply chain in 2026 demands the absolute rejection of "Office-Grade" sheet metal logic. Amateurs often spend forty percent of their R&D cycle managing disparate vendors for a single robot—one for the welded base, another for the precision motor mounts, and a third for the cosmetic covers. Jucheng Precision eliminates this "Operational Bloat" by providing an integrated multi-process ecosystem of heavy-duty fabrication and 5-axis CNC machining. Whether you are developing a low-profile pallet mover or a heavy-duty fork-bot, our facility provides the material science and metrological rigor required for 2026 market entry. We turn "welded frames" into "certified structural assets," ensuring your expensive internal electronics are armored against the chaos of the shipping dock. This guide deconstructs the necessity of Custom AGV chassis fabrication, focusing on load-bearing physics, precision welding, and the mandatory environmental coatings required for warehouse survival.
Choosing Materials: Why material selection dictates robot capacity?
Structural stiffness is the primary byproduct of density and thickness in mobile robotics. The first pillar of Custom AGV chassis fabrication is selecting a substrate that survives the "Fatigue Cycle" of constant starting and stopping under load. For heavy-duty AGVs requiring payloads exceeding 1,000kg, Jucheng Precision recommends thick-gauge carbon steel (typically 5mm to 8mm). Steel provides the extreme yield strength and flexural modulus needed to prevent the chassis from "bowing" over time, which would otherwise throw the drive wheels out of alignment. For lightweight AMRs designed for high-speed sorting, we pivot to Aerospace-Grade 6061-T6 Aluminum. While lighter, aluminum requires strategic ribbing to maintain torsional rigidity. We don't just "bend parts"; we engineer the mass distribution to lower your robot's center of gravity, improving its tilt-stability and maximizing its battery efficiency across thousands of miles of warehouse travel.
Precision Blanking: Laser cutting and high-tolerance CNC bending

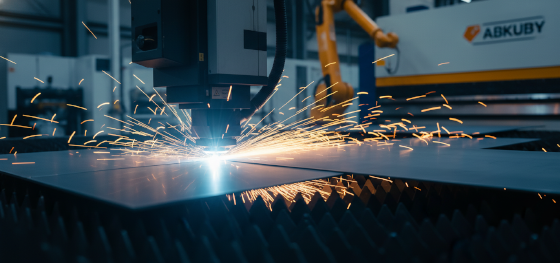

Subtractive accuracy in metalwork ensures the seamless integration of sensors and drive motors. The process of Custom AGV chassis fabrication begins with high-wattage fiber laser cutting. Unlike traditional punching, our lasers achieve +/- 0.05mm accuracy on complex mounting patterns, ensuring that when your drive motors are bolted to the frame, the axles are perfectly square to the direction of travel. Jucheng Precision utilizes multi-axis CNC press brakes to execute complex bends in heavy-gauge plates. We account for the "Spring-back" effect of different alloys, ensuring that a 90-degree bend is exactly 90 degrees. This geometric certainty is vital for the 2026 robotics market; if your chassis is even 1mm out of square, the resulting vibration will corrupt your LiDAR data and shorten the lifespan of your gearboxes. We turn "raw slabs" into high-precision structural components in hours, not weeks.
Welded Sovereignty: Managing heat stress and structural integrity

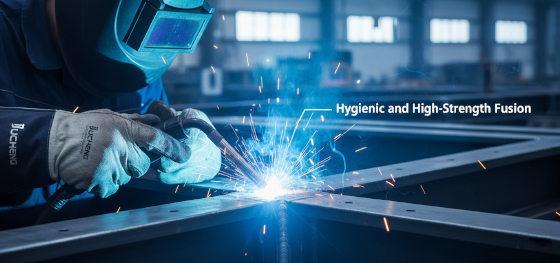

Molecular fusion dictates the long-term survival of bipedal and mobile robotic frames. In the context of Custom AGV chassis fabrication, the welding protocol is a mission-critical safety variable. Jucheng Precision enforces a strict Tungsten Inert Gas (TIG) and MIG welding standard for all load-bearing joints. TIG welding provides the deep penetration and clean finish required for high-strength aluminum frames, while MIG is utilized for high-velocity steel assembly. We understand that welding induces intense localized heat, which can warp the chassis if not managed correctly. Our technicians utilize specialized "Sequenced Welding" patterns and precision jigs to distribute thermal energy evenly. For high-stakes medical or industrial mobile robots, we perform a post-weld "Stress Relief" cycle in our digital ovens to neutralize residual internal energy, ensuring your chassis remains dimensionally sovereign through its entire service life.
Environmental Armor: Why powder coating is mandatory in warehouses?

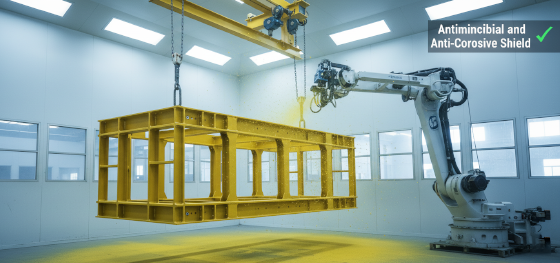

Chemical and kinetic defense is the final layer of manufacturing success. Warehouse robots operate in a hostile frontier of moisture, forklift collisions, and potentially corrosive battery acid leaks. Standard wet paint is an aesthetic liability; it chips and flakes under the first impact. Professional Custom AGV chassis fabrication mandates the use of electrostatic Powder Coating. Jucheng Precision applies an outdoor-rated, UV-stable polymer shell that is baked onto the metal at 200°C. This finish provides a 1,000-hour salt-spray resistance and extreme scratch defense. For our Medical Robotics clients, we utilize antimicrobial powder coatings that actively inhibit bacterial growth, ensuring your mobile carts are safe for sterile environments. We don't just "paint metal"; we engineer an environmental shield that protects your brand’s reputation in the field.
Manufacturing excellence at Jucheng Precision is built on the foundation of single-source accountability. We don't believe you should manage one vendor for your welded chassis and another for your precision-machined wheel hubs. JUCHENG houses heavy-duty sheet metal fabrication and elite 5-axis CNC machining under one ISO 9001 certified roof. When you upload a CAD assembly to our facility, our veteran engineers perform a comprehensive "Build-to-Print" audit. We provide the full material lot traceability and CMM inspection reports required for Tier-1 robotics supply chains. Stop gambling your launch on fragmented vendors who treat chassis work like general construction. Leverage our decade of integrated replication mastery to validate rapidly and scale profitably. Contact our technical team today for a free DFM review and see how we can turn your digital robotics intent into a structurally sovereign physical reality.

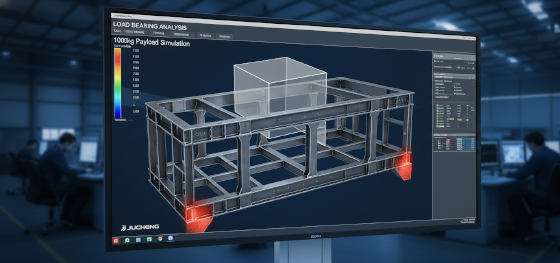

Question: Can JUCHENG help with the weight reduction of an existing AGV chassis design? Answer: Yes. Our engineers utilize Finite Element Analysis (FEA) to identify non-load-bearing areas where material can be removed via laser-cut "Pocketing" or "Coring," significantly reducing the mass of the custom agv chassis fabrication without losing torsional rigidity.
Question: What is the lead time for a prototype welded chassis? Answer: Utilizing our in-house laser cutting and specialized welding jigs, we can typically deliver a fully fabricated and powder-coated custom agv chassis fabrication prototype in as fast as 10 to 14 business days.
Question: How do you ensure the motor mounting holes are perfectly aligned? Answer: We utilize a "Hybrid Machining" approach. We weld the primary chassis first, then move the entire frame onto a large-bed CNC machine to precision-mill the mounting faces and bores, ensuring perfect concentricity across the wheelbase.
Question: Is JUCHENG equipped to handle Large AMR enclosure manufacturing as well? Answer: Absolutely. Our facility integrates large-format RIM (Reaction Injection Molding) bays alongside our metal fabrication wing, allowing us to deliver the complete physical robot: chassis, internal mounts, and external cosmetic skins.
