ISO 2768 Tolerances Explained: Navigating f, m, c, and v Classes

Communication in manufacturing is often a struggle against ambiguity. When an engineer sends a CAD file to a machine shop without specific tolerance callouts for every single dimension, the potential for disaster is massive. Does a 100mm flange need to be perfect to the micron, or is half a millimeter acceptable? This is the technical gap bridged by ISO 2768 Tolerances Explained. It is the universal safety net that provides a default set of rules for every dimension on a drawing that doesn't have an explicit +/- value. Without this standard, the CNC machining tolerances required for a part become a guessing game, leading to either overpriced over-engineering or low-quality components that won't assemble.

At Jucheng Precision, we consider ISO 2768 to be the baseline of our professional relationship with your design team. It allows us to speak the same technical language, ensuring that your intent is translated into metal without endless back-and-forth emails. By adopting this international standard, you simplify your drawings while maintaining absolute control over the quality of your finished parts. This guide moves beyond the dry definitions to explore how ISO 2768-1 and ISO 2768-2 function in a high-speed machining environment, and why JUCHENG utilizes the "medium" class (ISO 2768-m) as the gold standard for high-value industrial production.

Efficiency in procurement is found in the removal of the unknown. A drawing that references a general tolerance class is a drawing that can be quoted and manufactured with confidence. Let us break down the mechanical pillars of this essential standard and see how it stabilizes the integrity of your most critical CNC designs.

content:

Linear and Angular Foundations: ISO 2768-1 Explained

The Master Reference: ISO 2768-m Tolerance Table

Geometric Sovereignty: Understanding ISO 2768-2

Drawing Integration: Specifying Quality in the Title Block

JUCHENG’s Standard: Predictable Precision Every Day

Linear and Angular Foundations: ISO 2768-1 Explained

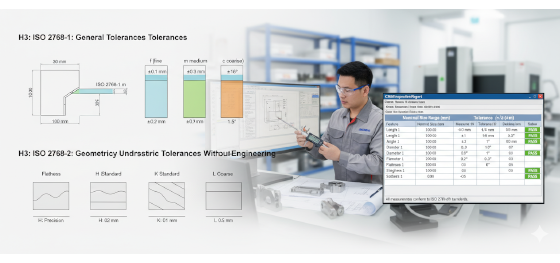

ISO 2768-1 is the primary tool for defining linear and angular dimensions. Its role is to replace the chaotic "standard tolerances" that used to vary from shop to shop. The standard provides four distinct classes of accuracy: f (fine), m (medium), c (coarse), and v (very coarse). For most precision engineering applications, including aerospace housings and medical enclosures, the "f" or "m" classes are the mandatory benchmark. These classes define exactly how much a length can deviate based on how large that dimension is.

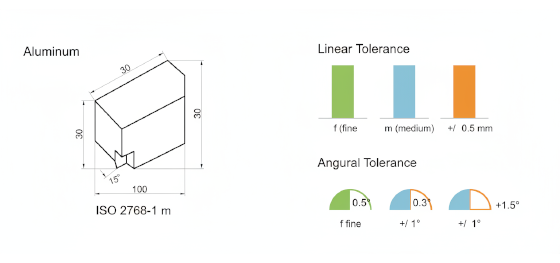

The logic of ISO 2768 Tolerances Explained is proportional. A 5mm hole has a much tighter allowable error than a 500mm plate. This makes sense; the difficulty of holding a tolerance increases with the size of the part. In the "medium" class, a dimension between 6mm and 30mm has a tolerance of +/- 0.2mm. By the time that dimension reaches 400mm, the tolerance expands to +/- 0.8mm. This proportional scaling prevents "tolerance traps" where a designer accidentally demands impossible precision on a non-critical exterior face. JUCHENG uses these linear guidelines to calibrate our machine centers, ensuring that even the features you didn't specifically dimension are still machined with industrial-grade accuracy. It provides a baseline of quality that ensures every bolt hole aligns and every mating face fits, even if the drawing is minimalist.

The Master Reference: ISO 2768-m Tolerance Table

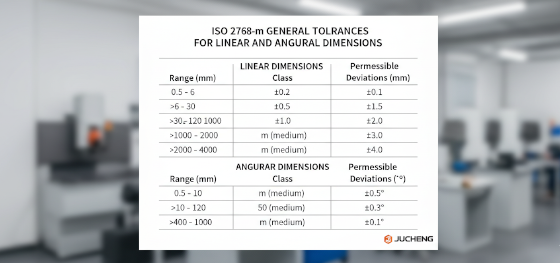

For the procurement manager and the junior engineer, having a physical reference is vital. The "m" (medium) class is the most frequent callout on modern drawings because it represents the optimal balance between cost and function. It is tight enough to ensure mechanical assembly but loose enough to avoid the extreme labor costs of surgical precision. Below is the technical breakdown of the ISO 2768 Tolerances Explained for linear dimensions in the medium class.

At Jucheng Precision, we use this table as a "Quality Contract." If a drawing specifies ISO 2768-m, our quality inspectors use these exact values during the CMM audit. By adhering to these ranges, we eliminate the subjective interpretation of what constitutes a "good part." This data-driven approach to CNC machining tolerances is what allows JUCHENG to serve high-reliability markets like the drone and EV industries, where parts must work together flawlessly under high-stress conditions.

Geometric Sovereignty: Understanding ISO 2768-2

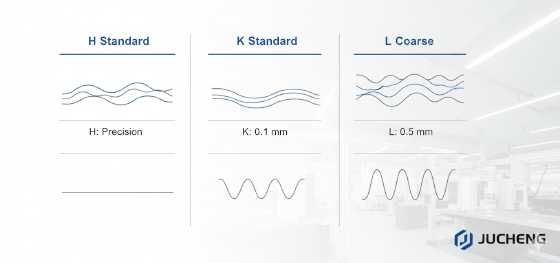

Size is only half of the story. A part can be the correct length but still be warped, twisted, or non-perpendicular. This is where ISO 2768-2 provides the solution for geometric features. It defines default limits for Flatness, Straightness, Symmetry, and Circular Runout. Much like the linear standard, the geometric standard provides three classes: H, K, and L. These letters act as a shorthand for the overall structural quality of the part.

For many structural frames, a Class K callout is the industrial standard. It ensures that a flat mounting plate actually remains flat after the stresses of the cnc machining process have been released. At Jucheng Precision, we pay close attention to these geometric defaults, especially when working with thin-walled aluminum or heat-sensitive plastics. ISO 2768-2 protects you from "the banana effect"—where a long, thin part bows in the middle. By referencing this standard, you force the machine shop to maintain a level of structural discipline that simple linear tolerances ignore. We use high-precision probing on our Mazak 5-axis centers to verify these geometric shapes, ensuring that the "true position" of every hole and the "flatness" of every flange meet the K or H class requirements your assembly depends on.

Drawing Integration: Specifying Quality in the Title Block

How do you turn ISO 2768 Tolerances Explained from a theory into a legal production requirement? It happens in the title block of your technical drawing. Instead of cluttering your design with thousands of individual +/- callouts, you simply add a single sentence: "General Tolerances to ISO 2768-m." This one phrase instantly locks in thousands of individual quality checkpoints. It tells JUCHENG exactly how much variation we are allowed on every radius, every chamfer, and every internal pocket.

This strategic simplification is a hallmark of an experienced engineer. It creates a "Clean Drawing" that focuses the machinist's attention on the features that actually matter—the ones where you *do* specify a tight +/- 0.01mm tolerance. JUCHENG’s DFM engineers look for this callout in the first five minutes of a quote. If it’s missing, we will ask you which class you require. By specifying ISO 2768-m or -f early, you eliminate the risk of the "loose interpretation" that often happens in lower-tier shops. You aren't just giving us a drawing; you are giving us an unambiguous manufacturing roadmap. We bridge the gap between your digital STEP file and the physical reality of the QC room, providing the documentation needed to verify that every millimeter meets the international standard.

JUCHENG’s Standard: Predictable Precision Every Day

The final hall-mark of a world-class facility is consistency. It is easy to meet ISO 2768-m once; it is much harder to meet it on part ten thousand. At Jucheng Precision, our entire quality ecosystem is built around the CNC machining tolerances defined by these international standards. We maintain a climate-controlled inspection lab to prevent thermal expansion from skewing our measurements, and we utilize digitized metrology tools that feed directly into our quality logs.

We treat ISO 2768-m as our "Zero-Failure" baseline. When you receive a shipment from JUCHENG, you aren't just getting metal; you are getting the peace of mind that comes with certified compliance. We provide full CMM reports and Quality Assurance documentation for our aerospace and medical clients, ensuring that every ISO 2768 Tolerances Explained metric is verified and validated. Whether you are building an innovative heart pump or a high-performance EV chassis, our expertise in tolerance management ensures your vision is delivered with absolute integrity. Contact Jucheng Precision today for a technical DFM review and see how our standardized precision protocols can clarify and secure your next manufacturing challenge.
