Beyond the Melt Pool: Mastering 3D Metal Printing Tolerances

Molten pools are the volatile birthplaces of precision. In the intense landscape of 3D printing tolerances, metal additive manufacturing represents the ultimate struggle between digital design and localized thermodynamics. When a fiber laser strikes a bed of metallic dust at temperatures exceeding 1,600°C, it triggers a metallurgical event that wants to warp and pull the part into a chaotic geometry. This is the uncompromising reality of 3d metal printing tolerances. It is a process where the engineer must account for every joule of energy, ensuring that the rapid quench of the metal doesn't lead to a structural failure before the part even leaves the build plate. While plastic printing fights gravity, metal printing fights thermal hostility.

JUCHENG operates a unified technical hub where we treat a hundred-micron metal drift with the same engineering gravity as a medical-grade CNC bore. We understand that for an aerospace impeller or a titanium bone plate, "near-net-shape" is just the beginning. By integrating over 25 high-precision 5-axis centers with our DMLS (Direct Metal Laser Sintering) fleet, we have built a manufacturing sanctuary that solves the accuracy paradox. This guide moves beyond the standard sales gloss to explore the micro-physics of melt-pool stability, the strategic logic of support-based heat sinks, and why JUCHENG’s hybrid metamorphosis is the mandatory final step for any metal design that demands absolute geometric truth.

Efficiency in the metal world is won by mastering the cooling ramp. You aren't just sintering particles; you are orchestrating a rapid-solidification event that defines the part's mechanical destiny. Whether you are building a complex fluid manifold for an EV pack or a lightweight satellite bracket, the logic of the thermal gradient is your primary manufacturing governor. Let us break down the physical pillars of metal additive precision and see how technical foresight can lock the integrity of your next aerospace breakthrough into physical reality.

content:

Thermal Hostility: The Root Cause of Dimensional Drift

The 0.1mm Reality: Mapping As-Printed Precision Limits

Support Evolution: Scaffolds as Thermal Heat Sinks

Surface Integrity: Why Ra Values Affect Measurable Limits

Hybrid Metamorphosis: Closing the Gap with 5-Axis CNC

JUCHENG’s Standard: Validating the Metal Soul

Thermal Hostility: The Root Cause of Dimensional Drift

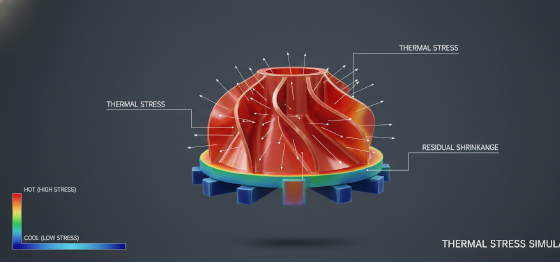

To understand the struggle for 3d metal printing tolerances, you must visualize the intense thermal war happening on the build plate. DMLS works by localized melting; as the laser moves across the powder, the liquid metal cools from nearly 2000°C to the 80°C chamber temperature in the blink of an eye. This is a violent metallurgical quench. As the metal solidifies, it contracts aggressively. This contraction introduces "Residual Stress"—the hidden force that pulls on your geometry, causing thin walls to bow and flat plates to warp into a bowl shape.

If your design ignores these thermal gradients, the part will literally tear itself off the build plate before the build is 50% complete. JUCHENG’s engineers utilize advanced thermo-mechanical simulation to predict these stress zones. We suggest adding "thermal ribs" or modifying fillets to distribute the stress more evenly. The goal is to reach a state of physical equilibrium where the part remains stable throughout the cycle. We don't just "print" metal; we manage the cooling curve of every cubic millimeter, ensuring that the internal tension doesn't destroy the dimensional integrity of your design. By neutralizing these forces during the build, we deliver a part that is structurally sound and ready for the next level of precision refinement.

The 0.1mm Reality: Mapping As-Printed Precision Limits

Data dictates the budget. When we discuss 3d metal printing tolerances, honesty is the primary engineering currency. In an "as-printed" state—straight off the DMLS machine—the standard industrial tolerance is typically between ±0.1mm and ±0.2mm. This is influenced by the 70-micron spot size of the fiber laser and the grain size of the metal powder. While this is exceptionally accurate for a technology that grows parts from dust, it is not sufficient for a bearing press-fit or a high-pressure seal face.

Scaling also introduces complexity. As a part gets larger, the cumulative error of thermal shrinkage grows linearly. A 200mm aerospace bracket will naturally have a wider tolerance range than a 20mm dental implant. At Jucheng Precision, we use a tiered approach: we provide ±0.1mm for small, high-detail features and allow for up to ±0.2% on large-format structural components. We help our clients identify the "Critical-to-Quality" (CTQ) dimensions. If a feature only needs to clear another part, the 0.1mm as-printed tolerance is perfectly economical. But if the part must assemble with sub-micron fitment, the as-printed surface is merely a "preform" for the final CNC pass. By mapping these limits early, we prevent the "Tolerance Shock" that happens when designers over-specify their expectations for additive manufacturing.

Support Evolution: Scaffolds as Thermal Heat Sinks

In the 3D printing process for metals, supports serve a dual purpose: they are structural anchors and thermal conductors. When you build an overhanging feature, it has no direct path to dissipate the heat of the laser into the build plate. Without a technical bridge, that overhang will overheat, leading to a "burned" surface finish and collapsed tolerances. This is where 3d metal printing tolerances are won or lost—in the engineering of the scaffolding.

JUCHENG’s DFM team designs "Smart Scaffolds" that act as high-efficiency heat sinks. We optimize the density and connection points of the supports to pull thermal energy away from the part as quickly as possible. This maintains a uniform temperature at the build interface, preventing the "lifting" effect that ruins dimensional accuracy. We also utilize "Perforated Interface" layers that provide a rigid anchor during the build but allow for easier removal during post-processing. By treating the support as an engineered cooling system rather than just a waste product, we preserve the geometric truth of your part, ensuring that even the most complex cantilevers and overhangs remain within spec throughout the grueling 24-hour build cycle.

Surface Integrity: Why Ra Values Affect Measurable Limits

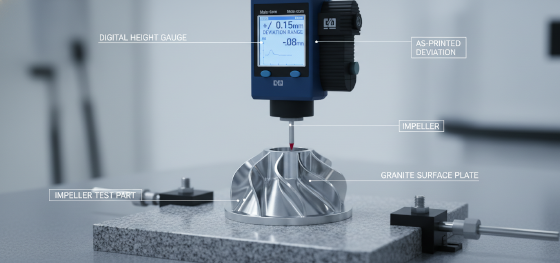

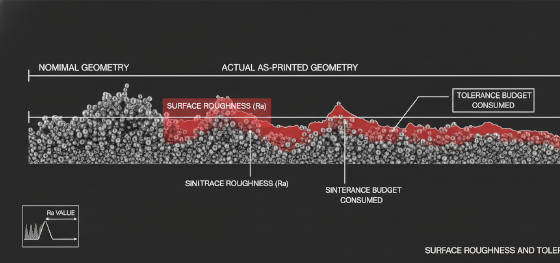

Surface roughness is the invisible tax on 3d metal printing tolerances. A DMLS part emerges from the powder bed with a texture similar to a fine-grit sand casting, typically Ra 6.3 to 12.5 µm. This "fuzzy" skin is composed of semi-fused metal particles at the boundary of the laser path. When a quality inspector uses a physical probe or micrometer to measure the part, the tool sits on top of these microscopic peaks. The "recorded" dimension is actually larger than the solid "structural" core of the part.

At Jucheng Precision, we account for this "Surface Bias." We utilize non-contact laser scanning to measure the part’s volume more accurately, or we utilize bead-blasting to homogenize the skin before final inspection. If your design requires a smooth surface for fluid flow or fatigue resistance, we advise on the "Aesthetic Premium"—the cost of polishing or vibratory finishing needed to bring the surface down to Ra 1.6 µm. By understanding how the raw texture of the metal print interferes with the metrology, we deliver parts that are functionally accurate, ensuring that your tolerance readings reflect the part’s true mechanical performance, not just the noise of its surface.

Hybrid Metamorphosis: Closing the Gap with 5-Axis CNC

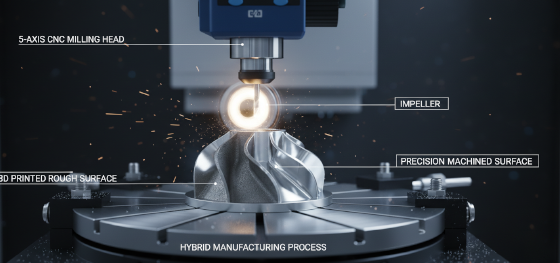

Choosing between 3D printing and CNC machining is an outdated strategy. At Jucheng Precision, we operate a hybrid sanctuary where the two technologies work in a technical symbiosis. We use the 3D printer to grow the "unmachinable" complexity—internal cooling veins and lightweight lattices—and then move the part to our 5-axis CNC floor for the "Surgical Strike." This is the only reliable way to achieve +/- 0.01mm 3d metal printing tolerances on critical mating surfaces.

We print your metal designs with "Machining Stock"—an extra 1.5mm of material on every bearing seat, thread, and mounting flange. Once the part is vacuum-annealed to release its build stresses, we mill those features to mirror-smooth perfection. This hybrid approach provides you with the lightweight freedom of additive manufacturing and the sub-micron fitment of traditional CNC. It eliminates the liability of the "as-printed" surface for high-stakes aerospace and medical hardware. We don't just ship you a print; we ship you a verified engineered component that fits your assembly perfectly the first time. This integrated flow is what makes JUCHENG a vital partner for innovators who refuse to compromise on quality for the sake of complexity.

JUCHENG’s Standard: Validating the Metal Soul

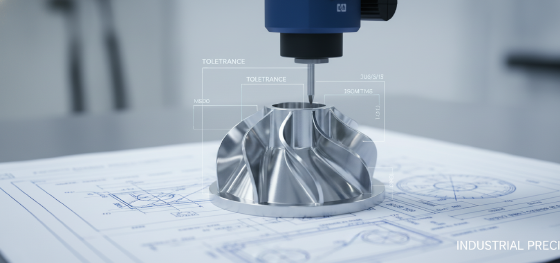

The final hallmark of a professional manufacturing partner is the ability to prove the integrity of the part. In the world of high-integrity metal additive, you cannot manage what you do not verify. Jucheng Precision has built a metrology sanctuary specifically for the 3D printing process. We utilize in-house XRF spectrometers to verify that the alloy composition matches your Mill Test Report exactly. We also perform "Thermal Stabilization" cycles in our vacuum furnaces to ensure that the stress-relief cycle hasn't induced new warping.

Our quality control lab is equipped with high-resolution CMMs from Zeiss and Hexagon. We take hundreds of points across your part’s geometry to generate a 3D digital comparison against your master STEP file. We provide our clients with full inspection reports and material traceability logs, providing the "Digital Birth Certificate" required for aerospace and defense compliance. When you partner with JUCHENG, you aren't just getting a 3D printed shape; you are getting a verified engineering solution that has been audited for structural and dimensional survival. Whether you are building an innovative medical device or a high-performance turbine manifold, our metal additive expertise ensures your vision is delivered with absolute precision. Contact Jucheng Precision today for a technical DFM review and see how our metal tolerance protocols can stabilize and elevate your next manufacturing breakthrough.
