ABS like Urethane Casting: Navigating Impact Strength and Surface Quality

Holding a prototype that feels "wrong" can derail an entire engineering review. In the fast-moving landscape of product development, the visual confirmation provided by 3D printing is often insufficient for the brutal reality of functional testing. Most light-cured resins look identical to production plastics but lack the molecular "spine" required to survive a snap-fit assembly or a thermal cycle. This is the technical gap bridged by ABS like Urethane Casting. It is a process of high-fidelity replication that utilizes specialized two-part polyurethanes to simulate the mechanical soul of Acrylonitrile Butadiene Styrene. By choosing the correct vacuum casting materials, engineers can generate small batches of parts that possess the exact impact strength, flexural modulus, and surface haptics of final injection-molded components, bypassing the six-figure investment of a steel tool.

JUCHENG operates as a strategic technical sanctuary for hardware teams who require "Material Honesty" in their validation phase. We recognize that an automotive interior trim or a consumer electronic housing is a multi-functional system that must resist chemicals, survive drops, and assemble perfectly every time. We don't just "pour resin"; we orchestrate a chemical reaction tailored to your production bill of materials. By utilizing premium systems from leaders like Hei-Cast and Axson, we provide a level of simulation that allows you to perform meaningful mechanical audits with absolute confidence. This guide explores the chemistry of polyurethane mimicry, the physical pillars of impact resistance, and why JUCHENG’s integrated approach to casting ensures your prototypes are born ready for the field, not just the conference table.

Profitability in the R&D cycle is won by removing the uncertainty of the material test. You aren't just buying a plastic shape; you are buying the verified relationship between chemical properties and geometric intent. Whether you are building a complex handheld scanner or a high-durability mounting bracket, the logic of the resin is your primary manufacturing governor. Let us break down the mechanical and chemical pillars of ABS simulation and see how technical foresight can lock the integrity of your next design into reality.

content:

Material Mimicry: Decoding the ABS-like Chemistry

Mechanical Equilibrium: Balancing Strength and Impact

Tactile Honesty: Achieving the Feel of Production Plastic

Strategic Applications: From Electronics to Automotive Trim

JUCHENG’s Quality Standard: Validating the Functional Copy

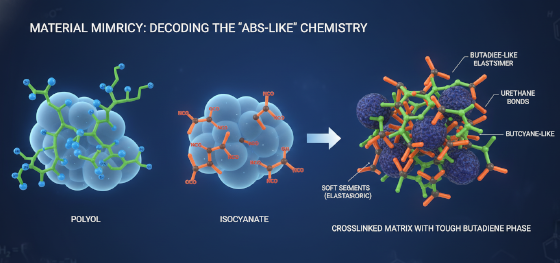

Material Mimicry: Decoding the ABS-like Chemistry

Understanding why ABS like Urethane Casting is the workhorse of industrial prototyping requires a look at the molecular handshake. Production ABS is a tri-polymer—Acrylonitrile, Butadiene, and Styrene—each contributing a specific property: heat resistance, impact strength, and surface rigidity. Replicating this synergy in a pourable liquid resin is a feat of chemical engineering. Most polyurethane systems utilize a multi-component reaction where the Polyol and Isocyanate are specifically "tuned" to form long, cross-linked chains that behave with the same flexural modulus as ABS.

At Jucheng Precision, we source advanced resins like Hei-Cast 8150, which utilize microscopic rubberized inclusions to simulate the "give" of the butadiene phase in ABS. This molecular mimicry ensures that when a tool engages with the part—or when the part is snapped into an assembly—the stress is distributed evenly through the polymer matrix rather than shattering. Unlike 3D printed resins that are cured point-by-point, cast urethanes cure as a monolithic solid under a deep vacuum. This eliminates the layer-line weakness that plagues additive parts, providing an isotropic structure where the strength is identical in all directions. By managing the stoichiometry of the mix and the temperature of the silicone mold, JUCHENG ensures that the "chemical soul" of your part is optimized for the mechanical stresses of your validation mission.

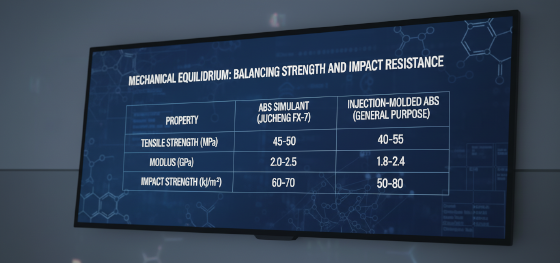

Mechanical Equilibrium: Balancing Strength and Impact

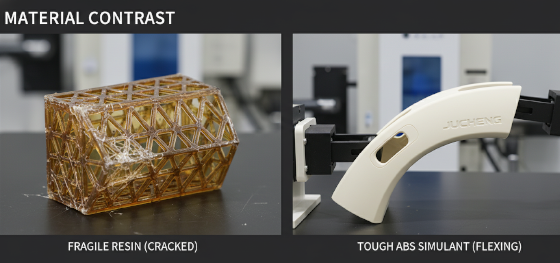

Data is the only cure for manufacturing ambiguity. For an engineer, the appeal of ABS is its balanced profile: it is stiff enough to hold a shape but ductile enough to absorb a hit. In the world of vacuum casting materials, we measure this through the "Impact-Strength-to-Stiffness" ratio. A part that is too hard will be brittle; a part that is too soft will fail to hold a precision tolerance. JUCHENG’s ABS-like urethanes are engineered to find the exact "Goldilocks zone" for your specific application.

Property	Injection Molded ABS	Simulation ABS (Hei-Cast 8150)
Tensile Strength	40 - 50 MPa	~45 MPa
Flexural Modulus	2.0 - 2.5 GPa	~2.1 GPa
Impact Strength (Izod)	200 - 300 J/m	~220 J/m
Heat Deflection (HDT)	~85°C	~80°C

As the baseline data indicates, the gap between a JUCHENG cast part and a production unit is statistically negligible. This technical equilibrium allows you to conduct meaningful R&D. You can perform drop tests from 1.5 meters, conduct vibration audits on a shaker table, and verify the holding-torque of self-tapping screws with the certainty that the results will carry over to mass production. We don't just provide a visual surrogate; we provide a mechanical benchmark that ensures your design is armored for the field. By matching the flexural behavior of the simulant to the production intent, we eliminate the false positives that occur when testing with low-fidelity materials.

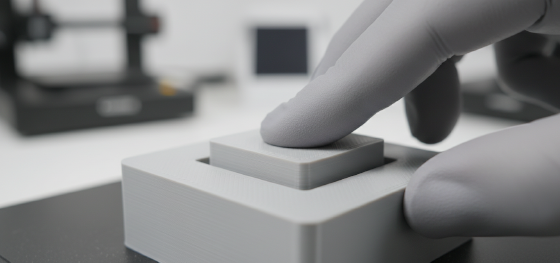

Tactile Honesty: Achieving the Feel of Production Plastic

Consumer perception is governed by the fingertips. If a device handle or a dashboard knob feels "light" or "waxy," it communicates a lack of quality. ABS like Urethane Casting provides a level of tactile honesty that is unique in the rapid prototyping world. Because the silicone mold captures every microscopic detail of the master pattern—including VDI 27 textures, bead-blasted satins, or mirror-polished surfaces—the final parts have the dense, premium "click" associated with high-end consumer hardware.

At Jucheng Precision, we don't just ship raw casts; we deliver retail-ready components. We utilize our in-house painting booths to match any Pantone or RAL color with a Delta-E variance of less than 1.0. We can also integrate silk-screening and pad-printing directly into our workflow. Because ABS-like urethanes are chemically receptive to high-performance paints, the finish doesn't just sit on the surface—it bonds with it. This allows for realistic user-experience studies where focus groups can handle the device exactly as they would a finished product. We remove the "printed" signature of 3D technology, providing you with an aesthetic surrogate that passes the scrutiny of marketing executives and engineers alike. We treat surface realism as a functional specification, ensuring your brand identity is perfectly represented in every physical iteration.

Strategic Applications: From Electronics to Automotive Trim

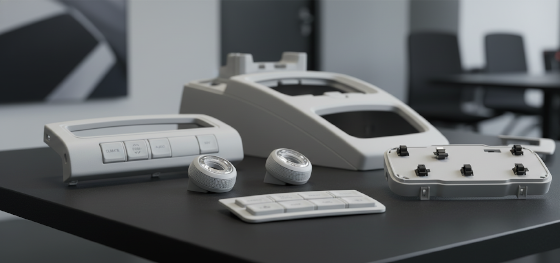

Where does the theory of simulation meet the reality of the industry? ABS like Urethane Casting earns its keep in sectors where "failure to fit" is not an option. In the automotive industry, we produce functional prototypes for interior bezels, HVAC vents, and dashboard assemblies. These parts must survive the vibration of a test track and the heat-soak of a sunny day. Our high-fidelity resins maintain their dimensional lock under these conditions, allowing for accurate gap-and-flush analysis between components.

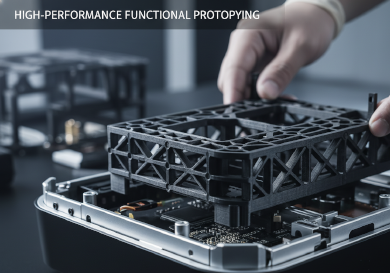

In the consumer electronics sector, the focus is on snap-fit integrity and impact survival. We manufacture hundreds of wearable device housings and remote control shells for clients who need to validate the assembly logic before committing to a $50,000 injection mold. Because the material yields like ABS, you can iterate on the snap-fit geometry in a matter of days, choosing the exact "locking force" your user experience demands. JUCHENG also serves the medical diagnostics sector, creating ruggedized housings for blood analyzers and handheld probes. The material’s resistance to common alcohols and cleaning agents ensures that the prototype doesn't "craze" or crack during clinical trials. By providing a production-grade material experience in the R&D phase, we accelerate your path to market, ensuring your hardware is as durable as the designs intended.

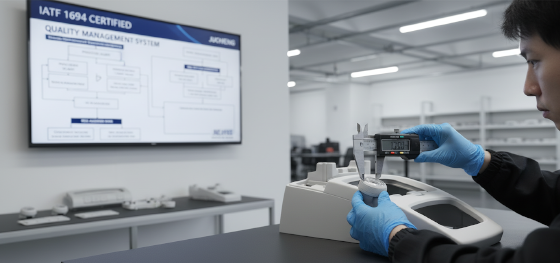

JUCHENG’s Quality Standard: Validating the Functional Copy

Choosing a partner for functional casting is a move of technical trust. Most shops treat casting as a manual craft; JUCHENG treats it as a regulated engineering discipline. We understand that a component that looks perfect but measures 0.3mm out of spec is a failure that stalls a production line. Our vacuum casting materials protocol includes full material lot traceability and documented Shore hardness checks for every batch. We verify the "Cure-Profile" in our stabilized ovens to ensure that the material reaches its full mechanical potential before it leaves our floor.

Our facility is equipped with high-resolution CMM probes and laser scanners to provide a 100% inspection report for critical mating features. We ensure that the shrinkage compensation applied during the master-pattern phase results in a final part that falls exactly within your specified tolerance window. When you receive a shipment from JUCHENG, you aren't just getting 3D "copies"—you are getting verified engineered solutions that have been audited for survival. Whether you are building an innovative medical brace or a mission-critical automotive sensor housing, our expertise in ABS simulation clarifies and elevates your vision. Contact Jucheng Precision today for a technical DFM review and let our material protocols armor your next manufacturing breakthrough.
