Black Oxide coating is an essential chemical conversion process used on steel parts to enhance corrosion resistance, reduce light reflection, and provide a low-friction surface. Unlike thick coatings such as powder coating or electroplating, Precision Black Oxide Coating forms a sub-micron protective layer, making it the ideal choice for high-precision components where dimensional tolerance is absolutely critical.
For B2B buyers sourcing complex assemblies, the success of a black oxide part is measured by its ability to fit perfectly *after* finishing. This guide details the chemical process, the critical dimensional advantage, and the preparation required to ensure your CNC Machined steel components achieve ultimate protection without compromising tolerance.
content:
Dimensional Advantage: The Ultra-Thin Layer and Tolerance Preservation
Application Benefits: Low Friction, Corrosion, and Aesthetics
Process Mastery: Hot vs. Cold Black Oxide and Chemical Control
CNC Preparation and Final Sealing for Maximum Protection
Dimensional Advantage: The Ultra-Thin Layer and Tolerance Preservation

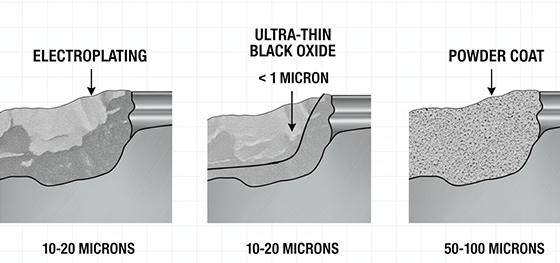

The core technical advantage of black oxide lies in its thickness. As a chemical conversion coating, it chemically alters the very top layer of the steel rather than adding significant material to the surface:
Minimal Build-Up: The typical layer thickness is less than 0.5 microns (0.00002 inches). This is up to 100 times thinner than hard chrome plating and eliminates the need for expensive post-plating dimensional grinding.

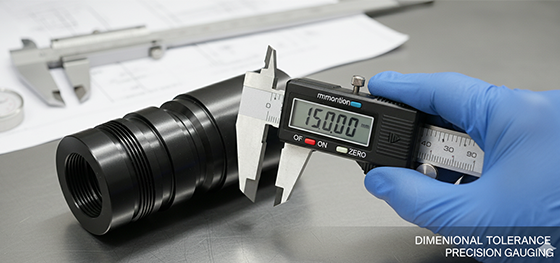

Tolerance Preservation: For components with tight clearances (e.g., slip-fit bearings, threaded parts), black oxide is the only viable corrosion solution. The minuscule dimensional impact ensures that a part machined to an H7 or H8 tolerance will retain its fit after the finishing process.
No Hydrogen Embrittlement: Unlike electroplating processes, black oxide does not introduce hydrogen into the steel matrix, making it safe for high-strength steel parts (like tool steel) where hydrogen embrittlement could lead to brittle structural failure.
Application Benefits: Low Friction, Corrosion, and Aesthetics
Black oxide's unique combination of properties makes it the preferred finish for numerous mechanical and optical applications:
Corrosion Protection: While not as robust as zinc plating, when properly sealed, the black oxide layer provides sufficient protection against atmospheric corrosion, making it perfect for indoor machinery and tooling.
Low Friction: When the coating is sealed with an oil or wax, the combination provides a lubricious surface that reduces friction and galling (metal-on-metal sticking), making it ideal for internal moving parts and sliding mechanisms.
Aesthetics and Low Glare: The deep black color provides a professional aesthetic and, more critically, minimizes light reflection and glare. This is mandatory for components used in optical devices, cameras, and military equipment.
Process Mastery: Hot vs. Cold Black Oxide and Chemical Control
Black oxide is achieved primarily through the Hot Black Oxide process, which requires specialized equipment and stringent chemical control:

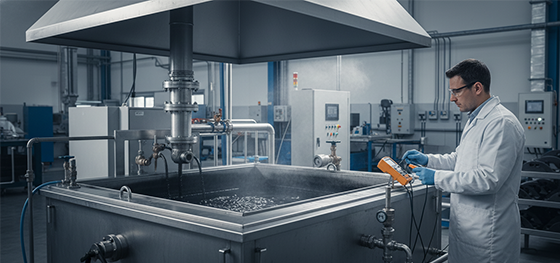

Hot Black Oxide: The highest quality and most durable finish is achieved through the hot process, where parts are immersed in a near-boiling caustic salt solution. This process provides superior durability and penetration depth into the steel.
Cold Black Oxide: A simpler, room-temperature process often used for touch-ups. It is less durable and is generally not suitable for high-wear or critical components. Professional manufacturing relies on the hot process.
Chemical Control: The chemical bath must be maintained at a precise concentration and temperature. Imbalances can lead to a red/brown or patchy finish, requiring the part to be stripped and re-finished.
CNC Preparation and Final Sealing for Maximum Protection
The quality of the black oxide finish depends heavily on the surface finish established during the prior CNC Machining:
Surface Finish Requirement: The metal surface must be completely clean and free of rust, scale, or deep machining marks. The final appearance of the black oxide will mirror the texture of the pre-treated surface (e.g., a smooth CNC finish results in a smooth oxide layer).
Mandatory Sealing: Black oxide provides poor corrosion resistance on its own. It must be immediately sealed after treatment using a final coat of oil, wax, or lacquer. This sealant is what provides the primary barrier against moisture and is critical for lubricity.
Material Traceability: For high-stress applications, the part must be traceable to its original material certification to ensure the base metal's strength is not compromised by the finishing process.
Precision Black Oxide Coating is the definitive finish for steel components requiring corrosion protection without dimensional change. Jucheng Precision Technology integrates the hot black oxide process directly into the CNC Machining workflow, ensuring parts retain their tight tolerances and achieve a uniform, durable, low-glare finish.
Secure non-dimensional protection for your mechanical components. Contact us today to discuss the precision finishing requirements for your steel prototypes and assemblies.
