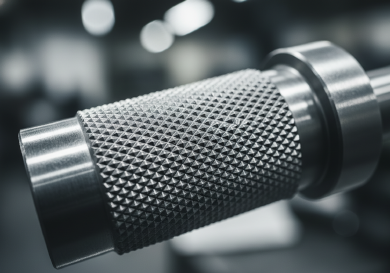

Design exists at the intersection of human skin and cold hardware. In the vast landscape of the cnc machining process, most operations focus on removing material to reach a dimension. But one specific process focuses on transforming the surface into a functional interface. This is cnc knurling. It is the technical method of creating a series of regular, cross-hatched, or straight ridges on a cylindrical surface. Whether it is a high-torque adjustment knob on a laboratory microscope or the non-slip handle of a titanium surgical tool, knurling is what allows a human hand to exert control over a machine.

At Jucheng Precision, we treat knurling as both a structural requirement and an aesthetic signature. We understand that a "bad knurl"—one with double-tracked lines or flattened peaks—is a sign of poor process control. Achieving a crisp, uniform pattern requires a mastery of material displacement and spindle synchronization. This guide explores the mechanical divide between forming and cutting, the critical calculation of diameter growth, and why JUCHENG’s integration of live-tooling lathes ensures your ergonomic designs feel as premium as they look.

Success in knurling is found in the management of tool pressure and material flow. It is a process where the metal is forced to move, not just disappear. Let us examine the technical pillars of surface texturing and see how it redefines the tactile integrity of your precision CNC components.

content:

Mechanical Physics: Form Knurling vs. Cut Knurling

Pattern Diversity: Diamond, Straight, and Diagonal Logic

Material Behavior: Managing Hardness and Ductility

Dimensional Sovereignty: Calculating Diameter Growth

JUCHENG Aesthetic Standard: Zero-Defect Textures

Mechanical Physics: Form Knurling vs. Cut Knurling

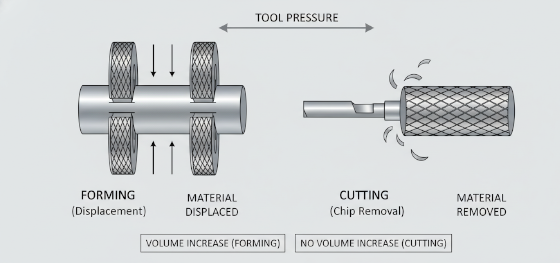

The first technical crossroad in cnc knurling is deciding how the pattern will be born. Form Knurling is the most common industrial method. It utilizes heavy-duty rollers with the desired pattern engraved on them. As these rollers are pressed into the rotating workpiece, they physically displace the metal. The material is "pushed" out of the valleys and "piling up" to form the peaks. This is a cold-forming process that doesn't produce any chips. The advantage of form knurling is speed and structural strength; because the grain of the metal is compressed rather than severed, the knurled area becomes work-hardened and extremely durable. However, the massive radial pressure required can deflect thin-walled parts or small-diameter shafts, leading to a loss of concentricity.

Cut Knurling is the high-precision alternative. Instead of pushing the metal, the tool uses sharp cutting edges to carve the pattern into the surface, producing actual chips. At Jucheng Precision, we recommend cut knurling for delicate components or materials that are too hard for pressure forming. Because the radial forces are significantly lower, we can maintain tighter tolerances on the underlying shaft diameter. Cut knurling also produces much sharper, cleaner peaks, which is essential for medical instruments where the grip must be reliable even when covered in fluids. By understanding the physics of displacement versus shearing, JUCHENG selects the method that protects your part's geometry while delivering the exact tactile response your application demands.

Pattern Diversity: Diamond, Straight, and Diagonal Logic

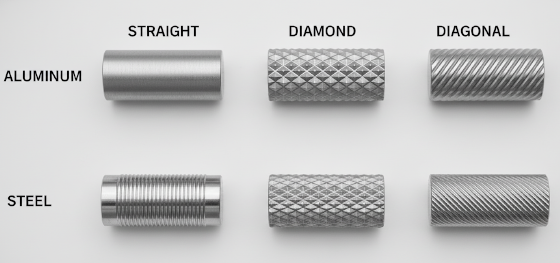

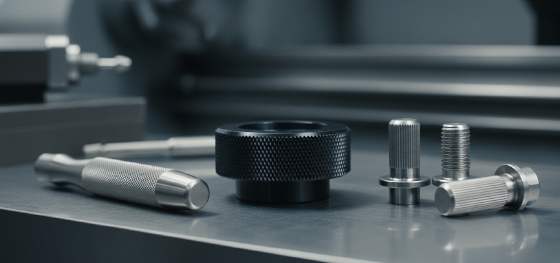

The visual and functional soul of cnc knurling is the pattern. The choice of geometry is driven by the direction of the expected force. Diamond Knurling is the gold standard for multi-directional grip. It creates a field of microscopic four-sided pyramids that bite into the skin, providing maximum friction for both rotational and axial loads. It is the default choice for tool handles and heavy-duty knobs. Straight Knurling, consisting of parallel longitudinal ridges, is used primarily when the grip only needs to resist rotational slipping, or when the part must be pressed into a plastic housing where the ridges act as "splines" to prevent the part from turning.

At Jucheng Precision, we also offer Diagonal Knurling and custom "Spiral" textures for decorative or specialized indexing applications. We help our clients select the "Pitch" of the knurl—the distance between the peaks. A fine pitch (0.5mm) provides a sophisticated, jewelry-like feel suitable for consumer electronics, while a coarse pitch (1.5mm) offers a rugged, industrial grip for gloved hands. By controlling the depth and angle of the pattern, we ensure the ergonomics of your part are perfectly tuned. A knurl that is too sharp can be painful; a knurl that is too shallow is useless. We find the "Goldilocks" zone through careful tool selection and feed-rate optimization, ensuring your product communicates quality through touch.

Material Behavior: Managing Hardness and Ductility

Material science is the invisible governor of cnc knurling success. Soft metals like Aluminum 6061 and Brass are ideal for form knurling; they flow easily into the tool's pattern, resulting in full, well-defined peaks. However, their softness means they are susceptible to "over-rolling," where the tool creates a second, overlapping pattern if the timing isn't perfect. JUCHENG technicians utilize high-speed spindle synchronization to ensure the tool enters the material at the exact same orientation on every pass, eliminating the "double-tracking" that ruins aesthetic parts.

Harder alloys like Stainless Steel 316 or 4140 Chromoly present a different challenge. These materials resist displacement. If we use a standard forming tool, the pressure required can be so high that it damages the machine's spindle or causes the part to bend. For these materials, Jucheng Precision often shifts to cut knurling or utilizes specialized cobalt-infused rollers that can handle the extreme abrasion. We also adjust our cnc machining process to include flood cooling. Because knurling involves intense friction, the material can expand thermally, which leads to an inconsistent pattern depth as the part warms up. By keeping the workpiece at a stabilized temperature, we ensure that a three-meter-long knurled shaft is identical from end to end. We don't just "press" a pattern; we manage the material's internal resistance to deliver perfection.

Dimensional Sovereignty: Calculating Diameter Growth

The most common engineering oversight in cnc knurling is the failure to account for "Diameter Growth." In a form knurling operation, the material is not removed; it is redistributed. When the tool creates a valley, that metal has to go somewhere—it moves outward to form the peak. This means the final outside diameter (OD) of a knurled part will always be larger than the starting blank. If you need a knurled handle to fit inside a 20mm bore, you cannot start with a 20mm bar. The knurling will grow the part to 20.5mm or more, making it impossible to assemble.

Jucheng Precision solves this through "Pre-Knurl Math." Our engineers calculate the exact volumetric displacement based on the pitch and the depth of the pattern. We then machine the raw stock to a specific "pre-rolled diameter." This ensures that after the knurling tool has completed its pass, the peaks of the pattern reach the exact functional diameter required by your blueprints. We maintain Nylon Machining Tolerances and metal tolerances with the same rigor, using digital micrometers to measure across the peaks of the knurl. This level of dimensional sovereignty is vital for components that feature both a knurled grip and a precision bearing seat on the same shaft. We ensure the growth is controlled, repeatable, and functionally perfect for your final assembly.

JUCHENG Aesthetic Standard: Zero-Defect Textures

The final hallmark of a professional knurling service is the pursuit of visual perfection. A knurl is often the most visible part of an assembly; it is the first thing a user sees and feels. At Jucheng Precision, we treat cnc knurling as a high-visibility cosmetic feature. We monitor tool wear with microscopic precision. A worn knurling wheel will produce "flaked" or "shaved" tooth peaks, which feel sharp and unpleasant. We replace our tooling at the first sign of degradation to ensure every part in a production run is identical.

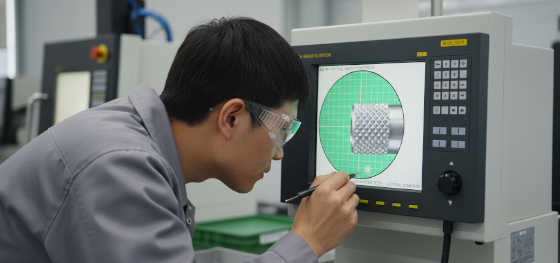

Our quality control team utilizes optical comparators and 50x magnification scopes to verify the "Crest Symmetry" of the patterns. We look for uniform height and clean intersections where the diagonal lines meet. This attention to detail is essential for the medical device industry, where a knurled handle must not only provide grip but also be easy to sanitize—meaning no jagged metal "crumbs" can be left behind. Whether you are building a prototype for a luxury audio knob or a high-volume order of industrial fasteners, Jucheng Precision has the technical rigor and the specialized equipment to deliver. We don't just add grip; we add value through manufacturing excellence. Contact our team today for a technical DFM review and see how our knurling protocols can elevate the tactile experience of your next project.
