CNC Threading Guide: Tapping vs. Thread Milling Explained
Views: 5 Author: Allen Xiao Publish Time: 2026-01-24 Origin: Site

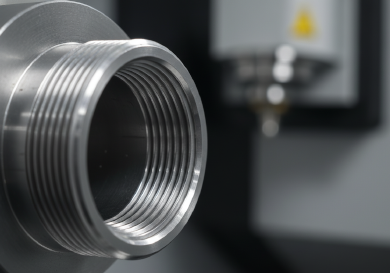

Assembly is the ultimate moment of truth in any manufacturing cycle. You can machine a flawless aerospace housing or a complex medical manifold, but if the fasteners fail to engage or the threads strip under pressure, the entire component is a loss. In the broader context of the cnc machining process, creating reliable internal and external helical features is more than a simple drilling operation. It is an exercise in geometric precision and mechanical integrity. This is the technical domain of cnc threading. It is the art of carving a spiral path into metal or plastic with such accuracy that a bolt can glide into position with zero resistance while maintaining thousands of pounds of clamping force.
At Jucheng Precision, we recognize that threading is often the highest-risk phase of production. A broken tap inside a nearly finished titanium part can result in thousands of dollars in scrap. We don't just "cut threads"; we engineer a fastening strategy. By utilizing a combination of high-speed tapping, helical thread milling, and single-point turning, we ensure that every assembly interface is robust and compliant. This guide explores the mechanical foundations of thread creation, the critical choice between cutting and forming, and why JUCHENG’s rigorous metrology protocols ensure your parts fit perfectly the first time, every time.

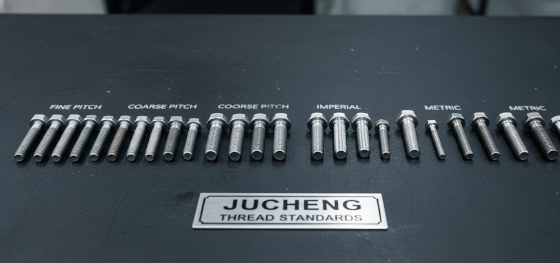

Consistency in threading requires a mastery of tool pressure and material behavior. Whether you need standard metric fasteners or custom ACME profiles, the success of your design depends on how the cutter meets the material. Let us examine the technical pillars of modern thread manufacturing.
Tapping Efficiency: High-Speed Solutions for Volume
Tapping remains the most common method for creating internal threads in a high-production cnc machining process. It is a direct, vertical operation where a tool that matches the exact thread profile—a tap—is driven into a pre-drilled hole. The mechanical simplicity of tapping allows for incredibly fast cycle times. In materials like 6061 aluminum or mild steel, JUCHENG utilizes high-speed synchronous tapping, where the spindle rotation and the Z-axis feed are electronically locked. This ensures the tap follows a perfect helical path, preventing the "cross-threading" or stripped profiles that often occur in manual operations.
At Jucheng Precision, we distinguish between "Cut Tapping" and "Form Tapping" based on the material's ductility. Cut taps utilize flutes to shear away metal, which is effective for harder alloys like stainless steel. However, these flutes create chips that can clog deep blind holes. Form taps, or roll taps, don't cut the material; they displace it. By cold-forming the thread profile into the metal, form taps create stronger, work-hardened threads without producing any chips. This makes them ideal for soft, ductile materials where cleanliness and thread strength are paramount. We manage the high torque requirements of these operations by utilizing specialized oil-mist lubrication and high-torque spindles, ensuring that even M2 micro-threads are consistent across a batch of ten thousand parts. Tapping is the champion of economy, provided the material and geometry allow for a straight, high-speed entry.
Thread Milling: The Precision Shield for High-Value Parts

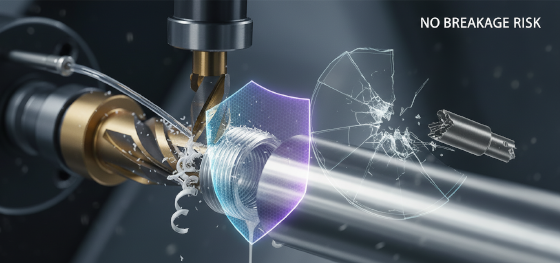

When a part is made from an expensive exotic alloy like PEEK, Titanium, or Inconel, the risk of a broken tap is unacceptable. A tap is a "dead" tool; if it snaps at the bottom of a hole, it is physically locked in place, often forcing the operator to scrap the entire workpiece. This is where cnc threading evolves into thread milling. Unlike a tap, a thread mill is a rotating tool with a diameter smaller than the hole. It moves in a helical interpolation path—spiraling down the walls of the bore to carve the thread profile. Because the tool is smaller than the hole, if it breaks, it can be easily removed without damaging the part.
Thread milling offers a level of flexibility that traditional tapping cannot match. With a single tool, JUCHENG can produce internal or external threads of varying diameters, provided they share the same pitch. This process allows us to control the thread "class" with extreme precision. We can adjust the tool offsets in the CNC controller to achieve a tighter or looser fit, accommodating for post-process coatings like anodizing or zinc plating. Furthermore, thread milling produces superior surface finishes because it creates small, manageable chips that are easily flushed away by high-pressure air or coolant. For blind holes that must go deep into a part, thread milling ensures that the bottom threads are as clean and functional as the top ones. At Jucheng Precision, we mandate thread milling for all our high-value aerospace and medical projects, prioritizing technical security and dimensional control over raw speed.

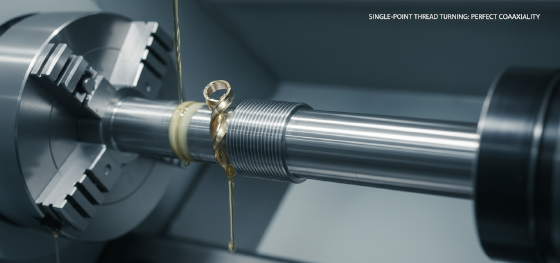

On a CNC lathe, the most accurate method for creating external threads is single-point turning. This process involves a single carbide insert following a programmed helical path while the workpiece rotates at a synchronized speed. It is essentially the "old-school" method of the engine lathe, but supercharged with the precision of modern servo-motors. Single-point turning allows JUCHENG to produce large-diameter threads, tapered pipe threads (like NPT), and complex multi-start threads that are vital for high-speed linear motion.
The primary advantage of this method is concentricity. Because the threads are cut in the same setup as the primary diameters of the shaft, the pitch circle is perfectly centered with the axis of rotation. This eliminates vibration in high-speed assemblies. Jucheng Precision utilizes specialized "threading logic" in our CNC lathes to perform multiple light passes, gently building the thread profile to its final dimension. This "incremental" cutting reduces the stress on the material, preventing the work-hardening that can occur in tough alloys like 4140 steel. By controlling the depth of each pass down to the micron, we deliver threads that are not only dimensionally accurate but are free of the microscopic burrs and tears that ruin a smooth assembly. If your shaft requires a custom pitch or a high-tolerance fit, our single-point turning centers are the definitive tool for the task.
Metrology and Gauging: The Science of Mechanical Fit
A thread that looks correct under a magnifying glass may still fail in the field. Thread precision is defined by more than just the major diameter; it is governed by the "Pitch Diameter"—the theoretical cylinder where the width of the thread and the width of the groove are equal. This is the critical zone where the mechanical load is transferred. In a professional cnc machining process, verifying this pitch diameter is as important as the cutting itself. You cannot manage a thread's performance without objective metrology data.

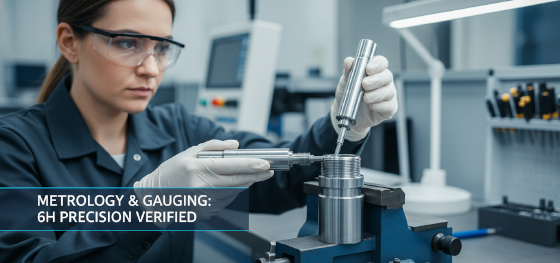

Jucheng Precision utilizes a "Three-Tier" inspection protocol for all threaded components. First, we use standardized Go and No-Go gauges to verify basic functionality and class-fit (e.g., 6H or 2B). Second, we utilize "Three-Wire" measurement techniques or digital thread micrometers to verify the actual pitch diameter with sub-micron accuracy. Finally, for high-integrity aerospace parts, we utilize optical comparators and CMM probes to inspect the thread's "root-radius" and "crest-flatness." These features are the primary points of stress concentration; if the root is too sharp, the part will fail due to fatigue. By providing our clients with detailed thread inspection reports, we eliminate the uncertainty of assembly, ensuring that the 10,000th bolt fits exactly like the first. We don't just ship parts; we ship verified mechanical security.
JUCHENG Reliability: Risk Management in Precision Threading
Choosing a partner for cnc threading is a decision of technical trust. Many shops will take the easiest path—tapping a hole as fast as possible to win a quote. Jucheng Precision takes a risk-based approach. During our DFM review, we evaluate the material's "Tappability" and the depth-to-diameter ratio of your threads. If we see a design that risks tool failure—such as a deep M3 hole in Grade 5 Titanium—we don't just "hit go" and hope for the best. We suggest a thread-milling alternative or a slight modification to the hole depth to ensure a safe and repeatable manufacturing cycle.
Our facility is equipped with dedicated high-torque CNC machines optimized for the low-speed, high-pressure demands of tough alloys. We also manage the "Post-Process Growth" associated with surface treatments. If your part requires powder coating or electroless nickel plating, we machine the threads to a specific "over-size" or "under-size" allowance, ensuring they "grow" into the correct spec after the finish is applied. This foresight is why JUCHENG is the preferred partner for global supply chains in the medical and defense sectors. We understand that a thread is the primary link in your product's lifecycle. We provide the technical rigor and manufacturing consistency to ensure that link never breaks. Contact our engineering team today for a technical DFM review and see how our specialized threading protocols can clarify and secure your next assembly challenge.
