Swiss CNC Machining: Mastering the Art of Micro-Precision

Precision manufacturing is often a struggle against the laws of leverage. When a component becomes exceptionally long and thin—like a surgical needle or a miniature drive shaft—the physical act of cutting it creates a force that wants to bend the material away from the tool. On a standard lathe, this deflection is a terminal error. This is where swiss cnc machining defines the boundary of the possible. It is the specialist’s solution for parts where the diameter is measured in millimeters but the requirements are measured in microns.

At Jucheng Precision, we integrate swiss cnc machining into our cnc machining process as the ultimate high-volume precision tool. Operating a fleet of advanced Citizen and Star machines, we recognize that the "Swiss" name is more than a geographic origin; it is a mechanical philosophy of absolute rigidity. By supporting the workpiece within millimeters of the cutting edge, we eliminate the vibration and deflection that ruin accuracy in conventional turning. This guide explores the unique sliding headstock architecture, the critical role of the guide bushing, and why JUCHENG utilizes this technology to dominate the micro-manufacturing landscape for the medical and electronics sectors.

Efficiency in micro-parts is found in the elimination of secondary operations. A Swiss machine is essentially a self-contained factory that can turn, mill, drill, and thread a part in a single continuous cycle. Let us dive into the technical pillars of sliding-headstock technology and see how it redefines the integrity of your most delicate CNC designs.

content:

Sliding Headstock: The Physics of the Moving Workpiece

Deflection Sovereignty: Why the Guide Bushing Changes Everything

Simultaneous Multi-Tasking: Overlapping Cycles for Speed

Ideal Sectors: Medical Probes and Electronic Pins

JUCHENG’s Micro-Manufacturing Edge: Precision at Scale

Sliding Headstock: The Physics of the Moving Workpiece

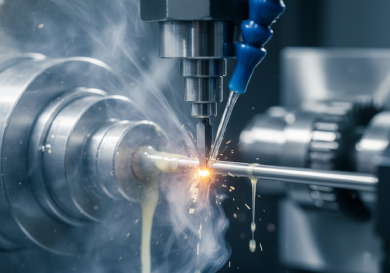

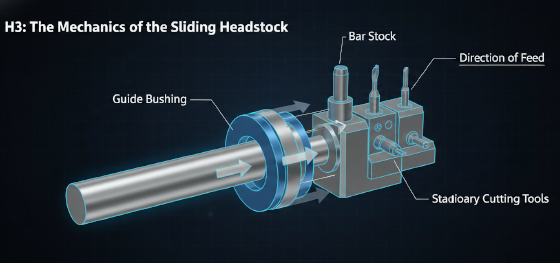

To understand the value of swiss cnc machining, one must first invert the standard logic of turning. On a conventional lathe, the workpiece is held firmly in a chuck and the cutting tools move along the part to create the geometry. The further the tool moves from the chuck, the less support the material has. In Swiss-style machining, the tools remain stationary, and the workpiece itself moves. This is the "Sliding Headstock" principle. The raw bar stock is gripped by a collet in the headstock, which slides back and forth along the Z-axis, feeding the material through a stationary guide bushing.

This mechanical reversal is fundamental to the cnc machining process for micro-parts. Because the material is being fed past the tools, the actual cutting always takes place immediately adjacent to the point of support—the guide bushing. This ensures that the cutting forces are absorbed by the machine's rigid structure rather than by the material itself. At Jucheng Precision, we leverage this movement to produce parts with extremely high length-to-diameter ratios. While a standard lathe might struggle with a part ten times longer than its diameter, a Swiss lathe can comfortably handle ratios of 30:1 or higher. This architecture allows us to maintain straightness and diameter consistency over long, needle-like components that would otherwise be impossible to manufacture with high yields.

Deflection Sovereignty: Why the Guide Bushing Changes Everything

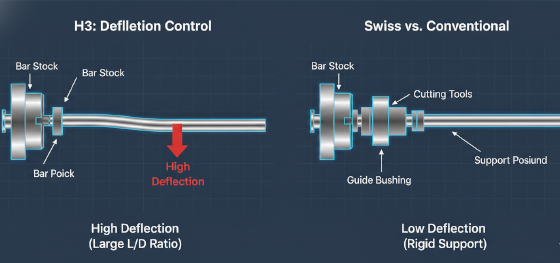

Deflection is the silent killer of accuracy in small-diameter turning. In the swiss cnc machining vs. conventional turning battle, the guide bushing is the decisive weapon. In a standard setup, the pressure of the cutting tool causes a thin bar to flex away from the blade, resulting in a tapered part or poor surface finish. The guide bushing acts as a precision sleeve that holds the material with near-zero clearance. Because the tool is positioned only 1mm to 3mm away from the bushing face, the material has no room to flex. This is what we call "Deflection Sovereignty."

At Jucheng Precision, we meticulously calibrate our guide bushings for every material type, from tough stainless steel to delicate plastics. We understand that the fit between the bar and the bushing must be perfect; too tight, and the material seizes; too loose, and vibration returns. This rigid support system allows us to utilize aggressive feed rates and high spindle speeds that would snap parts on a conventional machine. It also enables us to achieve surface finishes of Ra 0.4 µm directly off the tool, as the lack of vibration prevents the "micro-chatter" that usually dulls the luster of turned parts. For our aerospace and medical clients, the guide bushing represents the difference between a functional component and an expensive scrap heap. It is the mechanical foundation of all micro-precision work.

Simultaneous Multi-Tasking: Overlapping Cycles for Speed

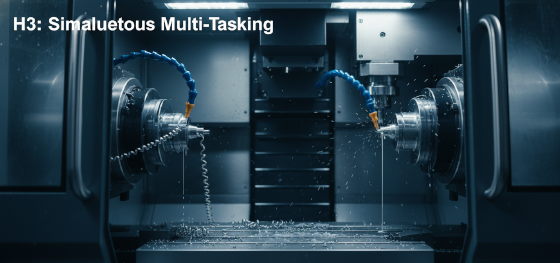

The efficiency of swiss cnc machining is not just about its accuracy; it is about its ability to multi-task. Modern Swiss machines are equipped with multiple tool posts and a secondary "sub-spindle." This allows for "Simultaneous Machining," where the main spindle is turning the front of one part while the sub-spindle is performing back-working operations (like drilling or slotting) on the part that was just cut off. This overlapping of cycles can reduce the total manufacturing time by 40% to 60% compared to a single-spindle process.

JUCHENG’s Swiss fleet is further enhanced by "Live Tooling"—miniature milling heads mounted on the tool gang. This allows us to perform complex milling, cross-drilling, and engraving without ever removing the part from the machine. In a single cnc machining process, we can produce a part that would traditionally require a lathe and two different milling setups. This "Done-in-One" capability is vital for high-volume orders of 10,000 to 100,000 units. By eliminating the manual handling of parts between machines, we remove the primary source of human error and ensure that every part in a massive batch is a perfect clone of the master. For our clients in the telecommunications and electronics sectors, this speed-to-market is the ultimate competitive edge.

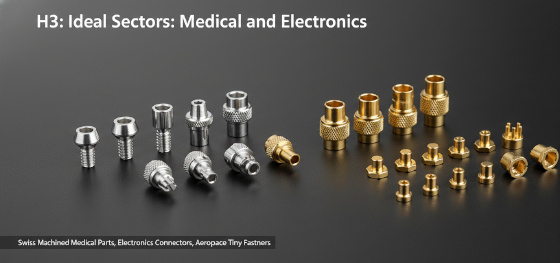

Ideal Sectors: Medical Probes and Electronic Pins

Where does Swiss technology truly earn its keep? The demand for swiss cnc machining is driven by the global miniaturization trend. In the medical sector, surgical instruments are becoming smaller to facilitate minimally invasive procedures. We produce micro-biopsy needles, bone screws with diameters under 1.5mm, and intricate dental implants that require high-precision internal threads. These parts must be perfectly smooth and burr-free to prevent tissue irritation—a standard that only a Swiss machine with high-pressure oil cooling can consistently meet.

In the electronics and 5G sectors, the requirement is for high-density interconnects. We machine pogo-pins, high-frequency connectors, and miniature sensor housings from materials like brass, copper, and specialized alloys. These parts often feature wall thicknesses of less than 0.2mm. On a conventional lathe, the heat of the cut would cause these thin walls to melt or collapse. The high-speed oil-mist cooling and rigid support of our Swiss centers allow JUCHENG to push the limits of thin-wall manufacturing, delivering components that are structurally sound and electrically superior. If your part fits inside the palm of your hand and features a complex internal geometry, it is the perfect candidate for our Swiss production line.

JUCHENG’s Micro-Manufacturing Edge: Precision at Scale

Choosing a partner for swiss cnc machining is a decision of technical liability. Most shops can make one good small part; few can make one hundred thousand good parts with zero defects. Jucheng Precision eliminates this risk through a rigorous quality assurance framework. Our Swiss department operates in a climate-controlled zone to eliminate the thermal expansion of micro-tools. We utilize automatic bar feeders that allow for "lights-out" 24/7 production, ensuring your deadlines are met regardless of the order volume.

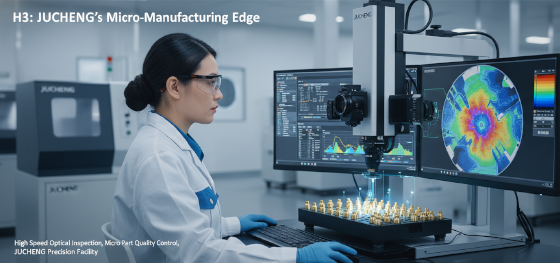

Our inspection protocol is specifically designed for the micro-world. We utilize high-resolution video measurement systems (VMS) and laser micrometers to verify dimensions that are too small for physical probes. We provide full material traceability and documented process validation for our medical and aerospace clients. When you partner with JUCHENG, you aren't just getting a machinist; you are getting a team that understands the micro-physics of high-speed turning. We bridge the gap between microscopic design and industrial-scale reality. Whether you are building a revolutionary surgical robot or the next generation of high-speed fiber optics, our Swiss protocols clarify and elevate your most challenging designs. Contact Jucheng Precision today for a technical DFM review and see how our micro-manufacturing expertise can stabilize and scale your next project.
