Integrating thermal efficiency and high electrical performance into custom hardware chassis represents a major milestone in renewable energy and battery packaging. Opting for copper sheet metal fabrication provides the superior copper purity and low surface resistance required to build safe, high-current electrical connections. This unique red metal exhibits outstanding electrical conductivity, excellent thermal transfer limits, and superior metallurgical ductility, making it the undisputed standard for power distribution blocks, EV battery connections, and complex heat-transfer fins.
Utilizing low-conductivity alloys for battery connectors can lead to severe thermal bottlenecks, causing localized heat buildup that can compromise your electronics. While standard steel provides structural support, it lacks the raw electron flow capacity needed for high-voltage systems. Shifting your current-carrying plates to high-purity copper ensures maximum power efficiency with minimal thermal resistance.
Balancing the material's soft, gummy physical state against standard blanking tooling is what separates clean, low-resistance electrical joints from torn, out-of-tolerance copper components. Let's examine how copper properties optimize high-power systems, analyze the cutting-edge fiber lasers required to slice highly reflective metal sheets, and review how to protect finished parts from atmospheric oxidation.
content:
Key Applications: Electrical Busbars and Heat Sinks
The Challenge of Laser Cutting Reflective Copper
Precision Punching and Bending for Copper Parts
Copper and Brass Fabrication at JUCHENG
FAQ: Critical Questions About Copper Sheet Metal Fabrication
Key Applications: Electrical Busbars and Heat Sinks
What makes copper sheet metal the standard choice for battery power connection?
Copper possesses an electrical conductivity rating of up to 101% IACS, allowing heavy-duty electrical busbars to transmit massive currents with minimal energy loss.

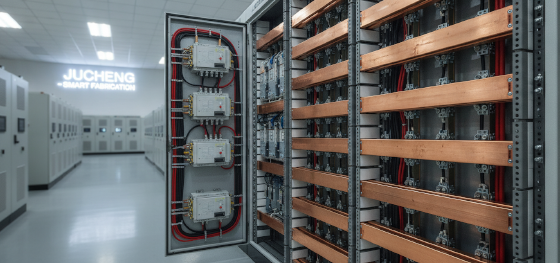

Modern electric vehicle battery packs, high-voltage switchgears, and power grids rely heavily on heavy-duty copper busbars to route currents safely between cells. With an electrical conductivity rating reaching up to 101% IACS (International Annealed Copper Standard), C11000 and C10100 oxygen-free copper are the preferred alloy choices, providing low surface resistance to maximize system power transmission.
For advanced cooling systems, copper sheet metal is fabricated into intricate, high-surface-area heat sinks. The material's superior thermal conductivity (roughly double that of aluminum) allows heat to dissipate rapidly away from microprocessors, protecting sensitive electronic components from thermal degradation and ensuring stable performance.
The Challenge of Laser Cutting Reflective Copper
Why is laser cutting on high-purity copper so difficult for standard CNC shops?
Pure copper possesses high optical reflectivity, meaning it reflects standard CO2 laser beams back into the cutting head, causing severe optical damage.
Standard CO2 lasers operate at a long wavelength that copper reflects like a mirror. When a CO2 laser beam hits a polished copper sheet, the beam bounces back, initiating a phenomenon known as back-reflection that can instantly burn out expensive focus lenses and fiber cables.

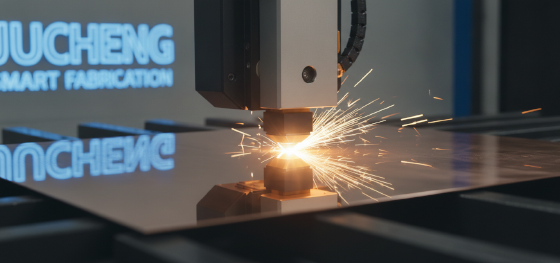

To overcome these optical challenges, high-precision facilities utilize advanced fiber laser cutting systems. Fiber lasers operate at a much shorter wavelength that copper absorbs far more readily. Coupled with high-pressure nitrogen assist gas, our fiber lasers slice through thick copper plates cleanly, delivering bright, oxide-free edges with zero back-reflection risk to the cutting equipment.
Precision Punching and Bending for Copper Parts
What mechanical precautions are required when punching and bending soft copper sheets?
Copper is highly ductile and prone to surface scratching, requiring customized punch-die clearances and specialized protective films during press operations.

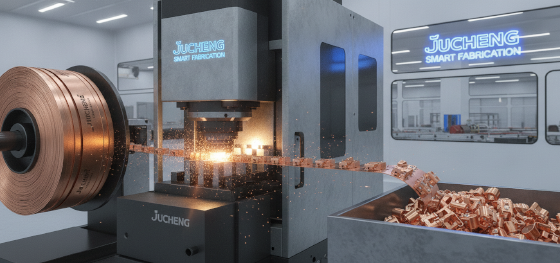

While pure copper is highly ductile and easy to cold-work, executing copper sheet metal fabrication under continuous high-speed press runs requires specialized mechanical expertise. Because the metal is soft and gummy, it can stick to standard tool steel punches, leading to slug pulling and dimensional variations on blanked parts. We resolve this by running customized punch clearances and highly polished dies.
Forming copper also requires careful angular calibration. Due to its high ductility, copper exhibits very low springback compared to stainless steel. However, our operators must utilize protective polyurethane die covers during press brake bending to prevent steel dies from leaving deep, ugly tool marks on the soft copper surface, ensuring a flawless cosmetic profile.
Copper and Brass Fabrication at JUCHENG
How does JUCHENG manage high-precision copper fabrication for advanced power systems?
We operate high-power fiber laser cutters, high-tonnage press brakes, and automated plating lines managed by certified operators, utilizing custom tooling to ensure tight tolerances.
Selecting this highly conductive sheet metal material ensures that your power distribution grids and electronic brackets achieve optimal power transmission with minimal thermal resistance. JUCHENG integrates advanced fiber cutting, punching, and forming systems into our full-service production lines. This allows us to transition your 3D models into fully finished, durable copper busbars with extreme dimensional accuracy.
We process a wide range of raw gauges in both C11000 and C10100 grades. Our technical department provides a 24-hour free DFM analysis to check your CAD models for hole clearances and bend radii before production. Supported by our no MOQ policy and rapid delivery guarantee, we manage your project from initial flat pattern cutting to final, fully integrated surface plating and packaging.
FAQ: Critical Questions About Copper Sheet Metal Fabrication
Why must copper busbars be plated with tin or nickel before installation?
Raw copper instantly oxidizes when exposed to oxygen and humidity, forming a dark copper oxide layer that dramatically increases electrical resistance. Electroplating the copper with a protective layer of tin plating or nickel prevents oxidation, ensuring that the electrical contacts maintain high conductivity and low resistance over years of service.
Can C11000 copper be hardened through heat treatment?
No, C11000 is pure electrolytic tough pitch copper and cannot be hardened by thermal heat treatment. It can only be hardened mechanically through cold-working processes such as rolling, stamping, or bending. If your design requires high mechanical hardness, we recommend utilizing copper-beryllium alloys which respond beautifully to aging heat treatments.
What causes tearing on the outer bend radius of thick copper bars?
Tearing occurs when the inner bending radius is set too sharp for the material thickness, stretching the outer fibers past their tensile limits. Although copper is highly ductile, thick busbars require a generous minimum bend radius (typically equal to or greater than the plate thickness) to prevent localized splitting during press brake operations.
How does JUCHENG prevent tool marks during copper sheet metal fabrication?
We protect the soft, delicate surfaces of raw copper sheets by executing CNC bending with specialized urethane die inserts or applying high-density protective vinyl masking films. This prevents direct metal-on-metal friction between the steel tooling and the copper, delivering clean, mark-free electrical contacts ready for immediate electroplating.
