Can Design for Metal 3D Printing Slash CNC Milling Costs?

Views: 2     Author: Allen Xiao     Publish Time: 2026-02-05      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

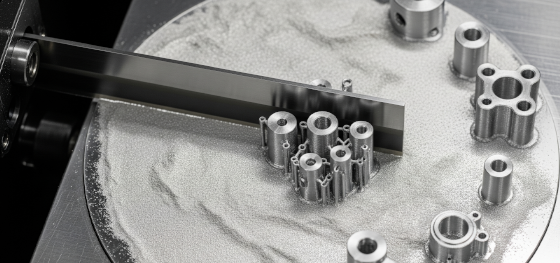

Standing in the additive manufacturing lab, the sudden, horrifying metallic crunch of a recoater blade striking a warped titanium component is a sound that instantly vaporizes ten thousand dollars. Last month, a junior aerospace designer handed me a CAD file for a massive engine bracket, assuming metallic powder bed fusion behaved exactly like desktop plastic printing. Because they ignored the brutal thermodynamics of localized laser welding, the residual stresses caused the solid titanium to violently curl upward during the build, crashing the machine. Executing successful Design for Metal 3D Printing mandates a complete philosophical unlearning of traditional subtractive engineering. Treating a DMLS machine like a magic replicator guarantees catastrophic equipment failure and astronomical financial scrap.

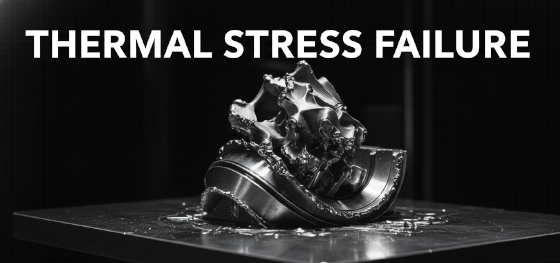

Senior additive engineer inspecting a scrapped stainless steel 3D printed part destroyed by thermal warping and a recoater blade crash

Evaluating Direct Metal Laser Sintering (DMLS) against multi-axis CNC machining represents the ultimate economic and structural crossroads for custom industrial hardware. Subtractive milling relies on carving flawless surfaces from rigid, stress-relieved billets. Additive metal technologies physically weld microscopic metallic dust layer by layer, creating impossible internal geometries but leaving behind terrifying residual thermal stress and sandpaper-like surface finishes.

Mastering this specific hybrid manufacturing boundary actively prevents supply chain paralysis. Procurement managers must brutally evaluate topology optimization benefits against the hidden, agonizing costs of Wire EDM support removal and secondary CNC boring. Survival in [2026] precision hardware scaling demands matching your geometric complexity directly to the specific thermal limitations of the powder bed.

content:

Metal 3D Printing vs CNC Machining: How Do They Compare?
   When Should You Specify Metal Additive Manufacturing?
   When MUST You Avoid Metal 3D Printing Entirely?
   Why Do Support Structures Dictate Thermal Survival?
   What Are the True NRE Cost Breakdowns for DMLS?
   How Does Jucheng Optimize Hybrid Metal Fabrication in Shenzhen?
   What Are the Most Critical Metal AM FAQs?

Metal 3D Printing vs CNC Machining: How Do They Compare?

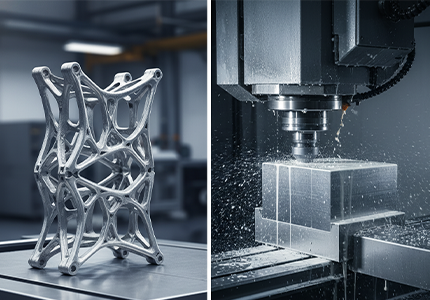

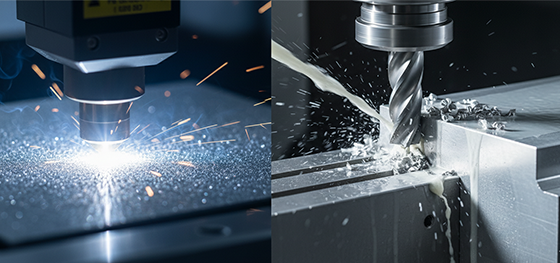

Mechanical principle comparison of additive laser powder bed fusion versus subtractive CNC physical metal shearing

Does metal 3D printing achieve the exact same dimensional tolerances as a milling center? Absolutely not. Additive metal processes inherently generate severe thermal shrinkage and extremely rough surface finishes, making them completely incapable of holding tight ISO H7 bearing press-fits without secondary subtractive machining.

CNC machining dominates pure geometric precision. A solid carbide end mill effortlessly shaves aluminum down to a +/- 0.005mm tolerance, leaving a flawless, mirror-like surface. However, a spinning tool requires physical line-of-sight access. It cannot magically reach inside a solid metal block to carve out a spiraling, conformal cooling channel. Subtractive manufacturing violently punishes geometric complexity, charging exponential machine hours for every deep pocket and bizarre angle.

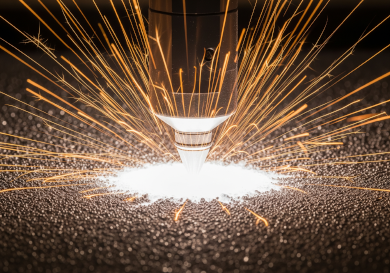

Metal additive manufacturing entirely flips this constraint. DMLS lasers melt microscopic titanium or inconel powder one 40-micron layer at a time. Because it builds from nothing, intricate internal honeycombs and organic bionic structures come absolutely free of charge. The complexity does not inflate the print time. However, the resulting component emerges from the powder bed completely encased in rigid metal supports and possessing a gritty, abrasive surface texture requiring heavy post-processing labor.

Manufacturing Metric Metal 3D Printing (DMLS) 5-Axis CNC Machining Engineering Impact
Geometric Complexity Infinite (Internal voids easily created) Restricted (Line-of-sight required) DMLS enables radical lightweighting designs
As-Printed Surface Finish Rough (Ra 5.0 to 15.0 µm) Mirror-like (Ra 0.4 to 1.6 µm) DMLS demands secondary CNC post-processing
Material Waste Ratio Minimal (Un-melted powder reused) Massive (Up to 90% carved away) DMLS slashes raw costs on exotic titanium
Internal Thermal Stress Extreme (Requires annealing furnace) Low (Utilizes stress-relieved billets) DMLS parts will warp if printed incorrectly

When Should You Specify Metal Additive Manufacturing?

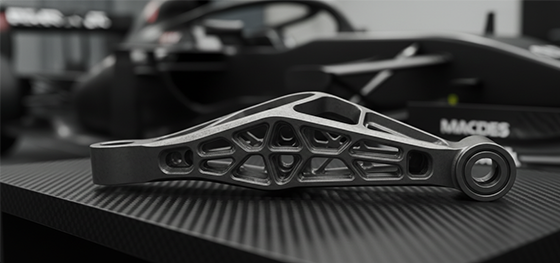

F1 racing suspension rocker featuring complex internal lattice structures manufactured exclusively via metal 3D printing

Is topology optimization the only reason to print metal? While creating bizarre, organic, bone-like structures slashes aerospace mass limits, the true industrial superpower of DMLS lies in massive part consolidation.

Engineers designing high-pressure fuel injectors often struggle with assemblies containing twenty distinct CNC-machined components, countless O-rings, and dozens of threaded fasteners. Every single connection represents a catastrophic leak point. Redesigning that entire bulky assembly into a single, unified 3D printed geometry eliminates all assembly labor, eradicates leak vectors, and guarantees a vastly superior reliability rating under intense vibration.

Furthermore, when your project demands hyper-exotic materials like Inconel 718 for rocket nozzles, machining it conventionally incinerates carbide cutting tools within minutes. The "buy-to-fly" ratio of purchasing a massive Inconel block just to carve away 80% of its volume destroys procurement budgets. DMLS prints the nozzle perfectly using only the exact weight of powder required, making the impossible financially viable.

When MUST You Avoid Metal 3D Printing Entirely?

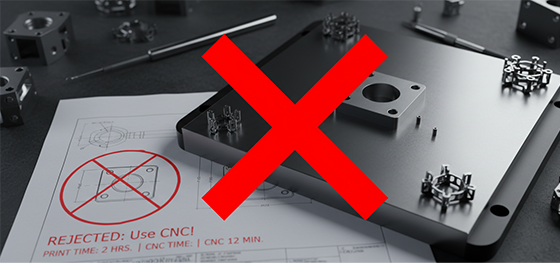

Engineering blueprint with a red cross rejecting the use of expensive metal 3D printing for a simple rectangular aluminum flange

Should you 3D print simple aluminum mounting brackets? Absolutely never. Subjecting basic orthogonal geometries to the agonizingly slow and expensive laser powder bed process represents the ultimate failure in manufacturing economics.

If your CAD file consists of flat plates, standard chamfers, and simple tapped holes, a CNC mill will blast through that aluminum block in fifteen minutes for thirty dollars. Handing that exact same file to a DMLS bureau will result in an eighteen-hour build cycle and a two-thousand-dollar invoice. Additive manufacturing violently punishes geometric simplicity.

You must immediately pivot back to subtractive machining when demanding massive volumetric scaling. While DMLS excels at producing five complex titanium spinal implants, attempting to print 10,000 standard automotive control arms will mathematically bankrupt the operation. Print speeds simply cannot compete with heavy forging or high-velocity multi-axis milling for standardized shapes.

Why Do Support Structures Dictate Thermal Survival?

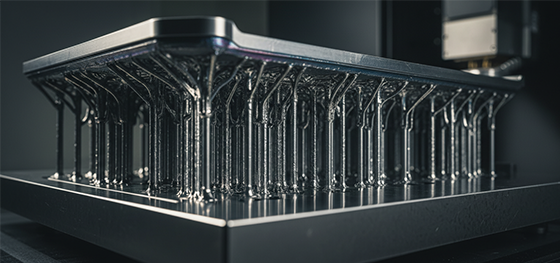

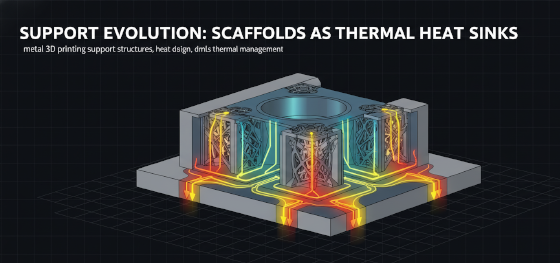

Thick metallic support structures anchoring a DMLS 3D printed part to the build plate to prevent severe thermal shrinkage and warping

Do metal supports exist merely to prevent overhangs from drooping? No. Unlike plastic printing, metal support structures act as massive physical anchors and thermal heat sinks designed to battle terrifying kinetic warping forces.

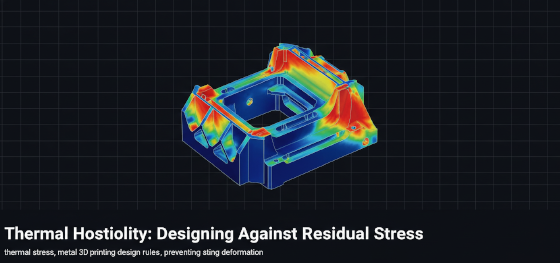

Metal AM is essentially a micro-welding operation. The laser violently heats the powder to thousands of degrees, which instantly cools and solidifies. This rapid thermal contraction generates immense internal residual stress. If a thick, overhanging section is left unsupported, the shrinking metal will curl violently upward with enough force to physically rip the part off the solid steel build plate.

Designers must proactively orient parts at 45-degree angles to make them self-supporting, avoiding large flat horizontal ceilings entirely. Generating heavy, blocky supports guarantees thermal stability but requires agonizing hours of manual grinding and cnc machining to remove them later. True DFM mastery lies in designing geometries that support themselves internally, completely bypassing the need for sacrificial anchors.

What Are the True NRE Cost Breakdowns for DMLS?

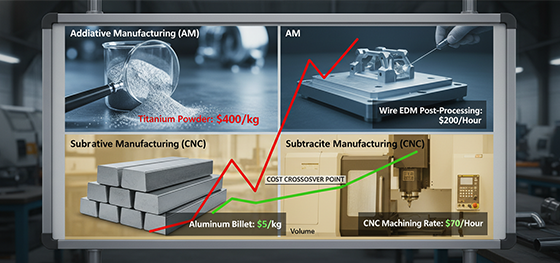

Cost analysis board comparing astronomical metal powder and post-processing expenses against traditional CNC billet machining

Does the raw metallic powder represent the highest cost in additive manufacturing? Surprisingly, no. While aerospace-grade spherical titanium powder costs hundreds of dollars per kilogram, the hidden post-processing labor brutally dominates the final invoice.

A metal print is not finished when the laser stops firing. The part is physically welded to a massive steel build plate. The entire plate must be transferred into a high-temperature vacuum annealing furnace for days to relieve the catastrophic internal stresses. Bypassing this step guarantees the part will instantly snap in half the moment you attempt to remove it.

After annealing, technicians must use expensive slow Wire EDM machines to slice the parts off the baseplate. Operators then spend agonizing hours manually grinding away the titanium support structures with pneumatic burrs. Finally, the rough part enters a CNC mill to achieve the tight bearing tolerances it originally failed to hit. When calculating your budget, the printer time is merely the down payment.

How Does Jucheng Optimize Hybrid Metal Fabrication in Shenzhen?

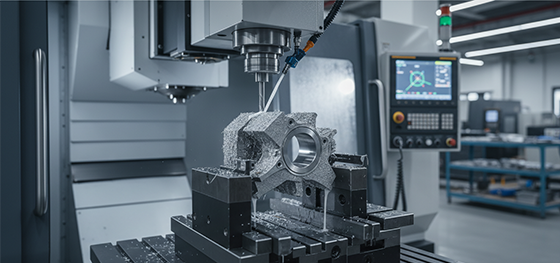

Hybrid manufacturing process showing a rough metal 3D printed part undergoing secondary precision CNC boring in Jucheng Shenzhen

Can a facility merge advanced powder bed fusion directly with high-precision subtractive finishing? Yes. Operating within the Shenzhen precision manufacturing hub, Jucheng executes flawless hybrid engineering to entirely eliminate disconnected supply chain failures.

Navigating [2026] global hardware procurement requires absolute transparency. Shipping a rough 3D printed Inconel manifold to a separate third-party machine shop for thread tapping invites catastrophic misalignment and scrap. We centralize aggressive DMLS printers, vacuum annealing furnaces, and 150+ high-end 5-axis CNC centers entirely under one heavily audited roof.

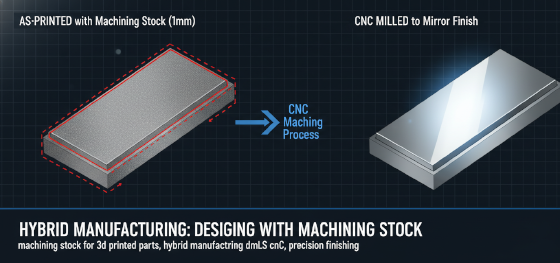

Our senior engineers intervene brutally during the CAD review phase. Backed by strict ISO9001:2015 and IATF16949 protocols, our Free DFM reviews identify areas requiring additional machining stock to guarantee your final H7 press-fits. We dictate your scalability without enforcing rigid MOQ penalties, transforming fragile concepts into aerospace-ready hardware.

What Are the Most Critical Metal AM FAQs?

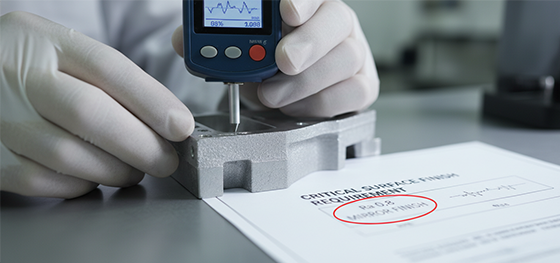

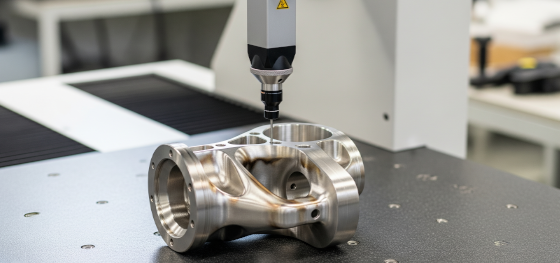

QC engineer using a profilometer to measure the rough sandpaper-like surface finish of an untreated metal 3D printed part

Resolving hardcore thermal and metallurgical variables prevents devastating assembly failures when transitioning from digital generative designs to physical reality.

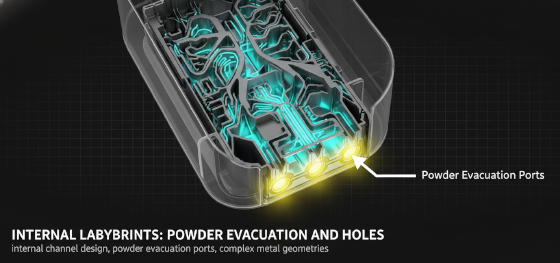

Can you print completely enclosed hollow spheres or cavities?
   No. The laser melts the outer shell, but the inside will remain permanently packed with loose, un-melted titanium powder. Because it is completely enclosed, you can never shake the powder out, resulting in a massively overweight component. Designers must always incorporate designated "powder escape holes" at the lowest gravitational points of the internal cavity.

Why does the surface of a metal 3D print look like sandpaper?
   The surface finish is dictated by the size of the microscopic metal powder particles (usually 20 to 45 microns) and the melt-pool dynamics. The laser inherently creates a slightly rippled, matte texture that typically measures around Ra 5.0 to 10.0 µm. Achieving a mirror polish mandates heavy secondary operations like media tumbling, CNC machining, or chemical etching.

Are internal tapped threads possible via DMLS?
   It is highly discouraged. Printing small, functional machine threads directly usually results in fused, gummy geometries that instantly cross-thread when a bolt is inserted. The absolute best practice is to design a slightly undersized blank pilot hole, print the part, and have a machinist perform precision rigid tapping or thread milling as a secondary CNC operation.
