Every cubic centimeter of material inside a functional part is a line item on your production invoice. In the high-stakes world of additive manufacturing, "solid" is often synonymous with "wasteful." Unlike traditional CNC machining, where the cost is driven by the time it takes to remove metal, 3D printing expenses are fundamentally proportional to the volume of material consumed. If you are designing a palm-sized housing with a solid 20mm internal cross-section, you are effectively paying to hide expensive engineered resin or nylon powder where no one will ever see or use it. This is why Hollowing 3D Models to Save Cost is the single most effective lever an engineer can pull to optimize project ROI. However, hollowing is not a simple task of clicking a button in CAD; it is a technical operation that introduces new physical risks, from structural instability to the dangerous "suction cup" effect.
At Jucheng Precision, we view 3D printing design as a discipline of volumetric efficiency. We understand that for a startup building a handheld medical device or an aerospace firm prototyping a satellite casing, a 40% reduction in material can mean the difference between a viable product and a canceled project. But a hollowed part without proper engineering is a liability. Trapped uncured resin can lead to delayed cracking, and unsintered powder can act as an unwanted heat sink that warps the entire assembly. This guide moves past the basic tutorials to explore the actual mechanics of shell optimization, the critical physics of escape holes, and why JUCHENG’s integrated DFM protocols ensure your hollowed designs are as structurally sound as they are financially lean.
Profitability in 3D production is won by mastering the internal void. You aren't just saving money; you are engineering a lighter, faster-to-print, and more stable component. Whether you are working with high-purity SLA resins or ruggedized MJF nylons, understanding the logic of hollowing is essential. Let us break down the technical pillars of volumetric reduction and see how technical foresight can lock the integrity of your most ambitious designs into a physical, cost-effective reality.
content:
Volumetric Economy: Reducing the Mass to Save the Budget
The primary economic driver for Hollowing 3D Models to Save Cost is the direct reduction in raw material consumption. In additive manufacturing, unlike CNC milling, you pay for what remains on the build plate, not what is removed. A 100mm cube printed solid in high-performance resin might cost $400 in material alone. That same cube, hollowed to a 3mm wall thickness, consumes only 20% of that material, slashing the cost by $320 instantly. This math applies to almost every high-end polymer, from Machining PEEK-adjacent resins to the carbon-filled nylons used in the 3D printing materials market.
Beyond the raw resin price, hollowing also impacts the "Time-to-Spindle" efficiency. In technologies like FDM or DMLS, fewer paths for the laser or nozzle to trace mean shorter build times. While SLA build times are largely determined by height, reducing the volume of material per layer reduces the exothermic heat generated during the cure, which leads to better dimensional stability. At JUCHENG, we leverage these volumetric savings to provide our clients with more competitive lead times. We treat every internal void as a financial victory, ensuring that your budget is allocated toward the surfaces that matter—the functional walls and assembly fits—rather than the dead weight of a solid core. By optimizing the mass of your component, you aren't just saving pennies; you are re-engineering the economics of your entire product launch.
Internal Traps: Why Escape Holes are Mandatory
Creating a hollow cavity is an engineering failure if you don't provide a way for the trapped material to leave. In the 3D printing design cycle, the concept of the "Trapped Volume" is the primary cause of post-processing scrap. In SLA or DLP printing, an enclosed hollow space will trap liquid, uncured resin inside. Once the part moves to the post-curing chamber, that trapped liquid will expand under UV heat, causing the part to explode or develop "weeping" cracks where the resin eventually leaks out. Similarly, in powder-bed systems like SLS or MJF, trapped nylon powder will stay inside the part, effectively acting as a solid core and negating any weight-saving benefits.

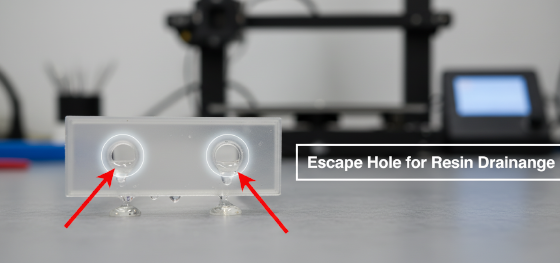

To achieve Hollowing 3D Models to Save Cost safely, you MUST design "Escape Holes" into your part. At JUCHENG, we recommend a minimum hole diameter of 3mm to 5mm to allow for efficient drainage and air-flow during the cleaning stage. We suggest placing at least two holes: one to allow the fluid or powder to exit, and another to allow air to enter (preventing a vacuum lock). Ideally, these holes should be placed in non-cosmetic areas or integrated into the functional design, such as a hidden mounting point. Without these vents, your "cost-saving" hollow part becomes a chemical bio-hazard or a heavy block of baked powder. We perform a mandatory "Trap Audit" during our DFM reviews to identify these sealed chambers, ensuring that your designs are optimized for a clean, dry, and stable final state.
Structural Shelling: Optimizing Walls for Hollow Designs

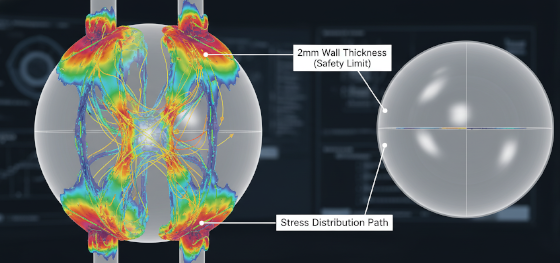

How thin can you go before the part collapses under its own weight? This is the structural high-wire act of functional shelling. If the walls are too thick, you haven't saved enough material to justify the effort. If they are too thin, the part will be fragile, prone to warping during the cooling phase, or fail the first time it is dropped. In 3D printing design, the target for wall thickness is determined by the material modulus. For a rigid resin or a standard nylon, JUCHENG recommends a minimum shell thickness of 2mm to 3mm for functional parts. Anything thinner risks a "paper-skin" effect, where the surface feels brittle and lacks the tactile quality of a production-grade part.
Successful shelling also requires an audit of "Geometric Consistency." You should avoid sharp transitions between a thick solid section and a thin hollow shell. These "Stress Bottlenecks" lead to warping as the material cools at different rates. We use generous fillets and internal tapers to distribute the mechanical load evenly across the part’s geometry. When Hollowing 3D Models to Save Cost, we treat the shell as a structural membrane. For large enclosures, we may suggest varying the wall thickness—keeping it thick near mounting points for strength and thinning it out in the center of flat panels for weight savings. This "Topological Intelligence" ensures that your hollow part doesn't behave like a flimsy mockup, but like a structurally engineered component capable of surviving the brutal vibration and impact of industrial service.
Technology Hazards: Suction Cups and Heat Cakes

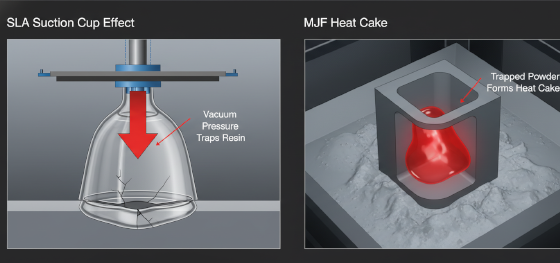

Each 3D printing technology has its own "Vengeance" for poorly hollowed models. In SLA and DLP (the "bottom-up" systems), hollowing out a part can create a "Suction Cup." As the build plate lifts the part out of the resin for the next layer, the air trapped inside the hollow cavity creates a vacuum. This suction force is massive enough to tear the part off the supports or cause "peel failure" where the layers shift. Hollowing 3D Models to Save Cost in resin requires an escape hole placed close to the build plate to break this vacuum instantly.
In powder-bed systems like MJF, the hazard is "Heat Cakes." A large hollow space filled with powder acts as a thermal insulator. During the intense infrared fusion cycle, the heat trapped inside that volume can cause the loose powder to "sinter" or bake into a solid, un-removable mass. This ruins the weight-saving goal and creates internal stress that can warp the exterior skin. At JUCHENG, we utilize advanced thermal simulation to identify these heat-traps. We don't just "shell" the part; we engineer the internal voids to allow for heat dissipation. If the cavity is too large for a simple void, we might suggest an open-lattice approach to maintain airflow. Understanding these technological hazards is what separates a world-class manufacturing facility from a basic service bureau. We don't just follow your CAD; we protect your part from the physics of its own creation.
Geometric Self-Support: Internal Lattice Strategy
What if your design requires a large internal volume but must also withstand heavy crushing loads? A hollow part will buckle, but a solid part is too expensive. This is where Hollowing 3D Models to Save Cost meets "Internal Latticing." Instead of a completely empty void, we fill the cavity with a skeletal, bio-inspired structure. This provides the best of both worlds: a 60% to 80% reduction in material mass with a 90% retention of structural rigidity. Lattices act like internal scaffolding that remains permanently inside the part.
JUCHENG’s engineers utilize advanced generative design software to optimize these internal lattices. For aerospace brackets, we might use an octa-tet or gyroid cell to maximize stiffness. For ergonomic grips, we use flexible TPU lattices to create a "Digital Foam." Crucially, these lattices must be designed for "Clean-out." If the lattice is too dense, the resin or powder will still be trapped. We ensure the lattice "unit cell" is large enough to allow for thorough ultrasonic cleaning or bead blasting. By engineering the void with these skeletal structures, we deliver parts that are incredibly light but functionally invincible, proving that 3D printing design is as much about what is *inside* the part as what is outside.
JUCHENG’s Quoting Logic: Comparing Solid vs. Hollowed ROI

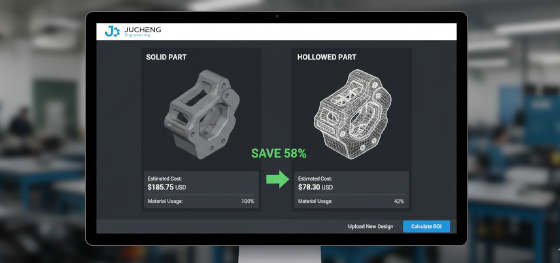

Transparency in pricing is the final hallmark of a professional manufacturing partner. At Jucheng Precision, we believe our clients should have the data to make their own economic decisions. Our automated quoting engine doesn't just provide a single number. We often present our clients with a "Volumetric Comparison." We show you the cost of building your part solid versus the cost of building it hollowed with optimized walls and escape holes. We have seen projects where a simple DFM adjustment to the hollow shell reduced the part price from $250 to $85.
This level of collaborative engineering is why JUCHENG is the preferred partner for global hardware innovators. We act as an extension of your R&D team, auditing your CAD files not just for manufacturability, but for financial efficiency. We understand that in the race to market, every dollar saved on a prototype is a dollar earned for production. Whether you are building a large-format automotive dashboard or a complex medical sensor, our Hollowing 3D Models to Save Cost protocols ensure your vision is realized without the burden of unnecessary mass. Contact Jucheng Precision today for a comprehensive technical review and see how our volumetric optimization can clarify and secure your next breakthrough.
