Electroless Nickel Plating: Mastering Uniformity for Precision CNC

Precision is often lost in the final ten microns of production. An engineer can design a component with sub-millimeter tolerances, and a machinist can mill it to perfection, but standard electroplating can ruin that effort by depositing metal unevenly across complex geometries. This is where CNC machining surface treatment reaches its technical zenith. For parts that demand 100% thickness uniformity, even inside deep blind holes or across razor-sharp edges, the only logical solution is electroless nickel plating (ENP). Unlike traditional plating, which relies on electrical fields and line-of-sight, ENP is a chemical dance of self-limiting precision.

At Jucheng Precision, we consider ENP to be the "engineer's choice" for high-stakes assemblies. It transforms a standard aluminum or steel substrate into a high-hardness, corrosion-resistant powerhouse without altering the geometric truth of the machining. This autocatalytic process eliminates the "Faraday Cage" effect, ensuring that the interior of a 100mm deep bore receives the exact same protection as the exterior surface. This guide dives into the molecular mechanics of the nickel-phosphorus alloy, the transformative power of post-process heat treatment, and why JUCHENG utilizes this technology to bridge the gap between fragile prototypes and industrial-grade components.

Consistency in finishing is a matter of chemical discipline. It requires a facility that understands how to manage bath chemistry as precisely as tool offsets. Let us explore the technical pillars of electroless technology and how it secures the functional integrity of your most complex CNC designs.

content:

Autocatalytic Revolution: Plating Without Electricity

Geometric Sovereignty: Solving the Internal Bore Crisis

Engineering Hardness: The Heat Treatment Transformation

Chemical Sovereignty: Low vs. High Phosphorus Selection

JUCHENG’s Standard: Precision from Billet to Bath

Autocatalytic Revolution: Plating Without Electricity

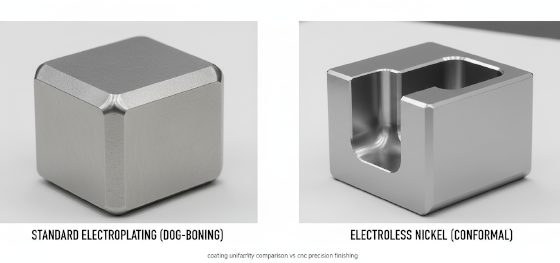

The fundamental brilliance of electroless nickel plating is its independence from external power sources. Traditional electroplating is a slave to the laws of electromagnetics; ions migrate through the bath toward the part along the path of least resistance. This inevitably leads to "current crowding," where sharp corners get too much metal and deep recesses get none. Electroless plating breaks this mold through a purely chemical, autocatalytic reaction. The part is submerged in a bath containing nickel salts and a reducing agent (usually sodium hypophosphite). Once the metal surface is activated, it acts as its own catalyst, drawing nickel out of the solution and onto the part.

Because this reaction happens wherever the liquid touches the metal, the deposition rate is perfectly uniform. At Jucheng Precision, we monitor the bath stability with robotic titration systems to ensure the chemical potential remains constant. This results in a nickel-phosphorus alloy coating that grows at a predictable rate—typically 15 to 25 microns per hour. The absence of electrical current means there is zero risk of "burning" delicate features or creating "dog-bone" effects on precision threads. For the engineer, this means you can specify a 20-micron coating and trust that it will be exactly 20 microns on every square millimeter of the component. This predictability is the foundation of high-reliability manufacturing in the semiconductor and fluid power sectors.

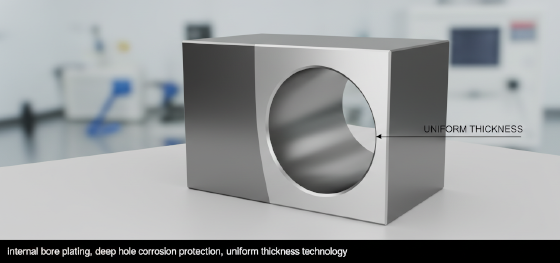

Geometric Sovereignty: Solving the Internal Bore Crisis

Internal geometries are the graveyard of standard finishes. If you attempt to electroplate the interior of a narrow tube or a complex manifold with blind holes, the physics of the "Faraday Cage" will prevent the ions from entering. You end up with a part that is beautifully protected on the outside but rusting from the inside out. Electroless nickel plating offers absolute "Geometric Sovereignty." If the plating solution can flow into a feature, that feature will be coated with 100% uniformity.

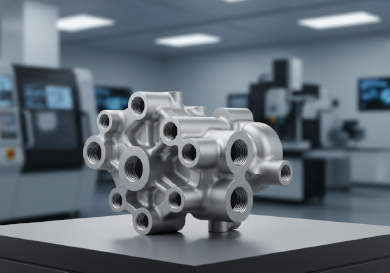

Jucheng Precision utilizes specialized fluid-agitation systems to ensure that fresh chemistry is constantly cycled through deep internal ports. This is critical for complex hydraulic valves and medical manifold blocks where internal corrosion would lead to system failure. The uniform thickness of ENP also simplifies assembly. Because there is no buildup on edges, bearings can be pressed into bores and screws can be threaded into tapped holes without the need for post-plating re-machining. We treat the internal surfaces with the same technical rigor as the visible exterior, ensuring that your most complex CNC designs are fully armored from the core to the skin.

Engineering Hardness: The Heat Treatment Transformation

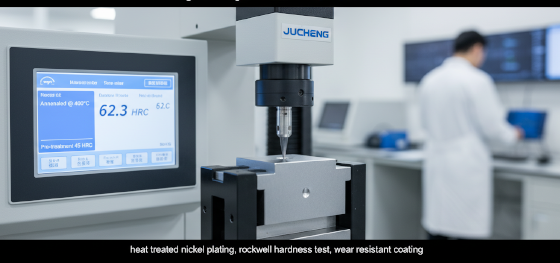

Raw electroless nickel is already a formidable material, typically offering an as-plated hardness of 45 to 50 HRC (Rockwell C). This is comparable to many tool steels and provides excellent resistance to sliding wear. However, the true superpower of the nickel-phosphorus alloy is revealed through post-process heat treatment. By placing the plated parts in a controlled-atmosphere oven at 400°C for one hour, we trigger a metallurgical transformation. The amorphous nickel matrix begins to precipitate nickel-phosphide ($Ni_3P$) crystals.

This "precipitation hardening" can drive the hardness levels up to 68 or 70 HRC—surpassing even hard chrome plating and rivaling industrial ceramics. At Jucheng Precision, we use this technique to deliver "ceramic-like" durability on lightweight aluminum substrates. We can machine an aluminum mold cavity to a perfect mirror finish, apply an electroless nickel layer, and then heat-treat it to provide the wear resistance needed for thousands of molding cycles. This ability to tune the mechanical properties of the surface allows engineers to design for both weight and durability. We manage the heating and cooling cycles with extreme precision to prevent dimensional distortion, locking in the hardness while preserving the micron-level accuracy of our CNC machining surface treatment.

Chemical Sovereignty: Low vs. High Phosphorus Selection

Not all electroless nickel plating is the same. The performance is governed by the percentage of phosphorus in the alloy. This is a critical engineering decision that JUCHENG helps our clients navigate. Low-phosphorus (2-5% P) baths deliver the highest as-plated hardness and superior solderability, making them ideal for high-precision electronic connectors. However, they offer limited corrosion resistance in acidic environments.

For the ultimate in chemical immunity, we recommend High-Phosphorus (10-14% P) nickel. This alloy is non-magnetic and possesses an amorphous, glass-like structure that has no grain boundaries for corrosive agents to attack. In high-pressure salt spray tests, high-phosphorus ENP can survive for over 1,000 hours without a single pit. Medium-phosphorus (6-9% P) serves as the "balanced" choice, offering a middle ground of hardness, speed, and brightness. At Jucheng Precision, we analyze your part's final operating environment—whether it is an oil-field drill bit or a sterile surgical tool—to select the exact phosphorus concentration required for survival. This chemical sovereignty is what ensures that your components don't just look good on day one but remain functional after a decade in a corrosive environment.

JUCHENG’s Standard: Precision from Billet to Bath

The greatest risk in the finishing supply chain is the "hand-off" between vendors. If you buy machining from one shop and ENP from another, you create a gap in technical accountability. Jucheng Precision eliminates this risk by offering a true one-stop-shop solution. We don't just "dip" your parts; we engineer the plating process. We account for the ~25-micron growth of the nickel in our initial 5-axis tool paths, ensuring that the finished part meets your CAD specifications perfectly after the alloy is applied.

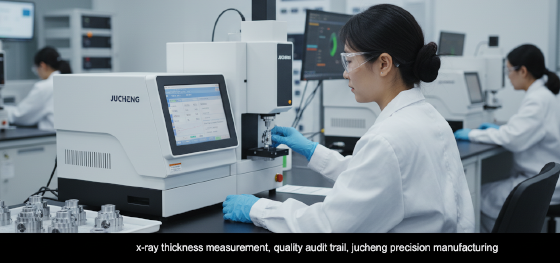

Our in-house finishing line is equipped with advanced X-Ray fluorescence (XRF) thickness testers and digital adhesion verification tools. We perform cross-hatch testing and thermal shock audits on every batch to ensure that the molecular bond is unbreakable. When you receive a component from JUCHENG, it is a fully verified engineering solution—machined to perfection and armored with high-hardness nickel. Whether you are developing complex aerospace manifolds or heavy-duty industrial molds, our electroless nickel expertise ensures your designs are protected and precise. Don't let uneven plating ruin your high-end machining. Contact Jucheng Precision today for a technical DFM review and see how our autocatalytic finishing protocols can clarify and secure your next supply chain challenge.
