Placing a mounting aperture too close to a folded flange is one of the most common causes of dimensional rejection in hardware manufacturing. Maintaining a correct hole to bend distance sheet metal prevents physical stretching across the cut boundaries, ensuring that your bolt holes remain perfectly circular after press brake operations while avoiding extreme hole deformation that ruins part alignment. For hardware engineers, understanding this localized strain behavior is critical to designing robust, ready-to-assemble electronic brackets and enclosures.

Suffer from mounting holes that stretch into useless, egg-shaped slots during the bending process? When the distance is set below safe limits, the intense stretching of the metal along the outer radius sweeps the hollow cavity into the tensile deformation zone, pulling its circular profile out of tolerance. Proactively configuring your flat CAD layouts with appropriate safety clearances is the best way to secure your assembly tolerances.
Let's examine the mechanical physics of hole distortion, establish a reliable mathematical formula to calculate minimum safe clearances, and explore practical tooling solutions to manage holes that must reside near a bend line.
content:
The Physics of Hole Distortion During Bending
The Standard Formula: How Far Should a Hole Be?
Solutions When You Must Have a Hole Near a Bend
Flawless Sheet Metal Punching and Bending at JUCHENG
FAQ: Critical Questions About Hole to Bend Distance Sheet Metal

What physical forces cause a circular hole to warp during press brake operations?
The intense tensile stress on the outer radius of a bend stretches the adjacent metal, pulling the edges of the nearby hole and deforming it into an elliptical shape.

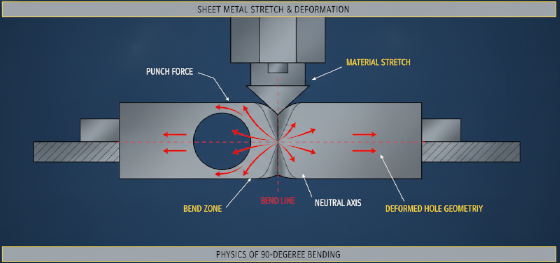

Understanding the physics of hole distortion is essential to optimizing your custom hardware assemblies. As the press punch descends, forcing the sheet into the V-die, the material on the outer edge experiences extreme tensile stress. This tensile zone extends significantly beyond the theoretical bend line.

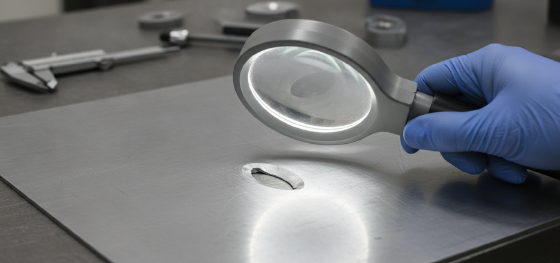

Understanding the physics of hole deformation is vital to preventing assembly failures on the shop floor. When a hole resides inside this high-tension zone, its material boundaries are pulled toward the bend line. This uneven stretching results in a severe egg-shaping effect, preventing standard mounting bolts or PEM standoffs from passing through during the final assembly stage, which ruins part functionality.

What is the standard engineering calculation for minimum hole-to-bend clearance?

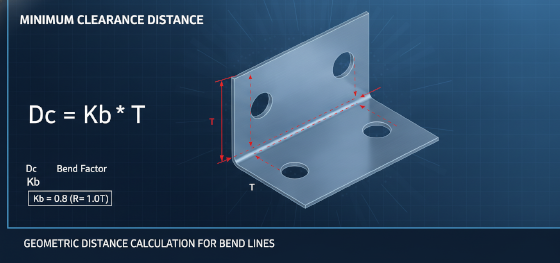

The safe minimum distance from the edge of the hole to the tangent of the bend is typically calculated as D = 2t + R, where "t" is the sheet thickness and "R" is the inner bend radius.
To maintain geometric tolerances, engineers must use a standardized calculation for hole to bend distance sheet metal that scales with material thickness. Using an arbitrary default CAD clearance often leads to high reject rates when folding harder alloys. For soft, ductile metals, the minimum safe clearance is slightly smaller, but hard tempers require generous spacing to prevent stress cracking.

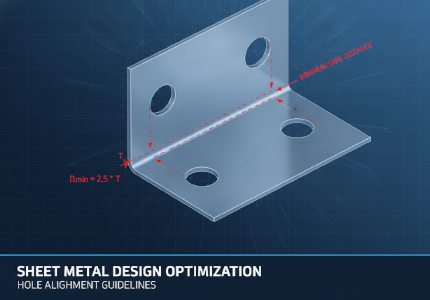

For standard commercial steel, aluminum, and stainless steel sheets, keeping the hole edge at a distance of twice the material thickness plus the inner bend radius is the golden rule. This spacing ensures that the hole boundary sits completely outside the active tensile deformation zone, allowing the metal to deform cleanly while keeping your hole diameters perfectly round.

How can designers place mounting holes close to a bend without causing distortion?
We resolve spacing conflicts by designing specialized bend relief cuts, or utilizing secondary post-bending CNC drilling to place holes after forming is complete.

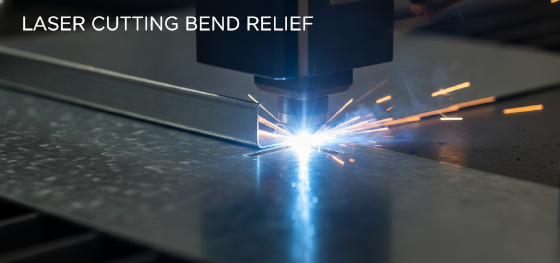

In compact electronic enclosures, keeping mounting holes far from bend lines is not always possible. When a hole must reside near a fold, we utilize specialized bend reliefcuts. Designing a small rectangular slot between the hole and the bend line isolates the bending stress, allowing the flange to fold cleanly without pulling on the adjacent hole boundaries.
Another highly effective alternative is secondary post-bending processing. Instead of cutting holes in the flat sheet during the laser profiling phase, we blank out the flat pattern with solid flanges. After the bender has folded the bracket, we mount the part on our CNC milling centers to drill the mounting holes precisely. This completely eliminates any risk of stretch-induced distortion.

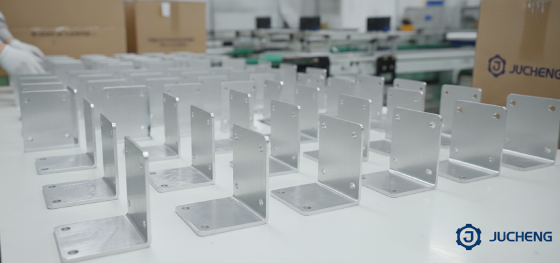

How does JUCHENG guarantee tight-tolerance holes on complex multi-bend brackets?
We operate high-power fiber laser cutters, CNC turret punch presses, and multi-axis benders managed by skilled technicians, checking clearances before cutting steel.
Integrating these physical clearances into your early sheet metal design cycle is the single most effective way to eliminate production defects. JUCHENG integrates these advanced geometric and material validations into our digital manufacturing network, ensuring that your CAD files translate into fully finished, durable assemblies with extreme dimensional precision.
We process a wide range of raw sheets, including lightweight aluminum, high-yield stainless steel, and easily formable carbon steel. Our technical department provides a 24-hour free DFM analysis to check your CAD models, checking tolerances and tool clearances before production. Supported by our no MOQ policy and rapid delivery guarantee, we manage your project from initial flat pattern cutting to final packaging and assembly.

Does the safe hole-to-bend distance vary across different metal alloys?
Yes, heavily. Softer, highly ductile alloys like soft aluminum 5052-H32 can handle slightly closer placements because they flow more easily under stress. In contrast, harder alloys like stainless steel 304 or cold-rolled carbon steel work-harden rapidly during forming, concentrating stress in a wider area, which demands larger safe clearance distances to prevent splitting.
What is a bend relief slot, and how does it prevent hole tearing?
A bend relief slot is a small rectangular or circular relief cut placed at the junction where a bent flange meets a flat sheet. This relief cut physically separates the active bending zone from the flat panel, preventing the tensile stretching forces from tearing the metal or distorting nearby holes on the flat panel.
How do you handle slots or non-circular holes near a fold?
Slots and rectangular cutouts are even more vulnerable to warping than circular holes because they feature long, straight edges that absorb stress unevenly. For slots oriented parallel to the bend line, we recommend maintaining a safe minimum clearance of at least three times the material thickness to prevent severe edge buckling.
How does JUCHENG prevent stretching when the hole to bend distance sheet metal limit is small?
Our technical department reviews your CAD designs during our complimentary DFM stage. If your enclosure design features holes that are too close to a fold, we suggest implementing custom-designed bend relief cuts, or routing the parts to our CNC machining stations to execute secondary drilling after forming is complete, delivering pristine, round mounting holes.
