The hard, durable oxide layer created by anodizing is essential for corrosion protection and wear resistance. However, whether due to a color error, a dimensional correction, or prep work for welding, the need to strip this protective layer—a process known as Industrial Anodizing Removal—is a common reality in B2B manufacturing. This process must be managed with chemical precision to prevent irreparable damage to the component's underlying dimensions and surface quality.
Relying on DIY methods or uncontrolled chemical baths risks catastrophic failure. This guide explores the professional chemical and mechanical strategies used by certified manufacturers to safely remove the anodized layer, precisely measure the material loss, and prepare the aluminum part for subsequent CNC Machining or re-finishing.
content:
The Chemical Process: Caustic Etching and Controlled Material Loss
Dimensional Risk: Measuring and Compensating for Material Loss
Surface Integrity: Restoring Quality After the Strip
The Rework Strategy: Preparing the Aluminum for CNC and Re-Finishing
The Chemical Process: Caustic Etching and Controlled Material Loss
Anodizing is typically removed using a strong alkaline solution, such as caustic soda (sodium hydroxide). This chemical process rapidly dissolves the aluminum oxide layer:
The Primary Reaction: The alkaline solution reacts with the aluminum oxide (Al₂O₃), dissolving it. Because aluminum itself is also highly reactive to caustic solutions, the process must be carefully timed to prevent excessive etching of the underlying base metal.
Process Control: Industrial Anodizing Removal is performed at controlled temperatures and concentrations, often with chemical inhibitors, to ensure the oxide layer is removed uniformly before the base metal is significantly attacked.
Visual Verification: The stripping process is visually monitored. Once the colored oxide layer is completely dissolved, the part must be immediately removed and neutralized to stop the chemical reaction.
Dimensional Risk: Measuring and Compensating for Material Loss
The biggest commercial risk in Anodizing Removal is the resulting dimensional change. Type III hard anodizing can add up to 2.5 mils (63 microns) to the part's surface. Stripping removes the added oxide layer, *plus* a small amount of the base metal:
Total Material Loss: The dimensional reduction of the part after stripping is equal to the original oxide layer thickness plus the material etched from the base metal. For parts with tight tolerances, this material loss must be precisely calculated.
Pre-Strip Measurement: A qualified manufacturer uses specialized non-destructive testing (NDT) to measure the exact thickness of the anodized layer before stripping, allowing them to predict the final stripped dimension accurately.
Re-Anodizing Compensation: If the part is being stripped for correction and will be re-anodized, the manufacturer must ensure the final stripped dimension leaves enough material for the new oxide layer to bring the part back into tolerance.
Surface Integrity: Restoring Quality After the Strip
The chemical action of the strip solution can leave the underlying aluminum with a dull, slightly roughened surface, especially if the chemical concentration or time was incorrect:
Cosmetic Surface: For parts that require a decorative finish (like a bright-dip or polished final look), the stripped surface must be re-polished or chemically brightened after stripping to restore its aesthetic quality.
Etching Control: Uncontrolled chemical stripping can over-etch the aluminum, leaving a visibly coarse surface or damaging fine features like threaded holes or tight bores. This is why chemical control is critical for preserving detail.
Warping Risk: The chemical removal process can release internal stresses locked into the material from the original CNC Machining process, potentially leading to slight warpage in thin-walled or complex geometries.
The Rework Strategy: Preparing the Aluminum for CNC and Re-Finishing
Stripping is often the intermediary step in a complex Aluminum Rework process. It allows the manufacturer to correct the original part without scrapping the high-value component:

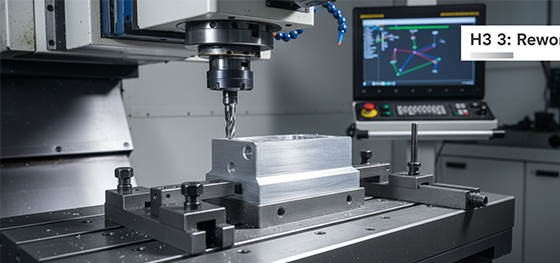

CNC Rework: After stripping, the part can be mounted on a precision CNC Machine (often 5-axis) to correct dimensional errors, modify a feature, or remove material. The stripped surface must be perfectly clean to prevent contamination of the cutting tool.
Re-Anodizing: Once the dimensional or cosmetic correction is complete, the part must be re-anodized. The final finish quality relies on the surface being perfectly clean and chemically balanced, emphasizing the need for expert chemical neutralization after the strip.
Integrated Service: Working with a single provider that performs the initial CNC Machining, the chemical stripping, the CNC Rework, and the final re-anodizing minimizes logistic delays and ensures the entire process is managed under one quality system.
Industrial Anodizing Removal is a precision chemical process, not a cleaning task. Jucheng Precision Technology offers certified expertise in managing the entire **Aluminum Rework** cycle, ensuring minimal material loss, complete surface integrity restoration, and guaranteed dimensional compliance for re-finishing.
Secure safe and accurate aluminum component rework. Contact us today to discuss the precision stripping, CNC machining, and re-anodizing strategy for your high-value parts.
