Precision Knurling Tools: Essential Technique for Machinists
Views: 5 Author: Allen Xiao Publish Time: 2025-08-19 Origin: Site
Knurling is a critical machining process that creates a textured pattern on a workpiece to improve grip or enhance aesthetics. Whether using a knurling tool on a lathe or performing manual operations, understanding the right techniques ensures flawless results. This article explores knurling methods, tool types, and practical applications, including specialized scenarios like valve guide modifications and custom eagle rock texturing.

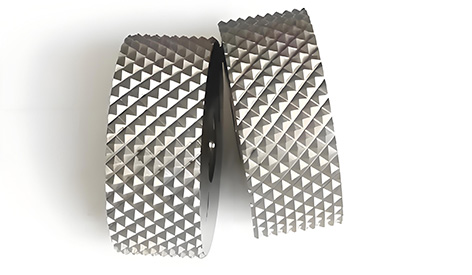

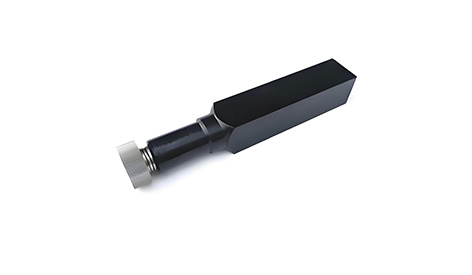

A knurling tool is a lathe attachment featuring hardened steel wheels with engraved patterns. When pressed against a rotating workpiece, it imprints straight, diamond, or other designs. The two main types are:
Cut knurling: Removes material to create sharp, precise patterns, ideal for straight knurls on precision components.
Form knurling: Displaces metal without cutting, producing raised diamond or linear textures.
For hand-operated applications, clamp-style knurlers allow manual pressure adjustment, while CNC lathes use hydraulic or spring-loaded tools for consistency.
Key Knurling Techniques
1. Straight vs. Diamond Knurling
Straight knurling creates parallel ridges, often used for tool handles or adjustment knobs.

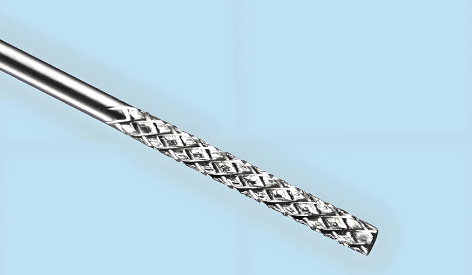

Diamond knurling (crosshatched) offers superior grip, common in aerospace and automotive parts like eagle rock climbing gear.
2. Scissor-Type Knurling Tools

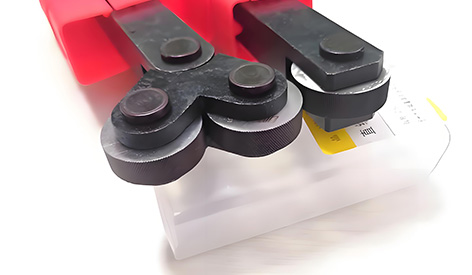

A scissor-style tool applies even pressure with dual pivoting heads, reducing lathe deflection. Ideal for delicate work like valve guide resurfacing.
3. Speed and Feed Optimization
Soft metals (aluminum): Lower RPM (100–150) with moderate feed.
Steel/titanium: Higher pressure at 200–300 RPM.
Advanced Applications
Custom Texturing for Specialty Parts
Artisans use cut knurling to craft intricate designs, such as eagle rock-inspired motifs on firearm bolts or jewelry.
Repairing Valve Guides
Knurling worn valve guide bores slightly oversizes them, restoring fit via displaced material. A diamond-pattern tool ensures oil retention.
Troubleshooting Common Issues
Chatter: Caused by uneven pressure. Use a scissor tool or increase feed rate.
Double Tracking: Misaligned wheels. Re-center the knurling tool relative to the workpiece.
Mastering knurling tool techniques—from straight industrial patterns to decorative diamond textures—enhances functionality and craftsmanship. Whether machining a valve guide or customizing gear, precision hinges on tool selection and lathe parameters. Innovate boldly, but let fundamentals guide every cut.
