Nickel Plating 3D Printed Parts: Engineering the Metallic Exoskeleton

Engineering is a pursuit of material perfection, but often we are forced to choose between the weight of polymers and the skin-deep performance of metals. In the high-stakes arena of 3D printing post processing, there is a technical bridge that erases this boundary. This is the sophisticated art of nickel plating 3d printed parts. It is not a simple decorative coat; it is the creation of a metallic exoskeleton that transforms a fragile resin or nylon core into a structural hybrid. By depositing a uniform layer of nickel-phosphorus alloy onto a non-conductive substrate, we grant 3D printed components the superpowers of metallurgy—electromagnetic shielding, extreme surface hardness, and an exponential increase in stiffness—without the mass of a solid metal block.

Jucheng Precision operates at the intersection of chemical alchemy and micron-level accuracy. We recognize that for a drone enclosure or a medical sensor housing, the "feel" of metal is secondary to its functional shielding. If the plating bond is weak or the thickness is inconsistent, the part is a liability. Our integrated workflow treats nickel plating 3d printed parts as a primary engineering cycle, utilizing automated electroless baths to ensure that every internal bore and complex lattice receives an identical layer of protection. This guide moves past the visual mockups to explore the molecular mechanics of the conductive bridge, the structural logic of the exoskeleton, and why JUCHENG’s integrated DFM protocols are the mandatory final step in turning a 3D design into a high-performance industrial asset.

Profitability in modern hardware is won by merging the speed of light-cured polymers with the armor of industrial alloys. When you can print a complex manifold and then shield it with a structural metal skin, you eliminate the need for expensive secondary assemblies. Let us break down the physical laws of chemical deposition and see how technical foresight can lock the integrity of your most ambitious hybrid designs into physical reality.

content:

Electroless Bridge: Solving the Non-Conductivity Barrier

EMI Shielding: Turning Polymers into Electronic Enclosures

Structural Reinforcement: Managing the Metallic Exoskeleton

Plating DFM: Engineering the Surface for Uniform Deposition

JUCHENG’s Integrated Protocol: Validation of the Hybrid Bond

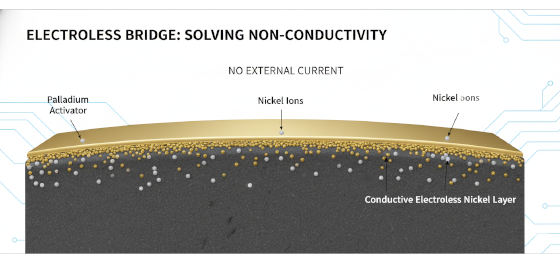

Electroless Bridge: Solving the Non-Conductivity Barrier

The primary technical hurdle in nickel plating 3d printed parts is the materials’ inherent insulation. Unlike steel or aluminum, standard 3D printed resins and filaments will not accept an electrical current. Traditional electroplating, which relies on a cathode-anode circuit, would fail instantly. The solution is a "Chemical Bridge"—specifically, Electroless Nickel (EN). This process begins with surface activation, where the part is dipped into a palladium-tin catalyst. These microscopic metallic seeds anchor themselves into the pores of the 3D printed skin, creating the nucleation sites required for the next phase of the reaction.

Once activated, the part enters an autocatalytic nickel bath. Here, a reducing agent (usually sodium hypophosphite) reacts with nickel ions in the liquid, causing them to deposit onto the part’s surface without the need for an external power source. This is the ultimate "Uniformity Hack." Because the reaction happens wherever the liquid touches the part, the nickel layer grows at an identical rate on the sharpest corner and at the bottom of the deepest internal hole. At Jucheng Precision, we calibrate these immersion times to achieve specific thickness layers, usually ranging from 10 to 50 microns. This primary nickel-phosphorus layer provides the electrical conductivity needed for subsequent decorative plating and, more importantly, creates a pristine, non-porous seal over the 3D printed substrate. We don't just "cover" the part; we engineer a chemical interface that turns an organic polymer into a metallurgically active component.

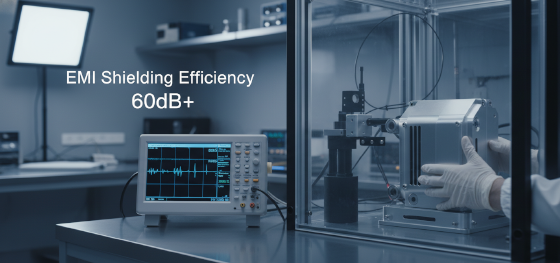

EMI Shielding: Turning Polymers into Electronic Enclosures

In the world of 5G telecommunications and medical diagnostics, electromagnetic interference (EMI) is a silent saboteur. Lightweight plastic enclosures are preferred for portability, but they offer zero protection against the invisible "noise" of radio frequencies. Nickel plating 3d printed parts provides a technical sanctuary for sensitive circuitry. A thin layer of electroless nickel acts as a conductive shield, reflecting and absorbing electromagnetic waves before they can compromise the data integrity of your device.

JUCHENG’s plating protocols are designed to meet strict decibel-reduction standards. We analyze your enclosure's geometry to ensure the nickel layer is continuous across mating faces and hinges. By achieving a surface resistivity of less than 0.1 ohms per square, we transform a simple 3D print into a high-performance EMI/RFI shield. This is particularly vital for prototypes destined for FCC or CE certification testing. Instead of waiting weeks for a vacuum-metallized production part, you can test a nickel-plated prototype that behaves exactly like the final commercial product. We bridge the gap between lightweight design and electronic security, providing the "Faraday Cage" performance your high-frequency electronics demand without the weight of solid metal.

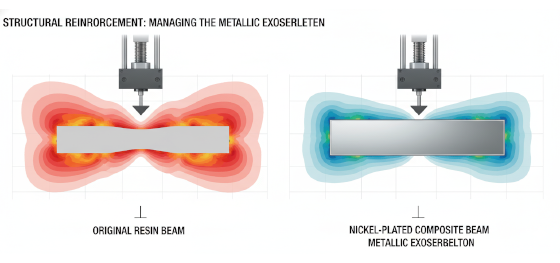

Structural Reinforcement: Managing the Metallic Exoskeleton

Beyond the electrical benefits, nickel plating 3d printed parts offers a massive boost to mechanical performance. When you wrap a polymer core in a high-hardness nickel shell, you are effectively creating a composite structure. The nickel-phosphorus alloy we use has an as-plated hardness of roughly 45 to 50 HRC (Rockwell C). This metallic "exoskeleton" significantly increases the flexural modulus of the part, making it up to five times stiffer than the raw print.

This reinforcement is a strategic asset for parts that must survive heavy handling or abrasive environments. For instance, a 3D printed SLA jig used on a high-speed production line will eventually wear down due to friction. By applying a 25-micron nickel layer, JUCHENG grants that jig the wear resistance of tool steel. We also account for the thermal expansion mismatch between the plastic and the metal. If the part is intended for high-heat use, we utilize specific "Low-Stress" nickel formulations to prevent the plating from cracking as the core expands. This structural foresight ensures that your "metallic" plastic part doesn't just look tough—it withstands the impact, torque, and friction of the real world. We turn the 3D printing post processing cycle into a structural evolution, allowing your designs to survive load cases that would crush a standard 3D print.

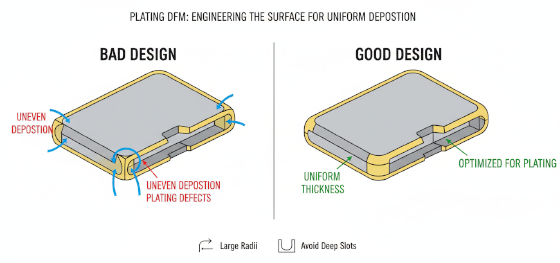

Plating DFM: Engineering the Surface for Uniform Deposition

Successful plating is decided at the drawing board. One of the most common errors in 3D printing design for plating is the use of sharp internal corners and deep, narrow blind holes. In the chemical bath, bubbles can become trapped in these features, preventing the activating catalyst from reaching the plastic. This leads to "bald spots" where the metal won't bond. Furthermore, sharp corners act as "current hogs" if secondary electroplating is applied, leading to uneven buildup and dimensional distortion.

At Jucheng Precision, we advocate for "Plating-Ready" geometry. We suggest generous fillets—ideally 1mm or more—on all internal and external edges to promote a uniform flow of ions. We also mandate the inclusion of "Vent and Drain" holes in hollow geometries. This ensures the plating chemicals can enter and, more importantly, exit the part without becoming trapped and causing internal corrosion. By engineering the surface for the tank, we ensure a 100% yield rate and a finish that is visually flawless. We treat the plating process as a geometric constraint, providing our clients with the DFM feedback needed to ensure their metallic-plastic hybrids are as precise as they are brilliant.

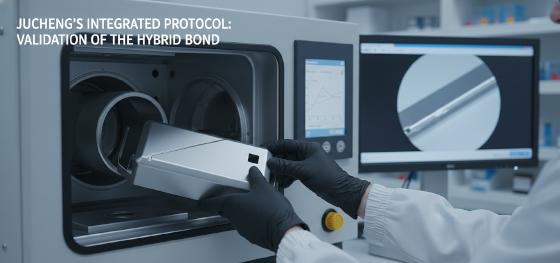

JUCHENG’s Integrated Protocol: Validation of the Hybrid Bond

The final hallmark of a professional manufacturing partner is the refusal to accept visual beauty as a proxy for technical quality. A part can look like solid chrome but fail an adhesion test on day two. Jucheng Precision eliminates this risk by owning the entire value chain. We don't just "outsource" our plating; we integrate it into our internal quality ecosystem. Our 3D printing post processing includes rigorous validation of the hybrid bond.

Every batch of nickel plating 3d printed parts undergoes a standardized thermal cycling audit. We alternate the parts between freezing and high-heat environments to verify that the coefficient of expansion mismatch doesn't lead to delamination. We also perform "Cross-Hatch" tape tests on sacrificial coupons to guarantee that the molecular bond is absolute. When you receive a component from JUCHENG, you aren't just getting a 3D print; you are getting a verified engineering solution that combines the best of polymer flexibility and metallic armor. Whether you are building an innovative heart valve or a mission-critical aerospace sensor, our expertise in metallic-plastic hybrids clarifies and elevates your vision. Contact Jucheng Precision today for a technical DFM review and see how our plating protocols can armor your next breakthrough.
