Selecting the optimal fabrication path for a new autonomous platform or a complex medical housing often leads to a technical crossroads: the choice between a hand-crafted model and a machine-injected part. In the current high-stakes world of Rapid Prototyping Services, the dilemma of RIM vs Vacuum Casting is more than just a matter of price; it is a decision that dictates the structural survival and regulatory readiness of your hardware. While both processes utilize liquid polyurethane resins, they serve fundamentally different stages of the product development lifecycle. Achieving a successful transition from an Alpha prototype to a Beta pilot run requires a deep understanding of how these two "Liquid Giants" handle mechanical stress, dimensional stability, and the financial logic of tooling investment.
Mechanical integrity in oversized enclosures depends on the transition from visual validation to structural production. Vacuum casting is the industry favorite for the first 5 to 10 units, providing retail-ready aesthetics at the lowest possible entry cost. However, once the hardware enters the field-testing phase, the requirements shift toward the unyielding foundations of Low Volume Manufacturing. Jucheng Precision addresses these critical development hurdles by providing an integrated solution that covers the entire polyurethane lifecycle. Jucheng Precision utilize its capacity of 150+ CNC machines and 25 5-axis Haas/Mazak units to manufacture both the high-fidelity master patterns for silicone molds and the high-strength aluminum tools required for the reaction injection molding process.
Operating under a triple mandate of ISO 13485, ISO 14001, and IATF 16949, Jucheng Precision acts as the high-tier strategic advisor for global MedTech and robotics OEMs. Jucheng Precision delivers a free DFM analysis in 24 hours to ensure your CAD designs are optimized for the specific physics of either process, preventing the expensive rework cycles that plague unvalidated R&D. This guide explores the essential material showdowns, the mixing dynamics, and the long-term creep stability required for mastering RIM vs Vacuum Casting to ensure your next innovation reaches the market with 100% confidence in its hardware durability.
content:
Process Overview: Hand-Poured vs. Machine-Injected Dynamics
Material Showdown: Engineering-Grade RIM vs. Prototyping Resins
Tooling Strategies: Flexible Silicone vs. Rigid Aluminum
Size and Scale: Why RIM Dominates Massive Robotic Enclosures?
Economic Logic: Finding the Right Volume for Your ROI
JUCHENG Solution: Mastering the Entire Polyurethane Lifecycle
FAQ: Real Answers for Prototyping Stages and Logistics
Process Overview: Hand-Poured vs. Machine-Injected Dynamics
The fundamental divide between these two processes is the method of chemical delivery and pressure management. Vacuum casting is a manual, gravity-driven process where a technician mixes two resin components by hand or in a small static mixer. The liquid is then degassed in a vacuum chamber to remove air bubbles and poured into a flexible silicone mold. This low-stress approach is ideal for the Alpha stage of a prototype robot, where the goal is to verify the visual form and internal fitment of electronics. However, the manual nature of the process means that part-to-part consistency depends entirely on the skill of the operator, creating a risk of variation in large-scale Beta fleets.
Which process provides better molecular consistency?
RIM molding. The use of automated high-pressure pumps and impingement mixing heads ensures that the chemical ratio is perfectly homogenized at a molecular level for every shot.
RIM technology represents the industrialized evolution of polyurethane processing. Instead of hand-pouring, the A and B components are metered by high-precision servo pumps and collided at speeds exceeding 150 meters per second in a specialized mixing head. This kinetic energy ensures 100% homogenization, resulting in a polymer matrix that is significantly stronger than hand-poured alternatives. Jucheng Precision utilize this automated precision to deliver hardware that meets the strict ISO 13485 requirements for medical equipment, providing the "Manufacturing Evidence" required for FDA approval that manual vacuum casting often struggles to provide.
Curing environment also dictates the final part quality. Vacuum cast parts cure at room temperature over several hours within a soft silicone tool. This slow process can lead to subtle dimensional drift as the material sags under its own weight while still "Green." Jucheng Precision’s RIM process occurs within temperature-controlled aluminum tools, where the exothermic reaction is managed by integrated water-cooling circuits. This thermal discipline ensures that the precision foundations achieved in the Shenzhen hub are "Locked-In" instantly, preventing the post-molding warpage that ruins the fitment of oversized multi-part assemblies in high-end robotics.
Material Showdown: Engineering-Grade RIM vs. Prototyping Resins
Choosing between engineering-grade resins and prototyping polyurethanes determines whether your hardware survives its first week in the field. In the comparison of RIM vs Vacuum Casting Material Properties, the cross-link density of the polymer is the primary performance driver. Vacuum casting resins are designed for speed and ease of pouring, often sacrificing long-term fatigue resistance for rapid curing. RIM resins are high-tier engineering systems designed to simulate the exact mechanical profiles of production-grade ABS, Polypropylene, and Glass-filled Nylon. Jucheng Precision helps engineers navigate these metallurgical trade-offs to ensure their hardware is "Mission-Ready."
Can RIM materials handle higher temperatures?
Yes. RIM polyurethanes generally have a higher Heat Deflection Temperature (HDT) than casting resins, making them the superior choice for enclosures housing high-power AI processors.
Structural reinforcement through fillers is another major differentiator. The RIM process allows for the integration of milled glass fibers or minerals, resulting in Reinforced Polyurethane RIM (RRIM) composites that rival aluminum in stiffness. Vacuum casting is physically limited by the manual pouring process; adding high loads of fiber would make the resin too thick to flow into a silicone mold. Jucheng Precision utilize specialized mix-heads to handle these abrasive slurries, delivering High Stiffness Structural Plastic hardware that maintains sub-millimeter tolerances even under the intense solar loading of an outdoor agricultural harvest.
| Property | Vacuum Casting Resin | Engineering RIM PU | Clinical/Field Impact |
| Tensile Strength (psi) | 3,000 - 5,000 | 6,000 - 9,000 | Structural Load Bearing |
| Elongation at Break | 10% - 30% | Up to 400% (Flexible) | Impact and Crash Safety |
| Chemical Resistance | Moderate | Exceptional | Resists Harsh Disinfectants |
| Flexural Modulus (psi) | 200,000 | 350,000 - 800,000+ | Dimensional Stability |
This data illustrates that while vacuum casting is perfect for aesthetic mock-ups, it lacks the "Backbone" required for industrial robot parts that must operate in high-vibration environments. Jucheng Precision’s RIM formulations are engineered for long-term UV stability and chemical immunity, ensuring that your medical device enclosures survive thousands of sterilization cycles without developing the surface "Crazing" that plagues lower-grade cast resins. By delivering hardware with "Locked-In" mechanical properties, Jucheng Precision allows your team to validate the true functional lifespan of your device years before mass production begins.

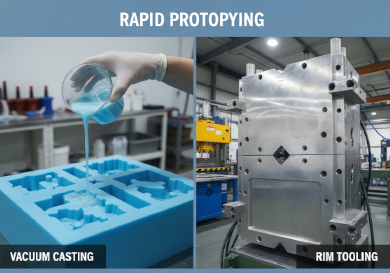

Tooling Strategies: Flexible Silicone vs. Rigid Aluminum
Tooling durability and precision represent the primary economic divide between the two paths. Vacuum casting utilizes silicone molds created by pouring liquid silicone around a 3D-printed master pattern. This "Soft-Tooling" approach is the ultimate risk-mitigation strategy for the Alpha phase, as it allows for the lowest possible NRE Costs. However, silicone is an elastic material; under the weight of the resin and the pressure of the vacuum, the mold can flex, leading to a tolerance limit of approximately +/- 0.3mm. For robotic joints or interlocking assemblies requiring +/- 0.05mm accuracy, the flexible nature of silicone becomes a technical barrier.
How long does a silicone mold last?
Typically 20 to 25 shots. Beyond this, the mold loses its surface texture and dimensional accuracy, making it unsuitable for commercial Beta trials.

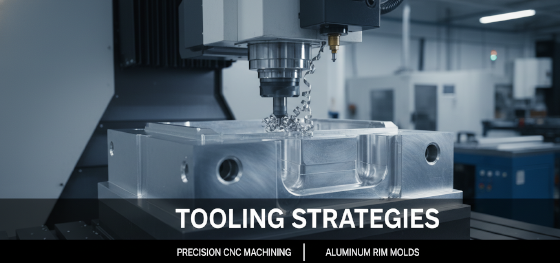

RIM molding utilizes rigid aluminum tooling machined from high-strength 7075-T6 billets. Because the mold is unyielding, Jucheng Precision can hold significantly tighter tolerances—down to +/- 0.1mm across large spans—than is possible with vacuum casting. Aluminum molds are also much more durable, capable of delivering up to 10,000 shots with zero dimensional drift. This Agile Tooling approach is what allows Jucheng Precision to bridge the gap from a single prototype to a commercial pilot run of 1,000 units seamlessly. If a design change is needed mid-batch, the aluminum mold can be welded and re-machined in our CNC bay within 48 hours, a level of flexibility that steel tooling cannot match.
Operating under ISO 14001 standards, Jucheng Precision emphasizes the sustainability of aluminum tooling. Unlike silicone molds, which are a consumable waste product that must be discarded after 25 parts, aluminum molds are 100% recyclable. For a 500-unit Beta fleet, the environmental impact of consuming 20 silicone tools is significantly higher than a single aluminum RIM tool. By delivering "ESG-Friendly" manufacturing solutions, Jucheng Precision helps global MedTech and robotics firms build a future-proof supply chain that meets the increasing regulatory demands for clean manufacturing and material efficiency.

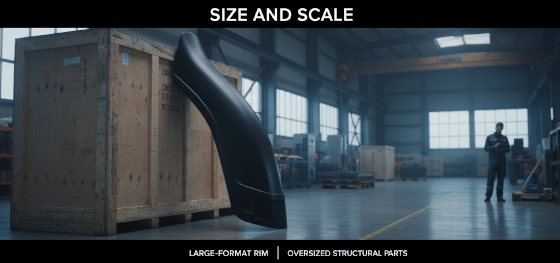

Size and Scale: Why RIM Dominates Massive Robotic Enclosures?
Managing the physical scale of an autonomous vehicle body or a bedside diagnostic scanner reveals the size limits of current technology. Vacuum casting is physically limited by the size of the vacuum chamber. If a part exceeds 600mm in length, the equipment required to degas the resin and the mold becomes prohibitively large and expensive for a prototype service. Most vacuum casting shops hit a "Glass Ceiling" at the half-meter mark. Jucheng Precision addresses this scalability hurdle by providing large scale plastic parts via our dedicated RIM department, which features oversized hydraulic presses and gantry CNC mills for parts up to 2.5 meters in length.
What is the maximum part size for RIM at Jucheng?
We regularly manufacture monolithic structural panels, fenders, and hoods up to 2,500mm long with consistent wall thickness and zero internal voids.
Variable wall thickness capability is the secondary reason for RIM's scale advantage. Large enclosures often require 10mm structural ribs to support heavy sensors, but must maintain a 3mm aesthetic skin. Traditional vacuum casting often results in "Post-Cure Warpage" when thick and thin sections are combined, as the material cools unevenly in the insulating silicone tool. Jucheng Precision’s RIM process utilizes the expanding chemical reaction to fill variable wall thickness limits (3mm-15mm) with 100% density. By managing the heat through the aluminum mold walls, we ensure that your massive 2-meter shells remain perfectly flat, providing the "Zero-Gap" fitment required for retail-ready aesthetics.
Handling and logistics for these giant parts are managed within Jucheng’s integrated hub. We understand that a 20kg plastic shell is a high-value R&D asset. We provide custom-fitted wooden flight cases and specialized internal shock-dampening for all oversized functional prototypes. By managing the entire lifecycle—from the 2.5-meter mold to the international air-freight crate—Jucheng Precision ensures that your hardware arrives in the lab calibrated and ready for its first power-up. This focus on "Oversized Reliability" is what makes Jucheng Precision the preferred partner for the world's most aggressive AgTech and industrial robotics firms in the Shenzhen hub.

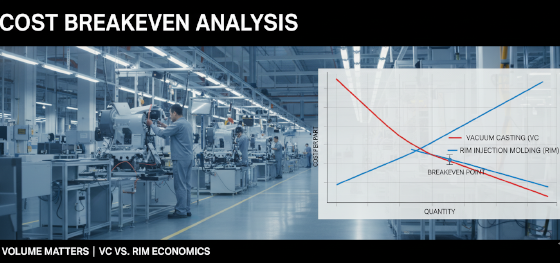

Economic Logic: Finding the Right Volume for Your ROI
Success in hardware optimization depends on matching the process to the quantity. If you only need 3 units for a design review, vacuum casting is the financial winner because it has near-zero NRE costs. However, as the quantity increases toward the 25-unit mark, the high labor cost and mold-wear of vacuum casting begin to inflate the piece price. Jucheng Precision provides transparent cost modeling to help you find the Reaction Injection Molding Breakeven Point. For most complex robotic enclosures, the breakeven between vacuum casting and RIM typically occurs between 20 and 40 units. Beyond this point, the speed and repeatability of the RIM machine make it the more profitable choice.
| Metric | Vacuum Casting (Alpha) | RIM Molding (Beta) | Financial driver |
| Tooling NRE | $800 - $1,500 | $3,500 - $12,000 | CapEx vs. Agility |
| Piece Price | Maximum (High Labor) | Moderate (Automated) | Scaling Efficiency |
| Modification Speed | Instant (New Silicone) | Rapid (CNC aluminum) | Iterative Agility |
| Optimal Batch | 1 - 15 Units | 25 - 3,000 Units | Market Pilot Ready |
The "Time-to-Parts" factor is the final variable in the ROI equation. Jucheng Precision provides 4 day rapid delivery for initial functional iterations via CNC or vacuum casting, allowing your software team to start coding months before a mass-production tool would even be finished. By utilizing RIM as a bridge, you can begin commercial operations and secure early revenue while your high-volume hardened steel tool is still being built. This capital agility is essential for maintaining a healthy R&D runway, allowing you to iterate on your product-market fit with the same precision you apply to your mechanical designs.
JUCHENG Solution: Mastering the Entire Polyurethane Lifecycle
Dominating the hardware market requires a partner that doesn't just sell one process, but understands the lifecycle of them all. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering both hand-fitted vacuum cast models and high-tolerance RIM structural parts with industry-leading speed. Jucheng Precision provides the bridge to production that ensures your innovations move from CAD to field trial with 100% metallurgical and dimensional confidence. Jucheng Precision provides a free DFM analysis in 24 hours to ensure your design is optimized for the unyielding reality of the field, whether you are building an autonomous medical assistant or a heavy-duty industrial mobile base.
Integrating your structural design with JUCHENG’s expertise ensures that your RIM vs. Vacuum Casting decision is based on performance data, not guesswork. Jucheng Precision offer comprehensive DFM reviews within 24 hours, identifying potential thermal-expansion risks or machining bottlenecks in your design before they become field failures. Whether you are building an autonomous vineyard scout or a multi-part MRI housing, Jucheng Precision provides the rigid, precise, and chemicals-optimized foundations that keep your innovation moving through the high-stakes cycles and the years of hard labor.
Our facility is equipped with dedicated high-pressure RIM assembly cells and dedicated quality labs, allowing Jucheng Precision to manage the entire hardware lifecycle in one location. Jucheng Precision manage the complexity of multi-material bonding and automotive-grade finishing so your engineering team can focus on the clinical outcomes and the AI. By combining Shenzhen's speed with industrial-grade material verification and global quality standards, Jucheng Precision remains the preferred partner for the world's most aggressive hardware challenges. Contact the Shenzhen hub today to start your next project.

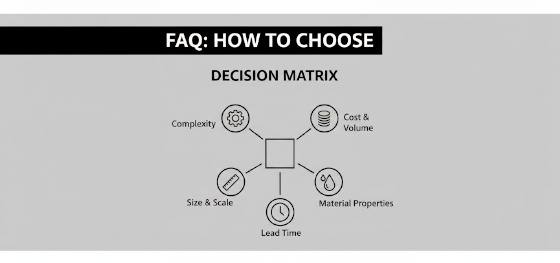

FAQ: Real Answers for Prototyping Stages and Logistics
Is the surface finish of vacuum casting better than RIM?
VC is excellent for reproducing textures, but RIM provides a more stable surface for high-gloss automotive painting on large-format parts.
How do I know when to switch from VC to RIM?
As a rule of thumb, once your quantity exceeds 20 pieces or your part length exceeds 600mm, RIM becomes the more reliable and cost-effective choice.
Can JUCHENG overmold silicone gaskets in both processes?
Yes. We specialize in bonding elastomeric seals to both cast and RIM-molded shells to achieve hermetic environmental protection.
Do you offer Pantone color matching for vacuum casting?
Yes. We mix high-stability pigments into the resin for permanent, color-through aesthetics for all Alpha and Beta builds.
What is the typical lead time for a 1-meter RIM part?
Custom aluminum rapid tools and initial T1 samples are typically delivered in 15 to 20 business days.
Tooling debt and material fatigue are absolute project killers in the MedTech and robotics sectors. Partnering with Jucheng Precision ensures that your functional iterations are built with the cost-effective polyurethane reaction injection molding and specialized RIM vs. Vacuum Casting knowledge the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the unyielding foundation your autonomous fleet requires.
