Observing a high-speed electronics assembly line in [2026] reveals the violent elegance of industrial robot parts: the SCARA robot moves with such velocity that the human eye struggle to track its path. In these environments, every millisecond saved in a pick-and-place cycle translates into millions of dollars in increased throughput over a production year. The hardware must be optimized for extreme acceleration, meaning the rotating jibs and vertical shafts must be feather-light yet rigid enough to stop on a micron. Mastering SCARA robot parts machining requires a transition from general industrial engineering to the world of high-frequency dynamics and ultra-low inertia components.

Kinematic speed in SCARA systems is a direct byproduct of mass management. Because the J1 and J2 axes operate on a horizontal plane, the motors are constantly fighting the centrifugal forces of the moving arms. If the rotating jibs are even 10% too heavy, the resulting vibration during sudden stops will require a "settling time" that ruins high-speed performance. Jucheng Precision addresses these critical mass challenges by utilizing skeletal 7075-T6 aluminum designs and hollow-core Z-axis shafts. We manufacture the high-agility components that allow SCARA robots to achieve 120+ cycles per minute with sub-micron repeatability.

Operating within the Shenzhen precision manufacturing hub, JUCHENG provides a "Bridge to Production" for 3C electronics automation OEMs. Our facility specializes in the high-speed machining required for vertical assemblies and lightweight rotating links. We transform solid billets of aerospace alloys into high-speed conduits for motion. This guide explores the essential Z-axis quill standards, jib lightweighting strategies, and precision bushing fitments required for manufacturing SCARA robot parts that redefine the boundaries of cycle-time efficiency.

content:

Z-Axis Quill Precision: Machining the Ball Screw Spline
Technical Data: Comparing Alloys for High-Speed Jibs
Skeletal Jib Engineering: Optimizing stiffness-to-weight
Precision Bushings: Achieving Ultra-Smooth Fitments
JUCHENG: The Shenzhen Hub for High-Speed Hardware
FAQ: High-Frequency Component Manufacturing for SCARA

Z-Axis Quill Precision: Machining the Ball Screw Spline

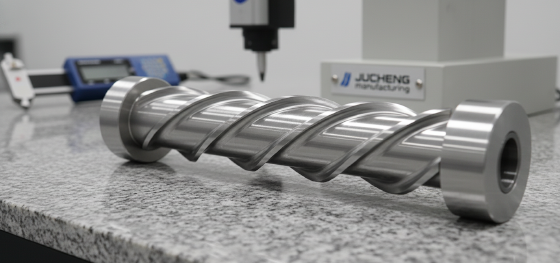

The vertical quill is the most technically demanding component in SCARA robot parts machining. This dual-function shaft acts as both a ball screw for vertical movement and a spline for rotational orientation. Because these two movements happen simultaneously at high speeds, the grooves for the balls and the spline must be concentric within 5 microns across a 300mm length. JUCHENG utilizes specialized CNC thread grinding and cylindrical grinding to execute these complex geometries. Any deviation in the "lead" or "pitch" of the quill will manifest as vertical jitter, which is a total mission killer for delicate tasks like chip-mounting.

Surface hardness dictates the wear-life of the Z-axis. The vertical shaft experiences millions of reciprocating cycles where the recirculating balls in the nut exert intense surface pressure on the quill's grooves. JUCHENG utilizes induction-hardened SUJ2 (Bearing Steel) to achieve a surface hardness of HRC 60-62 while maintaining a ductile core to resist snapping under sudden impact. This combination of surface toughness and structural resilience ensures that the industrial robot parts we provide can operate 24/7 in 3C assembly lines without requiring frequent replacement.

Hollow-core quills are utilized for weight reduction in high-payload SCARA designs. By utilizing deep-hole drilling (gun drilling) to remove the center of the vertical shaft, JUCHENG reduces the mass of the quill by up to 30%. This lower vertical mass allows for faster acceleration in the Z-direction, which is often the bottleneck in pick-and-place cycle times. We ensure the internal bore is mirror-polished to prevent any stress risers that could lead to fatigue cracks, providing a lightweight quill that doesn't compromise on its multi-ton axial load rating.

Lubrication management is integrated directly into the quill's machining. JUCHENG machines specialized "oil-retention" micro-textures into the non-load-bearing areas of the spline grooves. These textures act as reservoirs, ensuring that the critical contact surfaces remain lubricated even during the intense heat generated by high-speed vertical cycles. This level of advanced surface engineering prevents the "stiction" that can cause micro-stalls in the Z-axis, ensuring that your robot maintains its fluid motion through millions of pick cycles in the [2026] factory.

Technical Data: Comparing Alloys for High-Speed Jibs

Selecting the right material for a rotating jib determines the robot's "bandwidth"—the range of frequencies at which it can operate stably. For high-speed SCARA bots, stiffness is the primary defense against vibration. Jucheng Precision provides technical consultations to help you balance mass and Young’s Modulus. The following table compares the materials most frequently used in high-performance SCARA robot parts machining for the [2026] market.

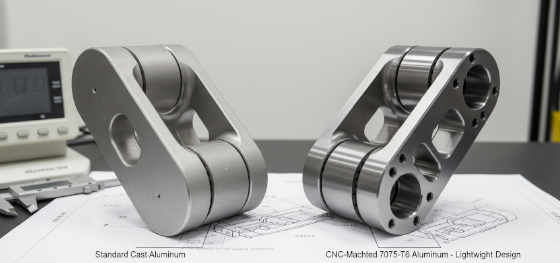

7075-T6 Aluminum is the gold standard for SCARA jibs because it offers the yield strength of many steels while remaining one-third the weight. This allows JUCHENG to machine extremely skeletal arm designs that can handle the centrifugal forces of a 10kg load rotating at 2 meters per second. In our Shenzhen hub, we utilize high-speed trunnion 5-axis centers to carve these organic links in a single setup, ensuring that the centers of rotation for both joints are perfectly parallel within 0.01mm.

Magnesium AZ91D is utilized for ultra-high-speed assembly bots where every millisecond counts. Its exceptional vibration-dampening capacity means the arm stops vibrating almost instantly after a high-speed move, allowing the gripper to engage without delay. JUCHENG’s specialized magnesium machining cell delivers these parts with high-grade conversion coatings, ensuring that the industrial robot parts maintain their structural properties even in foundries or humid electronics assembly environments.

Skeletal Jib Engineering: Optimizing stiffness-to-weight

Lightweighting a SCARA jib is a delicate balance of material removal and structural preservation. In SCARA robot parts machining, JUCHENG utilizes "Generative Design" principles to identify the neutral-axis zones of the arm where metal can be safely removed. We machine deep pockets and honeycomb internal lattices into the jib, leaving a skeletal frame that mimics the bone structure of a falcon’s wing. This reduces the rotational inertia of the J1 axis by up to 40%, directly increasing the robot’s acceleration capability without requiring larger, hotter-running motors.

Torsional stiffness is maintained through strategic "webbing." While the jib is hollowed out, JUCHENG machines thin-wall vertical ribs that resist the twisting forces of the Z-axis motor mounted at the end of the arm. If the jib twists during a vertical move, the gripper will "snap" or vibrate, causing pick failures. By holding +/- 0.02mm wall thickness tolerances on these internal ribs, we ensure that the arm remains a rigid beam under load. This level of precision is only possible through 5-axis CNC movement and real-time tool-wear compensation on our Mazak machines.

Resonant frequency management is the third pillar of jib design. A well-machined jib must not amplify the harmonic noise of the high-speed servo motors. JUCHENG utilizes varying wall thicknesses and "randomized" rib patterns that prevent the part from having a single, strong natural frequency. This effectively "muffles" the mechanical noise and prevents the high-frequency jitter that can confuse the robot’s force-sensing algorithms. Our Shenzhen facility provides the technical oversight necessary to "tune" the hardware for silent, stable industrial robot parts operation.

Integrated thermal-expansion gaps are machined into the joint housings of the jibs. As the J1 and J2 motors generate heat during 24/7 shifts, the aluminum arms will expand. JUCHENG machines these interfaces with "floating" bearing seats and precise allowances that accommodate this expansion without changing the center-to-center distance of the joints. This ensures that the robot’s kinematic model remains accurate from the first hour of the shift to the last, providing the long-term reliability required for [2026] electronics manufacturing.

Precision Bushings: Achieving Ultra-Smooth Fitments

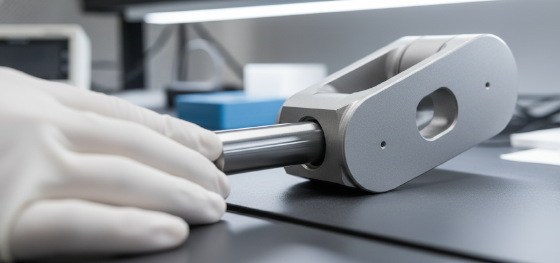

The interface between the Z-axis quill and the jib determines the robot's vertical "smoothness." In SCARA robot parts machining, the bushings or linear bearings must be press-fitted into the jib with absolute concentricity relative to the rotational axis. If the bushing is tilted by even five microns, the vertical shaft will experience high-friction "hot spots" that lead to motor overheating and premature belt failure. JUCHENG utilizes sub-micron diamond-boring to finish the bushing seats, ensuring a perfect g6 or h6 fitment that provides zero-play vertical movement.

Material selection for these bushings is critical for low-friction operation. JUCHENG often machines custom bushings from Oil-impregnated Bronze or high-performance PEEK-PTFE composites. These materials offer the lowest possible coefficient of friction against the hardened steel quill, preventing the "stick-slip" phenomenon that causes jitter during slow-speed vertical moves. By optimizing the surface finish of the jib bore to a Ra 0.4, we ensure that the bushing maintains its geometric shape after press-fitting, providing a stable, low-maintenance joint for the robot's lifetime.

Registration features for the Z-axis motor mounts are machined in the same setup as the vertical bushings. This "Common-Setup" philosophy is the cornerstone of JUCHENG’s industrial robot parts precision. It ensures that the vertical drive pulley and the Z-axis quill are perfectly parallel, preventing the belt wear and harmonic noise that plague robots with multi-setup machining errors. We utilize coordinate measuring machines (CMM) to verify that the motor-to-shaft alignment is within 0.01mm, ensuring that the belt drive operates with maximum efficiency and zero backlash.

Modular tool-flange interfaces at the end of the Z-axis are another focus area. JUCHENG machines these flanges from lightweight titanium or 7075 aluminum, providing a high-strength connection for end-effectors like vacuum grippers or screw-drivers. These interfaces are machined to ISO 9409 standards, ensuring universal compatibility with standard tools. By holding sub-micron tolerances on the centering pilot, JUCHENG ensures that every tool change is repeatable, keeping the robot’s TCP (Tool Center Point) constant during the most demanding 3C assembly tasks in [2026].

JUCHENG: The Shenzhen Hub for High-Speed Hardware

Dominating the [2026] high-speed automation market requires a partner that can scale from prototype to massive fleet production without losing a single micron of accuracy. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, delivering high-tolerance SCARA jibs and vertical quills with lead times as fast as 12 business days. We provide a "Bridge to Production" that allows you to move from a single hand-balanced prototype to a commercial deployment of 1,000 bots with consistent kinematic quality.

Integrating your high-speed design with JUCHENG’s expertise ensures that your robot survives the "First-Million Cycle" test and moves into mass adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential vibration bottlenecks or weight-reduction opportunities in your SCARA design before they become field failures. Whether you are building a tabletop bot for smartphone assembly or a heavy-duty SCARA for palletizing, Jucheng Precision provides the lightweight, precise hardware that keeps your innovation moving through the high-speed cycles and the years of hard labor.

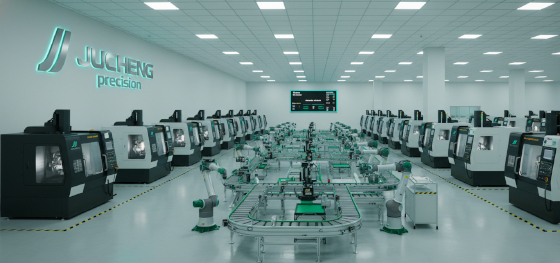

Our facility is equipped with 150+ CNC machines, including the latest 5-axis Mazak trunnions and cylindrical grinders, allowing us to manage the entire SCARA part lifecycle in one location. We manage the complexity of skeletal machining and spline grinding so your engineering team can focus on the motion-control loops and the AI. By combining Shenzhen's speed with industrial-grade material verification, JUCHENG remains the preferred partner for the world's most aggressive industrial robot parts challenges. Contact us today to start your next high-speed project.

FAQ: High-Frequency Component Manufacturing for SCARA

What is the maximum cycle time JUCHENG parts can handle?
Our components are engineered for SCARA robots operating at 120-150 cycles per minute with 24/7 duty cycles.

Why use SUJ2 for Z-axis quills?
SUJ2 provides exceptional surface hardness (HRC 60+) and dimensional stability required for reciprocating ball screw splines.

How do you ensure SCARA arms are lightweight?
We utilize skeletal 7075-T6 aluminum designs and 5-axis "undercutting" to remove mass from neutral structural zones.

What is the typical tolerance for a vertical quill spline?
We hold involute and pitch tolerances within +/- 0.005mm to ensure zero-backlash vertical orientation.

Vibrational fatigue in high-speed assembly is an absolute hardware killer. Partnering with Jucheng Precision ensures that your arms are built with the skeletal 7075 aluminum and specialized spline-grinding techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the high-speed foundation your autonomous fleet requires.
