Detecting the subtle mechanical whine of a precision joint in [2026] reveals the high-stakes engineering of industrial robot parts: the gearbox is the heart of every movement. While the motor provides the RPM, the reduction system provides the soul—torque, rigidity, and the elusive zero-backlash performance. In a world where collaborative robots must perform sub-millimeter surgical tasks or high-speed electronics assembly, the gears must be perfect. Manufacturing Precision gearbox components for robots requires a transition from traditional gear cutting to advanced hard milling and micron-level grinding of hardened alloy steels.
Zero-backlash precision is the non-negotiable benchmark for robotic drivetrains. In 6-axis kinematics, any lost motion (backlash) in a single joint is amplified as the error propagates down the arm, leading to positional drift and vibration during high-speed reversals. Jucheng Precision addresses these critical accuracy demands by utilizing high-rigidity 5-axis centers and specialized gear grinding equipment, ensuring that tooth profiles are executed with a surface finish that eliminates the traditional break-in period.
Operating within the Shenzhen precision manufacturing hub, JUCHENG provides a "Bridge to Production" for RV (Rotary Vector) and Harmonic drive innovators. We transform high-strength alloy billets into hard-milled cycloidal pins, wave generators, and flexible splines. This guide explores the zero-backlash requirements, the challenges of hard milling HRC 55+ steels, and the specialized metrology required for manufacturing robotic gearbox components that maintain their integrity over millions of high-torque cycles.
content:
Backlash Management: The Key to Repeatable Precision
Technical Data: Hardened Steels for High-Torque Gears
Hard Milling and Grinding: Executing HRC 55+ Geometries
RV vs. Harmonic: Complex Geometries for Precision Joints
JUCHENG Metrology: Verifying the Micron-Level Profile
FAQ: Precision Gear Manufacturing for Industrial Bots
Backlash Management: The Key to Repeatable Precision

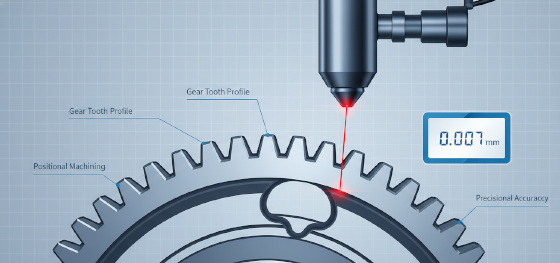

Positional repeatability in [2026] robotics is directly tethered to the backlash characteristics of the joint gearbox. In Precision gearbox components for robots, backlash is the "play" between mating gear teeth that allows for lubrication but creates a dead-zone during direction changes. For a high-speed SCARA robot, even an arc-minute of backlash can result in missed pick-and-place targets. JUCHENG minimizes this by executing involute and cycloidal tooth profiles with sub-micron tolerances, ensuring that the contact ratio remains constant throughout the entire rotation.
Cycloidal motion represents the pinnacle of zero-backlash engineering. Unlike traditional spur gears, cycloidal pins and disks utilize rolling contact rather than sliding contact. This significantly reduces friction and allows the gearbox to handle massive shock loads without tooth shearing. JUCHENG machines these cycloidal disks using high-precision CNC grinding, achieving a Ra 0.2 surface finish that ensures smooth power transmission even when the robot is operating at 100% duty cycle.
Transmission error (TE) is the secondary enemy of joint precision. TE is the difference between the theoretical and actual rotation of the output shaft. In high-performance industrial robot parts, TE is often caused by microscopic errors in tooth spacing or eccentricity in the sun gear. JUCHENG utilizes specialized software-compensated CNC machining to "predict" and counteract these errors during the cutting process, resulting in gear sets that deliver linear, vibration-free motion that is essential for delicate paths like dispensing or glass handling.
Stiffness-under-load determines how a gearbox reacts during rapid acceleration. A "soft" gearbox will flex elastically, leading to a spring-like vibration at the end of a move. JUCHENG engineers our gearbox components to have maximum torsional rigidity by optimizing the grain flow of the alloy steel during the forging process. This metallurgical integrity ensures that the gear teeth resist deformation even under the crushing torque of a 500kg payload reversal, maintaining the robot's precision in the most demanding automotive welding environments.
Technical Data: Hardened Steels for High-Torque Gears

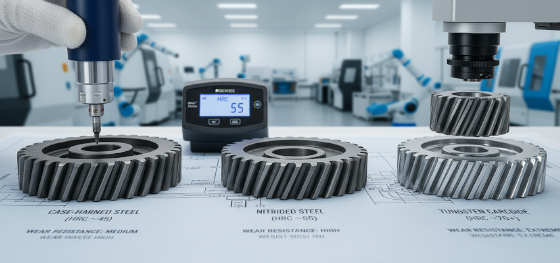

Selecting the right substrate is the first step in successful industrial robot parts manufacturing. Gearbox components are subjected to intense surface pressure and subsurface fatigue cycles. Standard carbon steels will pit and flake within months of high-speed operation. Jucheng Precision utilizes specialized alloy steels that respond to deep carburizing and nitriding. The following table compares the most common materials used for high-end Precision gearbox components for robots in the [2026] market.
| Material Grade | Hardness (HRC) | Fatigue Resistance | Primary Benefit |
| 18CrNiMo7-6 | 58 - 62 | Exceptional | High Impact Torque |
| SNCM439 (4340) | 50 - 55 | High | Drivetrain Balance |
| 38CrMoAl | 62 - 65 (Nitride) | Very High | Extreme Wear Resistance |
| Tool Steel (D2) | 55 - 60 | Moderate | High Hardness / Cost |
18CrNiMo7-6 is the gold standard for RV gearbox components because it maintains a ductile core while achieving an incredibly hard, wear-resistant surface after carburizing. This allows JUCHENG to machine gear planet sets that can handle the violent shock loads of an emergency stop without the gear teeth snapping off. In our Shenzhen hub, we utilize vacuum heat treatment to prevent oxidation, ensuring that the gear teeth remain pristine throughout the hardening process.
Nitrided Steel (38CrMoAl) is preferred for Harmonic drive flexible splines because it allows for a very high surface hardness with minimal dimensional distortion. Since nitriding is a lower-temperature process than carburizing, the thin-walled "flexspline" remains geometrically stable, a critical requirement for maintaining the sub-micron concentricity needed for the wave generator to operate smoothly. JUCHENG manages the "white layer" thickness during nitriding to ensure maximum fatigue life for these flex-critical components.
Hard Milling and Grinding: Executing HRC 55+ Geometries

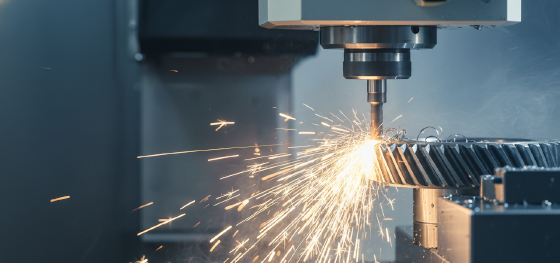

Traditional gear cutting stops once the material is hardened, but in Precision gearbox components for robots, the real work begins *after* heat treatment. Hard milling (machining steel above HRC 55) is a JUCHENG specialty. This process allows us to finish-machine gear profiles and bearing seats with absolute precision, eliminating the "heat-treat warp" that ruins the accuracy of lower-quality gears. By using cubic boron nitride (CBN) tooling and high-stiffness spindles, we achieve tolerances that were previously only possible via slow, expensive grinding.
Profile grinding is the secondary defense against transmission error. For high-torque RV reducers, the cycloidal disks must be ground to an involute profile that is accurate to within 2 microns. JUCHENG’s CNC gear grinders utilize real-time probing to verify the tooth shape after every pass, ensuring that the "lead" and "tilt" of each gear tooth are perfect. This results in a gearbox that operates with 30% less noise and 20% higher efficiency than standard commercial units, a vital improvement for energy-conscious [2026] factories.
Surface integrity during hard machining is a critical focus area. Excessive heat during grinding can create "grinding burns"—localized areas of re-hardened steel that are brittle and prone to cracking. JUCHENG utilizes high-pressure oil cooling and specialized dressing cycles for our grinding wheels to ensure that the surface chemistry of the gear remains untempered. This preserves the compressive stresses on the tooth surface, which is the primary driver of high-cycle fatigue life in robotic joints.
Fine-pitch gear machining requires specialized small-diameter tooling and vibration-dampened setups. In Harmonic drives, the gear teeth can be as small as 0.15 module. JUCHENG utilizes ultra-precision Wire EDM (Electrical Discharge Machining) and micro-milling to execute these tiny geometries with perfect edge clarity. We ensure that the tooth tips are rounded to a specific radius to prevent localized stress concentration, ensuring that the flexspline can endure millions of bending cycles without developing microscopic fractures.
RV vs. Harmonic: Complex Geometries for Precision Joints

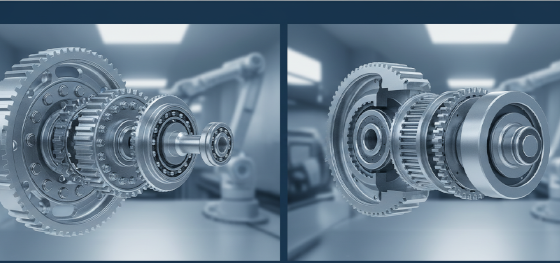

The geometry of a robot joint determines its torque density and speed capability. RV reducers utilize cycloidal pins and planetary gears to achieve high reduction ratios in a compact footprint. In Precision gearbox components for robots, the cycloidal pin set is the most difficult to manufacture. JUCHENG machines these pins from high-chromium steel and grinds them to a Ra 0.1 finish to ensure rolling contact with zero "stiction." This allows RV drives to provide the massive torque required for the heavy J1 and J2 axes of industrial giants.

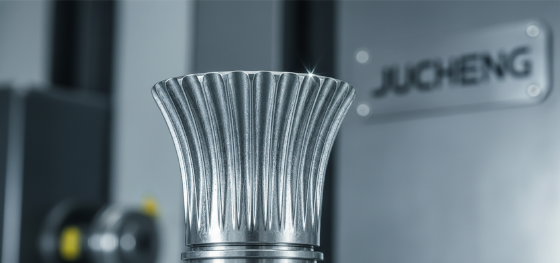

Harmonic drives rely on a different physical principle: elastic deformation. The wave generator deforms an ultra-thin flexspline to mesh with a rigid circular spline. JUCHENG’s expertise in industrial robot parts allows us to machine these flexsplines with wall thicknesses as low as 0.5mm while holding a concentricity of 0.005mm. Any variation in wall thickness would cause an asymmetrical load, leading to rapid fatigue failure. Our 5-axis machining process ensures that the flexspline is a "perfect elastic cylinder" before it ever enters the hardening furnace.

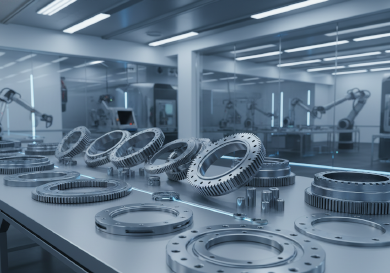

Cross-roller bearings are often integrated directly into the gearbox housing to save space and increase rigidity. JUCHENG machines these bearing races as part of the circular spline assembly, ensuring that the axis of the bearing and the axis of the gears are perfectly co-axial. This integration reduces the "stacking error" of multiple separate components, providing a much stiffer joint that resists the "tilting moment" created when a robot arm is fully extended. Our hybrid manufacturing approach—combining gear cutting with bearing race grinding—is what sets JUCHENG apart as a truly premium gearbox partner.
Planetary gear sets for RV drives require absolute matching. In high-performance industrial robot parts, JUCHENG machines sun and planet gears in "matched sets," ensuring that the tooth-to-tooth spacing is identical across all gears in the assembly. This prevents "torque-loading" of a single gear tooth, which is a common cause of premature failure in lower-quality reducers. By managing the entire kinematic chain—from the input shaft to the output flange—we deliver a reduction system that is balanced, quiet, and incredibly durable.

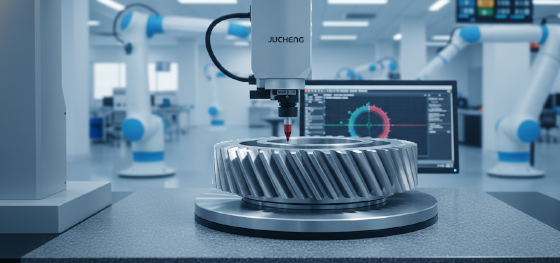

JUCHENG Metrology: Verifying the Micron-Level Profile
Dominating the [2026] robotic market requires more than just high-end machines; it requires the ability to prove the accuracy of every tooth. Jucheng Precision operates with a 24/7 manufacturing mindset in our Shenzhen precision manufacturing hub, utilizing dedicated gear inspection centers and coordinate measuring machines (CMM). We verify the involute profile, the lead error, and the pitch deviation of every critical gearbox component to ensure it meets the AGMA Class 14 or DIN 3 standards.
Integrating your gearbox design with JUCHENG’s expertise ensures that your joint survives the "First-Million Cycle" test and moves into mass adoption. We offer comprehensive DFM reviews within 24 hours, identifying potential fatigue bottlenecks or "grinding risks" in your gear design before they become field failures. Whether you are building a collaborative arm for high-speed electronics or a heavy-duty palletizer, Jucheng Precision provides the hardened, precise "heart" that keeps your innovation moving through the high-torque cycles and the years of hard labor.
Our facility is equipped with 150+ CNC machines and specialized gear grinding cells, allowing us to manage the entire drivetrain lifecycle in one location. We manage the complexity of hard milling and micro-gear cutting so your engineering team can focus on the motion control and the AI. By combining Shenzhen's speed with industrial-grade metrology, JUCHENG remains the preferred partner for the world's most aggressive industrial robot parts challenges. Contact us today to start your next project.
FAQ: Precision Gear Manufacturing for Industrial Bots
What is the maximum hardness JUCHENG can machine for gear teeth?
We specialize in hard milling and grinding steels up to HRC 62-65 for maximum wear resistance.
Why is cycloidal gearing better than planetary for robot J1 axes?
Cycloidal drives provide higher shock-load capacity and zero-backlash characteristics in a more compact footprint.
How do you ensure the thin flexspline doesn't warp during heat treat?
We utilize specialized vacuum nitriding and custom clamping fixtures to maintain micron-level concentricity during the thermal cycle.
What gear class does JUCHENG typically achieve?
We regularly deliver gear components meeting AGMA Class 13-14 or DIN 3-4 standards for high-precision robotics.
What are typical lead times for custom gear components?
Precision ground gear sets are typically delivered in 4 to 6 weeks, including heat treatment and metrology.
Gearbox failure in industrial robotics is an absolute hardware killer. Partnering with Jucheng Precision ensures that your reduction systems are built with the HRC 55+ hardened steel and specialized gear-grinding techniques the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the high-torque foundation your autonomous fleet requires.
