Scraping And Galling Defeated By Precision Sloping Geometries
Views: 1 Author: Allen Xiao Publish Time: 2026-06-01 Origin: Site
Designing perfectly vertical walls on a 3D model looks incredibly clean on your computer monitor. Reality inside a massive hydraulic press operates under completely different physics. Molten alloy violently shrinks as it rapidly drops in temperature, transforming the cooling part into a vice grip that actively chokes the internal steel cores. Dragging a perfectly straight metal box out of that cavity requires terrifying mechanical force.
Deep gouges and catastrophic surface tearing occur the moment those ejector pins fire against an unsloped wall. Manufacturing teams lose thousands of dollars scrapping parts with completely ruined cosmetic finishes. Establishing a comprehensive die casting design guide upfront forces engineering departments to calculate extraction slopes long before cutting expensive tool steel.
Sloping your geometry slightly dictates whether your production line runs smoothly or halts constantly for mold repairs. We will unpack the exact physics of metal galling, define specific slope requirements for different metallurgical grades, and explain the mathematical relationship between sloped walls and final assembly fitment.
Why do unsloped vertical walls physically weld themselves to the tooling cavity? Shrinking metal creates massive frictional drag against the tool surface during removal; adding a die casting draft angle breaks that vacuum seal instantly, allowing the part to pop out freely.

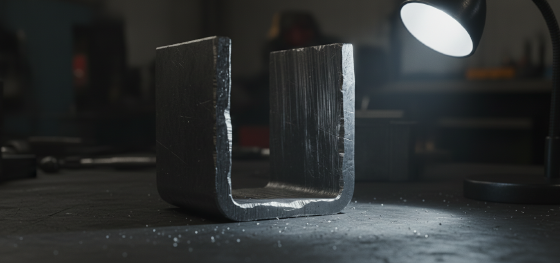

Friction acts as the ultimate enemy during the mechanical ejection phase. Hot aluminum literally scrapes against the H13 steel, pulling tiny microscopic flakes off the mold and embedding them directly into your expensive hardware.
Toolmakers refer to this destructive galling effect as soldering. Fixing a soldered mold requires shutting down the entire press, cooling the massive steel block, and paying technicians to manually polish the cavity, bleeding massive amounts of daily profit.
Alloy Behaviors: Aluminum vs Zinc Metrics
Different liquid metals demand totally unique geometric slopes based on their exact thermal contraction rates. Soft, highly fluid zinc alloys contract gently, allowing designers to utilize incredibly steep, almost imperceptible sloping angles down to half a degree.
Aggressive aerospace aluminum fights back significantly harder during the cooling cycle. Engineers must apply a much wider die casting draft angle to these rigid structures, typically calculating one to two full degrees of taper to prevent catastrophic sticking.
Metallurgical Grade
Standard Internal Wall Taper
Standard External Wall Taper
Zinc Alloys
0.5 to 1.0 Degrees
0.25 to 0.5 Degrees
Magnesium Alloys
1.0 to 1.5 Degrees
0.5 to 1.0 Degrees
Aluminum Alloys
1.5 to 2.0 Degrees
1.0 to 1.5 Degrees
Failing to adjust your CAD slopes when migrating from zinc to aluminum guarantees immediate production failures. Our tooling engineers ruthlessly audit these specific material transitions before approving any new cutting paths.
Crushing Force: Internal Cores vs External Walls

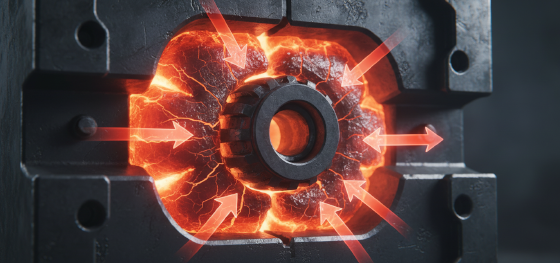

Where exactly does the shrinking metal apply the most destructive crushing force? Internal features absorb massive compressive tension as the cooling part shrinks inward, requiring inside walls to possess double the sloping angle of any exterior-facing surface.
Exterior walls naturally pull away from the outer cavity as the overall geometric footprint reduces in size. This physical separation provides a natural extraction advantage, requiring very minimal sloping to achieve a clean release.
Internal mounting bosses face the exact opposite thermodynamic reality. The solidifying ring of metal tightens aggressively around the steel core pin. Extracting that pin without tearing the internal bore demands heavy drafting to release the extreme gripping pressure.
Dimensional Drift: Balancing Slopes and Fits
Sloping a vertical wall inherently changes the physical thickness of the part from top to bottom. Tapering a deep enclosure means the top opening will measure significantly wider than the internal base, directly impacting your PCB mounting strategy.
Precision assembly dictates that you mathematically track this geometric drift. Evaluating baseline die casting tolerances early prevents engineers from designing mating components that suddenly fail to align due to an unexpected sloped wall.
Milling away the excess taper remains the only solution for critical zero-gap sealing faces. Foundries routinely cast the required die casting draft angle for safe ejection, then immediately send the part into a 5-axis CNC center to shave the wall perfectly flat.
JC Rapid: Flawless Execution and DFM Audits
Sending unverified step files directly into mass production guarantees expensive tooling modifications later. Broker shops will gladly cut straight walls into your mold, pocket your money, and charge you extra when the parts inevitably get stuck.
Partnering with JC Rapid completely neutralizes this predatory trap. Our senior mechanical team runs aggressive flow and ejection simulations, dynamically modifying your CAD slopes to match your chosen alloy before any steel gets milled.
Stop risking your supply chain on basic geometric oversights. Submit your complex hardware assemblies to our engineering queue today. We map the ultimate extraction pathways and deliver flawless, scratch-free commercial components.
FAQ: Honest Answers About Tapering and Tool Wear
Can heavy texturing or bead blasting hide the drag marks caused by poor extraction? Superficial texturing easily masks minor visual inconsistencies, but severe galling creates deep structural gouges that aggressive sandblasting simply cannot erase.
Do very short vertical walls under five millimeters still require strict tapering? Microscopic walls sometimes survive without formal tapering due to their minimal surface area, but we always recommend at least a fractional degree of slope to extend the lifespan of the ejector pins.
Does applying heavy chemical release agents eliminate the need for sloped walls? Chemical lubricants certainly help reduce immediate friction, but relying solely on sprays causes toxic buildup inside the cavity, eventually ruining the cosmetic finish of the hardware.
How do designers handle critical features that absolutely must remain perfectly vertical? We orient those specific features parallel to the parting line whenever possible, or deploy highly complex hydraulic side-action sliders that pull away before the part ejects.
