What does Edm Mean：The Precision Power of Spark Machining
Views: 2 Author: Allen Xiao Publish Time: 2025-08-12 Origin: Site
EDM (Electrical Discharge Machining) is a non-traditional machining process that uses controlled electrical sparks to shape hard metals and alloys with extreme precision. Unlike conventional cutting methods, EDM removes material through rapid, repeated spark discharges between an electrode and the workpiece, submerged in a dielectric fluid. This makes it ideal for intricate geometries, hardened steels, and superalloys that would otherwise be difficult to machine. Industries like aerospace, medical, and mold-making rely on EDM for high-accuracy components.
An EDM machine is the backbone of this process, consisting of a power supply, dielectric system, electrode, and CNC-controlled movement. Modern EDM machines incorporate advanced automation, real-time monitoring, and adaptive controls to optimize sparking efficiency. Whether using wire EDM or sinker EDM, these machines ensure micron-level tolerances, making them indispensable for tool and die production.
Machining Beyond Conventional Limits
Machining via EDM bypasses the limitations of traditional cutting tools. Since there’s no direct contact between the tool and workpiece, mechanical stresses and tool wear are minimized. This allows for the fabrication of delicate features like sharp corners, thin walls, and deep cavities without distortion. Additionally, EDM can process conductive materials regardless of hardness, opening new possibilities for exotic alloys and heat-treated components.

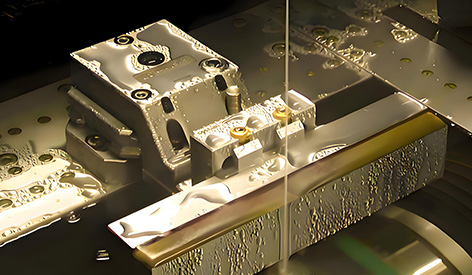

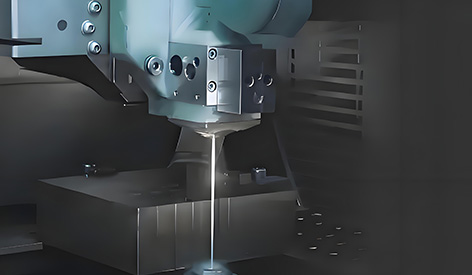

Wire EDM: Precision Cutting Redefined
In wire EDM, a thin, electrically charged wire (typically brass or coated) slices through the workpiece like a high-precision saw. The wire moves continuously, preventing wear while maintaining accuracy. This method excels at producing complex 2D and 3D profiles, such as gears, punches, and medical implants. With tolerances as tight as ±0.0001 inches, wire EDM is a go-to for industries demanding flawless finishes.
Finding EDM Services Near Me
Searching for "EDM near me"? Local EDM service providers offer specialized machining solutions for prototyping and production. Many shops now provide rapid turnaround, CAD/CAM integration, and multi-axis EDM capabilities. Whether you need a one-off prototype or high-volume production, partnering with a nearby EDM specialist ensures quality and reduces lead times.

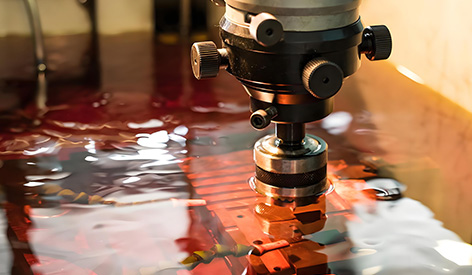

Sinker EDM: Crafting Complex Cavities
Also known as ram EDM, sinker EDM uses a custom-shaped electrode (often graphite or copper) to burn intricate cavities into the workpiece. This method is widely used for injection molds, forging dies, and intricate aerospace components. The electrode’s shape is precisely replicated in the workpiece, making sinker EDM ideal for applications requiring fine details and smooth surface finishes.
The Science Behind the Eroder
An eroder (another term for an EDM machine) operates on the principle of controlled spark erosion. By generating high-frequency electrical discharges, it vaporizes tiny amounts of material with each spark. The dielectric fluid flushes away debris and cools the workpiece, ensuring consistent machining. This process allows for unparalleled precision, even in the hardest materials.
Spark Erosion Machine: How It Works
A spark erosion machine leverages the same principles as EDM but is often associated with heavier industrial applications. These machines can handle large-scale dies, turbine blades, and automotive components. With advancements in pulse control and automation, modern spark erosion machines deliver faster machining speeds while maintaining sub-micron accuracy.
EDM Merch: Tools and Accessories
For professionals in the field, EDM merch includes specialized electrodes, dielectric fluids, wire guides, and maintenance kits. High-quality consumables are critical for achieving optimal performance and longevity of EDM equipment. Many suppliers also offer training materials and software tools to help machinists maximize efficiency.
EDM has revolutionized precision manufacturing by enabling the machining of ultra-hard materials with unmatched accuracy. From wire EDM’s fine cutting capabilities to sinker EDM’s intricate shaping, this technology continues to push the boundaries of modern industry. Whether you're searching for local services or exploring advanced spark erosion techniques, EDM remains a cornerstone of high-performance manufacturing.
