Bridging the Gap Between EE and ME: A Guide to Electronic Prototypes
Views: 3 Author: Allen Xiao Publish Time: 2025-11-11 Origin: Site
The electrical engineering team has finished the circuit board. The mechanical engineering team has designed a beautiful enclosure. Then comes the moment of truth. You try to assemble the first prototype. And it does not fit.
This is one of the most common and costly failures in product development. The gap between the electronics and the mechanics. This single problem can cause weeks of delays and expensive redesigns.
The solution is not just better design. It is choosing the right manufacturing partner. You need to work with expert electronic prototype companies. A partner who understands that they are not just making a box. They are making one half of a complex, integrated system.
The enclosure for an electronic device does much more than just look good. It is a functional part of the system.

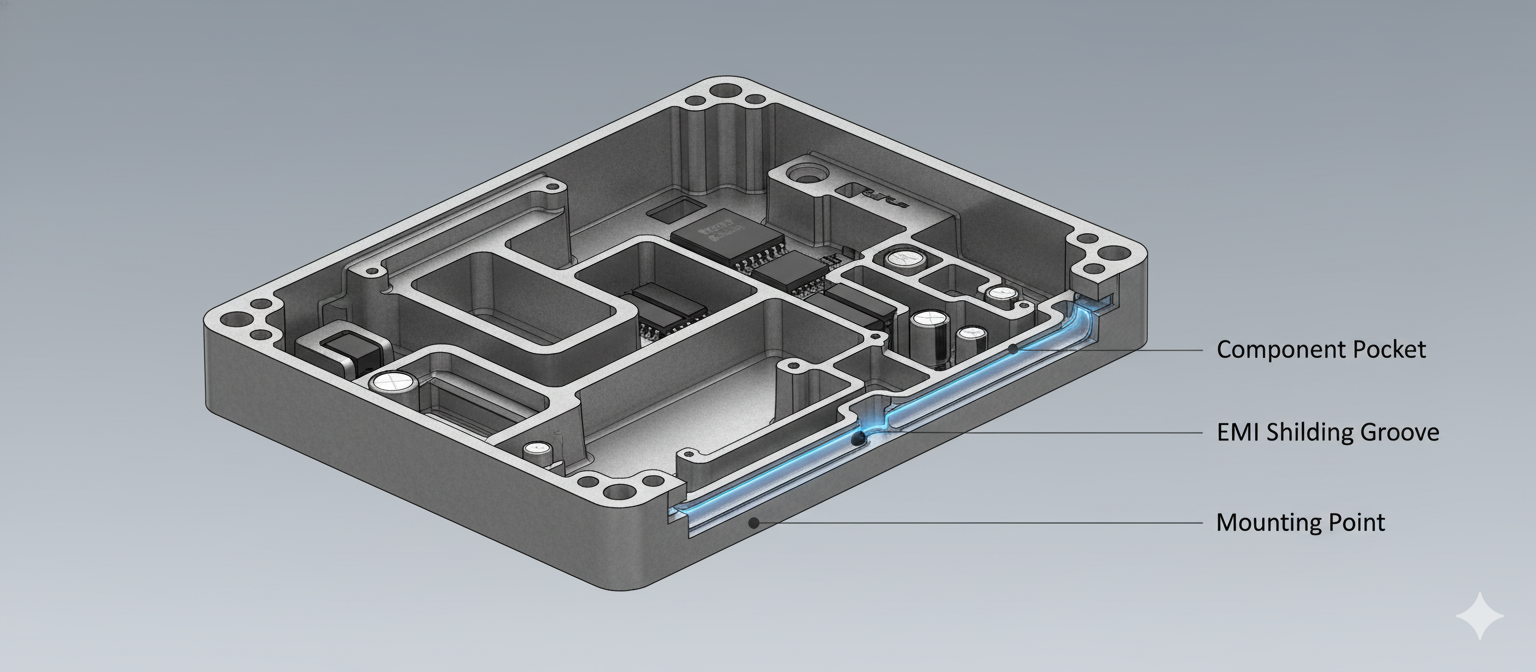

It must provide precise mounting points for the PCB. These are tiny threaded standoffs that must align perfectly with the holes on the board. A misalignment of just half a millimeter can make assembly impossible.
It must have perfectly located openings for all connectors. The hole for the USB-C port must be centered perfectly. The opening for the screen must be exact.
It often needs to manage heat. A powerful processor needs to dissipate heat. The enclosure might need thin fins machined into it to act as a heat sink. The thickness of the material is critical for this.
It may also need to provide EMI shielding. This prevents electronic noise from interfering with the circuit. This is achieved by ensuring all parts of a metal enclosure make good electrical contact.
This is why the enclosure is part of the electronic system. It is not just a pretty box.
The Risks of a Simple Machine Shop
Many companies make the mistake of sending their enclosure design to a general machine shop. A shop that makes car parts one day and plumbing fixtures the next.
This is a huge risk. A general shop does not understand electronics. They see your enclosure as just a block of metal with holes in it. They do not understand why the location of a tiny standoff is so critical. They might not have the high-precision 5-axis CNC machines needed to hold the tight tolerances.
They will not ask you the right questions. They will not know to ask about heat dissipation or EMI shielding. They will just make the part exactly as you drew it. If there is a mistake in your design, they will make the mistake.
This leads to the painful "it doesn't fit" moment. This is a failure of the entire prototype development process.
A Partner Who Speaks Both Languages
Expert electronic prototype companies are different. They are specialists. They speak both the language of mechanical engineering and the language of electrical engineering.
When they receive your design, their engineers do not just look at the enclosure. They ask for the design of the PCB as well. They perform a virtual assembly in their CAD software.
This is a critical step. It allows them to find problems before any metal is cut. They will check every alignment. Is the PCB mounting hole aligned with the standoff? Yes. Is the USB port centered in its opening? No, it is off by 0.2mm. We need to adjust.
This is the DFM feedback that a true partner provides. They are your second set of expert eyes. They are part of your team. They help you catch and fix problems. They prevent the "it doesn't fit" moment.
This collaborative process is the most important service that a specialist company offers. It is more valuable than their machines. It is the key to a successful project.
The Result: A Seamless Product
When you work with a specialist partner, the outcome is different.

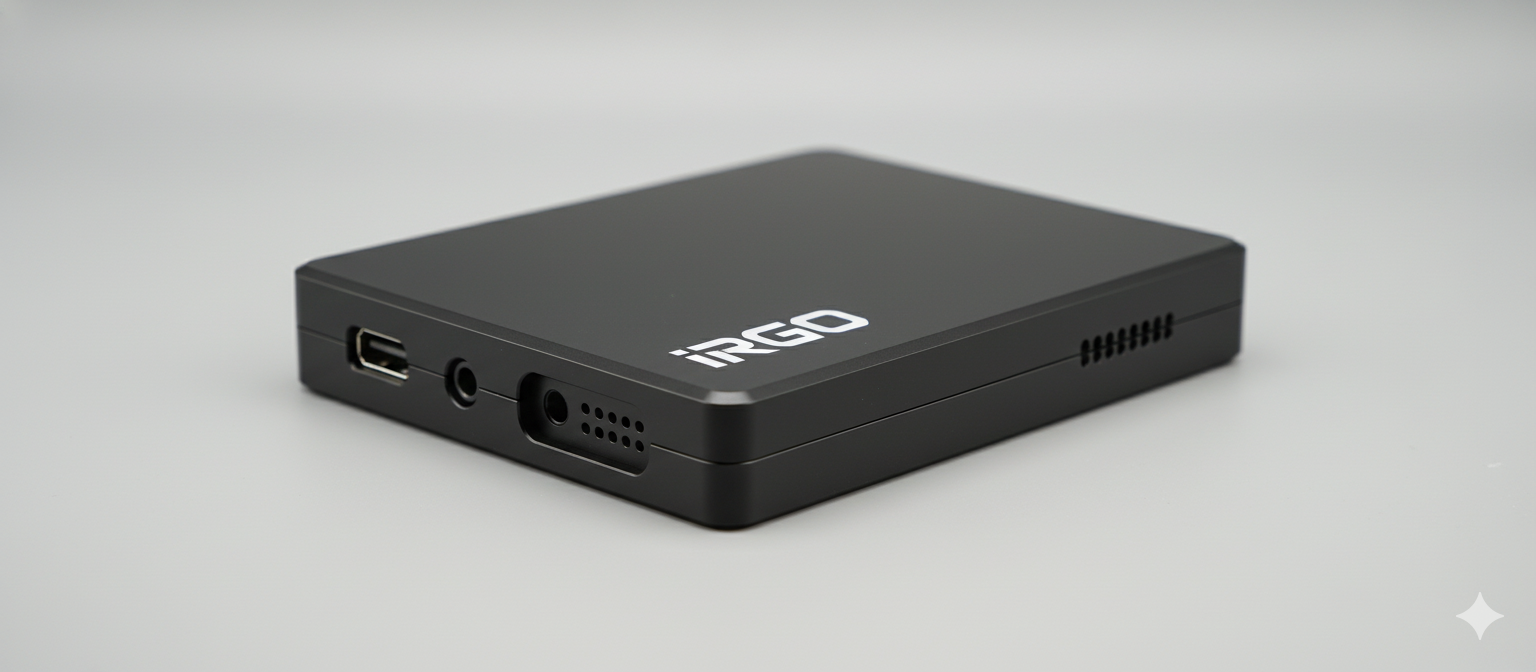

The prototype arrives. You open the box. The enclosure is beautiful. The finish is perfect.

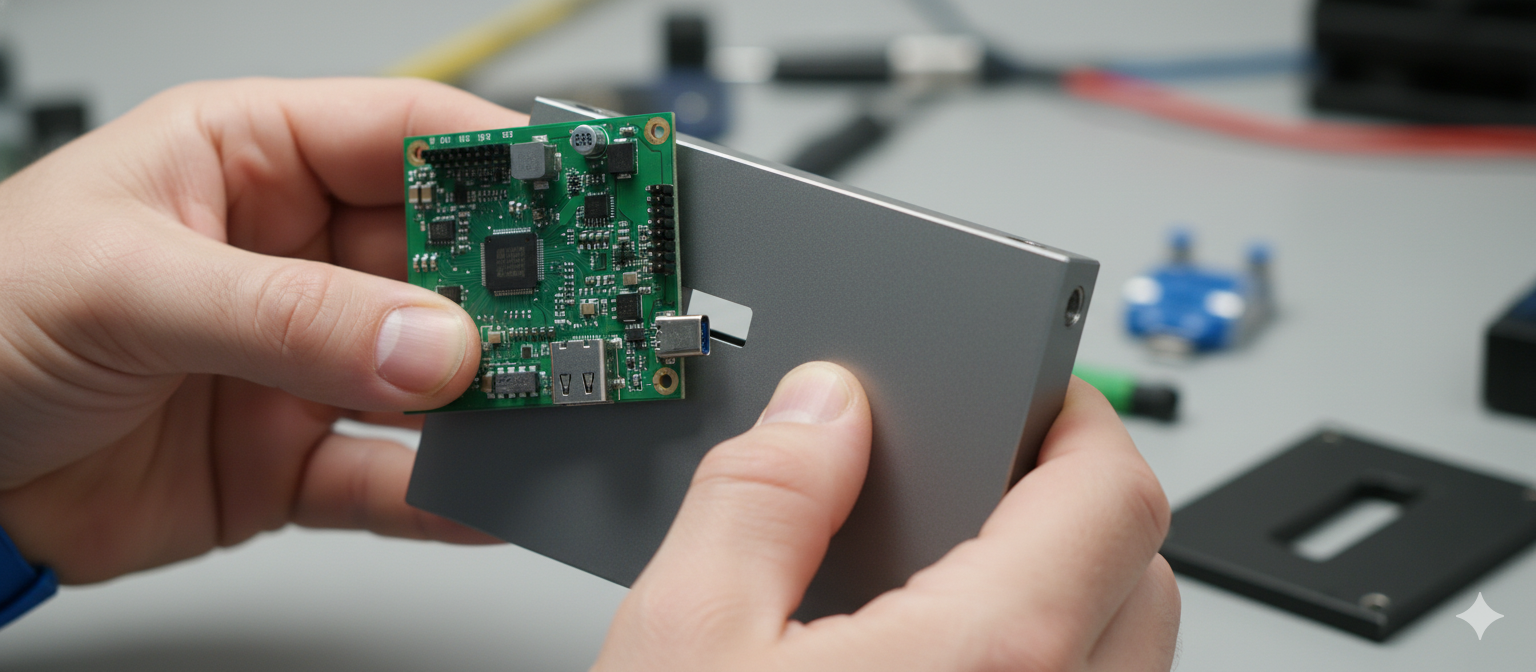

Then comes the real test. You take the PCB. You place it inside the enclosure. It drops in perfectly. The mounting holes line up. You check the connectors. Every port is perfectly centered in its opening.
The assembly is smooth. It is easy. It just works.
This is the feeling of success. It is the result of a smart process. It is the result of choosing a partner who understands the complete system, not just a single part. For any serious electronic product, this is the only way to work.
