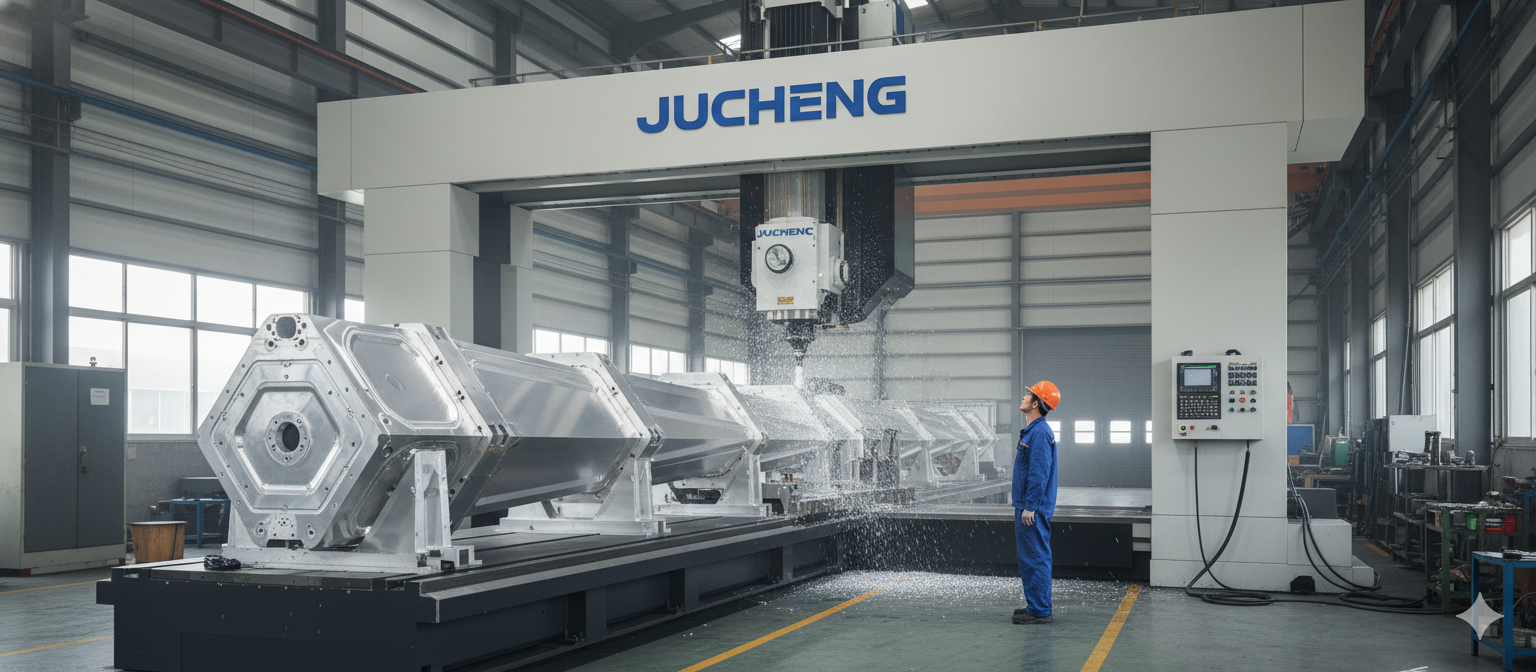

While standard CNC machines handle most components, the precision manufacturing of large, long-travel parts—such as aircraft spars, machine beds, and structural frames—requires specialized Large Format CNC Machining capabilities. This technology, often featuring long mill or gantry configurations, is essential for maintaining micron-level accuracy over extended dimensions.
The challenges in this field are unique, centered on thermal stability, vibration control, and sophisticated fixturing to prevent part distortion. Jucheng Precision Technology offers decades of expertise in this high-stakes domain, leveraging advanced equipment and certified processes to deliver reliable, large-scale components for the Aviation Aerospace and heavy equipment industries.
content:
Thermal Management: Mitigating Heat Distortion Over Long Runs
Fixturing and Stability: The Art of Securing Large Components
Material Selection and Stress Relief for Large Format Parts
Multi-Axis Benefits: Enhancing Accuracy and Efficiency
Thermal Management: Mitigating Heat Distortion Over Long Runs
One of the most significant challenges in Large Format CNC Machining is controlling thermal expansion and contraction. Heat generated by the cutting tool and the machine itself can cause measurable distortion over long travels:
Cooling Systems: Advanced spindle and machine bed cooling systems are essential to maintain a stable, uniform temperature, ensuring the machine's geometry does not change during the hours-long machining process.
Coolant Strategy: Precise application of coolant minimizes heat at the cutting surface, preventing thermal stress in the large component itself.
Fixturing and Stability: The Art of Securing Large Components
Proper fixturing is the foundation of accuracy for large parts. The sheer size and weight of the material must be stabilized against cutting forces to prevent vibration and deflection:
Stress Management: The initial stock material must be securely clamped across its entire length to prevent movement. Clamping must also be applied strategically to avoid inducing stress that could be released as the material is cut.

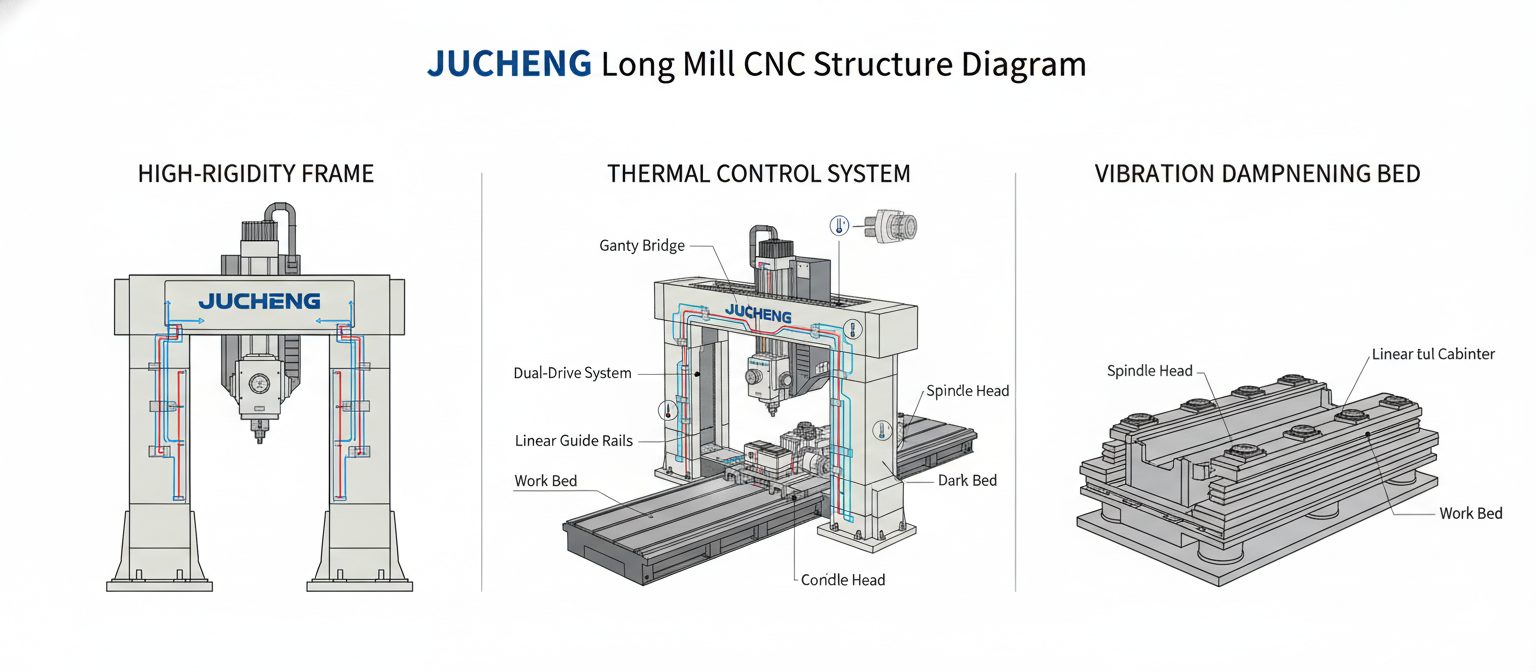

Vibration Dampening: Large-scale machines must be built with high-rigidity structures and often placed on specialized foundations to absorb vibration, which directly impacts surface finish and dimensional accuracy.
Material Selection and Stress Relief for Large Format Parts

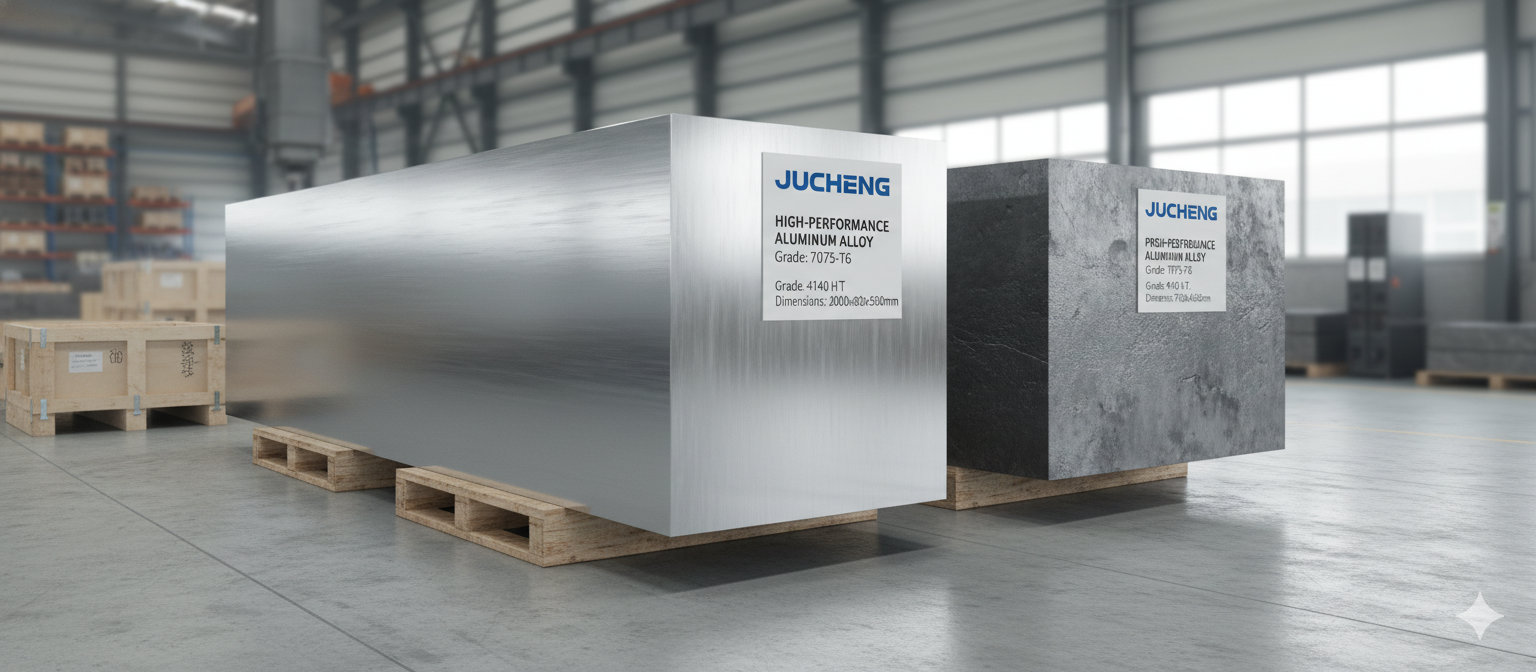

High-performance large components, particularly those for Aviation Aerospace, are often made from high-strength Aluminum, Alloy Steel, or Titanium, requiring specific handling:
Pre-Machining Stress Relief: Large billets often contain internal stress from the forging or rolling process. A common technique is rough machining followed by a heat treatment or annealing process before final precision passes.
Material Traceability: For Aerospace applications, material traceability is mandatory. A capable partner provides full documentation on the material used, ensuring compliance with strict industry standards.
Multi-Axis Benefits: Enhancing Accuracy and Efficiency

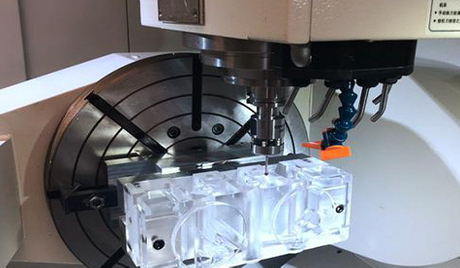

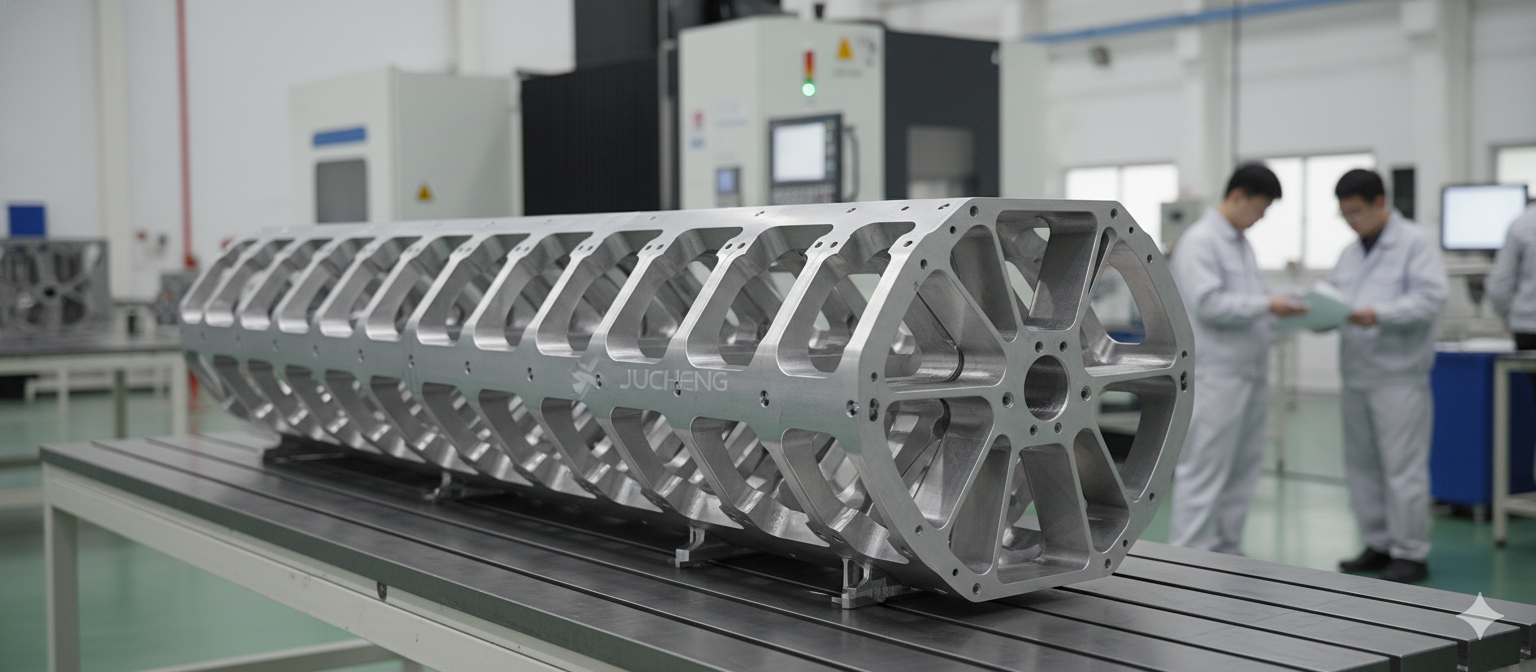

The application of 5-axis technology to Large Format CNC Machining significantly enhances both the complexity and the quality of the final part:
Single-Setup Processing: Our 5-axis machines can access five sides of a large part in one setup, eliminating the manual repositioning errors that compound over large distances.
Reduced Lead Time: By minimizing setups, the total cycle time is drastically reduced, enabling faster turnaround for critical prototypes and small batch production runs.
Sourcing Large Format CNC Machining requires a partner whose expertise is built on high-rigidity equipment, thermal management, and 5-axis technology. Jucheng Precision Technology offers the proven capacity and certified quality demanded by the world's most challenging structural components.
Secure your large-scale precision components. Contact us today to discuss your next long mill CNC project.
