Transforming a digital CAD model into a physical assembly that feels substantial and unyielding is the definitive test of modern hardware manufacturing. In the high-stakes world of autonomous robotics and medical imaging, a component must do more than just exist; it must convey a sense of engineering maturity. Tapping on a 2-meter long shell and hearing a solid, dense thud instead of a hollow plastic ring is the immediate indicator of quality. Achieving this sensory and structural standard requires a mastery of reaction injection molding parts to bridge the gap between fragile mock-ups and unyielding production units. This low-pressure liquid chemistry allows for the creation of monolithic panels that protect sensitive AI electronics from the physical and thermal chaos of the ward or factory floor.
Mechanical integrity in large-format hardware depends on the material's ability to cross-link without the crushing force of thousands of psi. Jucheng Precision addresses these critical manufacturing hurdles by acting as a strategic fabrication partner for global OEMs. Jucheng Precision utilizes a massive fleet of 150+ CNC machines and 25 5-axis Haas/Mazak units to manufacture the oversized aluminum tools required for Polyurethane Molding Services. By providing a free DFM analysis in 24 hours, Jucheng Precision ensures your hardware maintains its geometric zero through years of hard labor in our Shenzhen factory hub.
Operating under a triple mandate of ISO 13485, ISO 14001, and IATF 16949, Jucheng Precision provides the strategic bridge to production for innovators. We transform raw liquid chemistry into validated structural hardware, offering a single point of accountability for molding, painting, and assembly. This guide explores the essential physical standards, the logic of ISO 13485 Prototyping, and the surface requirements required for mastering reaction injection molded components to ensure your next innovation secures its commercial position with unyielding hardware reliability.
content:
Physical Integrity: Why Rigid RIM Components Outperform Standard Plastics?
Scaling Size: Mastering Large-Format Shells Over 1 Meter
Aesthetic Perfection: Mastering Painting, Screening, and Marking
Economic Logic: Why Low-Volume Runs Rule Modern R&D?
Quality Standards: Validating Integrity via CMM and ISO Frameworks
FAQ: Real Answers for Sizing, Surface Finish, and Sourcing Logistics

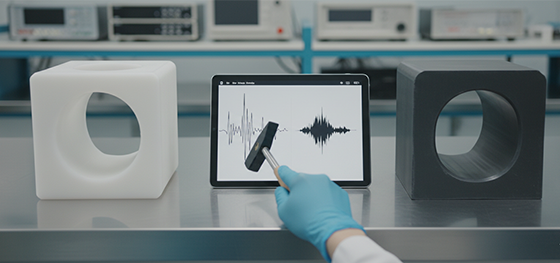

Physical Integrity: Why Rigid RIM Components Outperform Standard Plastics?
Absolute stiffness in oversized panels is the primary differentiator in custom reaction injection molding. When I hold a rigid RIM parts sample in our Shenzhen lab, the first thing I notice is the isotropic strength—the material is equally strong in every direction because the chemical cross-linking happens uniformly throughout the part. In contrast, standard injection-molded parts often exhibit weak spots at the weld lines where molten plastic fronts meet. For a robot chassis or a medical manifold, these weak points are unacceptable. Jucheng Precision utilize high-performance polyether polyols to create parts that mimic the stiffness of ABS but with significantly better dent resistance and sound dampening properties.
How does RIM achieve a solid core feel?
The expanding chemical reaction inside the mold creates an internal pressure that ensures 100% density, eliminating the hollow rattle found in thin-walled thermoplastic shells.
Variable wall thickness capability allows for structural consolidation that was previously impossible. Jucheng Precision’s mold designers can integrate 15mm thick mounting blocks directly against a 4mm aesthetic skin with zero surface sink marks. This "Bionic Bone" architecture ensures that your prototype robot remains rigid under the high-torque loads of an industrial actuator while maintaining a sleek, retail-ready exterior. By delivering hardware with integrated structural supports, we help our clients eliminate the need for heavy internal steel sub-frames, reducing the total mass of the autonomous system and directly extending its operational battery life in the field.
Internal stress relief is the second secret to the physical integrity of these components. High-pressure molding results in locked-in tensions that cause panels to warp or "Potato-Chip" months after delivery. Because Jucheng’s RIM parts cure in a relaxed state at low pressure, they are essentially stress-free. This ensures that the door seals and sensor windows of your medical console remain perfectly aligned through thousands of clinical cycles. Our commitment to precision foundations ensures that your hardware doesn't just look like an OEM machine, but performs with the same unyielding reliability throughout its 10-year service life.
Scaling Size: Mastering Large-Format Shells Over 1 Meter

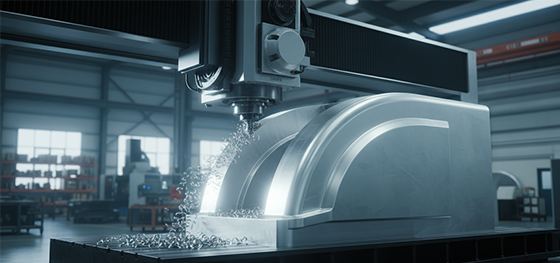

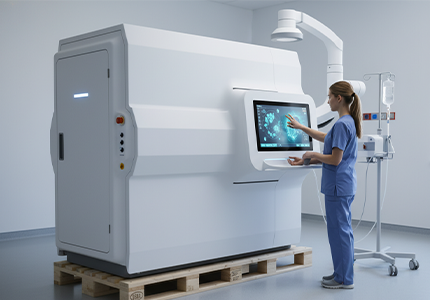

Managing the physical scale of an autonomous vehicle body or a large diagnostic scanner reveals the technical boundaries of most job shops. Sourcing large RIM molded parts requires a partner who understands the economics of oversized aluminum tooling. In traditional injection molding, a 1.5-meter part requires a press with thousands of tons of clamping force and a steel mold costing over $150,000. Jucheng Precision addresses this financial barrier by utilizing low-pressure RIM equipment that handles massive surface areas on a lean budget. By utilizing our oversized gantry CNC mills to carve high-strength aluminum molds, we deliver unyielding foundations for diagnostic console shells in as fast as 15 business days.
What is the maximum span for a monolithic RIM panel?
Jucheng Precision regularly produce structural fenders and hoods up to 2,500mm in length with consistent wall thickness and zero internal voids.
Flatness over large spans is the primary aesthetic challenge for Large Scale Plastic Parts. I have observed many projects fail because a large flat surface looked wavy under high-gloss paint. Jucheng Precision utilize curvature and crown logic, where every large surface features a subtle arc to mask minor material movement and increase bending stiffness. By delivering hardware with integrated visual stability, we ensure your prototype robot maintains its "Geometric Zero" fits through years of field abuse in non-climate-controlled environments. Jucheng’s Shenzhen hub manages these thermodynamic variables to provide the structural certainty that high-end autonomous systems require.
Handling and logistics for these giant parts are managed within Jucheng’s integrated hub. We understand that a 20kg plastic shell is a high-value asset. Jucheng Precision provide custom-fitted wooden flight cases with internal shock-dampening for all oversized functional prototypes, ensuring they arrive calibrated and ready for power-up at your facility in North America or Europe. This focus on "Crate-to-Clinic" reliability is what makes Jucheng Precision the preferred RIM plastic parts supplier for global MedTech and robotics firms who cannot afford the logistical risks of multi-vendor supply chains.

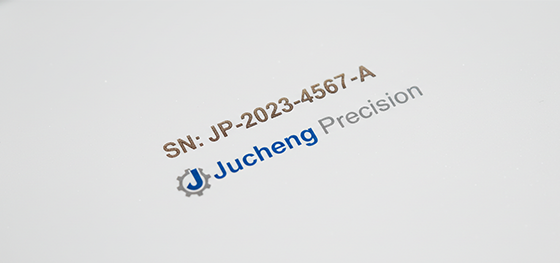

Aesthetic Perfection: Mastering Painting, Screening, and Marking
Visual identity in the high-end industrial sector is defined by the "Final Polish" applied after the part leaves the mold. Achieving a retail-ready appearance on painted RIM parts requires a technical departure from standard "Rough Prototyping" finishing. Polyurethane is the industry favorite for painting because its high surface energy creates a permanent molecular handshake with 2K urethane topcoats. Jucheng Precision addresses these visual hurdles by providing an integrated finishing suite. Our in-house painting facility applies automotive-grade clear coats that match your corporate Pantone colors with +/- 0.5 Delta-E accuracy, ensuring your diagnostic equipment shell conveys a message of permanence and engineering excellence.
How to ensure brand labels don't peel in the field?
Utilize silk screened RIM parts or laser marking with epoxy-based inks that chemically fuse to the polymer substrate, surviving thousands of aggressive cleaning cycles.
Integrated hardware registration for instructions and logos is managed through Jucheng’s Silk-Screening and Laser Marking booths. We avoid adhesive decals which can bubble under intense solar heat. Instead, Jucheng Precision utilize 5-axis CNC laser texturing to machine VDI 3400 standardized grains and brand logos directly into the mold surface. This level of precision is essential for laser marked RIM parts where permanent UDI barcodes or safety warnings are a regulatory requirement. By delivering hardware with integrated, unyielding branding, Jucheng Precision helps global innovators build a "Long-Life" brand reputation, ensuring their innovation looks as professional on its 1,000th day as it did on day one.
Surface integrity during preparation is the final aesthetic barrier. Large plastic panels are magnets for dust due to the static charge generated during molding. Jucheng Precision utilize ionized air blow-offs and specialized tack-cloths immediately before the part enters our dust-free painting suite. This ensures that no tiny specks of dust are trapped under the finish, which is vital for medical devices where surface imperfections can harbor bacteria. By managing the entire finishing lifecycle in our Shenzhen hub, we eliminate the logistical friction of multi-vendor sourcing, ensuring your high-value hardware arrives in the boardroom ready for close-up inspection.

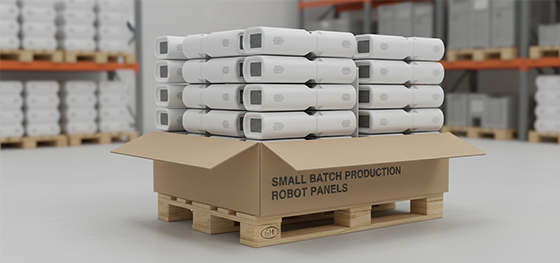

Economic Logic: Why Low-Volume Runs Rule Modern R&D?
Success in hardware optimization depends on matching the financial architecture to your order volume. In the context of low volume RIM parts, the "Sweet Spot" typically exists for annual runs of 100 to 2,000 units. Traditional injection molding piece prices are lower, but the amortization of a $100,000 tool over only 500 units results in a total project cost that is significantly higher than RIM. Jucheng Precision provide transparent Reaction Injection Molding Breakeven Point analysis to help procurement teams maximize their R&D budget. By utilizing rapid aluminum tooling, we allow our clients to launch their first functional fleet with 80% lower upfront CapEx, preserving their cash flow for critical AI and sensor improvements.
What is the minimum quantity for a RIM production run?
Jucheng Precision has No MOQ, allowing you to source 5 to 50 validated units for customer field trials without the crushing cost of mass-production iron.
Iterative agility is the second driver of mid-scale ROI. For robotics teams in the Beta phase, the design is rarely frozen. If a field trial reveals a thermal bottleneck in your drone pod, Jucheng Precision can weld material into the aluminum tool and re-machine a more efficient cooling fin array in days. This Agile Tooling capability ensures that your financial breakeven is not reset by every minor engineering change. By delivering "Iterative-Ready" hardware, Jucheng Precision ensures your innovation survives the volatile transition from concept to mass adoption, providing the unyielding foundations your autonomous innovation requires in our Shenzhen hub.
Supply chain continuity at Jucheng Precision ensures that the same engineers who built your first hand-poured Alpha unit are the ones managing your 1,000-unit commercial pilot run. 我们 maintain a detailed "Manufacturing Digital Thread" for every project, documenting the specific CNC feeds, mold temperatures, and material batches used. This historical data is invaluable when you need to scale your manufacturing, as it allows Jucheng Precision to identify and replicate the exact conditions that led to a successful prototype. We provide a bridge to production that is as much about data as it is about plastic, providing the unyielding foundations your autonomous innovation requires.

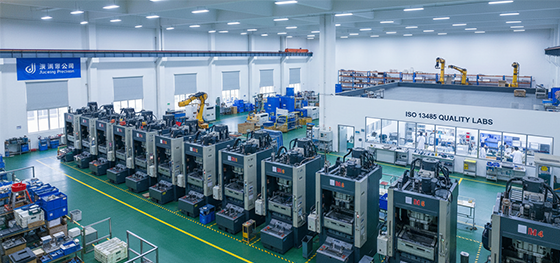

Quality Standards: Validating Integrity via CMM and ISO Frameworks
Proving the structural safety factor of a massive enclosure is often more difficult than molding it. In RIM plastic parts supplier verification, traditional hand-tools are useless for detecting a 0.5mm deviation over a 2,000mm span. Jucheng Precision utilize oversized Coordinate Measuring Machines (CMM) and laser trackers to verify every structural node of your part. We perform 100% inspection on critical-to-quality (CTQ) dimensions, providing you with a full dimensional report compared to your original 3D CAD model. This data is essential for your internal hardware validation and future regulatory audits, providing the "Manufacturing Evidence" required for global MedTech and aerospace certification.
How do you manage material purity for medical parts?
Jucheng Precision operates under ISO 13485, maintaining strict material segregation to ensure that only certified medical-grade resins enter our clean production cells.
Operating under ISO 14001 standards, Jucheng Precision ensures that our thermoset production is optimized for minimal environmental impact. While thermoplastics can be re-melted, the high energy cost of maintaining a 300°C melt-barrel often negates the recycling benefit. Our RIM process operates at near room temperature, consuming 80% less thermal energy per shot. By delivering sustainable hardware solutions, we help our global partners meet their ESG goals while receiving parts that possess the ultimate impact strength and chemical resistance required for high-volume, long-life industrial service in the current market.
Integrated hardware registration features are the final quality check. Jucheng Precision machines "Locking Nests" and recessed gasket tracks directly into the structural shell with +/- 0.05mm accuracy. This ensuring that when your touchscreens and card-readers arrive at the site, they "Snap" into place with a perfectly flush fit. By delivering hardware with integrated "Geometric Zero" alignment, Jucheng Precision allows your field technicians to focus on the software and connectivity rather than manual filing or shimming of the panels. We provide the unyielding foundations that keep your innovation moving through the high-stakes cycles of the global infrastructure market.
FAQ: Real Answers for Sizing, Surface Finish, and Sourcing Logistics
What is the maximum part length Jucheng Precision can RIM mold?
We regularly produce structural fenders and console shells up to 2,500mm in length with consistent wall thickness.
Can I get a set of 10 parts in a specific Pantone color?
Yes. We provide permanent color-through resin mixing and high-gloss 2K topcoat painting to match any brand identity.
How do you handle the mounting of heavy sensors in large shells?
We specialize in the encapsulation with Polyurethane RIM of threaded steel or aluminum mounting frames for unyielding torque resistance.
What is the lead time for a 1-meter RIM aluminum tool?
Custom aluminum rapid tools and initial T1 samples are typically delivered in 15 to 20 business days in our Shenzhen facility.
Do you provide material traceability reports?
Yes. Jucheng Precision provide full Material Test Reports (MTR) and batch logs for every automotive and medical production run.
Tooling debt and oversized part warpage are absolute innovation killers for high-end robotic and medical systems. Partnering with Jucheng Precision ensures that your functional iterations are built with the cost-effective polyurethane reaction injection molding and specialized reaction injection molding parts knowledge the industry demands. Reach out to our Shenzhen manufacturing hub today for a complete DFM review and build the unyielding foundation your autonomous fleet requires.
