Thread Cutting Techniques and Essential Tools Guide
Views: 2 Author: Site Editor Publish Time: 2025-10-23 Origin: Site
Have you ever wondered how a screw holds things together? Or what those spiral grooves on a bolt are called? They are called "threads," and making them is a process known as thread cutting. It's like carving a tiny, spiral staircase onto a piece of metal or plastic. This is super important for building almost everything, from your bicycle to video game consoles. In this guide, we'll learn about the different ways to make threads and the cool tools people use.
Imagine you have a round pencil. Now, imagine wrapping a piece of string around it in a spiral. Thread cutting is the industrial way of making that spiral groove on something hard like metal. These grooves allow screws to bite into materials and hold tight. The job can be done by hand or with big machines. The goal is always to make the threads clean and accurate so that every part fits together perfectly, like LEGO bricks.
Cool Tools for Making Threads
You need special tools to carve these spiral grooves. Let's talk about a thread cutting tool. This is a general name for any tool that makes threads.
For making threads inside a hole (like what a screw goes into), you use a tool called a "tap." It looks like a rough, metal screw and it carves out the groove as you twist it in.
For making threads on the outside of a rod (like on a bolt), you use a "die." It's like a round, metal donut with sharp teeth inside that you twist around the rod.
Many people buy an all thread cutting tool kit. This is like a superhero toolbox that has many different taps and dies in various sizes, so you're ready for any job!
Screws That Cut Their Own Path

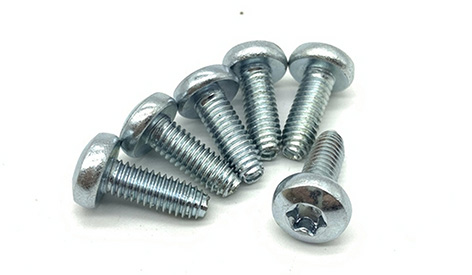

Now, here's a clever invention: thread cutting screws. These are special screws that are like tiny swords. They are very hard and sharp, and they can cut their own threads as you screw them into a soft material like plastic or soft metal. You just drill a small starter hole, and the screw does the rest of the work! This saves a lot of time because you don't have to carve the threads first.
Nuts That Can Carve Too!
Just like there are special screws, there are also thread cutting nuts. A nut is the small piece with a hole that twists onto the end of a bolt. A thread cutting nut has sharp edges inside its hole. If the bolt's threads are a little damaged, or if you're attaching it to something soft, this nut can re-carve the path as you tighten it. It's a great fixer!
Using a Big Machine: The Lathe

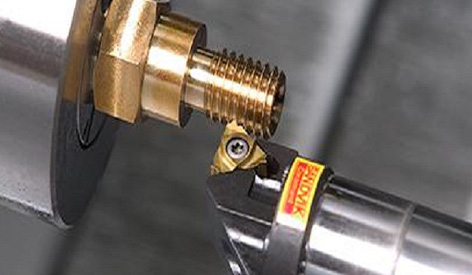

For making really precise and custom parts, machinists use a big machine called a lathe. Thread cutting on a lathe is like using a super-powered pottery wheel. The machine spins the metal rod very fast. Then, a super sharp cutting tool is carefully pressed against the spinning rod. As the rod spins, the tool slowly moves along it, shaving off a thin layer of metal in a perfect spiral pattern. This is how you can make very strong, perfect threads for things like car parts.
Handy Kits for Small Jobs
What if you just need to fix the threads on a bike pedal? You probably don't need a giant lathe! This is where a thread cutting die set comes in handy. It's a small box that usually holds several different-sized dies and a handle to turn them. It’s perfect for do-it-yourself projects and quick repairs around the house. You just pick the right size die, put it in the handle, and twist it onto a metal rod to create new threads.
The Super-Smart Bolts
Finally, let's look at self thread cutting bolts. These are very similar to thread cutting screws, but they are usually bigger and stronger. They are designed to be screwed directly into a plain, unthreaded hole. Their tips have cutting edges that dig into the metal, creating their own matching threads as they go in. You see these used in building heavy metal frames or even in some playground equipment!
In conclusion, thread cutting is a critical process that underpins many aspects of modern engineering and manufacturing. From the precision of thread cutting on a lathe to the convenience of self thread cutting bolts, each method and tool offers unique benefits for creating durable, reliable threads. Key tools like thread cutting screws, thread cutting nuts, and thread cutting die sets provide practical solutions for various applications, while all thread cutting tools ensure versatility across different projects. As industries continue to evolve, embracing innovations in materials and digital automation will further refine thread cutting techniques, leading to higher efficiency and quality. By staying informed about these developments and applying best practices—such as proper tool maintenance and material selection—professionals can optimize their workflows and overcome challenges in thread production.The methods of thread processing include turning and milling, etc
