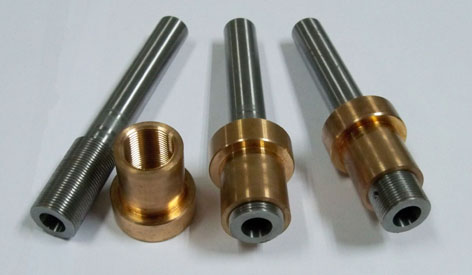

Precision Threading

Precision threading is a critical process in manufacturing, especially in industries where high accuracy and reliability are essential, such as aerospace, automotive, medical devices, and precision engineering. This article explores the key factors that ensure success and stability in precision threading, including material selection, tooling, process optimization, quality control, and best practices.

Introduction to Precision Threading

Threading is a machining process used to create helical grooves on the internal or external surface of a cylindrical workpiece. These grooves form the threads of a screw, nut, or bolt, which are essential components for mechanical assembly and fastening. Precision threading involves the production of threads with tight tolerances and high accuracy, ensuring reliable performance and fit in critical applications.

Types of Threads

1. Unified Thread Standard (UTS): Commonly used in North America, UTS threads include Unified National Coarse (UNC), Unified National Fine (UNF), and Unified National Extra Fine (UNEF) classifications.

2. Metric Threads: Widely used internationally, metric threads are classified by their pitch and diameter, such as M6x1.0.

3. British Standard Whitworth (BSW): An older thread standard still used in some applications, characterized by a 55-degree thread angle.

4. Acme Threads: Used in power transmission applications, Acme threads have a trapezoidal profile for higher load-carrying capacity.

Ensuring Success in Precision Threading

Material Selection

Choosing the right material is crucial for precision threading. Different materials exhibit varying machinability, which affects the quality of the threads produced. Key considerations include:

1. Machinability: Materials with good machinability, such as aluminum, brass, and certain steel alloys, produce clean and accurate threads with minimal tool wear.

2. Hardness: Hard materials, like stainless steel and titanium, require specialized tooling and techniques to achieve precise threads without damaging the tool or workpiece.

3. Ductility: Ductile materials, such as copper and soft plastics, can deform during threading, necessitating careful process control to maintain thread integrity.

Tooling for Precision Threading

Selecting the right tools is essential for achieving high-quality threads. Key tooling considerations include:

1. Threading Tools: Various tools are used for threading, including taps, dies, single-point threading tools, and thread milling cutters. Each tool type has specific applications and advantages.

2. Tool Material: High-speed steel (HSS) and carbide are commonly used materials for threading tools. Carbide tools offer superior wear resistance and performance in hard materials, while HSS tools are more cost-effective for general-purpose threading.

3. Tool Geometry: The geometry of the threading tool, including rake angle, clearance angle, and helix angle, affects the cutting action and chip formation. Optimizing tool geometry enhances thread quality and tool life.

Process Optimization

Optimizing the threading process involves fine-tuning various parameters to achieve consistent and accurate results. Key process parameters include:

1. Cutting Speed and Feed Rate: The cutting speed and feed rate must be adjusted based on the material, tool, and desired thread quality. Too high a speed can cause tool wear and poor surface finish, while too low a speed can result in built-up edge and material tearing.

2. Coolant and Lubrication: Proper coolant and lubrication reduce heat generation, minimize tool wear, and improve chip evacuation. Choosing the right coolant type and application method is essential for maintaining thread quality.

3. Depth of Cut: Gradual increases in the depth of cut, rather than taking a full-depth cut in one pass, ensure better control over the threading process and reduce tool stress.

Quality Control in Precision Threading

Ensuring the quality of threaded parts involves rigorous inspection and testing. Key quality control methods include:

1. Thread Gauges: Go/no-go gauges are used to verify the accuracy and fit of internal and external threads. These gauges ensure that the threads meet specified tolerances.

2. Optical Inspection: High-resolution optical microscopes and vision systems can detect surface defects, thread form errors, and dimensional inaccuracies.

3. Coordinate Measuring Machines (CMMs): CMMs provide precise measurements of thread dimensions, including pitch diameter, major diameter, and minor diameter, ensuring compliance with design specifications.

Best Practices for Precision Threading

Adopting best practices in threading operations enhances success and stability. Key best practices include:

1. Tool Maintenance: Regular inspection and maintenance of threading tools prevent wear and damage, ensuring consistent thread quality. This includes re-sharpening or replacing tools as needed.

2. Process Documentation: Maintaining detailed records of threading parameters, tool settings, and inspection results enables process optimization and troubleshooting.

3. Training and Skill Development: Investing in training for machine operators and technicians enhances their skills and understanding of threading processes, leading to better outcomes and reduced errors.

Advanced Threading Techniques

In addition to conventional threading methods, advanced techniques can further improve precision and efficiency:

1. Thread Rolling: Thread rolling is a cold forming process that produces threads by displacing material rather than cutting it. This method creates stronger threads with improved surface finish and dimensional accuracy.

2. Thread Whirling: Thread whirling involves rotating a cutting tool around a workpiece to produce threads with high speed and precision. It is particularly useful for long threads and difficult-to-machine materials.

3. Thread Milling: Thread milling uses a multi-point cutter to produce threads in a helical path. This method allows for greater flexibility in thread design and is suitable for both internal and external threads.

Conclusion

Precision threading is a critical aspect of manufacturing that requires careful attention to material selection, tooling, process optimization, quality control, and best practices. By understanding and addressing the challenges associated with threading, manufacturers can achieve high-quality, reliable threads that meet the stringent requirements of various industries.


At Jucheng Precision, we specialize in providing high-quality precision threading services for a wide range of applications. Our advanced equipment, skilled technicians, and commitment to excellence ensure that every threaded part we produce meets the highest standards of accuracy and reliability.


Whether you need threading for aerospace components, automotive parts, medical devices, or precision engineering projects, Jucheng Precision has the expertise and technology to deliver exceptional results. Contact us today to learn more about our precision threading capabilities and how we can help you achieve your manufacturing goals with precision and efficiency. Experience the difference with Jucheng Precision – your trusted partner for precision machining solutions.
